Evolution Cordless R255SMS-DB-Li Double Bevel Mitre Saw & XL Stand
SKU: 100-0001A+005-0005
- Cordless Multi-material cutting, any material anywhere.
- Powerful, hi-torque 36 Volt (2 x 18V) Brushless DC motor.
- Cut 48° - 48° (L & R) bevel tilt and 50˚ - 50˚ mitre angles.

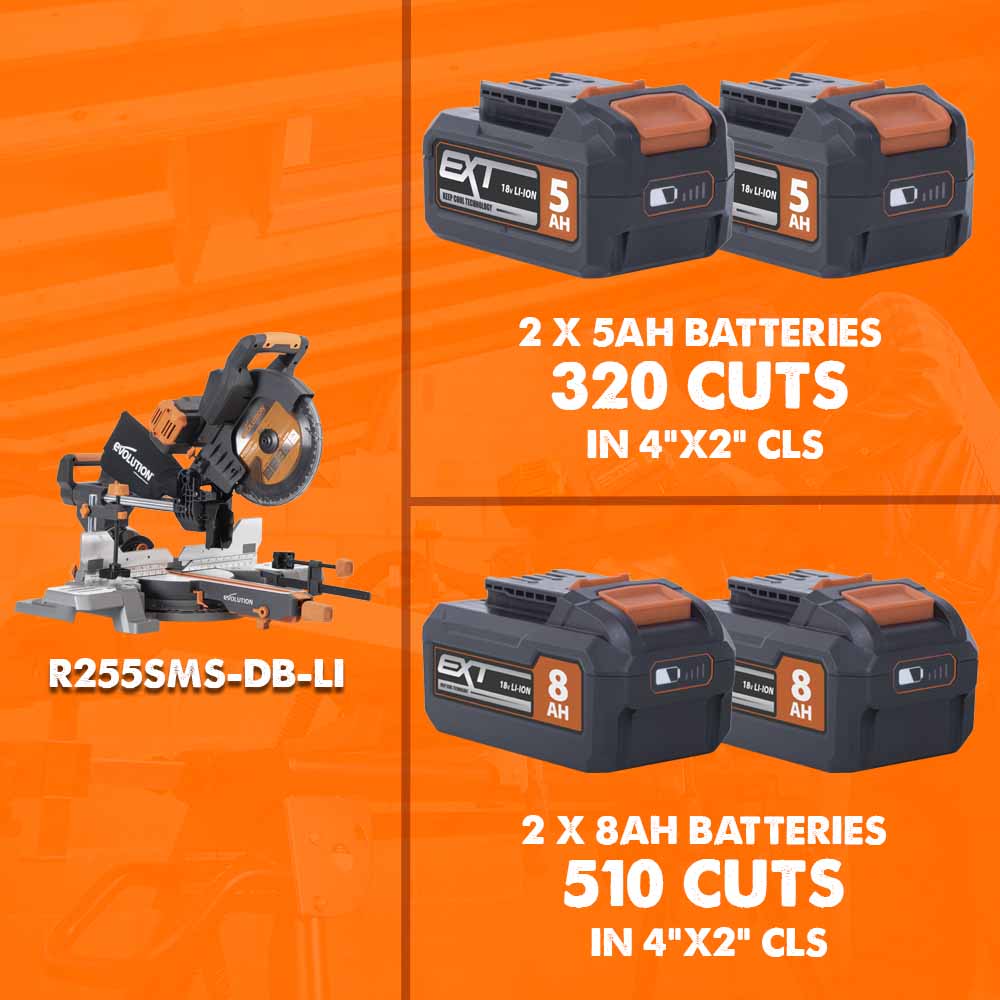

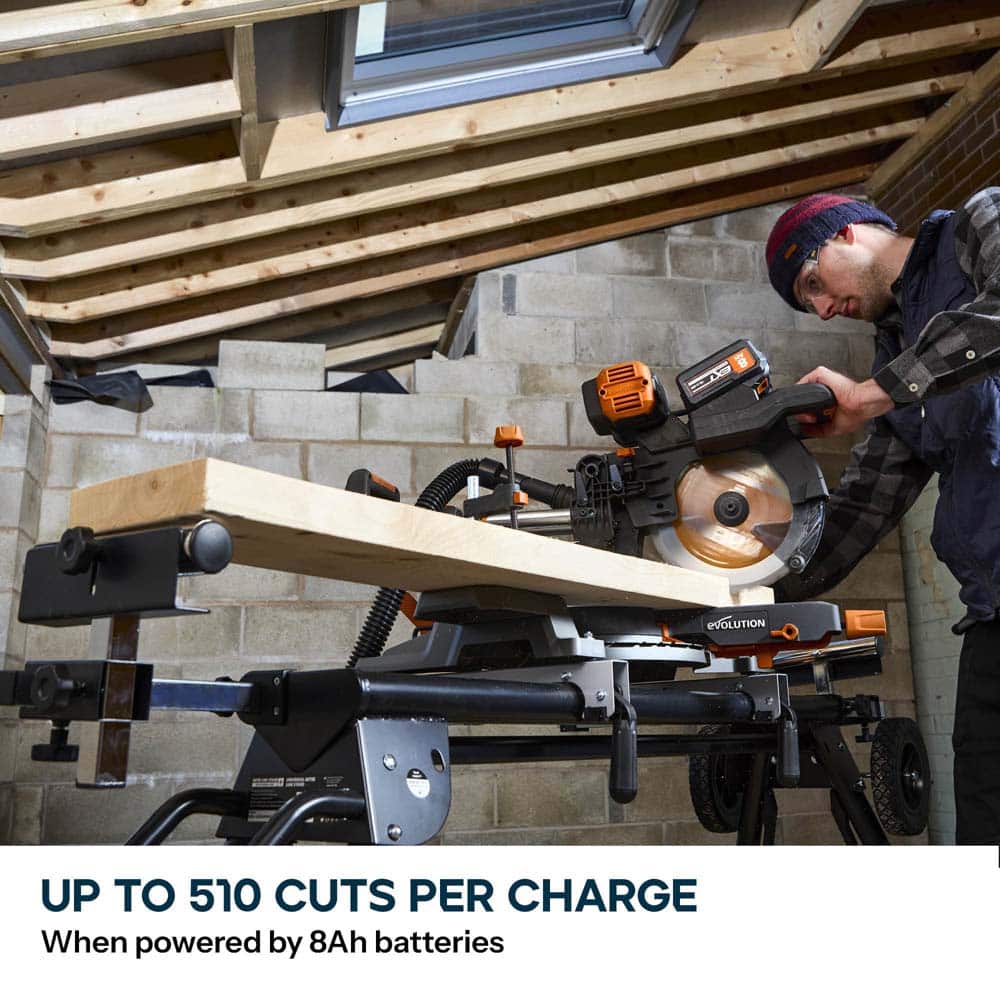

- 320 cuts in 4x2" CLS from a single charge (2 x 5Ah) Read more
Power Supply: | Cordless |
Condition: | New |

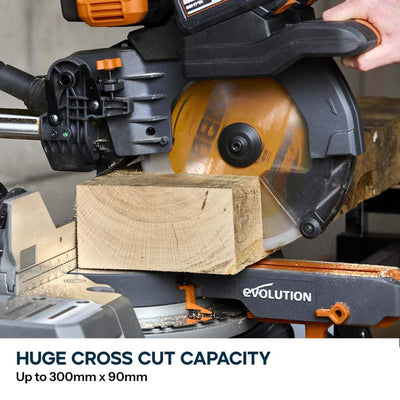

Max. Cross Cut: | 305 x 90mm |
Max. Bevel Cut: | 305mm x 52mm (L) 305mm x 33mm (R) |
Mitre Cut: | 215mm x 90mm |
Compound Cut: | 215mm x 52mm (L) 215mm x 33mm (R) |
Compatible with: Evolution and Erbauer EXT 18V Li-Ion Batteries
3 Year Warranty on Saws, 2 Year Warranty on Stands
3 Year Warranty
45 Day Returns
Earn 715 EVO Points + 5% off your first order
Frequently Bought Together
Recommended Accessories
Description
FREE 2x 8Ah battery upgrade.

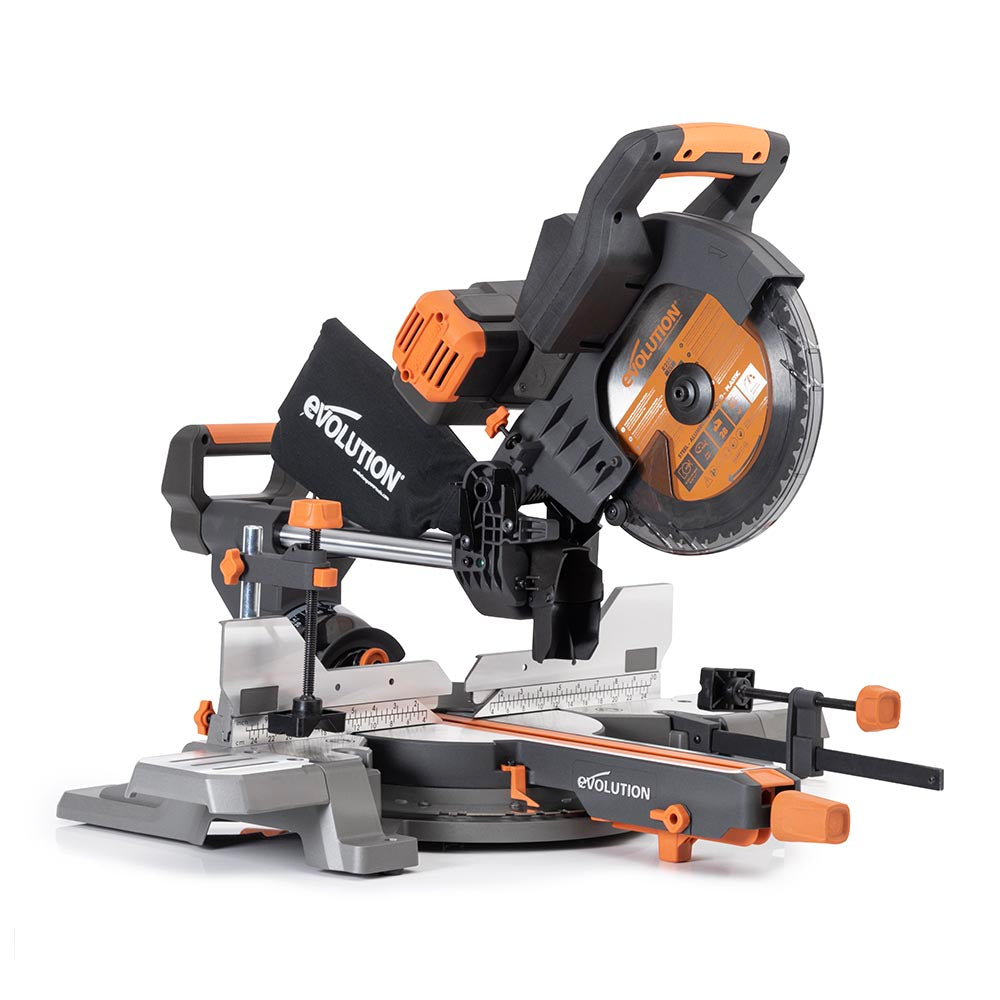

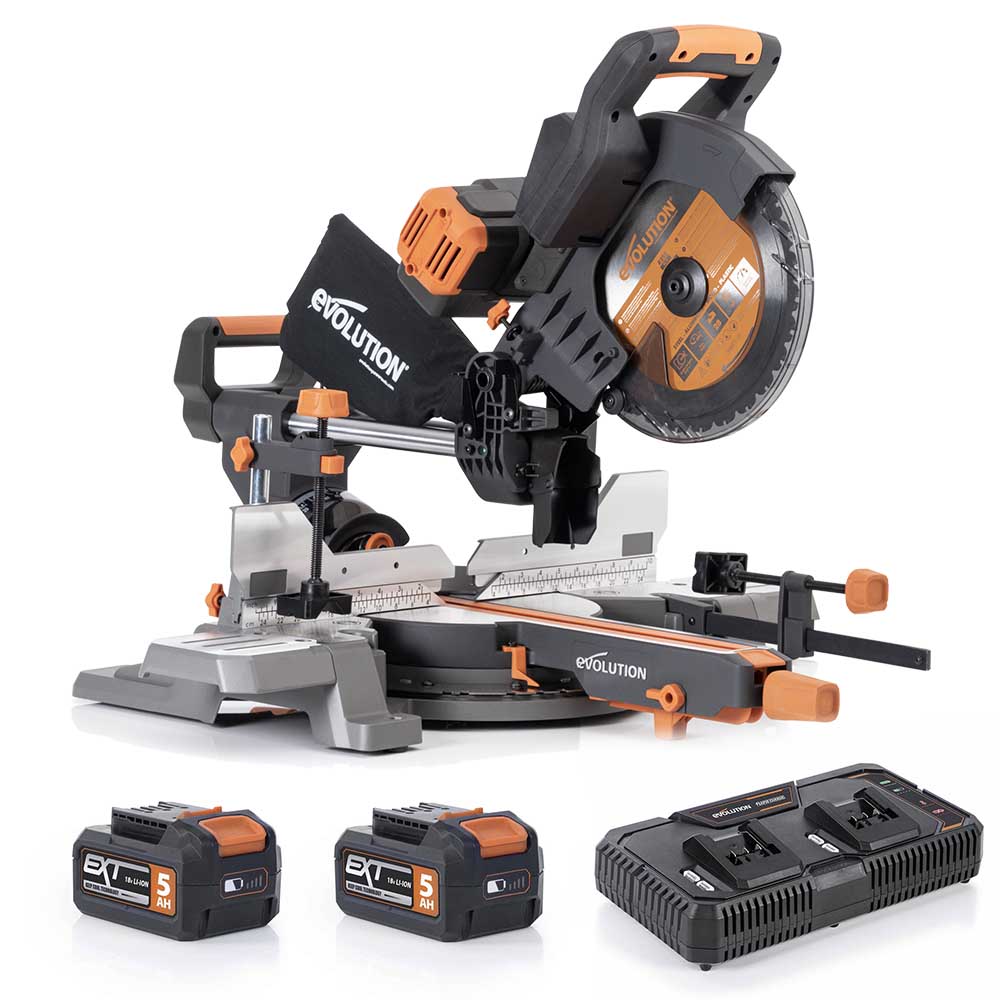

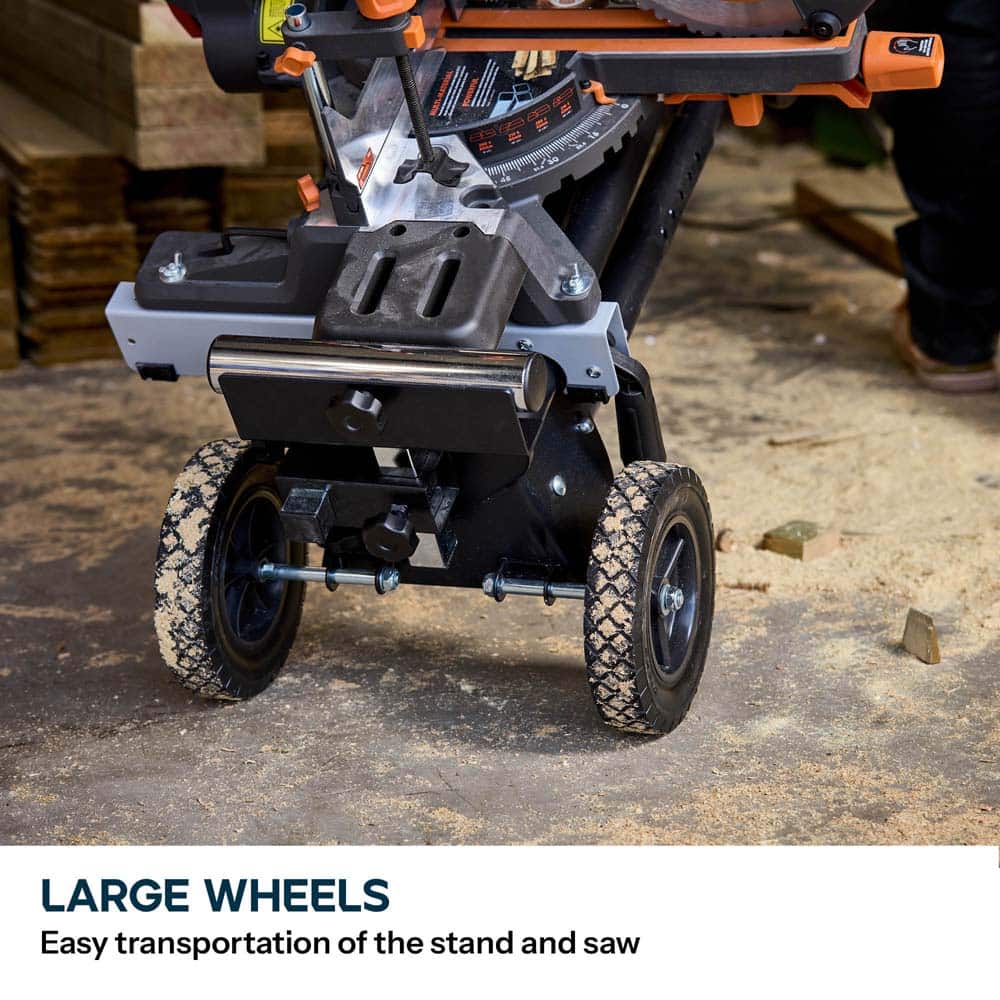

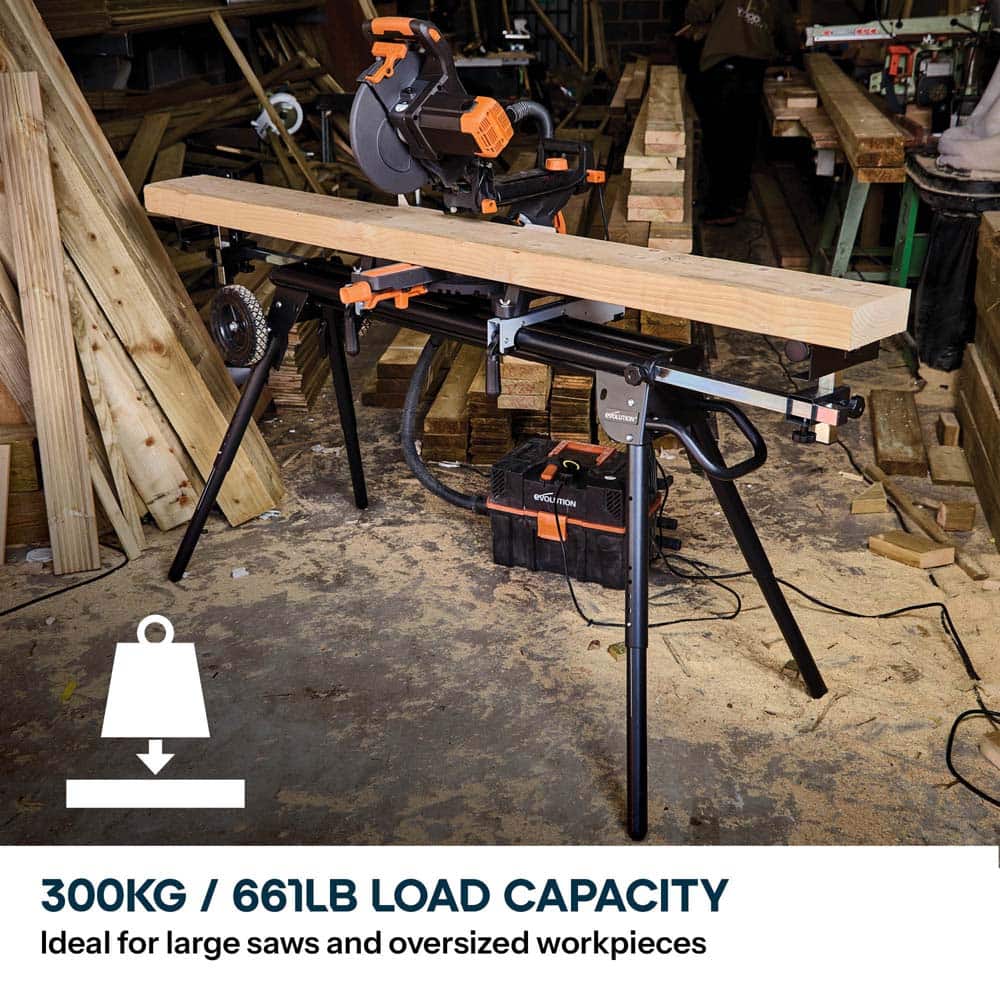

R255SMS-DB-Li Double Bevel, Double Battery, Cordless, 36 Volt Brushless Mitre Saw & XL Rolling Mitre Saw Stand.
Ready for jobsite and DIY use it delivers accurate double bevel cutting with +/- 48-degree bevel and +/-50-degree mitre capability. Reliable, smooth, square cuts every time in a variety of materials. Powerful hi-torque Brushless DC motor with optimized gearbox & blade system. Compact, lightweight & robust design, weighing only 16.6kg. Powered by two 18v EXT batteries the R255SMS-DB-Li Cordless Double Bevel Mitre Saw provides long run times from a single charge and has the power to get the job done. Add it to one of our Universal Mitre Saw Stands and you have a seriously capable jobsite Mitre Saw.
The R255SMS-DB-Li 36V Cordless Double Bevel Mitre Saw is packed with features; Multi-material cutting technology, up to 97% dust collection with our R15VAC, its large 305mm x 90mm cross-cut capacity offers a touch more cutting capacity than the corded Double Bevel model. Our innovative Shadow Line LED cutting guide perfectly projects the blade kerf onto the cutting surface for measure once cut once accuracy and the included Zero Clearance Insert offers enhanced accuracy for making the smallest cuts. The new Cordless Double Bevel Mitre Saw delivers clean and accurate cuts through new and reclaimed wood, as well as cool to the touch, burr-free cuts through mild steel and non-ferrous metals with the supplied Multi-Material blade. It's the ultimate portable 1st and 2nd fix saw.

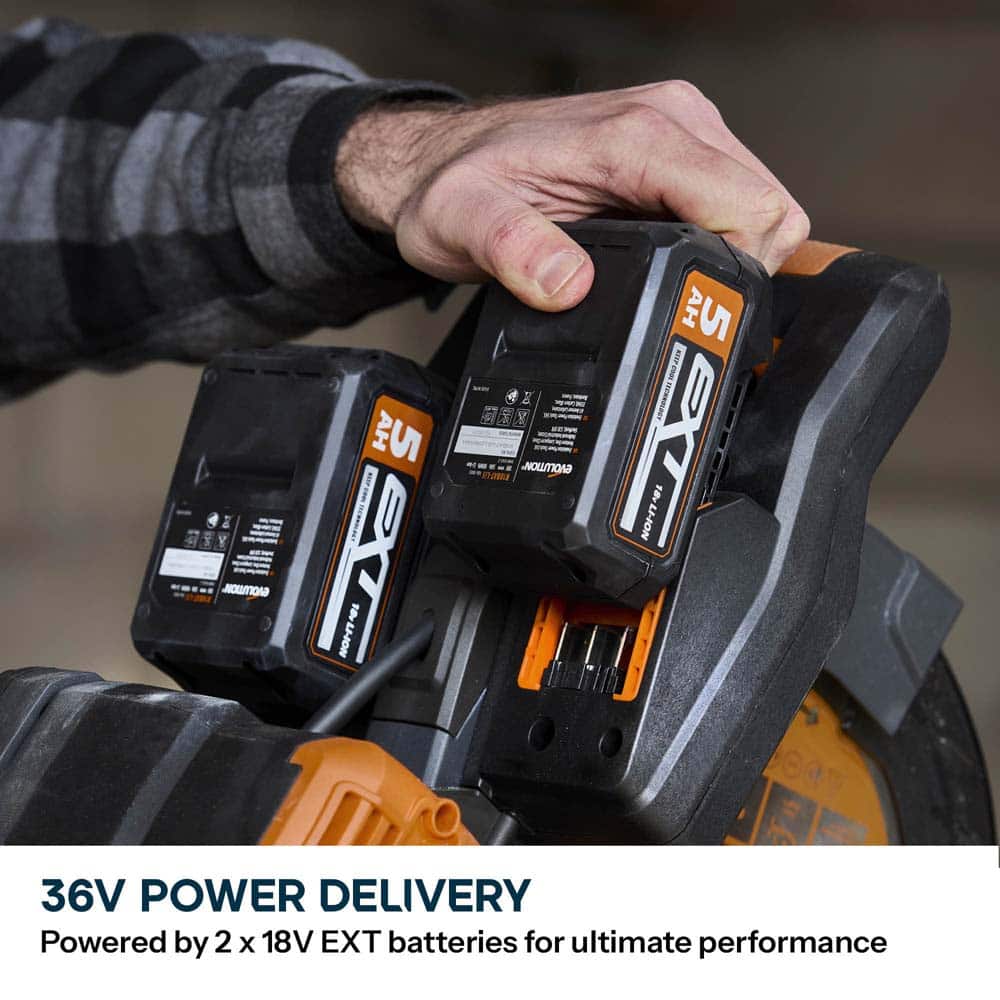

Powered by a pair of Evolution’s 18V EXT Li-Ion batteries to deliver 36 Volt power and performance the R255SMS-DB-Li delivers long run times. The loaded version is bundled with two of our R18BAT-Li5 5Ah batteries and is capable of 320 cuts through 4x2" CLS on a single charge, and as many as 510 cuts per charge when fitted with 2x 8Ah batteries. The R18RCH-Li2 Dual Port Rapid Charger which will take both batteries from zero to fully charged in only 60 minutes. All of Evolution’s EXT Cordless Li-ion power tools are compatible with all EXT batteries, so you can share across multiple tools for maximum versatility.
Choose the new R255SMS-DB-Li Cordless, Double Bevel, Double Battery Mitre Saw and XL Rolling Stand if you want a portable, powerful, accurate, reliable, fully-featured Mitre Saw combo that can cut any material anywhere.
Features

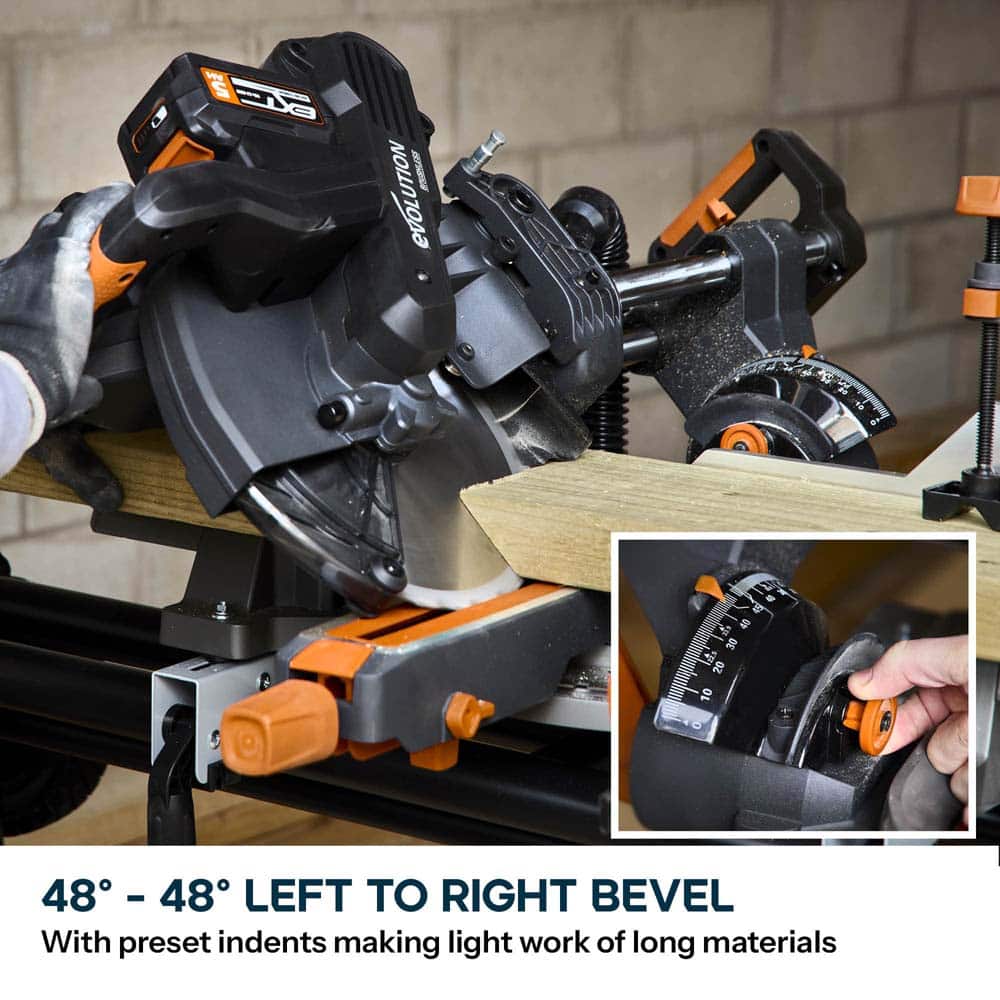

- Double Bevel capable +/- 48° (L & R) bevel tilt and +/-50˚ mitre angles.

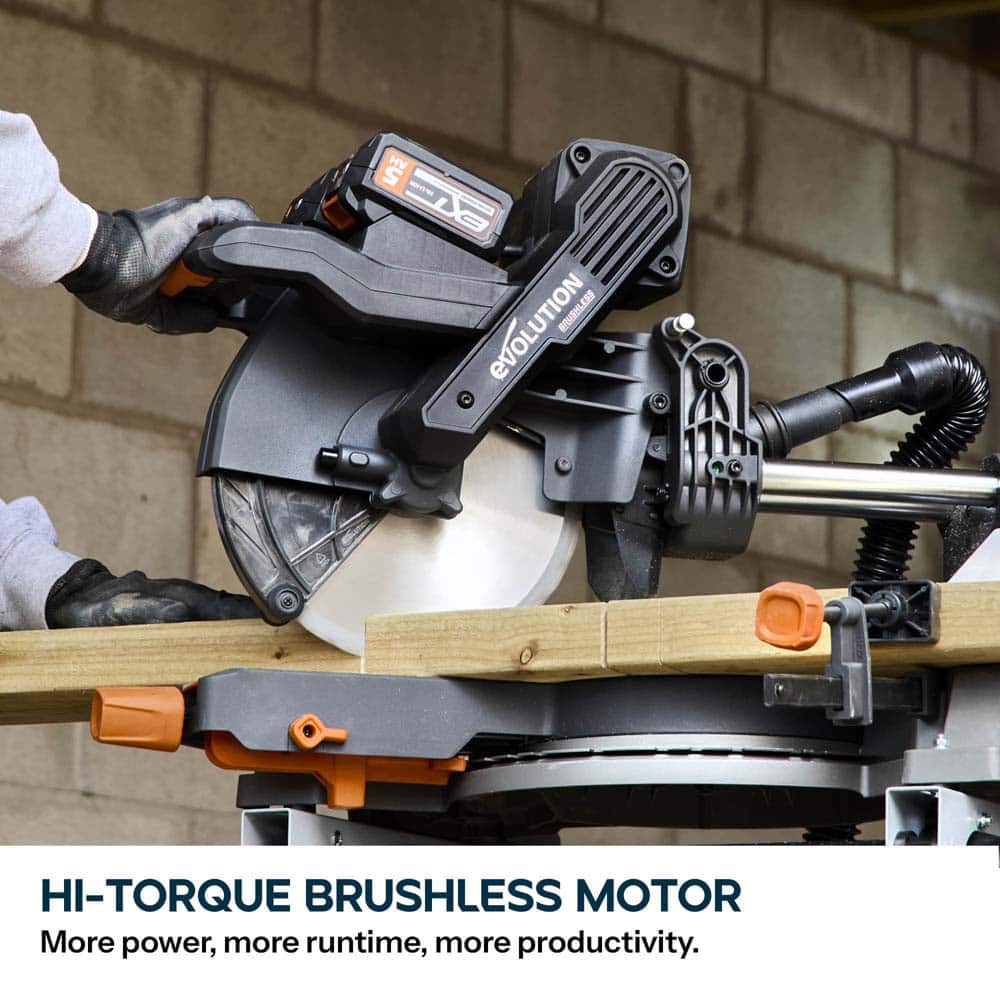

- High Power 36v Brushless DC motor.

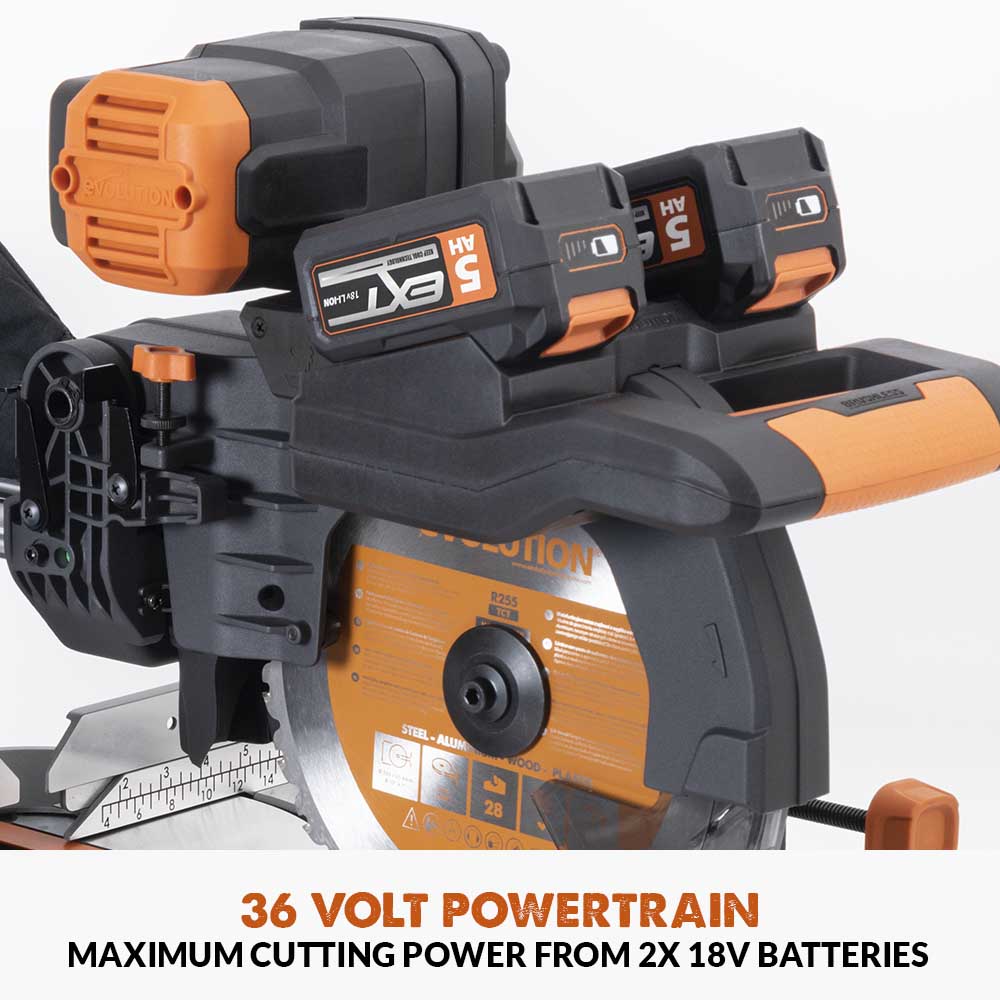

- EVO36 Powertrain, 2x 18v Dual Battery Powered, optimised for maximum battery life and run time from each charge.

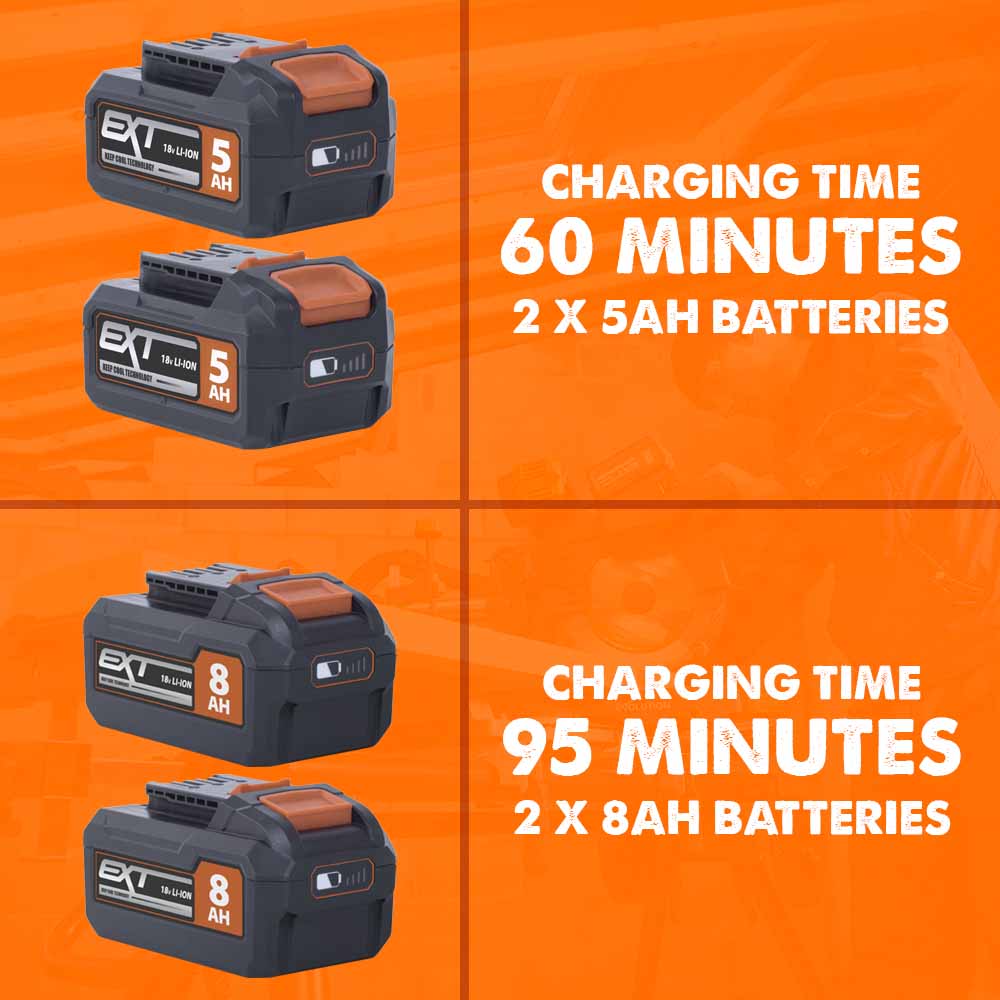

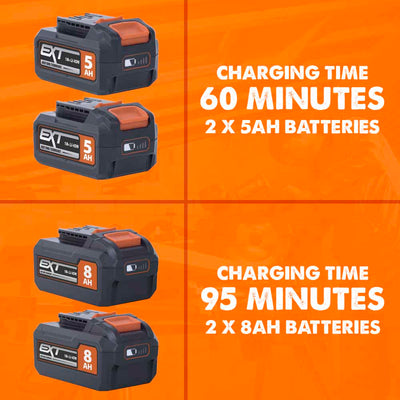

- 60 Minute fast charge time with 2x 5Ah battery.

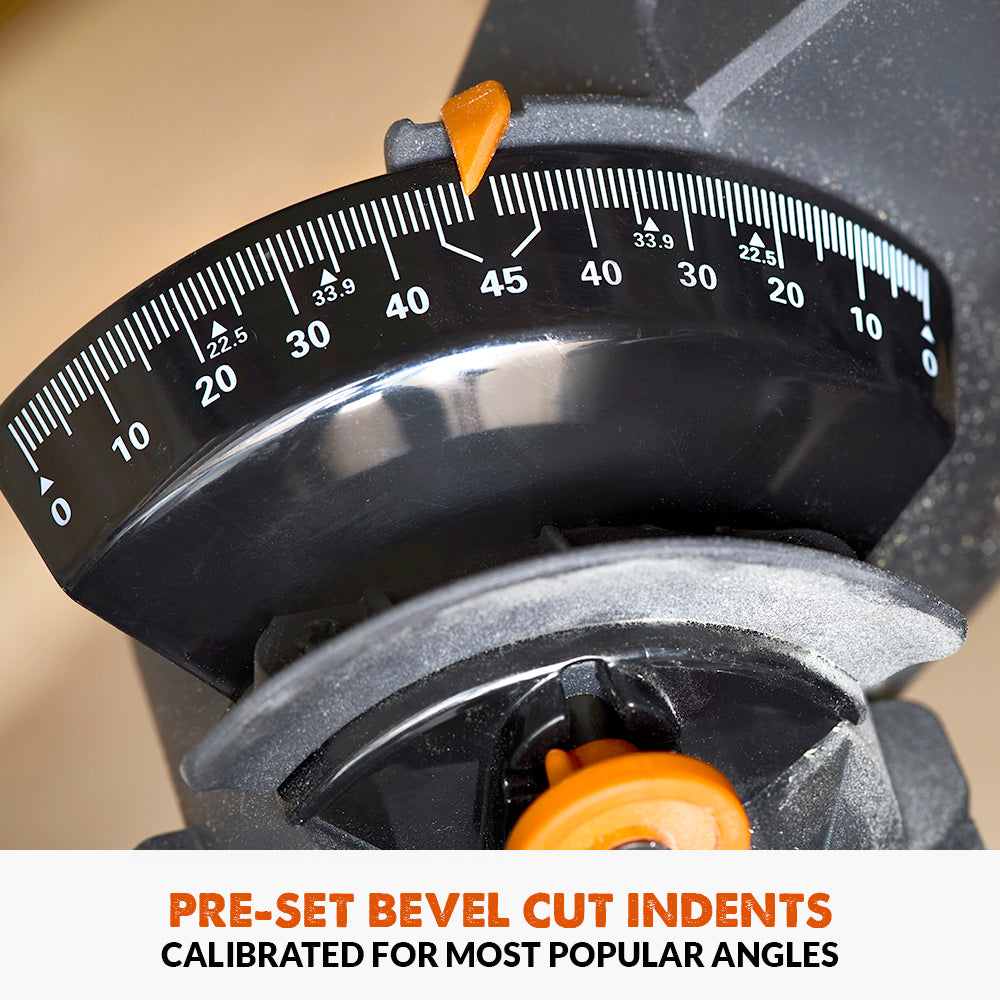

- Accurate, Bevel, Mitre & Compound cuts with detent stops at most popular angles.

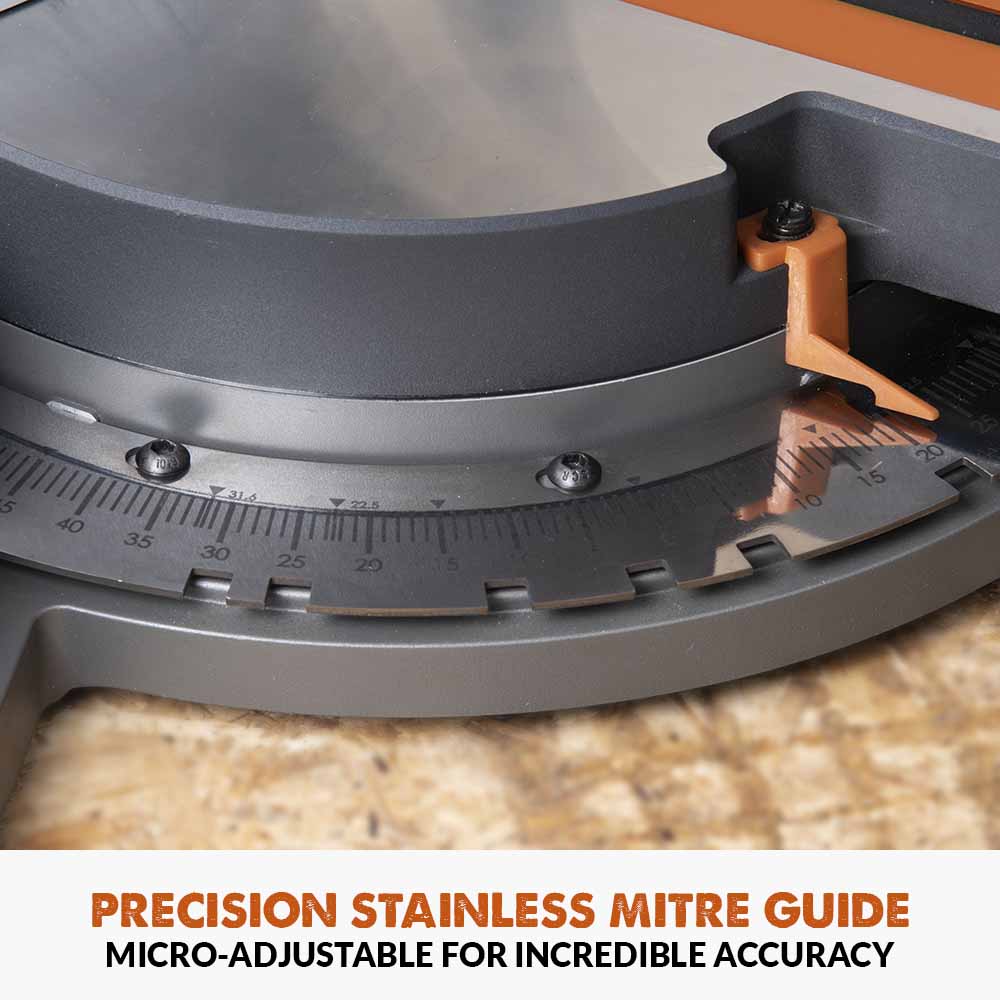

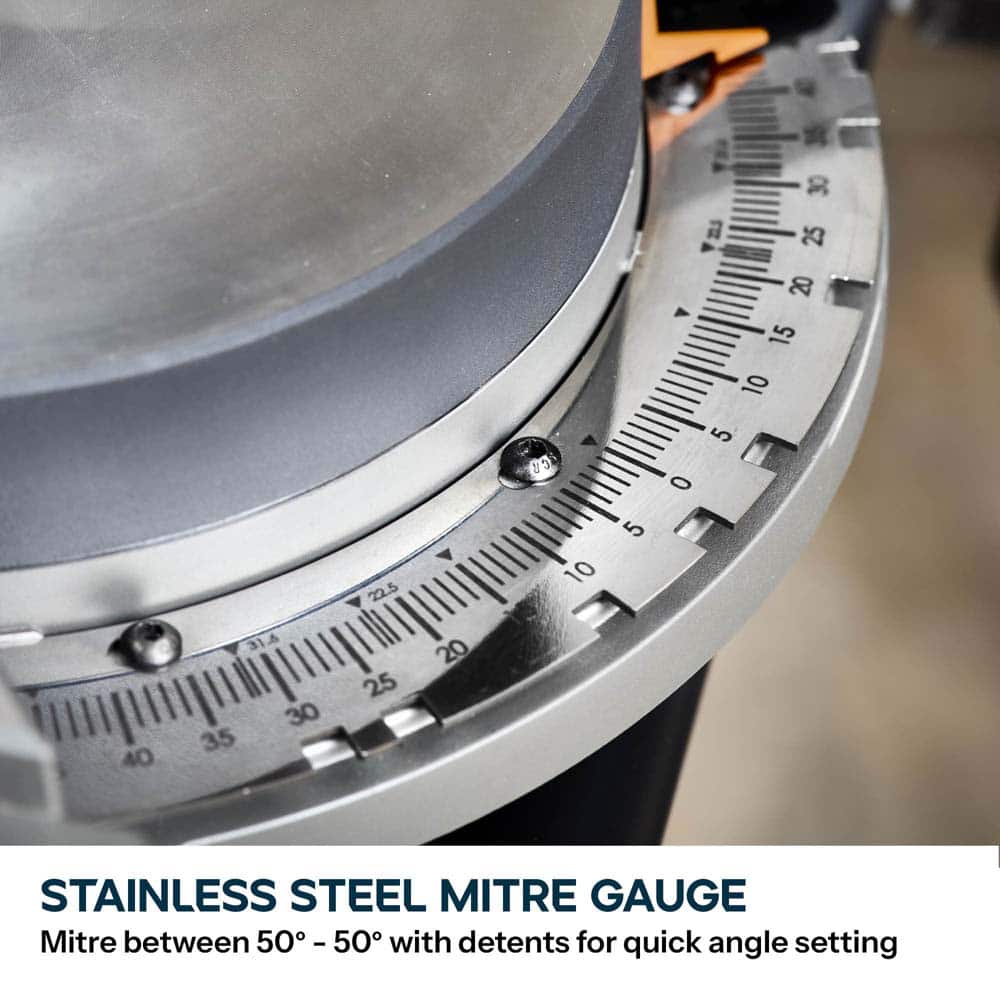

- Stainless Steel Mitre angle guide.
- Mitre Saw Stand compatible

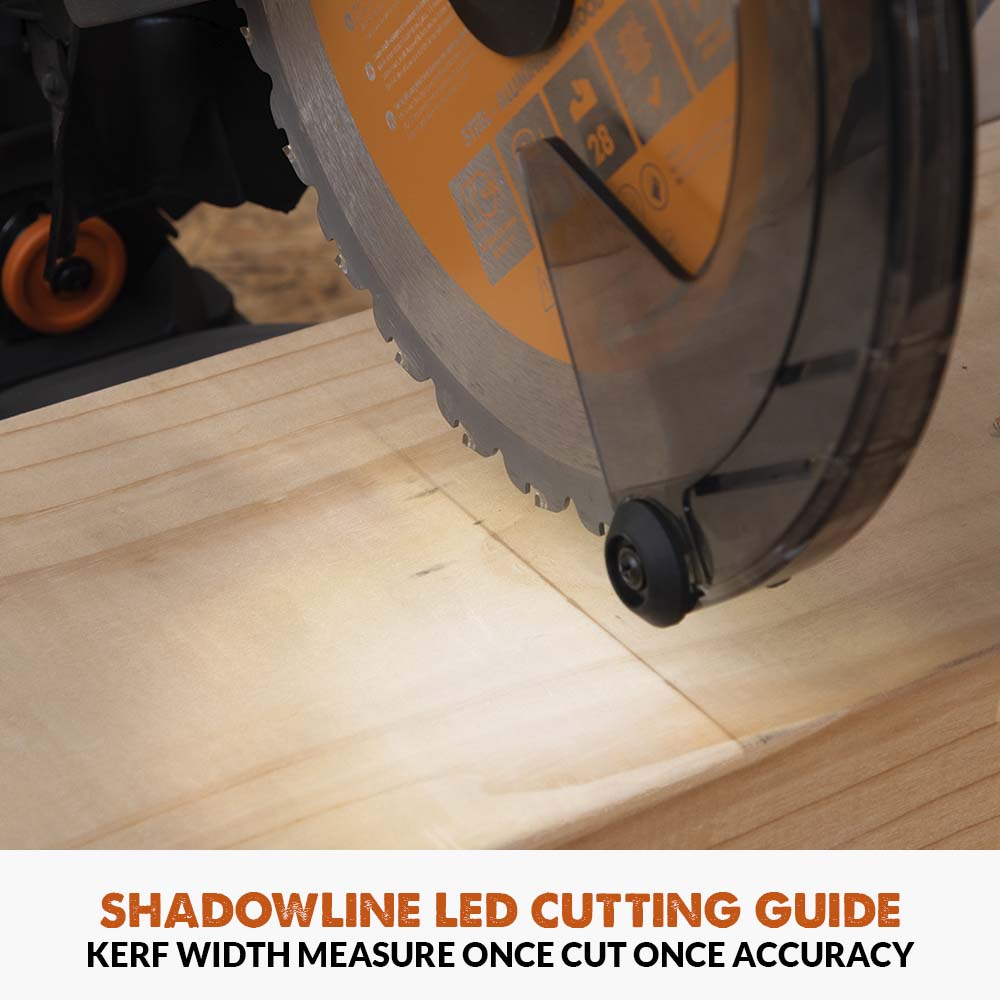

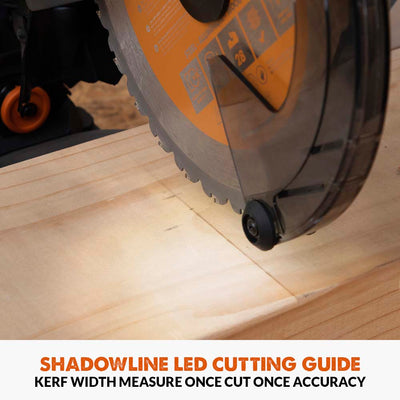

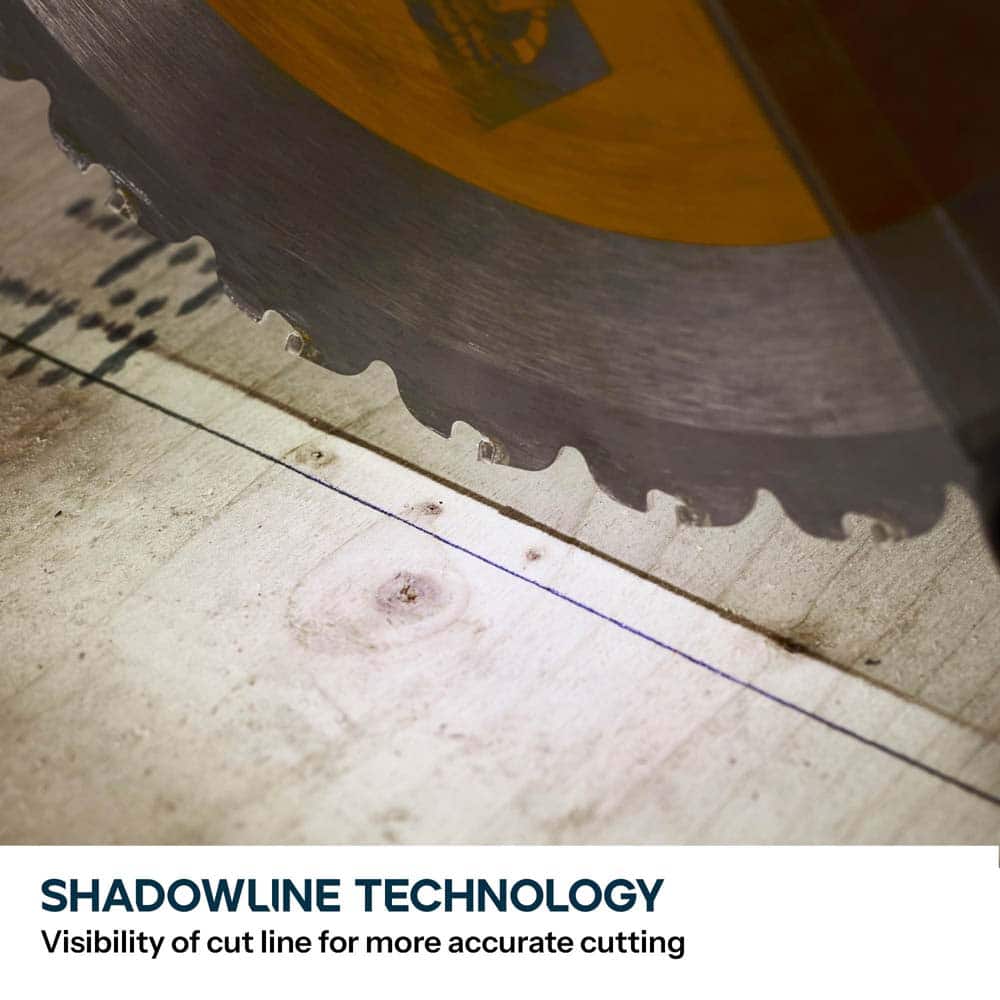

- Shadow Line, kerf width blade cutting guide. Measure once, cut once.
- Mitre Saw Stand compatible for go-anywhere support and stability.

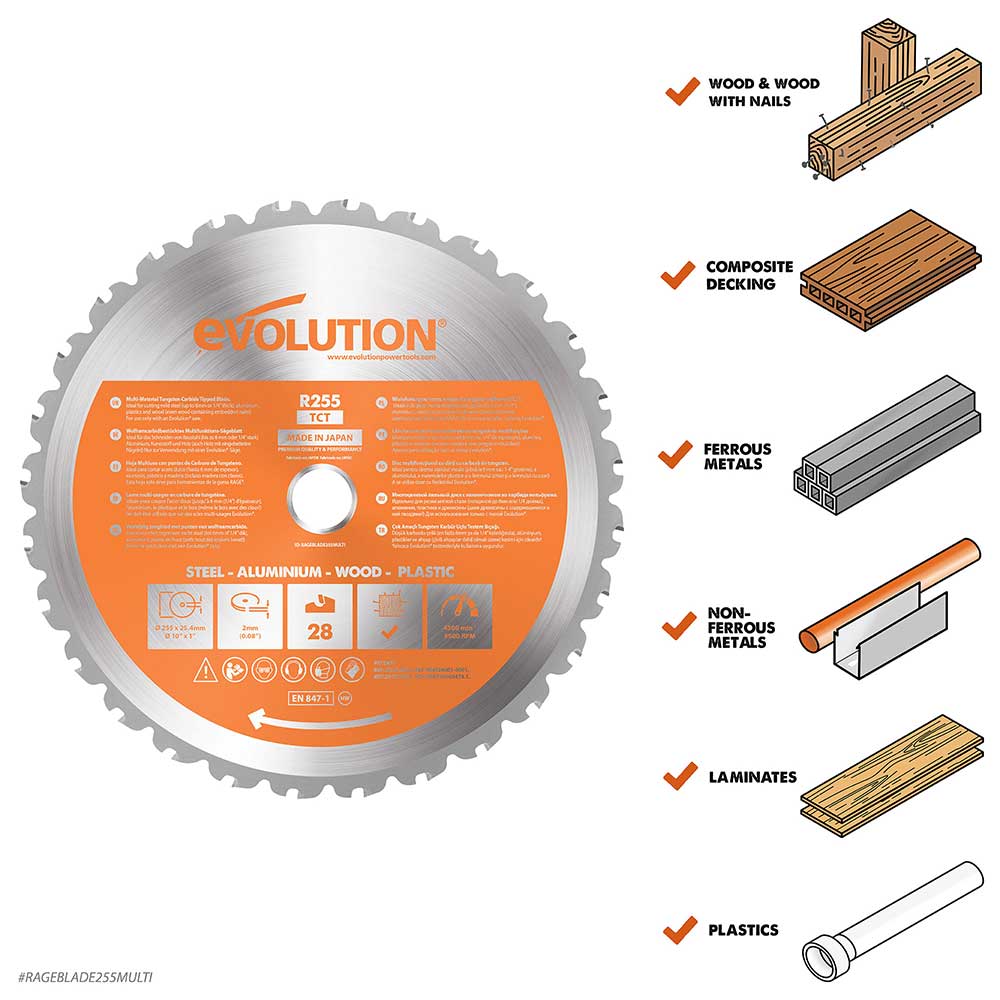

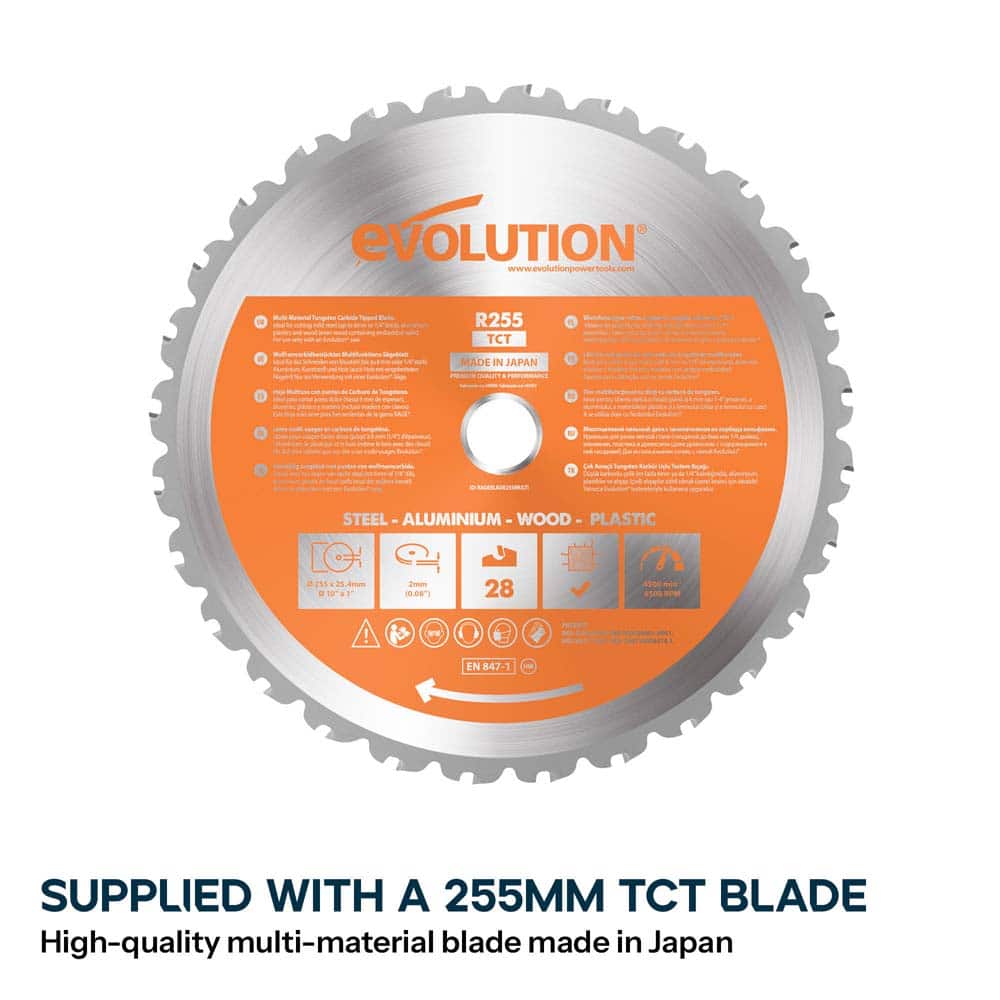

- Multi-Material: premium Japanese 28T Tungsten Carbide Tipped TCT blade, cuts wood, metal, plastic composites and more.
- Virtually spark free metal cuts, with no heat, no burrs and an instantly workable finish

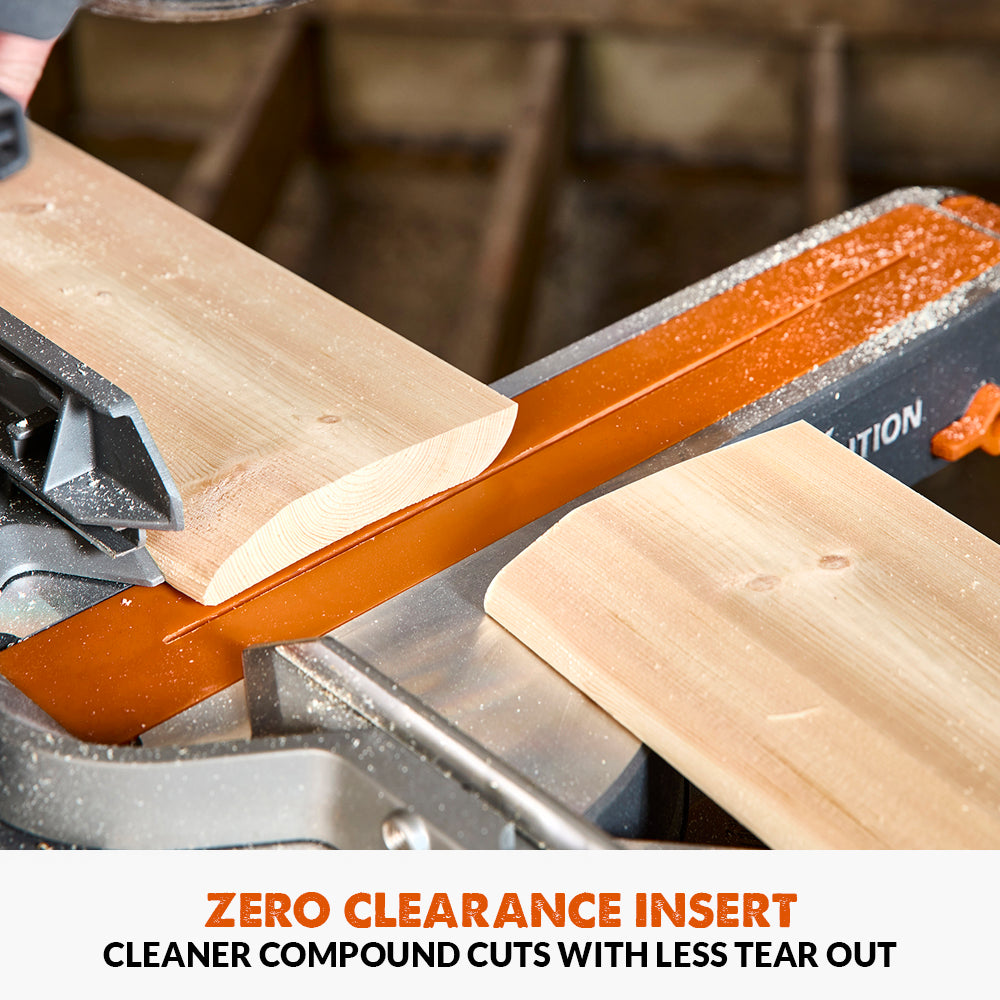

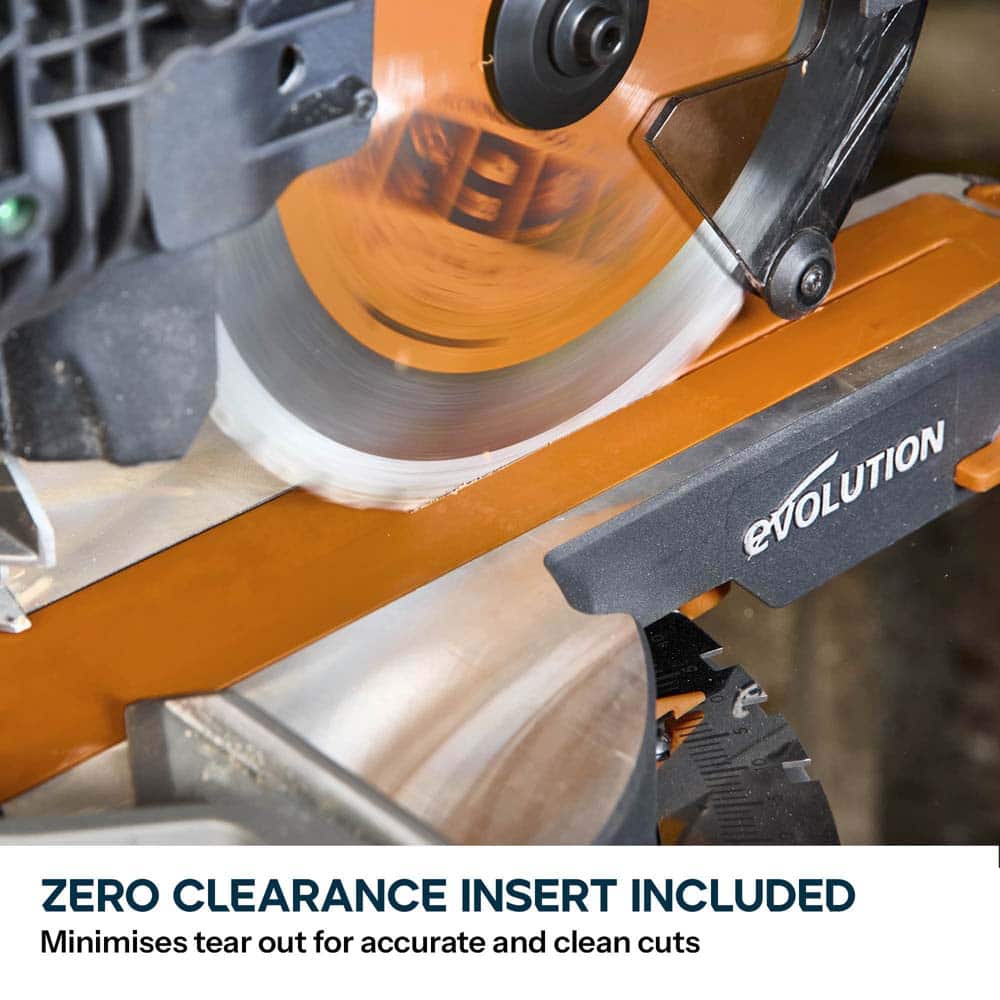

- Zero Clearance Insert Included.
- Depth Stop feature enables accurate trench cuts.
- Back Stop feature for maximum depth cuts.
- Dual size blade arbor 25.4mm and 5/8".
- Cast alloy base & side extensions, trade tough build.
- Ergonomic ambidextrous handles for easy control.
- Improved front and top clamps with self-levelling design.
- Soft Start & quick-stop Electronic Blade Brake For Safety.

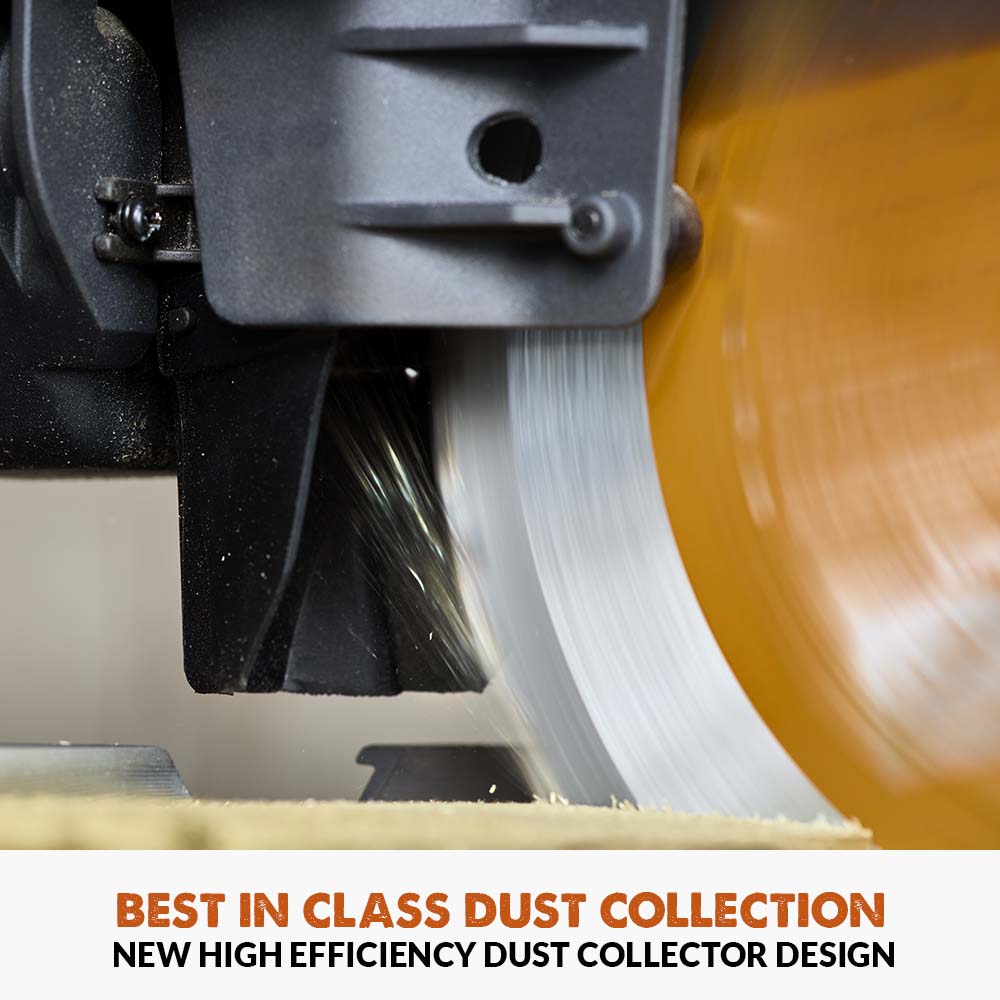

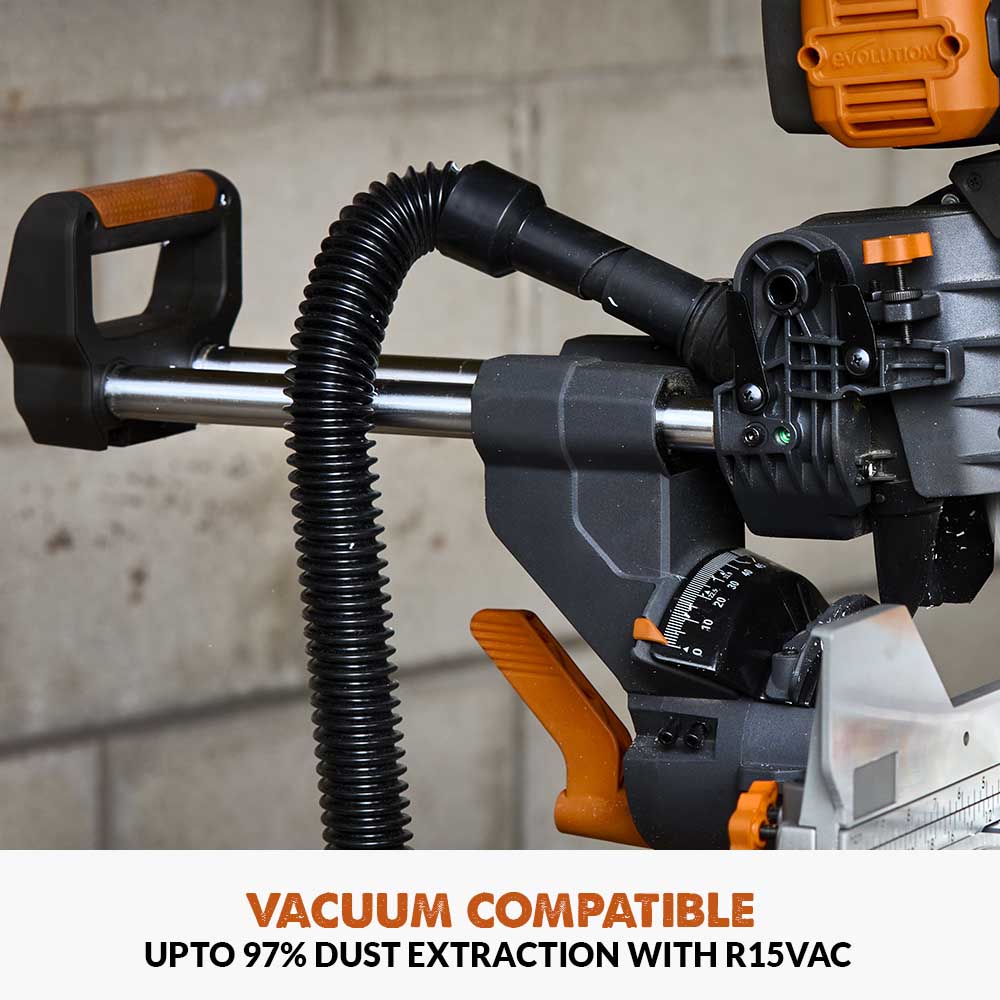

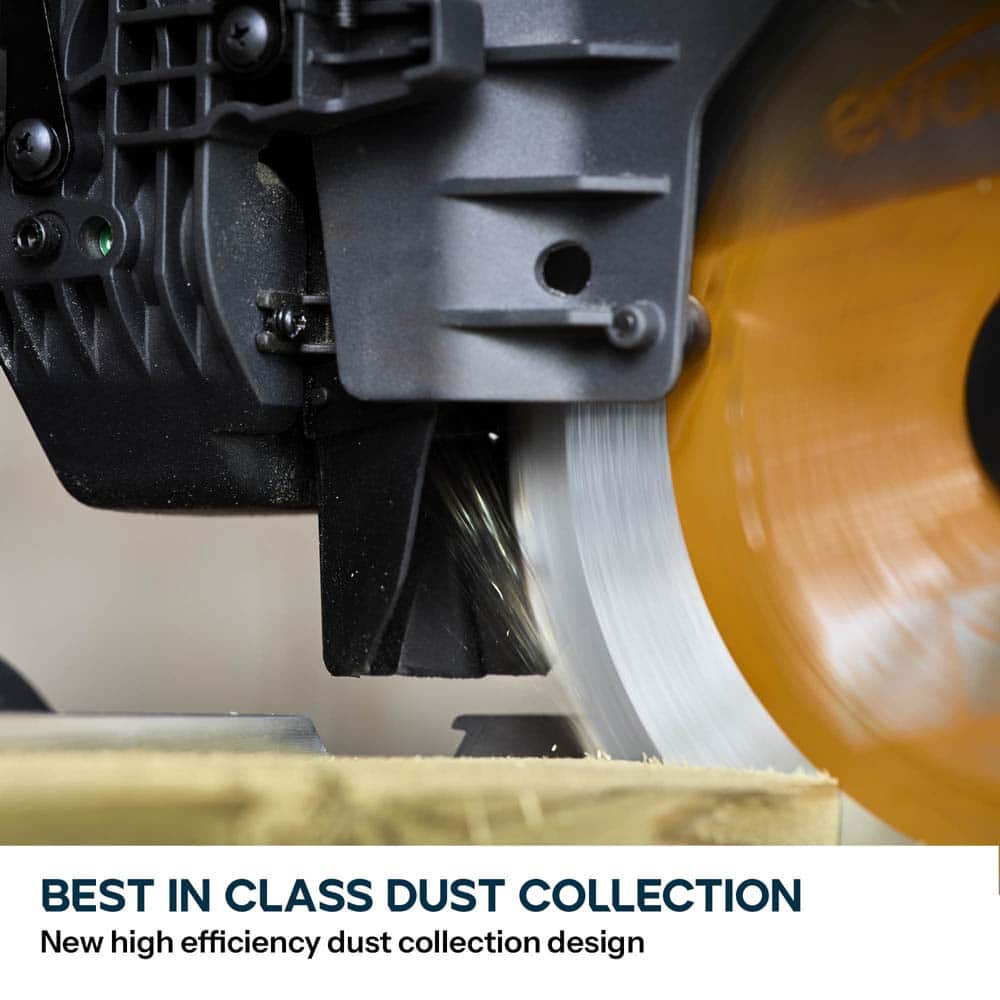

- Vacuum compatible up to 97% dust extraction, R11VAC-LI and R15VAC.
- Dust Bag & Dust Port Adaptor included.
- Single bolt blade change, quick and easy replacement.
- Integrated Carry Handles.
- Diamond masonry blade compatible.

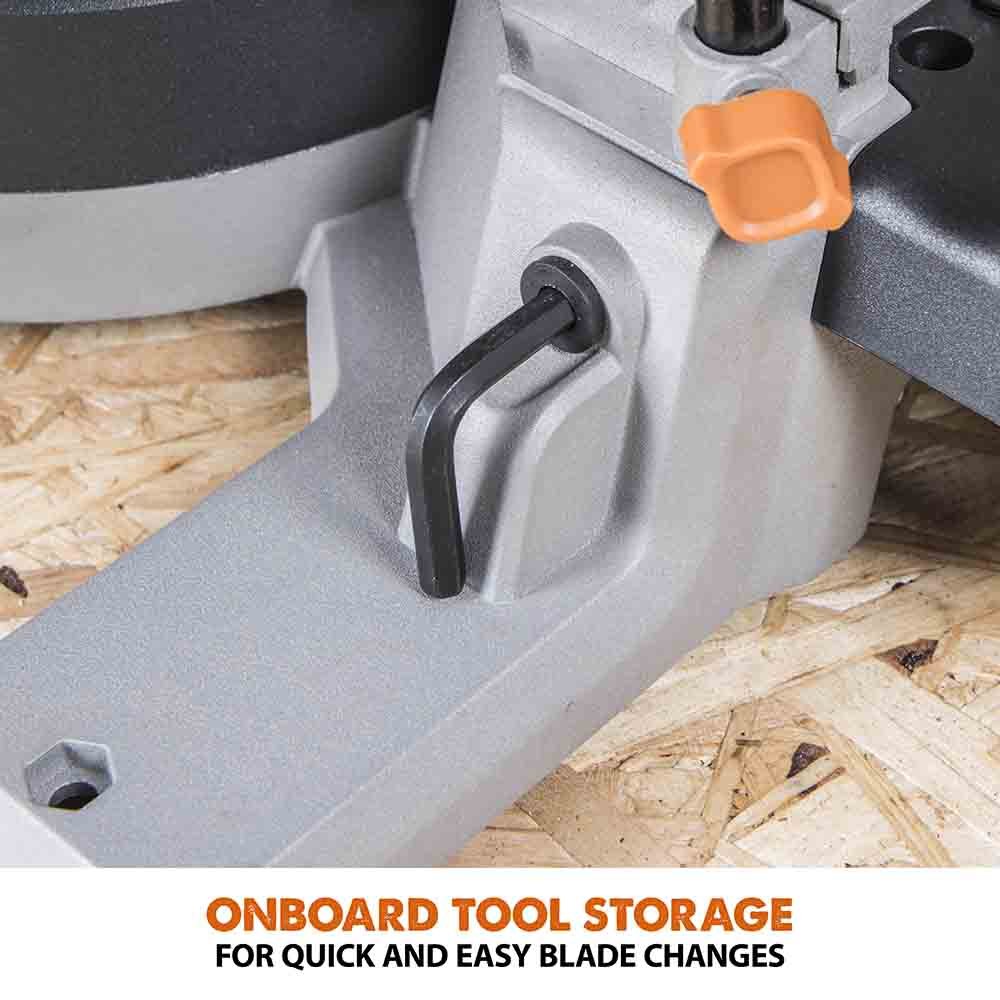

- Blade change tool included, quick and easy swaps.
- 3-Year limited warranty**
- EXT Li-ion cordless performance and versatility.

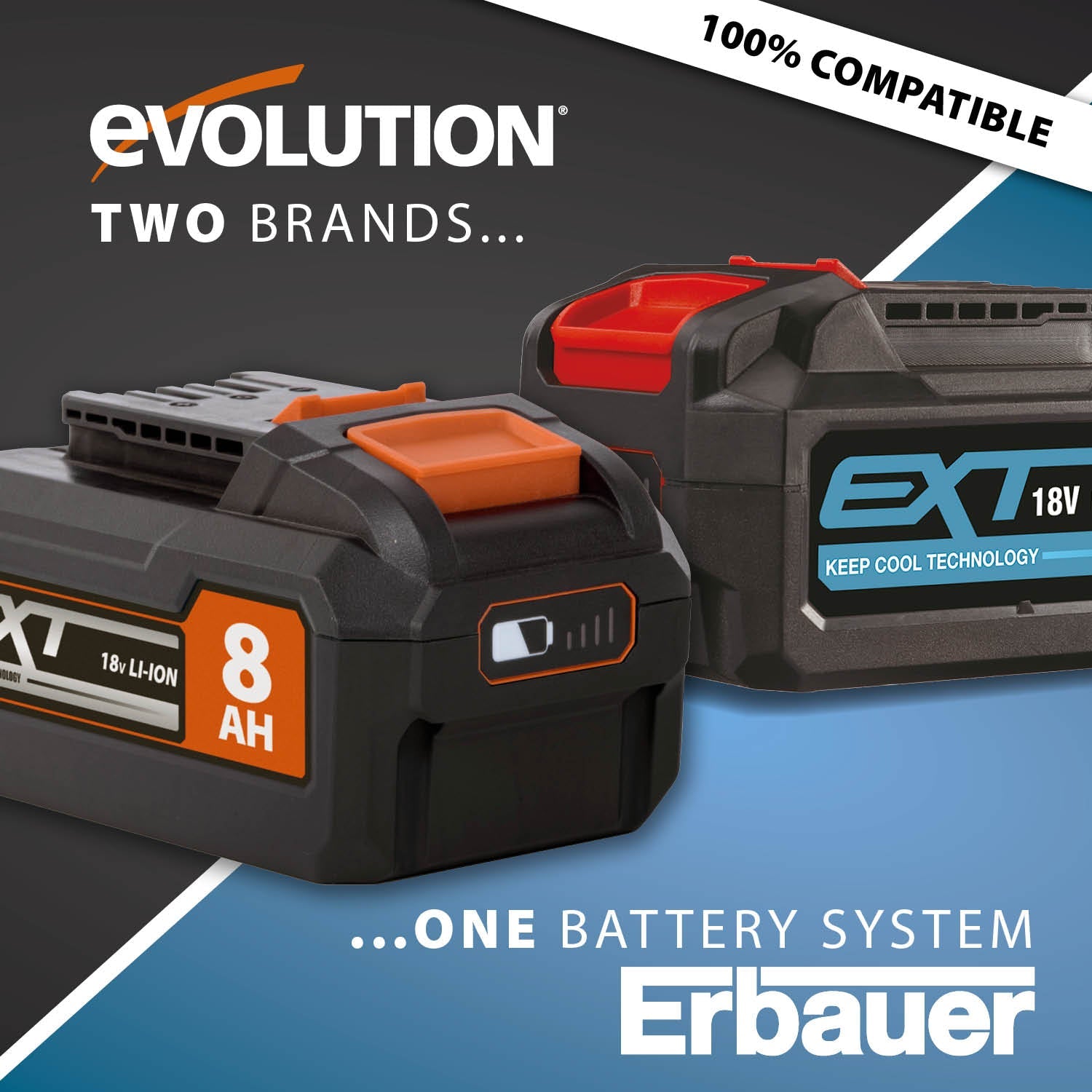

- Erbauer EXT battery system compatible.
Machine Specifications
Name | R255SMS-DB-LI |
Product Code | 100-0001 |
Voltage / (Hz) | 36v |
No Load Speed (min-1 rpm) | 3,000rpm |
Net Weight | 16.6kg / 18kg |
Dust port Adaptor Size | 35mm |
Tool Dimensions | 451 x 998 x 771 |
Cutting Capacity | |
Mild steel Plate - Max Thickness | 6mm |
Mild Steel Tube Max Wall Thickness | 3mm |
Minimum Size Offcut (zero clearance insert) | 20mm |

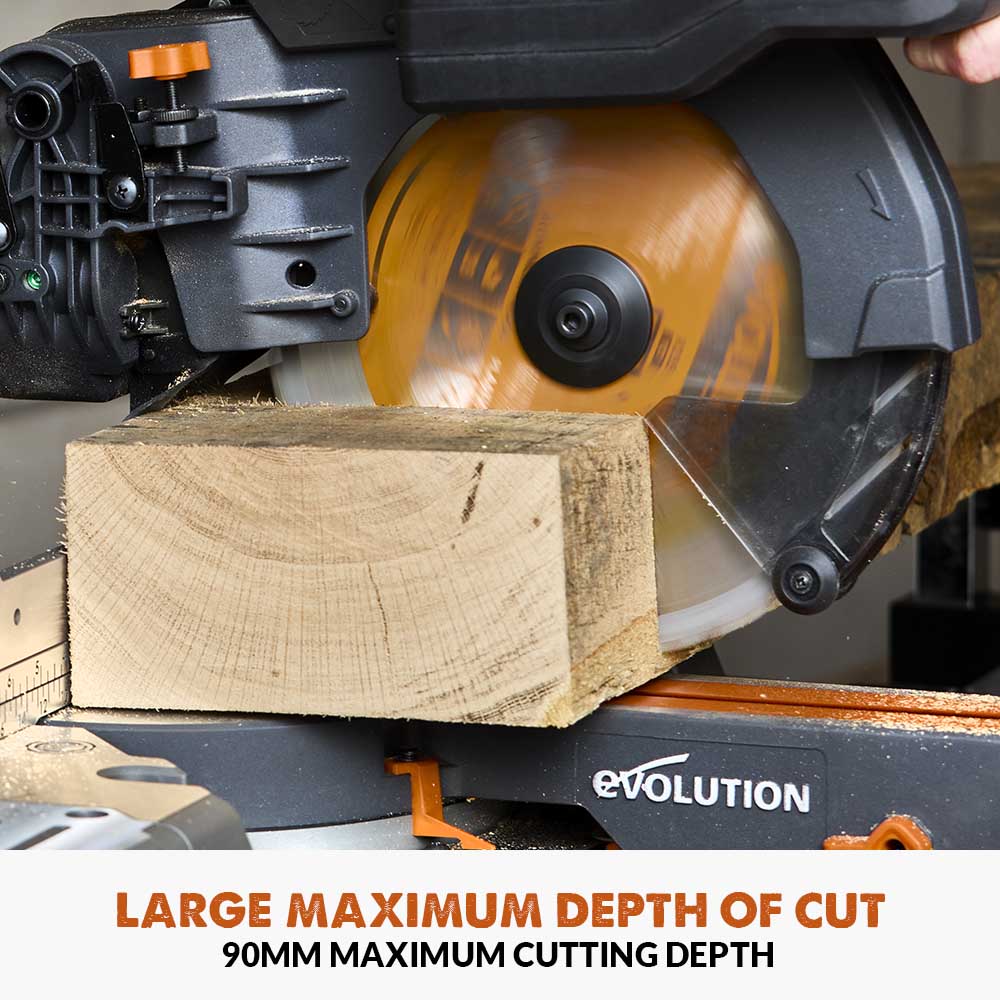

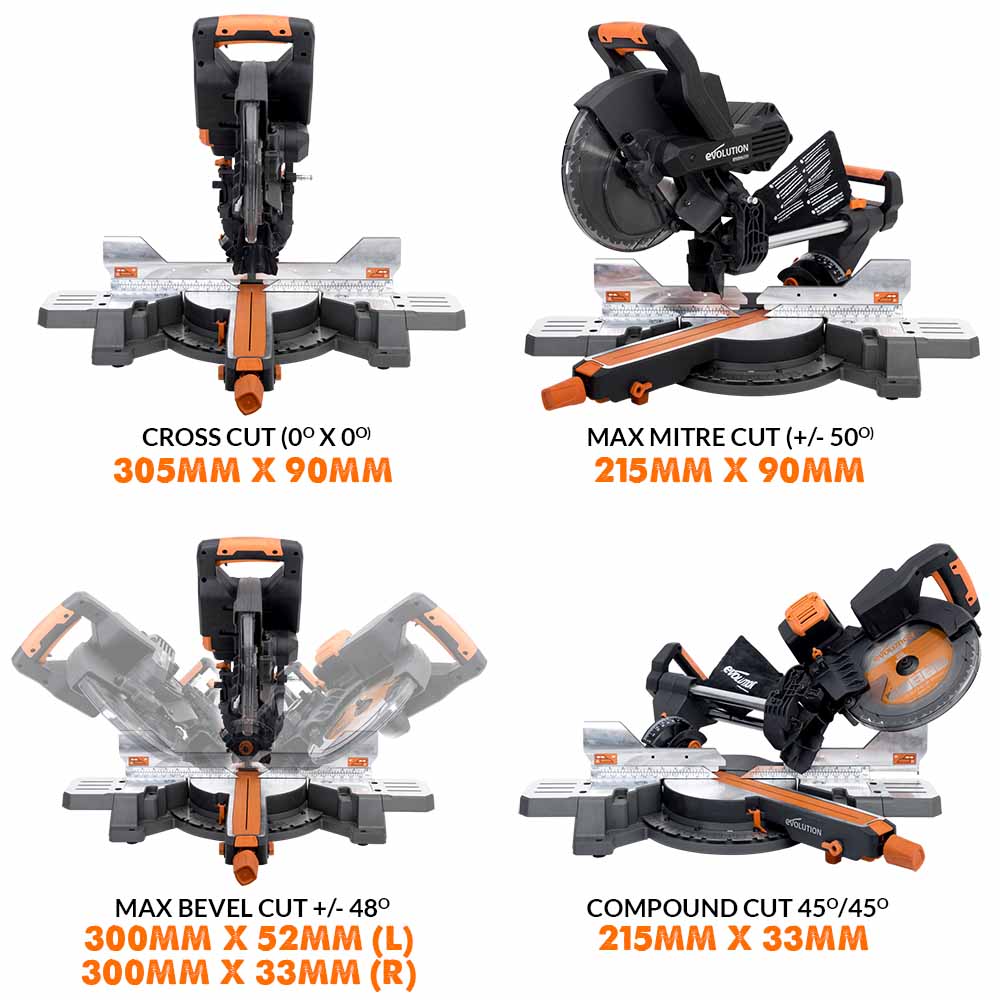

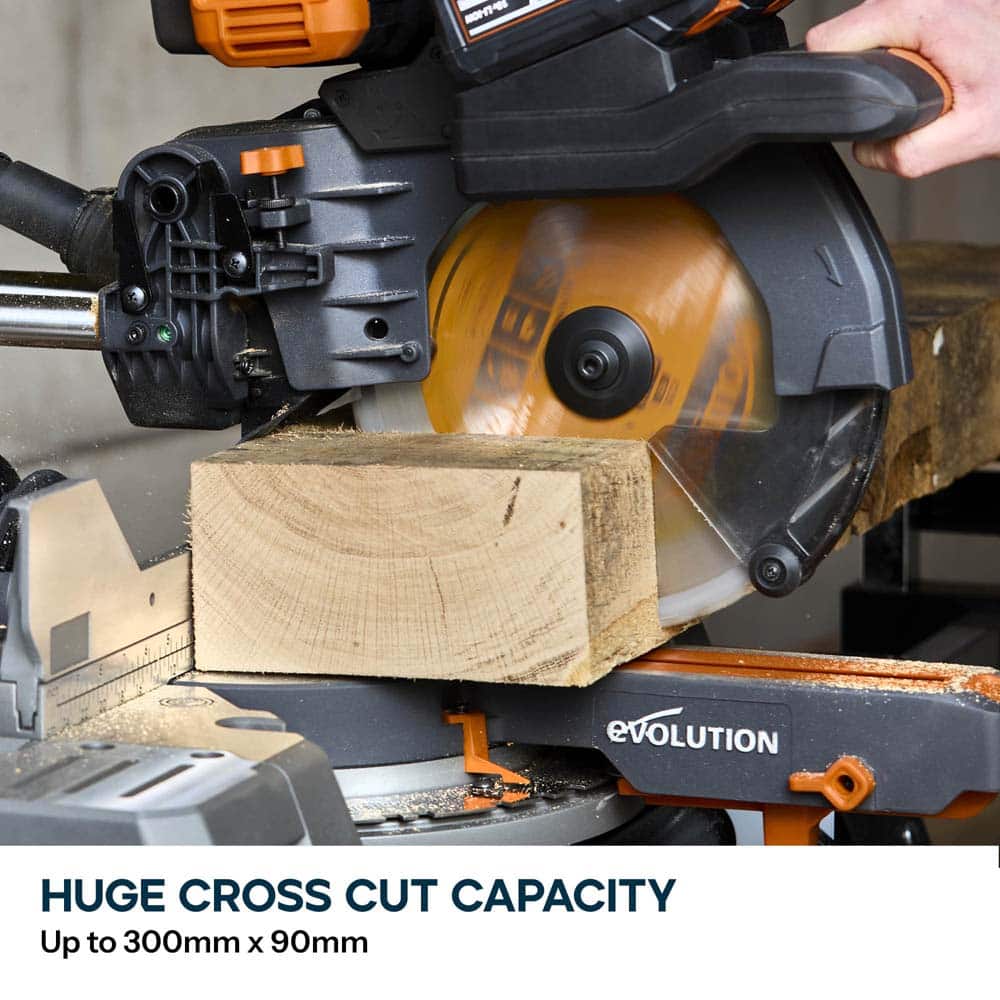

0º Mitre x 0º Bevel | 305mm x 90mm |
45º Mitre x 0º Bevel | 215mm x 90mm |
0º Mitre x 45º Bevel (left) | 305mm x 52mm (300mm x 33mm right) |
45º Mitre x 45º Bevel | 215mm x 33mm |
Mitre Range | 50°- 50° |
Bevel Range | +/- 48° L&R |
Blade Diameter | 255mm |
Bore Diameter | 25.4mm |
No of Teeth | 28T |
Kerf | 2mm |
Sound pressure level Lpa | 84.5 db (A); K=3db (A) |
Sound power level Lwa | 97.5 db (A); K=3db (A) |
Uncertainty | 3db (a) |
Items Supplied
Bare | Loaded | |
Mitre Saw | x | x |

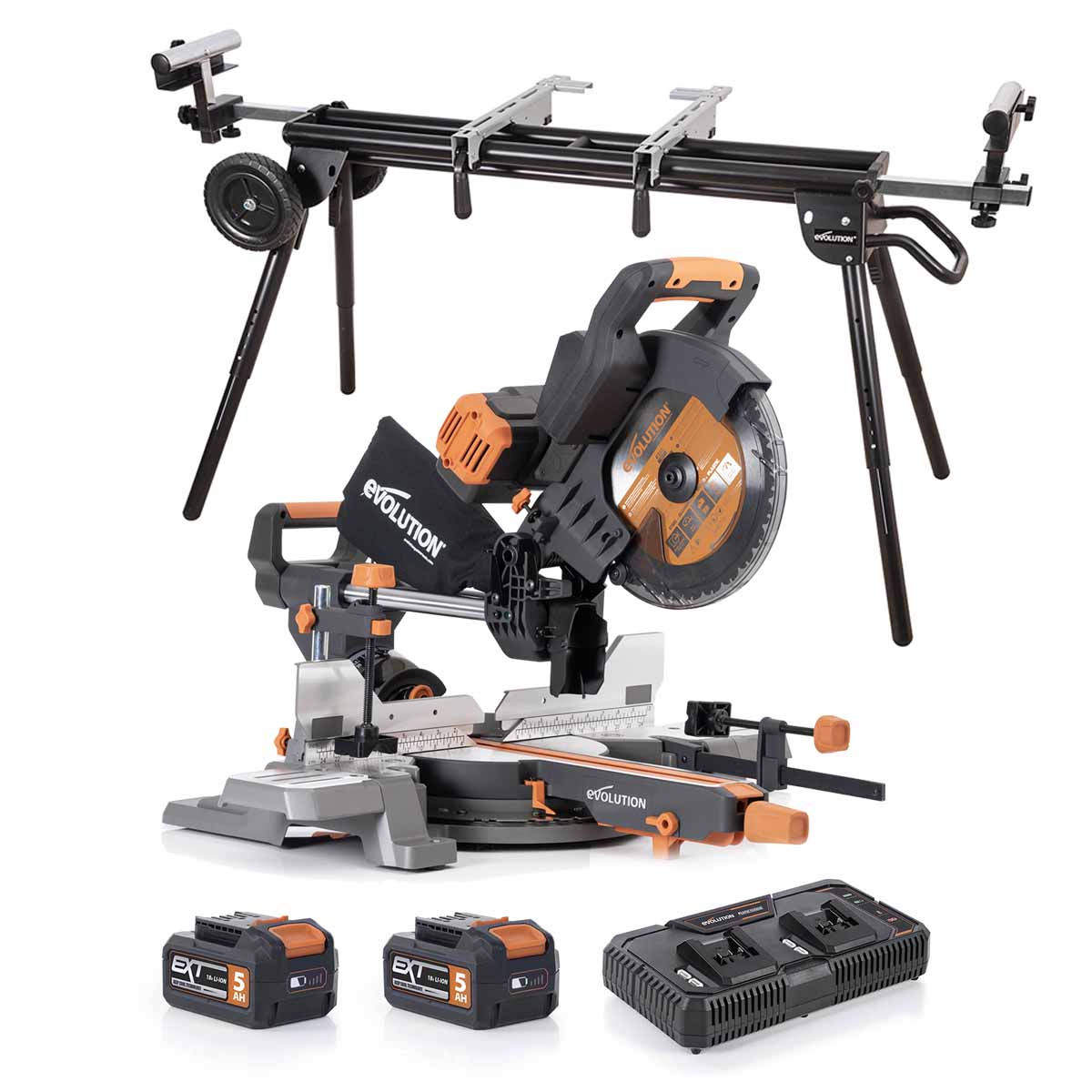

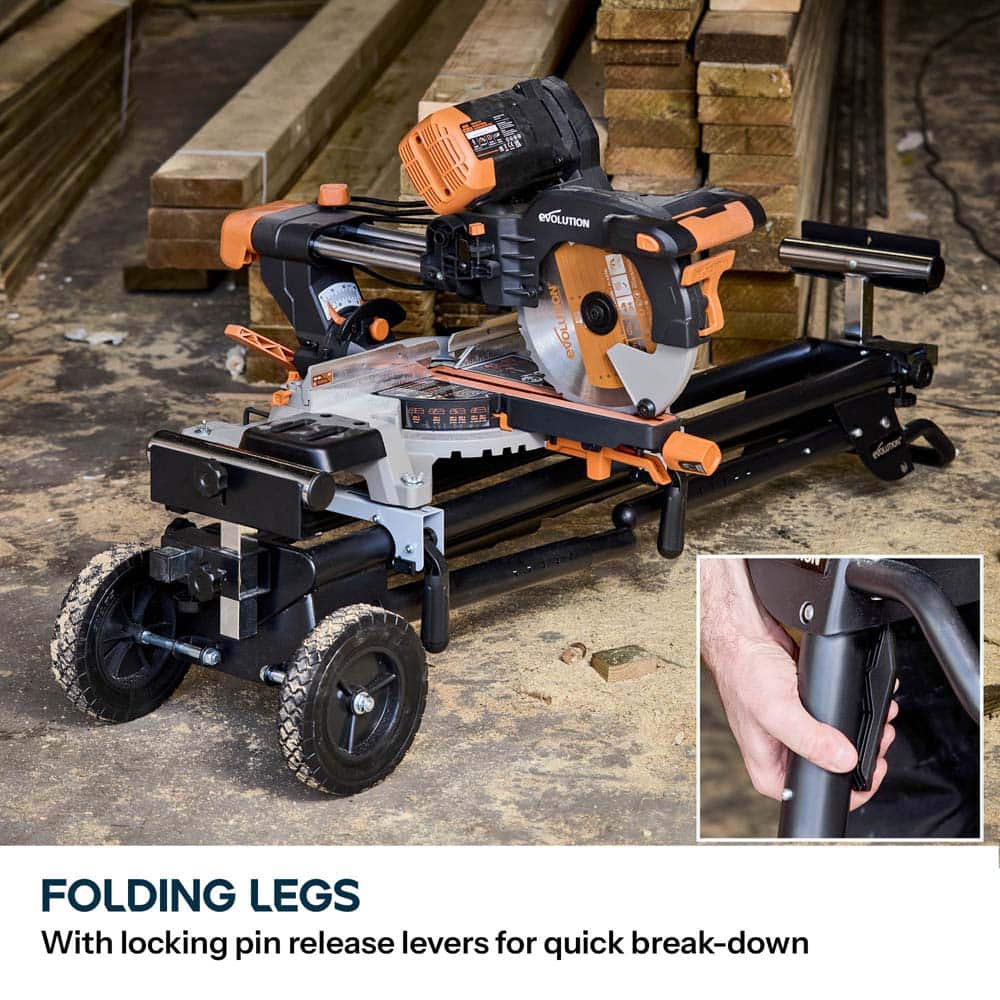

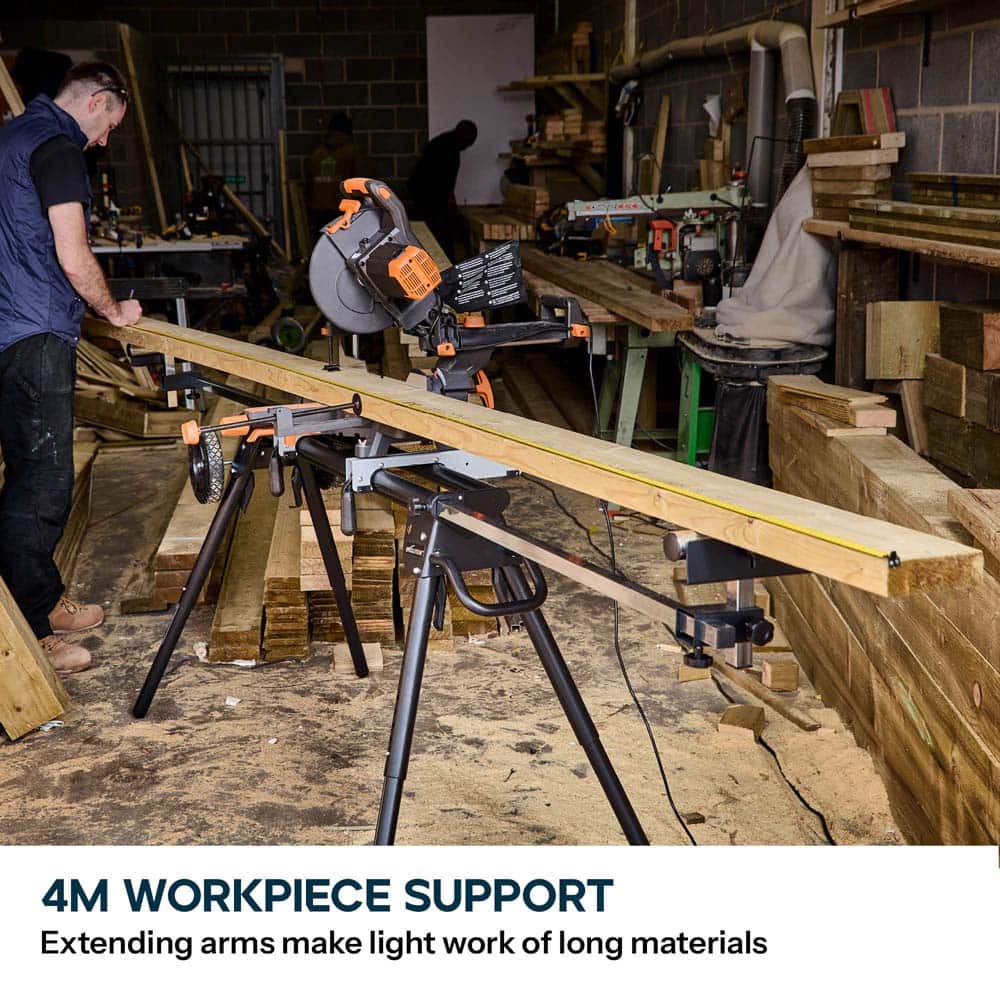

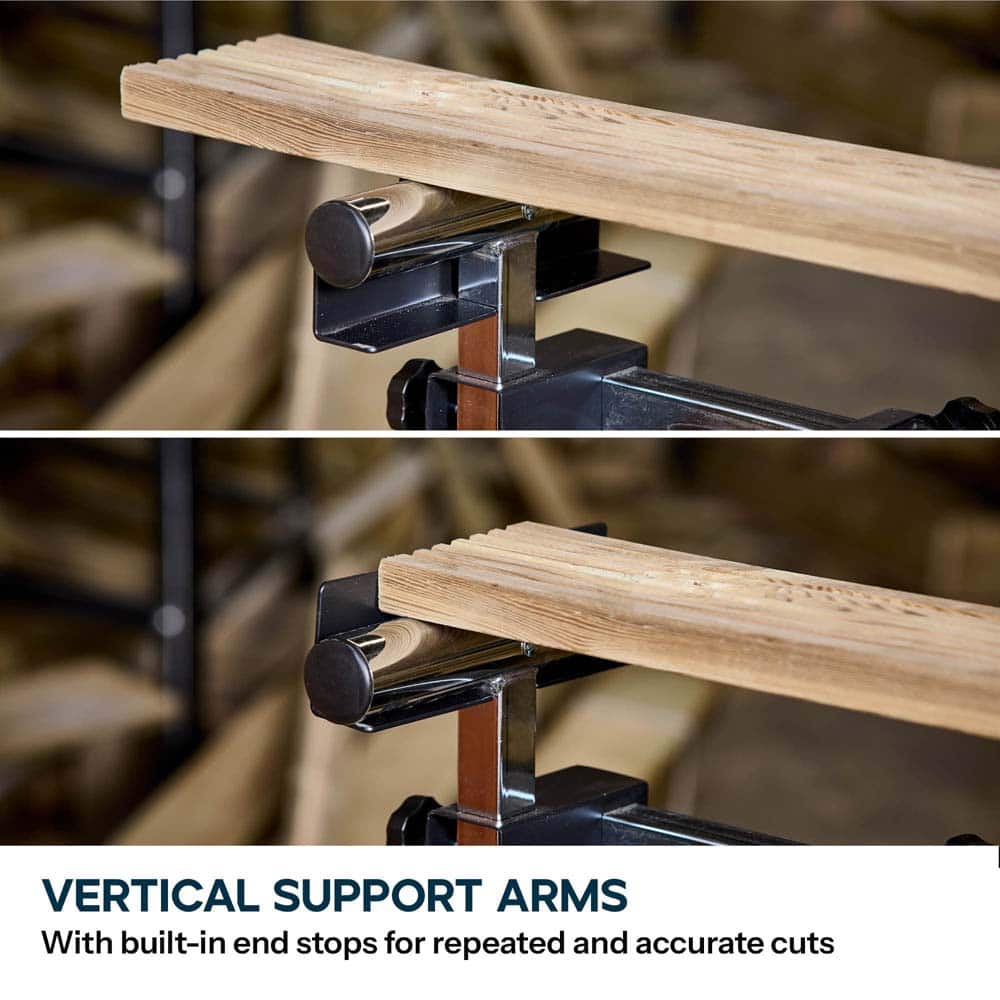

XL Rolling Mitre Saw Stand | x | x |
Instruction Manual | x | x |
Multi-Material 28T TCT Blade | x | x |
Top & Front Clamps | x | x |
Zero Clearance Insert | x | x |
Machine Table Extension = 4x socket headed screws | x | x |
Double Ended Hex Key M6 x M4 | x | x |
Rotary Table & neck | x | x |
Cutting Head | x |
x |
Carriage Slides | x | x |
Multi-locking Knob | x | x |
Dust Port Adaptor | x | x |
Dust Bag | x | x |
2x 5Ah Battery | x | |
Single Port Fast Charger | ||
Dual Port Fast Charger | x |
3-Year Guarantee
This tool is covered with Evolution's 3-year warranty
Summary- All Evolution single circular blade saws and magnetic drills are covered with 3 year warranty. All other Evolution power tools are covered with 2 year warranty.
- Refurbished power tools by Evolution come with a 90 day warranty.
- This warranty does not cover blades, accessories, Evolution branded clothing and spare parts.
- Please keep your proof of purchase / delivery.
- If you buy direct from Evolution your product warranty is automatically registered with us.
- If you purchased your Evoluton product elsewhere you can register your product warranty with us.
- The warranty becomes effective at the date of purchase (or the date of delivery if this is later).
- You must provide proof of delivery / purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
- All work will be carried out by Evolution.
- Any parts which are replaced will become the property of Evolution.
- The repair or replacement of your machine under warranty will not extend the period of warranty.
- Evolution Power Tools reserves the right to optionally repair or replace it with the same or equivalent item.
- This warranty statement provides benefits which are additional to and do not affect your statutory rights as a consumer.
The repair or replacement of your machine (at Evolution’s discretion), if your machine is found to be defective due to faulty materials, workmanship or function within the warranty period (if any part is no longer available or out of manufacture, Evolution will replace it with a functional replacement part).
What is not covered?Evolution does not warrant the repair or replacement of a product when the following has occurred;
- Normal wear and tear (eg. Fuse, Fluids / Lubricants, Blades, Consumable, etc.)
- Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the machine which is not in use with Evolution’s user guide.
- Lack of servicing.
- Use of parts not assembled or installed in accordance with the instructions of Evolution.
- Use of parts and accessories (including blades) which are not Evolution Genuine Components.
- Faulty installation (except installation by Evolution).
- Repairs or alterations carried out by parties other than Evolution.
If your Evolution power tool requires attention from our engineers, we aim to have it collected & repaired within 7-10 working days.
If you are not completely satisfied with the performance of your product, simply contact us. To speed up the process, remember to have your receipt, invoice or order reference number plus your product’s serial number found on the product’s motor label.
No officer, employee or agent of Evolution Power Tools is authorised to make oral representations of fitness or to waive any of the foregoing terms of sale and none shall be binding on Evolution Power Tools. Questions relating to this limited warranty should be directed to the company's head office, or call the appropriate Helpline number.
In no event shall Evolution Power Tools be liable for loss or damage resulting directly or indirectly from the use of our merchandise or from any other cause. Evolution Power Tools is not liable for any costs incurred on such goods or consequential damages.
Buy Now, Pay Later
Split your order total into 3 interest-free instalments with Klarna.
Shop
- Add items to your cart, and go to the checkout.
- Minimum order total: £35.00
- Select Klarna as your payment method.
- Please keep your proof of purchase / delivery.
- You don’t have to create a Klarna account, if you don’t want to. TIP: Just tap ‘Change’ under payment type and then ‘Add New Payment Method'.
Pay-In-3
- The first instalment will be taken from your card when you place your order.
- The next two remaining payments will be automatically charged 30 and 60 days later.
- For example: £150 mitre saw.
Day 1: £50. Day 30: £50. Day 60: £50. - With 0% Interest
- Note: You’ll get notifications when your payment is due and when it’s collected. There is zero interest and never any fees when you pay on time. If you return any items on your order, your Klarna statement and schedule will be updated.
To get started all you need is:
- A UK bank account with a good credit history.
- A credit/debit card to be valid for 60 days from the purchase date.
- To be 18 years of age or over.
- A UK residential address.
- A valid mobile number and email address.
How do I pay using Pay Later in 3 with Klarna?
- To pay using Klarna, your order total must be equal to or more than £35.00. When you get to checkout, click ‘change’ under payment type and then ‘Add New Payment Method’.
- You'll need to provide your mobile number as Klarna may need to contact you. You'll also need to include your email address so that Klarna can send your payment schedule. Klarna use this information to keep you up to date on any payments or refunds that are due, so it’s important the details you provide us with are correct.
When will I receive my payment schedule?
- You’ll be asked to pay the first of the 3 equal instalments once your order has been confirmed at checkout.
- Instalments 2 and 3 will automatically be collected from the debit or credit card you entered at checkout 30 and 60 days later, respectively.
- You'll receive a reminder from Klarna 2 days before each instalment is collected.
- If you miss one of your scheduled instalments and Klarna are unable to automatically withdraw the money from your account 2 days later, you'll be issued with a statement for the full amount due.
I'm having trouble paying with Klarna. If you have any trouble placing an order with Klarna, it could be due to one of the following reasons:
- Klarna payments are subject to your financial circumstances. Klarna may have rejected your application to Pay later in 3. We’d recommend choosing another type of payment or placing an order for a smaller amount.
- You may have outstanding payments on previous Klarna purchases with other retailers.
- You may have missed a required field at the checkout, such as filling in your date of birth.
Please note: That Klarna is an independent payment company and Evolution Power Tools Limited has no influence over whether your payment with Klarna is accepted or not. If you have any trouble with your order, please contact Klarna Customer Service.
- For terms on Pay Later in 3 with Klarna click here.
- For more information about Pay Later in 3 with Klarna, click here.
- To find out more about returns paid with Klarna, click here.
Terms & Conditions
Our website contains links to websites owned and operated by third parties; these are provided solely for your convenience. Evolution has no control over these sites and are not responsible for their content or availability.
- In cooperation with Klarna Bank AB (publ), Sveavägen 46, 111 34 Stockholm, Sweden, we offer you the following payment methods. Payment is to be made to Klarna.
- Financing: With the financing service from Klarna you can pay your purchase in flexible or fixed monthly instalments according to the conditions stated in the checkout. The instalment payment is due at the end of each month after submission of a separate monthly invoice by Klarna. Further information regarding Slice It including terms and conditions and Standard European Consumer Credit Information you can find here for the United Kingdom.
- Direct Debit: Your account will be debited after shipment of the goods or tickets/ availability date of the service or in case of a subscription in accordance with the timelines communicated. You will be notified about the date(s) by email.
- The payment method; Slice It and direct debit are only available in case of a positive credit assessment. For this purpose, during the order process and handling of your purchase, we forward your data for an address and credit check to Klarna. We can only offer you the payment methods available based on the result of the credit check. General information about Klarna and the user terms per country can be found on klarna.com.
- Your personal data is handled in accordance with applicable data protection law and in accordance with the information in Klarnas privacy statement. n cooperation with Klarna Bank AB (publ), Sveavägen 46, 111 34 Stockholm, Sweden, we offer you the following payment options. Payment is to be made to Klarna:
Financing - Pay in 3
- Further information and Klarnas user terms you can find here.
- General information on Klarna you can find here.
- Your personal data is handled in accordance with applicable data protection law and in accordance with the information in Klarnas privacy statement.
Privacy Policy
- In order to be able to offer you Klarna’s payment options, we will pass to Klarna certain aspects of your personal information, such as contact and order details, in order for Klarna to assess whether you qualify for their payment options and to tailor the payment options for you. General information on Klarna you can find here.
- Your personal data is handled in accordance with applicable data protection law and in accordance with the information in Klarna’s privacy policy.

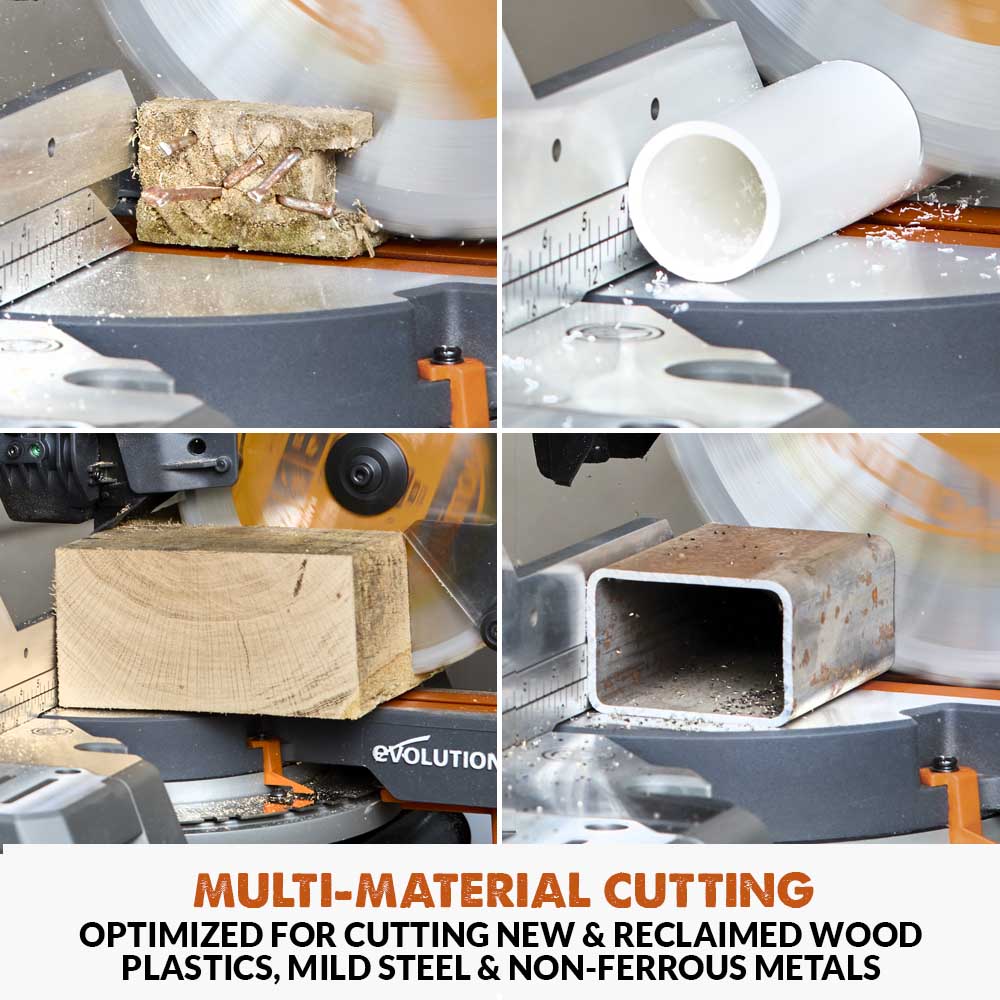

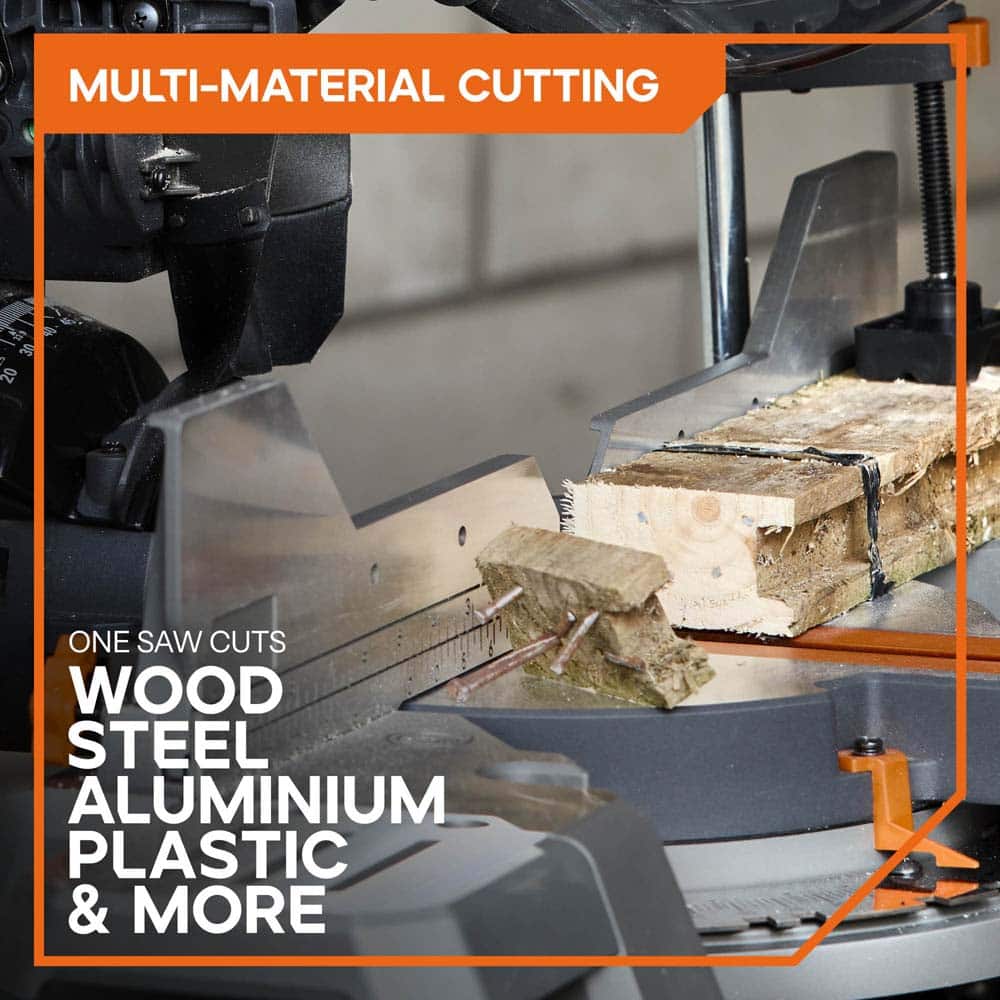

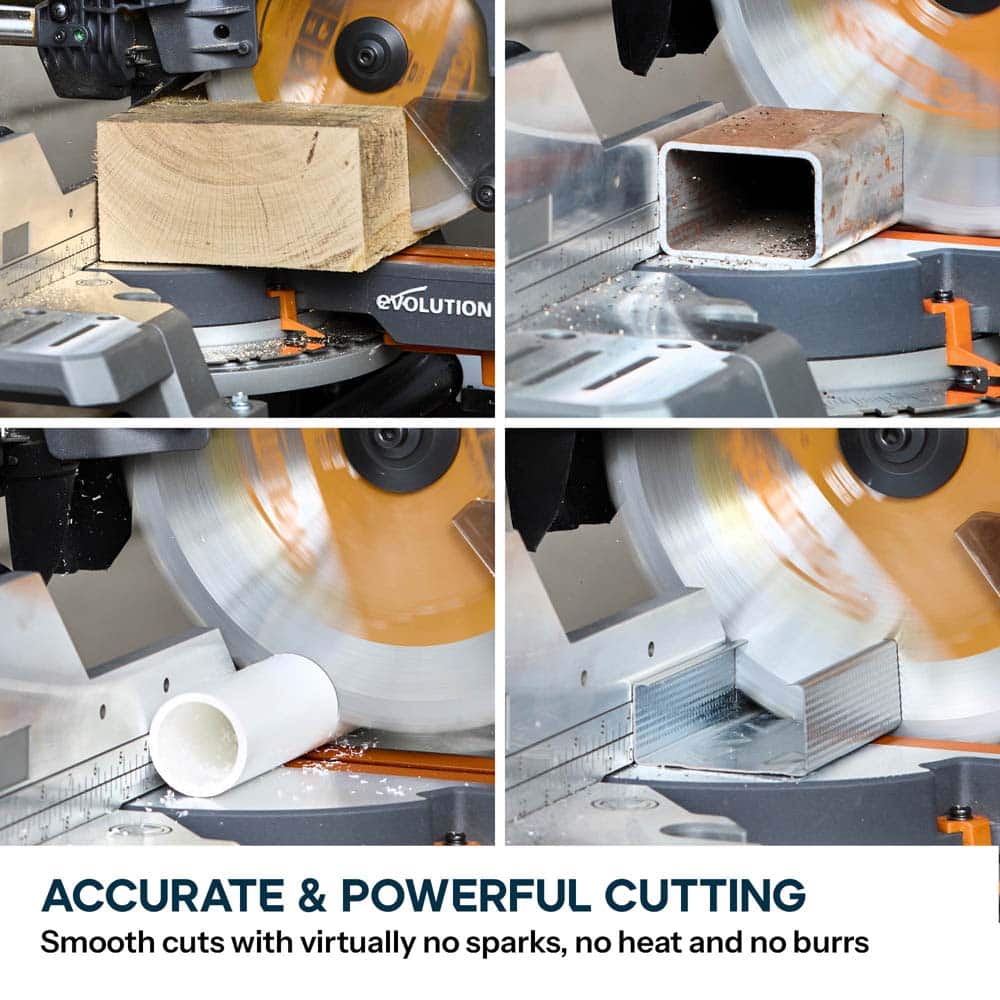

Multi-Material Cutting Technology
