EVOMAG28 28mm Magnetic Drill (Gen 1) Spare Parts

Latest Version
Discontinued

Find and purchase any part for any Evolution power tool. If you can't find the part you need, then give our friendly, expert customer care team based in Sheffield a call. They will find the part and create the order for you, with next day delivery on orders placed before 4:45pm Monday to Friday. We even have a Saturday delivery option.

* Free delivery, geographic exclusions apply. *Please note: Discounts cannot be applied on bundle deals, subscription blades or items already on sale. Multiple discount codes/ promotions cannot be used in the same order.
EVOMAG28 28mm Magnetic Drill (Gen 1) Spare Parts

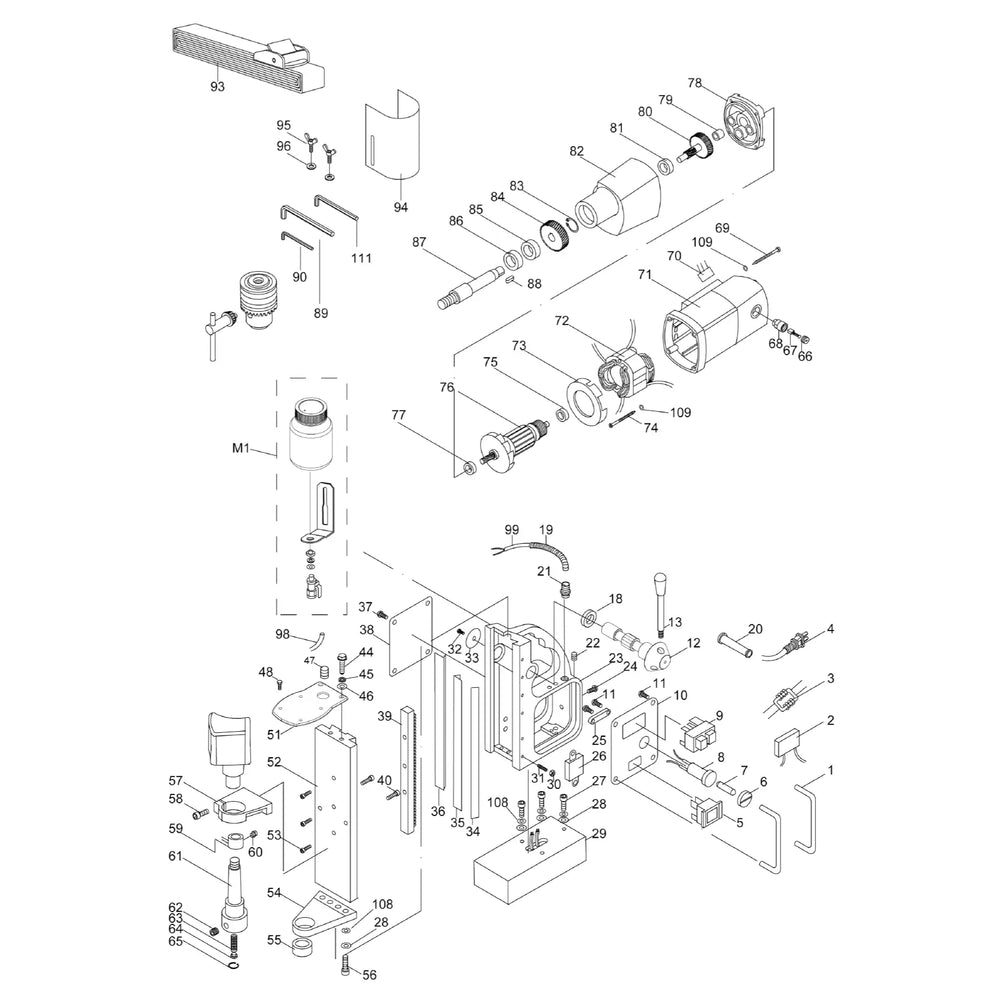

Find the part number on the diagram, and search the number from the list below.
Please enter a search term before proceeding.
M1 - LUBRICANT BOTTLE ASSEMBLY (# 095-0031)
£2.98

20 Left In Stock

Estimated Delivery 1-2 Business Days
1 - SWITCH PLATE BAR (# 090-0102)
£2.98

8 Left In Stock

Estimated Delivery 1-2 Business Days
2 - CAPACITOR (# 090-0103)
£2.98

1 Left In Stock

Estimated Delivery 1-2 Business Days
3 - INDUCTOR (# 090-0104)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
4 - POWER CORD 110V UK (# 090-0105)
£2.98

2 Left In Stock

Estimated Delivery 1-2 Business Days
4A - POWER CORD 230V UK (# 090-0106)
£2.98

10 Left In Stock

Estimated Delivery 1-2 Business Days
4B - POWER CORD 230V EURO (# 090-0107)
£2.98

10 Left In Stock

Estimated Delivery 1-2 Business Days
5 - ELECTRO MAGNET SWITCH (# 090-0109)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
6 - FUSE HOLDER CAP 110V (# 090-0110)
£2.98

6 Left In Stock

Estimated Delivery 1-2 Business Days
6A - FUSE HOLDER CAP 230V (# 090-0111)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
7 - FUSE 110V 20 AMP (# 090-0112)
£2.98

13 Left In Stock

Estimated Delivery 1-2 Business Days
7A - FUSE 230V 10 AMP (# 090-0113)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
8 - FUSE HOLDER 110V (# 090-0114)
£2.98

12 Left In Stock

Estimated Delivery 1-2 Business Days
8A - FUSE HOLDER 230V (# 090-0115)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
9 - MAIN MOTOR SWITCH (RELAYED) 110V (# 090-0116)
£2.98

7 Left In Stock

Estimated Delivery 1-2 Business Days
9A - MAIN MOTOR SWITCH (RELAYED) 240V (# 090-0017)
£2.98

11 Left In Stock

Estimated Delivery 1-2 Business Days
10 - SWITCH PLATE (# 090-0100)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
11 - M4 X 12 SCREW (# F-SPHPZ-M4-12-ST-BO)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
12 - CRANK (# 090-0118)
£2.98

4 Left In Stock

Estimated Delivery 1-2 Business Days
13 - CRANK HANDLE (# 090-0119)
£2.98

Out of Stock

18 - 2015 BEARING BUSH (# 090-0120)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
19 - CORD SHEATH (# 090-0121)
£2.98

Out of Stock

20 - CABLE PROTECTOR (# 090-0122)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
21 - CONDUIT GLAND (# 090-0123)
£2.98

Out of Stock

22 - CABLE GLAND (# 090-0124)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
23 - MAIN BODY ASSEMBLY (# 090-0125)
£2.98

3 Left In Stock

Estimated Delivery 1-2 Business Days
24 - M5 X 10 SCREW (# F-SPHPZ-M5-10-ST-BO)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
25 - CABLE CLAMP (# 090-0126)
£2.98

Out of Stock

26 - MAIN RECTIFIER (# 090-0127)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
27 - M6 X 20 CAP SCREW (# F-SHCS-M6-20-ST-BO)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
28 - 6MM WASHER (# F-W-M6-ST-BO)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
29 - ELECTRO MAGNET 110 UK (# 090-0128)
£2.98

5 Left In Stock

Estimated Delivery 1-2 Business Days
29A - ELECTRO MAGNET 230 UK (# 090-0129)
£2.98

Out of Stock

29B - ELECTRO MAGNET 230 EU (# 090-0129)
£2.98

Out of Stock

30 - M5 NUT (# F-NSH-M5-ST-BO)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
31 - M5 X 20 GRUBB SCREW (# F-SSCFP-M5-20-ST-BO)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
32 - M6X8 CAP SCREW (# F-SPHPZ-M6-8-ST-BO)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
33 - CRANK AXLE WASHER (# 090-0133)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
34 - GIB STRIP TENSIONER (# 090-0134)
£2.98

11 Left In Stock

Estimated Delivery 1-2 Business Days
35 - GIB STRIP (PR) (# 090-0135)
£2.98

6 Left In Stock

Estimated Delivery 1-2 Business Days
36 - GIB STRIP - SEE 35 (# 1)
£2.98

Out of Stock

37 - M5 X 10 SCREW (# F-SPHPZ-M5-10-ST-BO)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
38 - SPEC PLATE (# 090-0101)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
39 - RACK (# 090-0137)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
40 - M6 X 20 CAP SCREW (# F-SHCS-M6-20-ST-BO)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
44 - M6 X 12 FLANGE HEX BOLT (# F-HFB-M6-12-ST-BO)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
45 - 6MM SPRING WASHER (# F-SWA-M6-ST-BO)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
46 - 6MM WASHER (# F-W-M6-ST-BO)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
47 - CONDUIT GLAND (# 090-0141)
£2.98

Out of Stock

48 - 3.5MM SELF TAP SCREW (# F-TFPX-6-15-ST-BO)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
51 - MOTOR SUPPORT PLATE (# 090-0142)
£2.98

11 Left In Stock

Estimated Delivery 1-2 Business Days
52 - SLIDE PLATE (# 090-0143)
£2.98

6 Left In Stock

Estimated Delivery 1-2 Business Days
53 - M6 X 12 CAP SCREW (# F-SHCS-M6-12-ST-BO)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
54 - ARBOR SUPPORT BRACKET (# 090-0144)
£2.98

11 Left In Stock

Estimated Delivery 1-2 Business Days
55 - 2520 BEARING (# 090-0145)
£2.98

15 Left In Stock

Estimated Delivery 1-2 Business Days
56 - M6 X 16 CAP SCREW (# F-SHCS-M6-16-ST-BO)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
57 - MOTOR MOUNTING BRACKET (# 090-0146)
£2.98

14 Left In Stock

Estimated Delivery 1-2 Business Days
58 - M6 X 30 CAP SCREW (# F-SHCS-M6-30-ST-BO)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
59 - COOLANT INLET BODY (# 090-0147)
£2.98

11 Left In Stock

Estimated Delivery 1-2 Business Days
60 - 1/4 QUICK COUPLER (# 090-0148)
£2.98

Out of Stock

61 - ARBOR SHAFT (# 090-0149)
£2.98

3 Left In Stock

Estimated Delivery 1-2 Business Days
62 - M10 X 10 GRUBB SCREW (# F-SSCFP-M10-10-ST-BO)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
63 - SPRING (# 090-0150)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
64 - COOLANT SEAL (# 090-0151)
£2.98

12 Left In Stock

Estimated Delivery 1-2 Business Days
65 - CIRCLIP (# F-CCINT-21-089-ST-BO)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
66 - BRUSH CAP (# 090-0152)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
67 - CARBON BRUSH (# 090-0153)
£2.98

Out of Stock

68 - BRUSH HOLDER (# 090-0154)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
69 - M5 X 40 SCREW (# F-SPHPZ-M5-40-ST-BO)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
70 - CAPACITOR (# 090-0155)
£2.98

17 Left In Stock

Estimated Delivery 1-2 Business Days
71 - MOTOR HOUSING (# 090-0156)
£2.98

Out of Stock

72 - FIELD ASSY 110V UK (# 090-0157)
£2.98

9 Left In Stock

Estimated Delivery 1-2 Business Days
72A - FIELD ASSY 230V UK (# 090-0158)
£2.98

5 Left In Stock

Estimated Delivery 1-2 Business Days
72C - FIELD ASSY 230V EU (# 090-0158)
£2.98

5 Left In Stock

Estimated Delivery 1-2 Business Days
73 - FAN SHROUD (# 090-0161)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
74 - 4.8 X 65 SCREW (# F-TFPX-10-65-ST-SC)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
75 - 608 BEARING (# F-B-608-2Z)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
76 - ARMATURE 110V UK (# 090-0182)
£2.98

8 Left In Stock

Estimated Delivery 1-2 Business Days
76A - ARMATURE 230V UK (# 090-0183)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
77 - 609 BEARING (# F-B-609-2Z)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
78 - INTER GEAR PLATE (# 090-0186)
£2.98

13 Left In Stock

Estimated Delivery 1-2 Business Days
79 - 627 BEARING (# F-B-627-2Z)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
80 - GEAR PINION (# 090-0162)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
81 - 627 BEARING (# F-B-627-2Z)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
82 - GEAR BOX HOUSING (# 090-0163)
£2.98

7 Left In Stock

Estimated Delivery 1-2 Business Days
83 - CIRCLIP (# F-CCEXT-16-100-ST-PO)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
84 - FINAL DRIVE GEAR (# 090-0187)
£2.98

9 Left In Stock

Estimated Delivery 1-2 Business Days
85 - 6003 BEARING (# F-B-6003-2Z)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
86 - 6004 BEARING (# F-B-6004-2Z)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
87 - MAIN DRIVE SPINDLE (# 090-0164)
£2.98

1 Left In Stock

Estimated Delivery 1-2 Business Days
88 - 4 X 15 WOODRUFF KEY (# 090-0165)
£2.98

7 Left In Stock

Estimated Delivery 1-2 Business Days
89 - 5MM ALLEN KEY (# F-HEXKEY-M5-ST-BO)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
90 - 4MM ALLEN KEY (# F-HEXKEY-M4-ST-BO)
£2.98

5 Left In Stock

Estimated Delivery 1-2 Business Days
93 - SAFETY BELT (# 090-0170)
£2.98

2 Left In Stock

Estimated Delivery 1-2 Business Days
94 - GUARD (# 090-0171)
£2.98

Out of Stock

95 - WING SCREW (# 090-0172)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
96 - 6MM WASHERS (# F-W-M6-ST-BO)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
98 - COOLANT PIPE (# 090-0173)
£2.98

17 Left In Stock

Estimated Delivery 1-2 Business Days
99 - MOTOR CABLE (# 090-0181)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
100 - LABEL SET 110V (# 090-0174)
£2.98

18 Left In Stock

Estimated Delivery 1-2 Business Days
101 - LABEL SET 230V (# 090-0175)
£2.98

17 Left In Stock

Estimated Delivery 1-2 Business Days
108 - BLOW MOULDED CASE (# 090-0189)
£2.98

Out of Stock

109 - 6MM SPRING WASHER (# F-SWA-M6-ST-BO)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
110 - 5MM SPRING WASHER (# F-SWA-M5-ST-BO)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
111 - 2.5MM ALLEN KEY (# F-HEXKEY-M2.5-ST-BO)
£2.98

In Stock

Estimated Delivery 1-2 Business Days
