EVOSAW230 230mm Corded Circular Saw Spare Parts

Latest Version
Discontinued

Find and purchase any part for any Evolution power tool. If you can't find the part you need, then give our friendly, expert customer care team based in Sheffield a call. They will find the part and create the order for you, with next day delivery on orders placed before 4:45pm Monday to Friday. We even have a Saturday delivery option.

* Free delivery, geographic exclusions apply. *Please note: Discounts cannot be applied on bundle deals, subscription blades or items already on sale. Multiple discount codes/ promotions cannot be used in the same order.
EVOSAW230 230mm Corded Circular Saw Spare Parts

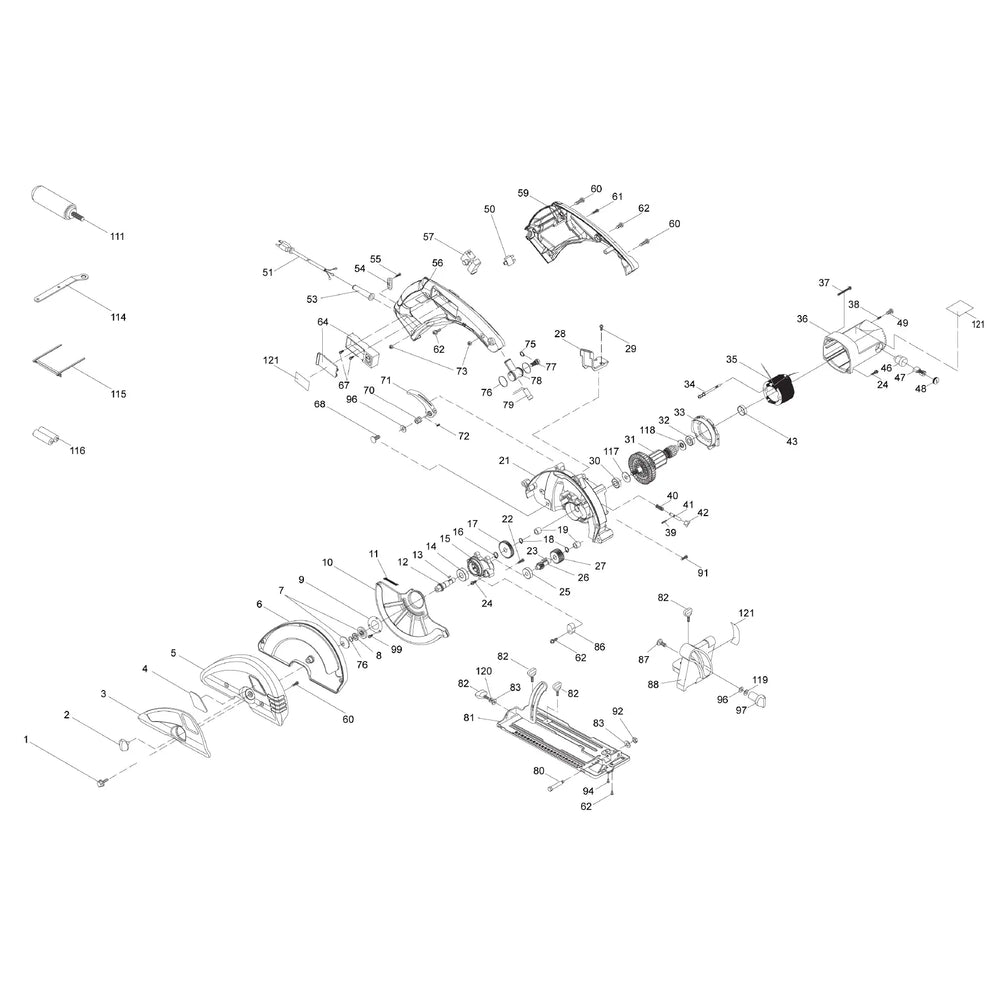

Find the part number on the diagram, and search the number from the list below.
Please enter a search term before proceeding.
1 - HEX HEAD BOLT (# EV23S1)
£2.98

Out of Stock

2 - BLUE KNOB (# EV23S2S)
£2.98

Out of Stock

3 - DUST COVER (# EV23S3)
£2.98

Out of Stock

4 - WINDOW (# EV23S4)
£2.98

Out of Stock

5 - SIDE DUST COVER (# EV23S5)
£2.98

Out of Stock

6 - SIDE DUST COVER PLATE (# EV23S6)
£2.98

Out of Stock

7 - INNER FLANGE (# EV23S7)
£2.98

Out of Stock

7 - OUTER FLANGE (# EV23S7)
£2.98

Out of Stock

9 - BEARING COVER (# EV23S9)
£2.98

Out of Stock

10 - LOWER BLADE GUARD (# EV23S10)
£2.98

Out of Stock

11 - TENSION SPRING (# EV23S11)
£2.98

Out of Stock

12 - ARBOR SHAFT (# EV23S12)
£2.98

Out of Stock

13 - KEY (# EV23S13)
£2.98

Out of Stock

14 - BALL BEARING (# EV23S14)
£2.98

Out of Stock

15 - BEARING RETAINER (# EV23S15)
£2.98

Out of Stock

16 - C RING (# EV23S16)
£2.98

Out of Stock

17 - FINAL GEAR (# EV23S17)
£2.98

Out of Stock

18 - C RING (# EV23S18)
£2.98

Out of Stock

19 - NEEDLE BEARING (# EV23S19)
£2.98

Out of Stock

21 - MAIN BODY HOUSING (# EV23S21)
£2.98

Out of Stock

22 - SCREW (# EV23S22)
£2.98

Out of Stock

23 - KEY (# EV23S23)
£2.98

Out of Stock

24 - SCREW (# EV23S24)
£2.98

Out of Stock

25 - BALL BEARING (# EV23S25)
£2.98

Out of Stock

26 - DRIVEN SHAFT (# EV23S26)
£2.98

Out of Stock

27 - HELIX GEAR (# EV23S27)
£2.98

Out of Stock

28 - WIRE COVER (# EV23S28)
£2.98

Out of Stock

29 - SCREW (# EV23S29)
£2.98

Out of Stock

30 - BALL BEARING (# EV23S30)
£2.98

Out of Stock

31 - ARMATURE 110V (UK) (# EV23S31)
£2.98

Out of Stock

31A - ARMATURE 230V (UK/EU) (# EV23S31A)
£2.98

Out of Stock

32 - BALL BEARING (# EV23S32)
£2.98

Out of Stock

33 - FAN CASING (# EV23S33)
£2.98

Out of Stock

34 - SELF TAPPING SCREW (# EV23S34)
£2.98

Out of Stock

35 - FIELD ASSEMBLY 110V (UK) (# EV23S35)
£2.98

Out of Stock

35A - FIELD ASSEMBLY 230V (UK/EU) (# EV23S35A)
£2.98

Out of Stock

36 - MOTOR HOUSING (# EV23S36)
£2.98

Out of Stock

37 - SCREW & WASHER (# EV23S37)
£2.98

Out of Stock

38 - HEX HEAD SCREW (# EV23S38)
£2.98

Out of Stock

39 - PIN (# EV23S39)
£2.98

Out of Stock

40 - SPRING (# EV23S40)
£2.98

Out of Stock

41 - STOP PIN (# EV23S41)
£2.98

Out of Stock

42 - BLUE CAP (# EV23S42S)
£2.98

Out of Stock

43 - BEARING BUSH (# EV23S43)
£2.98

Out of Stock

46 - BRUSH HOLDER (# EV23S46)
£2.98

Out of Stock

47 - CARBON BRUSH PAIR (# EV23S47)
£19.98

In Stock

Estimated Delivery 1-2 Business Days
48 - BRUSH CAP (# EV23S48)
£2.98

Out of Stock

49 - PLASTIC SCREW (# EV23S49)
£2.98

Out of Stock

50 - OVERLOAD SWITCH 110V (UK) (# EV23S50)
£2.98

Out of Stock

50A - OVERLOAD SWITCH 230V (UK/EU) (# EV23S50A)
£2.98

Out of Stock

51 - POWER CABLE 110V (UK) (# EV23S51)
£2.98

Out of Stock

51A - POWER CABLE 230V (UK) (# EV23S51A)
£2.98

Out of Stock

51B - POWER CABLE 230V (EU) (# EV23S51B)
£2.98

Out of Stock

53 - WIRE PROTECTION (# EV23S53)
£2.98

Out of Stock

54 - CORD CLAMP (# EV23S54)
£2.98

Out of Stock

55 - SELF TAPPING SCREW (# EV23S55)
£2.98

Out of Stock

56 - BLUE HANDLE RIGHT (# EV23S56S)
£2.98

Out of Stock

57 - SWITCH (# EV23S57)
£2.98

Out of Stock

59 - BLUE HANDLE LEFT (# EV23S59S)
£2.98

Out of Stock

60 - SCREW (# EV23S60)
£2.98

Out of Stock

61 - SELF TAPPING SCREW (# EV23S61)
£2.98

Out of Stock

62 - SCREW (# EV23S62)
£2.98

Out of Stock

64 - BATTERY BOX (# EV23S64)
£2.98

Out of Stock

67 - SELF TAPPING SCREW (# EV23S67)
£2.98

Out of Stock

68 - SCREW (# EV23S68)
£2.98

Out of Stock

70 - HEX NUT (# EV23S70)
£2.98

Out of Stock

71 - BLUE LEVER (# EV23S71S)
£2.98

Out of Stock

72 - HEX SET SCREW (# EV23S72)
£2.98

Out of Stock

73 - HEX NUT (# EV23S73)
£2.98

Out of Stock

75 - C RING (# EV23S75)
£2.98

Out of Stock

76 - O RING (# EV23S76)
£2.98

Out of Stock

77 - SCREW (# EV23S77)
£2.98

Out of Stock

78 - LASER SEAT (# EV23S78)
£2.98

Out of Stock

79 - LASER MODULE (# EV23S79)
£2.98

Out of Stock

80 - CENTER SHAFT (# EV23S80)
£2.98

Out of Stock

81 - BASE ASSEMBLY (# EV23S81)
£2.98

Out of Stock

82 - BLUE SCREW (# EV23S82S)
£2.98

Out of Stock

83 - WASHER (# EV23S83)
£2.98

Out of Stock

86 - RUBBER STOP (# EV23S86)
£2.98

Out of Stock

87 - SCREW (# EV23S87)
£2.98

Out of Stock

88 - PIVOT BRACKET (# EV23S88)
£2.98

Out of Stock

91 - SCREW (# EV23S91)
£2.98

Out of Stock

92 - HEX NUT (# EV23S92)
£2.98

Out of Stock

94 - SCREW M6 X 8 (# EV23S94)
£2.98

Out of Stock

96 - WASHER (# EV23S96)
£2.98

Out of Stock

97 - BLUE KNOB (# EV23S97S)
£2.98

Out of Stock

99 - SCREW (# EV23S99)
£2.98

Out of Stock

111 - BLUE SIDE HANDLE (# EV23S111S)
£2.98

Out of Stock

112 - CARRY CASE (# EV23S112)
£2.98

Out of Stock

114 - HEX WRENCH (# EV23S114)
£2.98

Out of Stock

115 - FENCE GUIDE (# EV23S115)
£2.98

Out of Stock

116 - BATTERIES PAIR (# EV23S116)
£2.98

Out of Stock

117 - BEARING WASHER (# EV23S117)
£2.98

Out of Stock

118 - BEARING COVER (# EV23S118)
£2.98

Out of Stock

119 - SPRING WASHER (# EV23S119)
£2.98

Out of Stock

120 - SPRING WASHER (# EV23S120)
£2.98

Out of Stock

121 - LABEL SET 110V (UK) (# EV23S121)
£2.98

Out of Stock

121A - LABEL SET 230V (UK/EU) (# EV23S121A)
£2.98

Out of Stock
