R255TBL / R255TBL+ Spare Parts (Section 2)

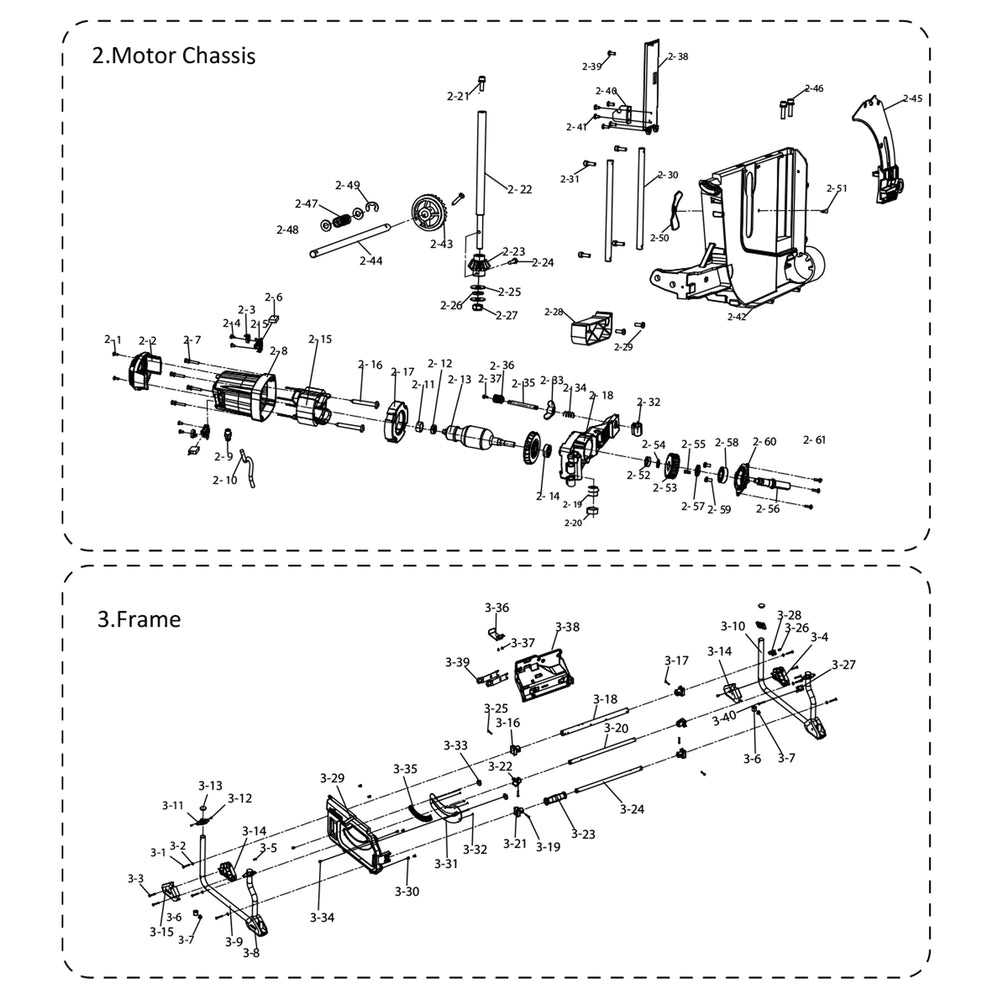

Find the part number on the diagram, and search the number from the list below.
Please enter a search term before proceeding.
2-1  - SCREW  (# F-TFPX-4.2-13-ST-BO )

Out of Stock

2-10  - MOTOR CABLE H05VV4×1MM2×0.6M  (# 119-0319 )

Out of Stock

2-11  - BEARING SLEEVE  (# 119-0137 )
£0.98

Out of Stock

2-12  - BEARING 608  (# F-B-608 )

Out of Stock

2-13  - ROTOR 230V 1800W  (# 119-0138 )

Out of Stock

2-14  - BEARING 601  (# F-B-601 )

Out of Stock

2-15  - STATOR 230V 1800W WITH EBREAK  (# 119-0135 )

Out of Stock

2-16  - SCREW  (# F-TFPX-M5-36-ST-BO )

Out of Stock

2-17  - STATOR PROTECTOR  (# 119-0136 )

Out of Stock

2-18  - GEAR CASE CASTING  (# 119-0139 )

Out of Stock

2-19  - DUAL THREAD NUT  (# 119-0278 )

Out of Stock

2-2  - MOTOR END CAP  (# 119-0130 )

Out of Stock

2-20  - DUAL THREAD NUT SEAT  (# 119-0279 )

Out of Stock

2-21  - COMBINATION SCREW + WASHER  (# F-SHCS-M5-14-ST-BO )

Out of Stock

2-22  - ELEVATION DRIVE SHAFT  (# 119-0161 )

Out of Stock

2-23  - BEVEL GEAR B  (# 119-0159 )

Out of Stock

2-24  - SCREW  (# F-TFPX-M4.2-22-ST-BO )

Out of Stock

2-25  - FLAT WASHER  (# F-W-M8-ST-BZP )

Out of Stock

2-26  - RUBBER GASKET  (# 119-0280 )

Out of Stock

2-27  - NUT  (# F-NNIT-M8-ST-BZP )

Out of Stock

2-28  - STOPPER ELEVATION BLOCK  (# 119-0281 )

Out of Stock

2-29  - SCREW  (# F-SPHPZ-M5-10-ST-BO )
£0.98

In Stock

Estimated Delivery 1-2 Business Days
2-3  - SPRING CARBON BRUSH  (# 119-0276 )
£2.98

Out of Stock

2-30  - ELEVATION GUIDE SHAFT  (# 119-0147 )
£4.98

Out of Stock

2-31  - SCREW  (# F-SHCS-M5-20-ST-BO )
£0.48

In Stock

Estimated Delivery 1-2 Business Days
2-32  - ANGLE ADJUST BLOCK  (# 119-0282 )

Out of Stock

2-33  - WING KNOB  (# 119-0283 )

Out of Stock

2-34  - TENSION ADJUST SPRING  (# 119-0284 )

Out of Stock

2-35  - TENSION ADJUST ROD  (# 119-0285 )

Out of Stock

2-36  - TENSION ADJUST KNOB  (# 119-0286 )

Out of Stock

2-37  - COMBINATION SCREW  (# F-SPHPZ-M4x12-ST-BO )

Out of Stock

2-38  - RIVING KNIFE CASING  (# 119-0150 )

Out of Stock

2-39  - SCREW  (# F-SPHPZ-M4-12-ST-BO )
£0.48

In Stock

Estimated Delivery 1-2 Business Days
2-4  - SCREW  (# F-TFPX-M4-10-ST-BO )

Out of Stock

2-40  - FEATHER BOARD HOLDER-120V  (# 119-0287 )

Out of Stock

2-41  - SCREW  (# F-TFPX-M4.2-10-ST-BO )

Out of Stock

2-42  - BLADE GUARD  (# 119-0156 )

Out of Stock

2-43  - BEVEL GEAR A  (# 119-0158 )

Out of Stock

2-44  - HEIGHT ADJUSTMENT HAFT  (# 119-0157 )

Out of Stock

2-45  - RIVING KNIFE ASSEMBLY  (# 119-1008 )

Out of Stock

2-46  - SCREW  (# F-SHCS-M6-20-ST-BO )
£0.98

In Stock

Estimated Delivery 1-2 Business Days
2-47  - HEIGHT ADJUSTMENT SPRING  (# 119-0288 )

Out of Stock

2-48  - WASHER  (# F-W-M10-ST-BZP )

Out of Stock

2-49  - F-ECLIP  (# F-ECLIP-8-070-ST-PO )
£1.98

In Stock

Estimated Delivery 1-2 Business Days
2-5  - CARBON BRUSH HOLDER  (# 119-0132 )

Out of Stock

2-50  - ANTI PROBE PLATE  (# 119-0289 )

Out of Stock

2-51  - SCREW  (# F-TFPX-M4.2-16-ST-BO )

Out of Stock

2-52  - BEARING  (# F-B-608-2Z )
£7.48

In Stock

Estimated Delivery 1-2 Business Days
2-53  - REDUCTION GEAR  (# 119-0140 )
£5.98

Out of Stock

2-54  - CIRCLIP  (# F-CCEXT-14-080-ST-PO )
£0.48

Out of Stock

2-55  - FLAT KEY  (# Flat Key 4x4x12 )
£48.00

Out of Stock

2-56  - UK/EU OUTPUT SHAFT  (# 119-0142 )
£6.98

Out of Stock

2-57  - GEAR SPACER  (# 119-0290 )
£1.98

Out of Stock

2-58  - BEARING  (# F-B-6002-2RSR )
£3.98

Out of Stock

2-59  - SCREW  (# F-SPHPZ-M5-10-ST-BO )
£0.48

In Stock

Estimated Delivery 1-2 Business Days
2-6  - CARBON BRUSH HIGH VOLT  (# 119-0131 )
£14.98

Out of Stock

2-60  - GEARBOX COVER  (# 119-0141 )
£2.98

Out of Stock

2-61  - COMBINATION SCREW  (# F-SPHPZ-M4-16-ST-BO )
£0.48

In Stock

Estimated Delivery 1-2 Business Days
2-7  - MOTOR HOUSING COMBINATION SCREW  (# F-SPHPZ-M5-35-ST-BO )
£0.98

Out of Stock

2-8  - MOTOR HOUSING  (# 119-0134 )
£14.98

Out of Stock

2-9  - CABLE TENSIONER 6P3-4  (# 119-0277 )
£1.98

Out of Stock

3-1  - SCREW  (# F-TFPX-M5.5-38-ST-BO )

Out of Stock

3-10  - MACHINE FRAME-REAR  (# 119-0174-1 )

Out of Stock

3-11  - TABLE TOP MOUNTING PLATE  (# 119-0294 )

Out of Stock

3-12  - SCREW  (# F-TFPX-4-12-ST-BO )

Out of Stock

3-13  - TABLE TOP RUBBER FEET  (# 119-0295 )

Out of Stock

3-14  - FRAME FOOT L-R  (# 119-0169-2 )
£3.98

Out of Stock

3-15  - FRAME FOOT L-F  (# 119-0169-3 )
£3.98

Out of Stock

3-16  - FRAME JOINT  (# 119-0296 )

Out of Stock

3-17  - SCREW  (# F-SCHPZ-M4.8-38-ST-BO )

Out of Stock

3-18  - HORIZONTAL FRAM A  (# 119-0297 )

Out of Stock

3-2  - BENT WASHER  (# 119-0291 )

Out of Stock

3-20  - HORIZONTAL FRAM B  (# 119-0298 )

Out of Stock

3-21  - FRAME JOINT SEAT A  (# 119-0299 )

Out of Stock

3-22  - FRAME JOINT SEAT A  (# 119-0300 )

Out of Stock

3-23  - CARRY HANDLE  (# 119-0301 )

Out of Stock

3-24  - HORIZONTAL FRAM C  (# 119-0302 )

Out of Stock

3-26  - SCREW  (# F-TFPX-5-16-ST-BO )

Out of Stock

3-27  - MITER GAUGE SEAT-R  (# 119-0303 )
£0.98

Out of Stock

3-28  - MITER GAUGE SEAT-F  (# 119-0304 )
£1.98

Out of Stock

3-29  - FRONT PANEL  (# 119-0164 )

Out of Stock

3-3  - SCREW  (# F-TFPX-M5.5-32-ST-BO )
£0.98

Out of Stock

3-31  - SUPPORT PLATE FRONT  (# 119-0168 )

Out of Stock

3-32  - SCREW  (# F-SCHPZ-M4.2-8-ST-BO )

Out of Stock

3-33  - BEVEL CAM, ADJUSTMENT  (# 119-0179 )
£1.48

Out of Stock

3-34  - SCREW  (# F-SHCS-M6-14-ST-BO )
£0.48

Out of Stock

3-35  - BEVEL GEAR RACK  (# 119-0180 )
£3.48

Out of Stock

3-36  - BLADE GUARD BRACKET  (# 119-0171 )
£4.98

Out of Stock

3-37  - SCREW  (# F-TFPX-M5-16-ST-BO )

Out of Stock

3-38  - SIDE PANEL - RIGHT  (# 119-0175 )

Out of Stock

3-39  - SPANNER  (# 119-0172 )

Out of Stock

3-4  - FRAME FOOT RIGHT-FRONT  (# 119-0169 )
£3.98

Out of Stock

3-40  - SCREW  (# F-TFPX-M4.8-45-ST-BO )
£0.98

Out of Stock

3-5  - SCREW  (# F-SFHPZ-M4.8-16-ST-BO )
£0.48

Out of Stock

3-6  - JOINT RING  (# 119-0292 )

Out of Stock

3-7  - RUBBER GASKET  (# 119-0293 )

Out of Stock

3-8  - FRAME FOOT RIGHT-REAR  (# 119-0169-1 )

Out of Stock

3-9  - MACHINE FRAME-FRONT  (# 119-0174 )

Out of Stock
