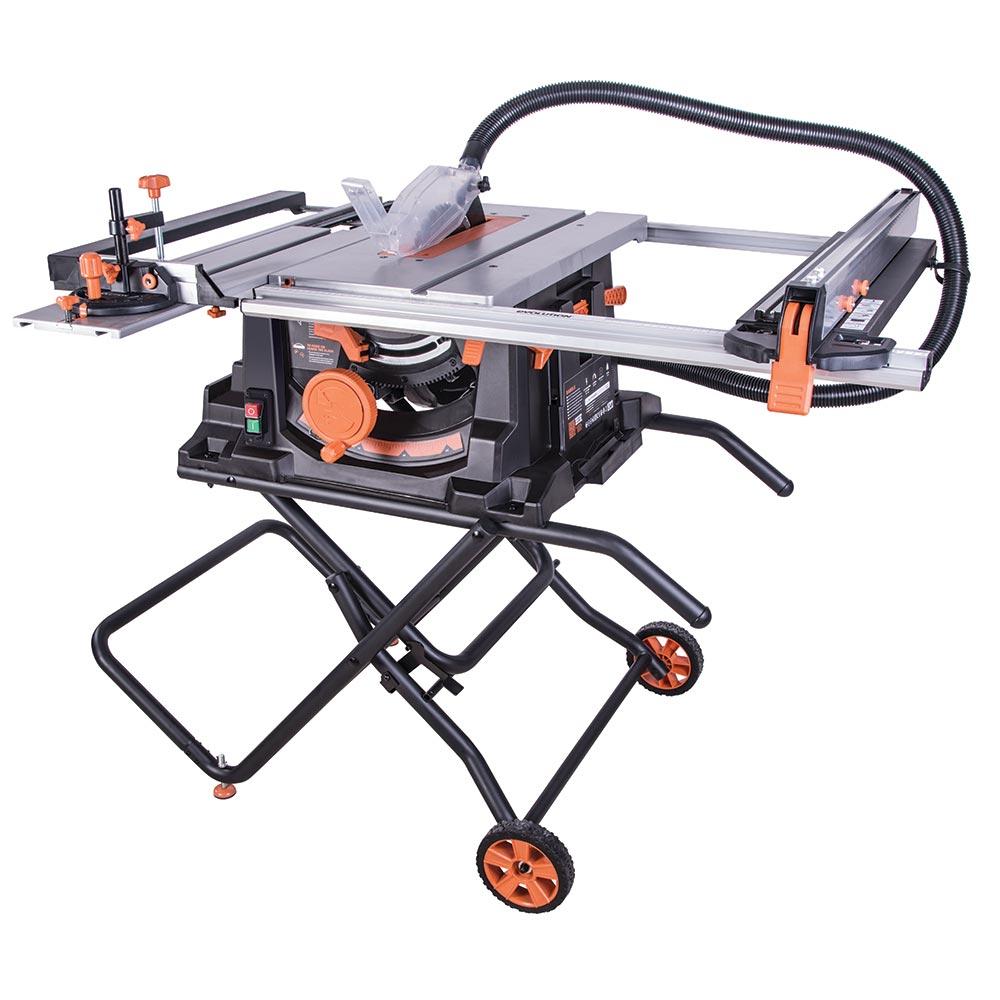

Evolution RAGE5-S 255mm Multipurpose Table Saw With TCT Multi-Material Cutting Blade
230V
Evolution RAGE5-S 255mm Multipurpose Table Saw With TCT Multi-Material Cutting Blade
SKU: 057-0001
EAN/UPC: 00849713066961
- Job site portability. Assemble or collapse in seconds.
- 8x4' sheet handling capacity.
- 83mm depth of cut at 90° and 57mm depth of cut at 45° bevel.
- Zero clearance Insert kit available.
Specifications
| Blade Size | 255mm |
| Power Type | Corded |
| Max. Cut Depth | 83mm |
Similar Products
-
FREE Upgrades Worth Up To £87
£329.98Blade Size 255mm Power Type Corded Max. Cut Depth 85mm Warranty 3 Years -
FREE Upgrades Worth Up To £87
£379.98Bundle Offer£969.92£799.98Bundle Saving £169.94Warranty 3 Years Blade Size 255mm Power Type Corded Max. Cut Capacity 87mm at 0° Bevel Max. Cut Depth 85mm Warranty 3 Years
Accessories
-
£57.98Blade Size 255mm Number Of Teeth 60 Bore Ø 25.4mm Kerf 2.4mm -
£48.98Blade Size 255mm Number Of Teeth 40 Bore Ø 25.4mm Kerf 2.4mm -
£34.98Blade Size 255mm Number Of Teeth 28 Bore Ø 25.4mm Kerf 2mm
Evolution RAGE5-S 255mm Multipurpose Table Saw With TCT Multi-Material Cutting Blade
£399.98
£333.32
EX VAT
Save
£0.00
Pay-in-3 £133.32 per month
Pay-In-12 :
£33.33
per month with Iwoca Pay
Out of stock
Frequently Bought Together
Videos
- Description
- Features
- Specifications
- Compatible With
- Items Supplied
- Accessories
- Buy Now, Pay Later
- 3 Years Warranty
- Downloads
Description
The 230v RAGE5-S Multipurpose Table Saw is the tool that all good workmen know. Powerful, with its high-torque motor and tungsten-carbide-tipped 255mm TCT 28T blade, it’s the most versatile multi-material cutting table saw you can buy for the money. The RAGE5-S will accurately & easily cut steel, aluminium, plastic, wood, even wood with embedded nails using just one blade. Excellent at ripping thin stock, making accurate crosscuts and handling sheet materials. It’s the perfect tool for the keen home diyer and construction crews alike.
The RAGE5-S specification includes a powerful 1,500W high-torque motor to make light work of any cut. Up to 45° bevel and 60° mitre cut ability can be fine tuned and easily adjusted. Blade depth can be adjusted across an 80mm height range. A full length adjustable fence, angle guide, adjustable material pusher and extendable platform on the left and right sides of the top plate make this a truly versatile table saw. The RAGE5-S has the power for the big jobs and the finesse to tackle the small ones. If you’re going to be specialising in one specific type of material cutting why not take in our range of material specific, wood, fine wood, mild steel, aluminium, stainless and diamond coated cutting blades.
Features

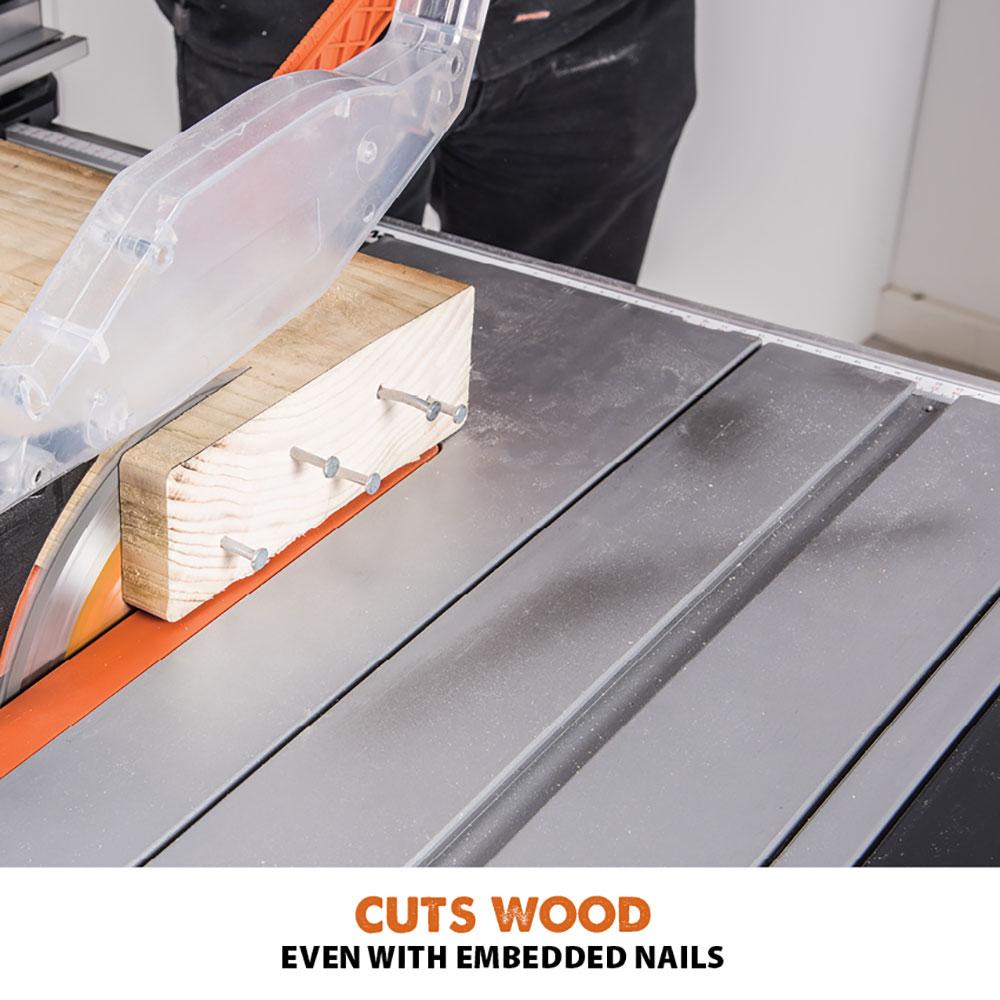

- Multi-Material cutting technology. One saw, one blade, cuts all.*

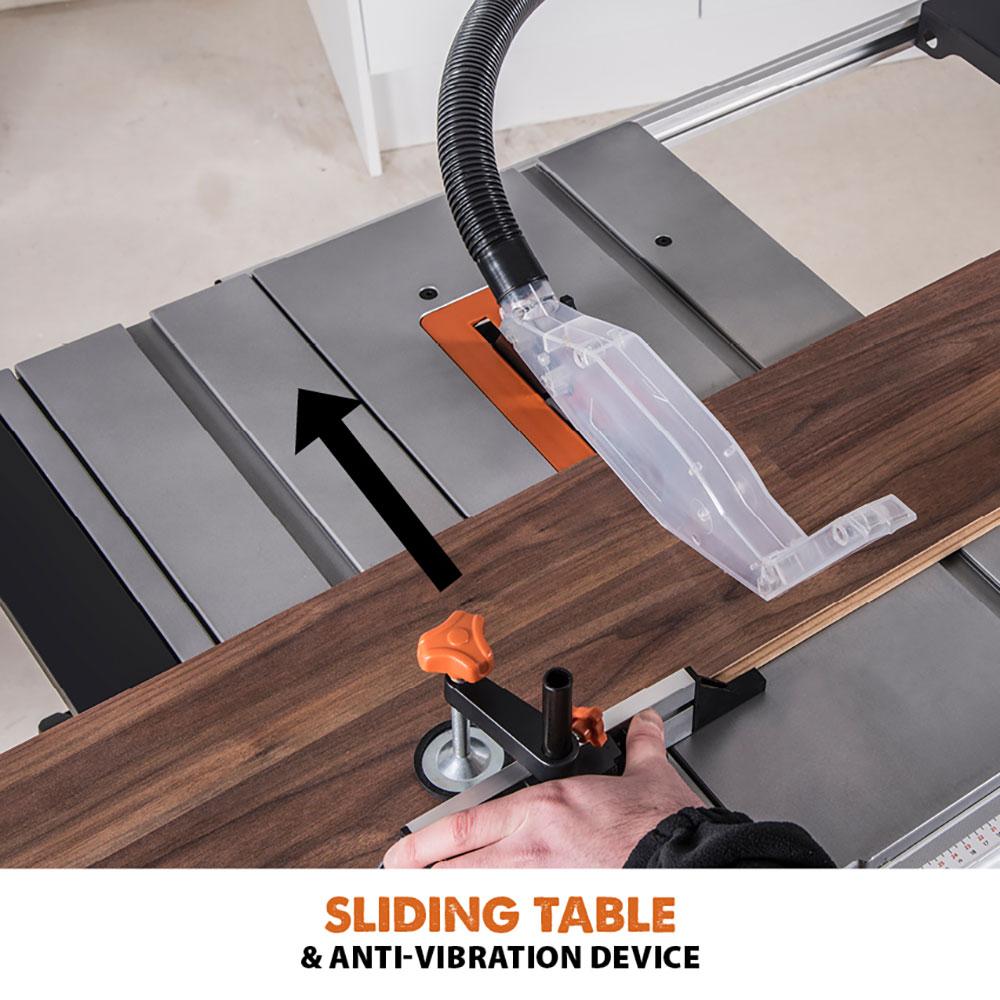

- Accurate rip cutting, assisted by an adjustable, full-length, parallel fence with measuring rail guide.
- Reliable smooth square cutting every time in a variety of materials.

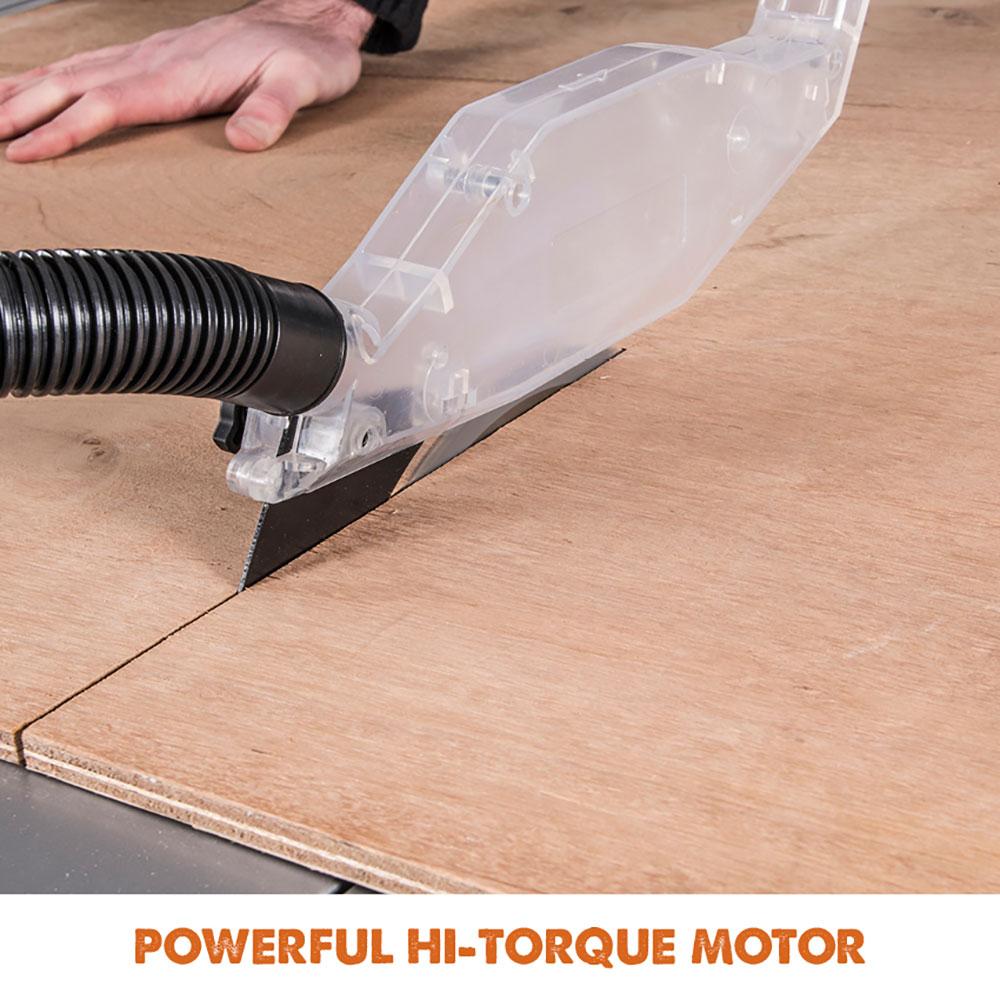

- Powerful hi-torque motor with an optimized gearbox & blade system.

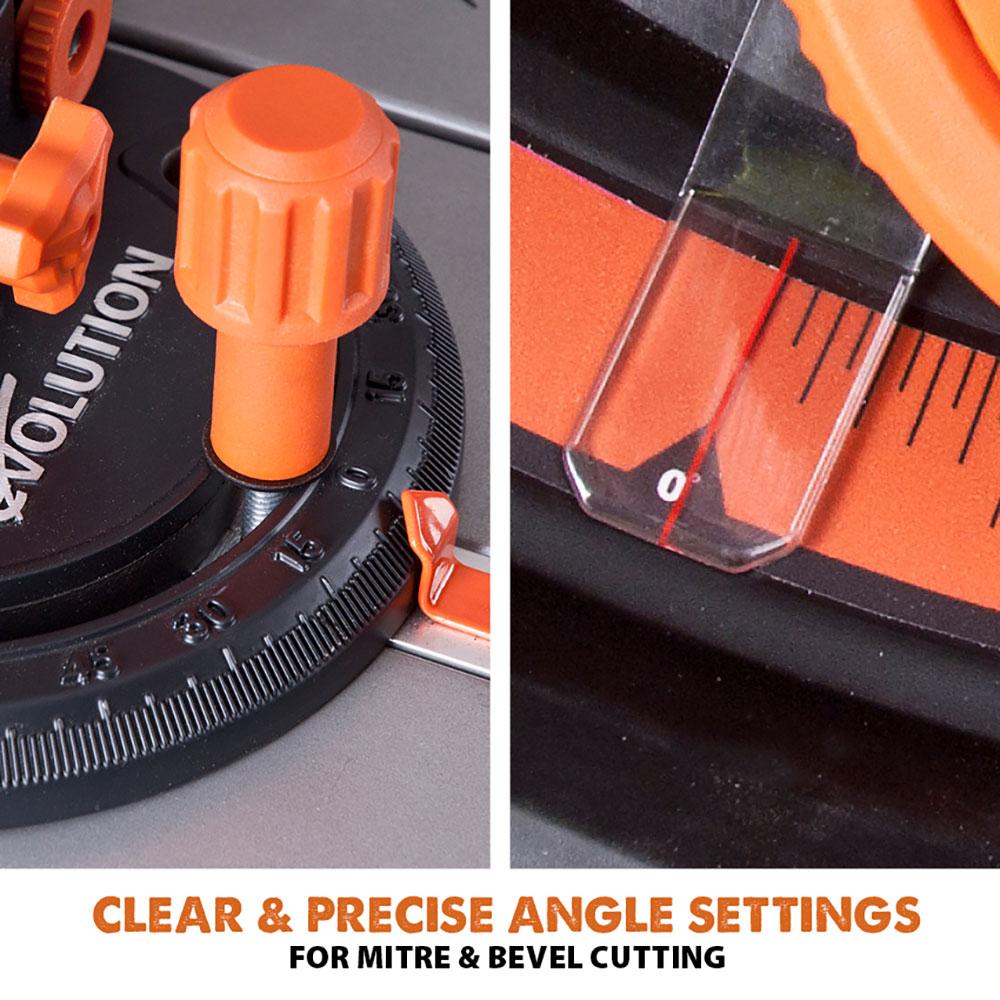

- 0- 45-degree bevel tilt and 60 - 60-degree mitre fence covers all common, compound cutting angles.

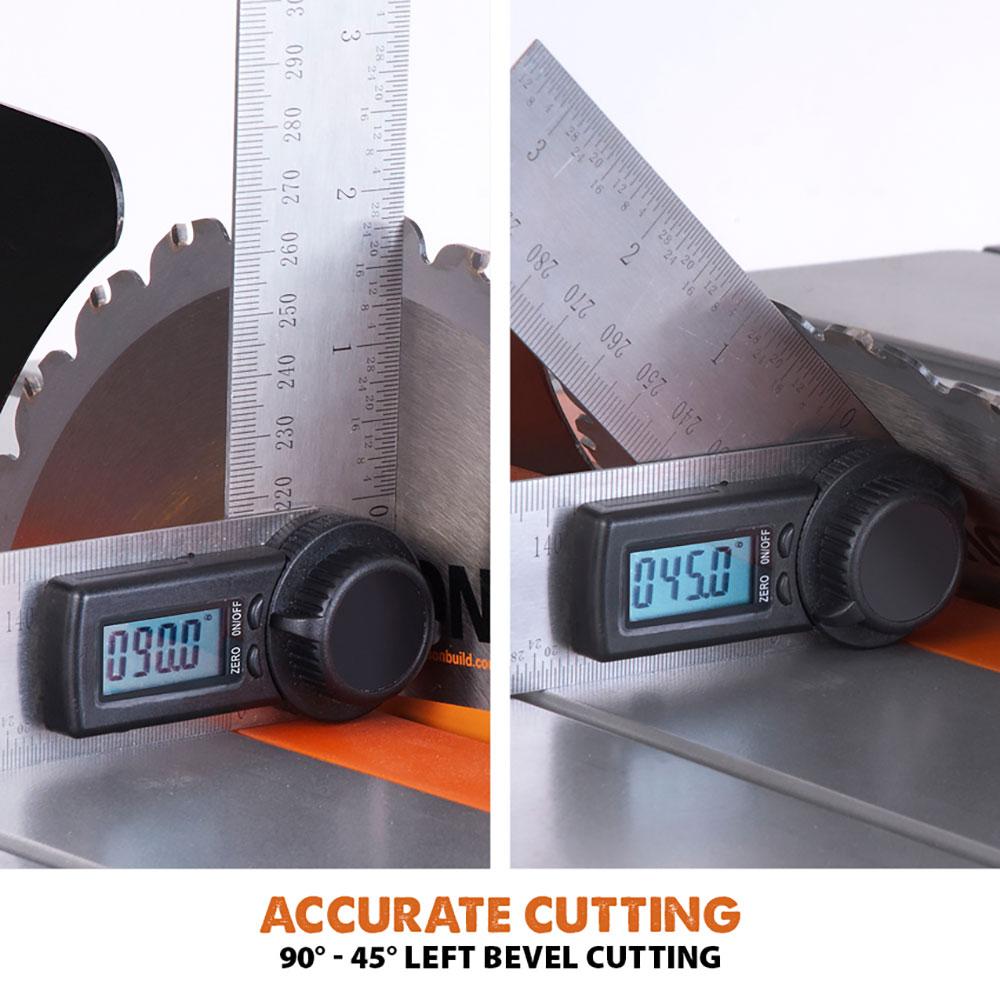

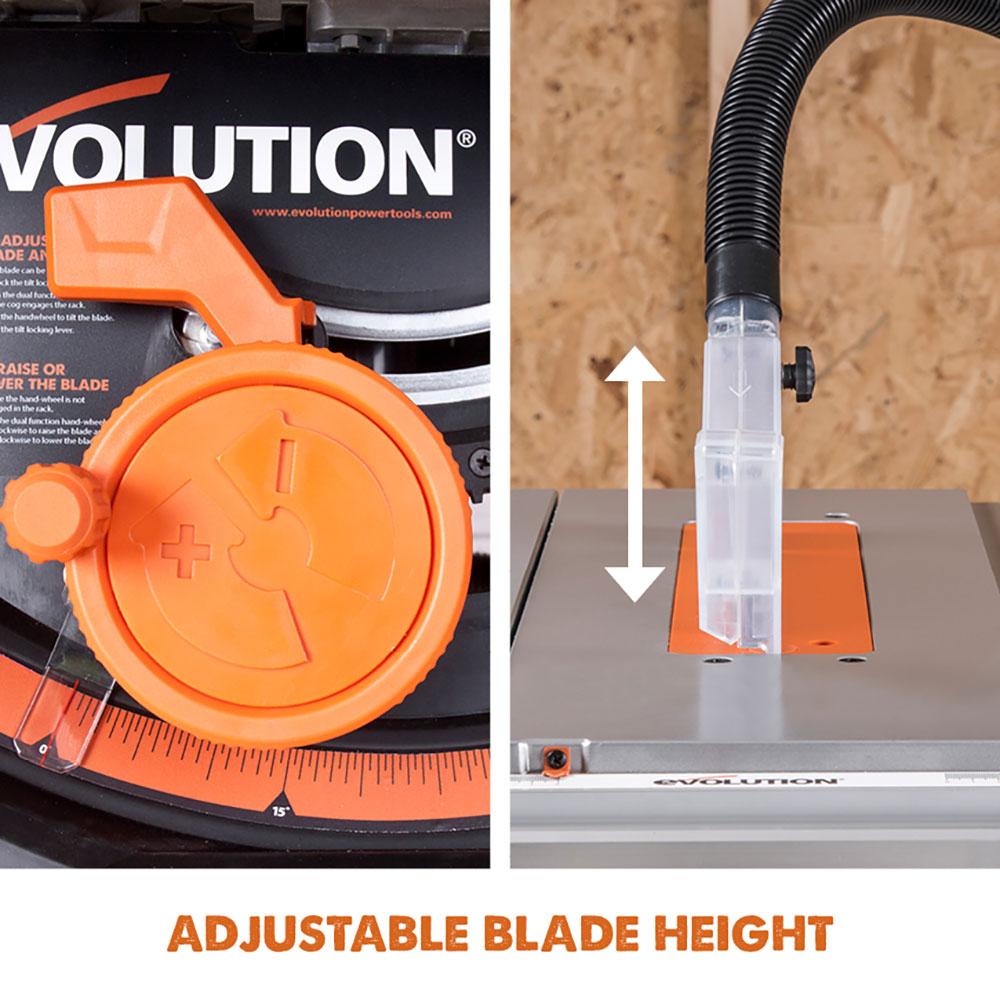

- 83mm depth of cut at 90 degrees and 58mm depth of cut at 45 degrees.
- Integrated dust port above and below the blade captures dust effectively when fitted to an extraction unit/vacuum (sold separately).

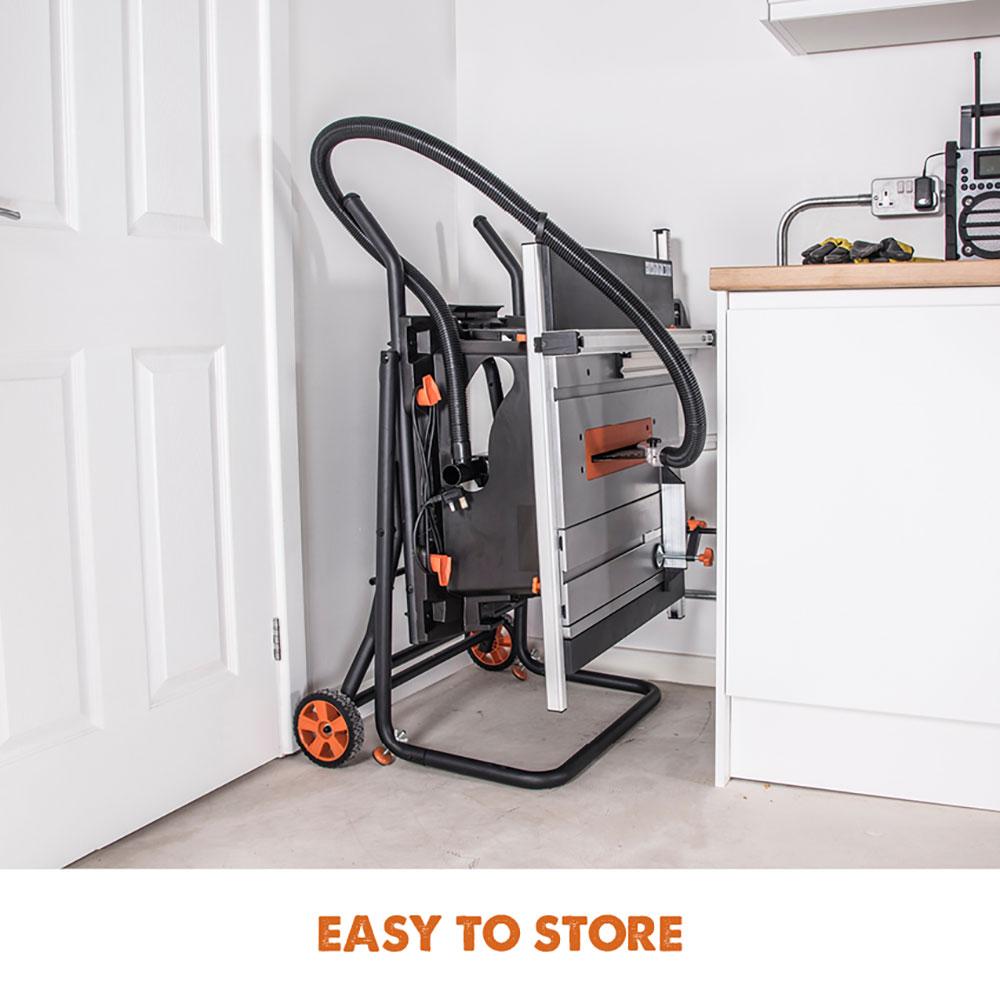

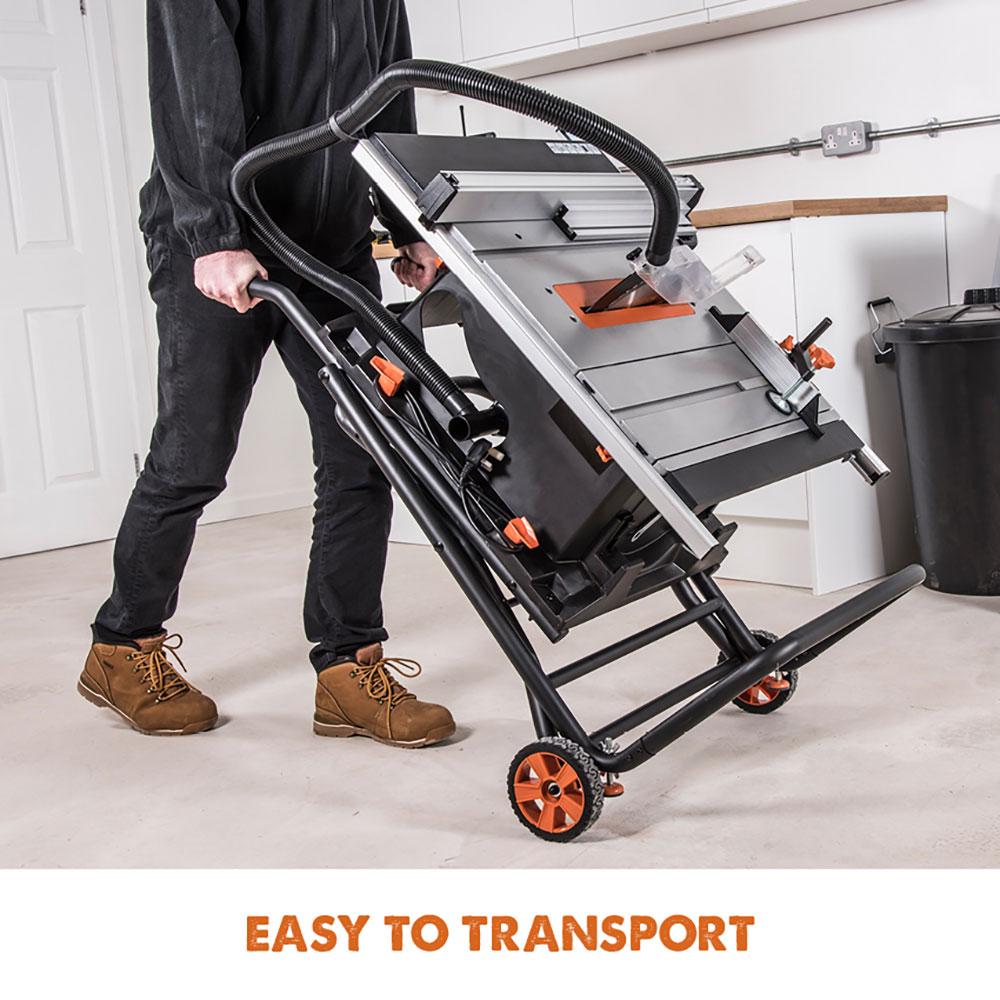

- Collapsible frame with wheels for easy storage and portability.

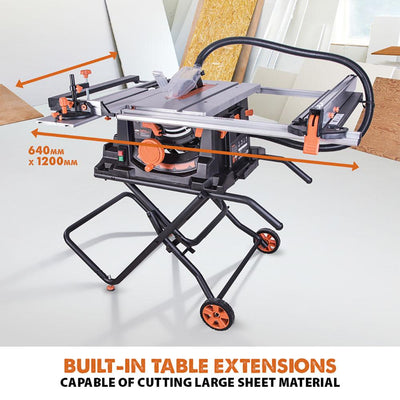

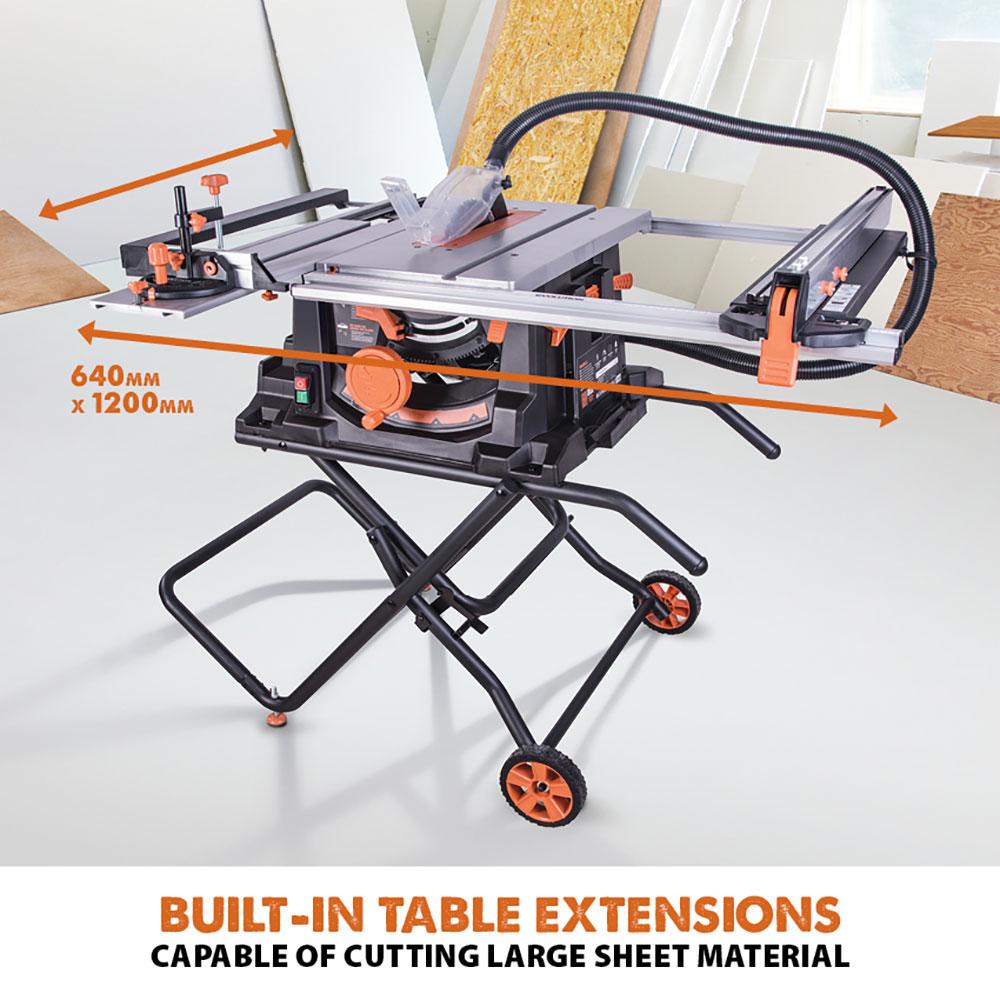

- Left and right table extensions support wide work-pieces with a table surface area of 1200mm x 640mm when fully extended.
- 1.5m durable cable with the built-in storage cable holder.
- Push Stick included for safer operation when handling smaller offcuts.
- 3 Year limited warranty.

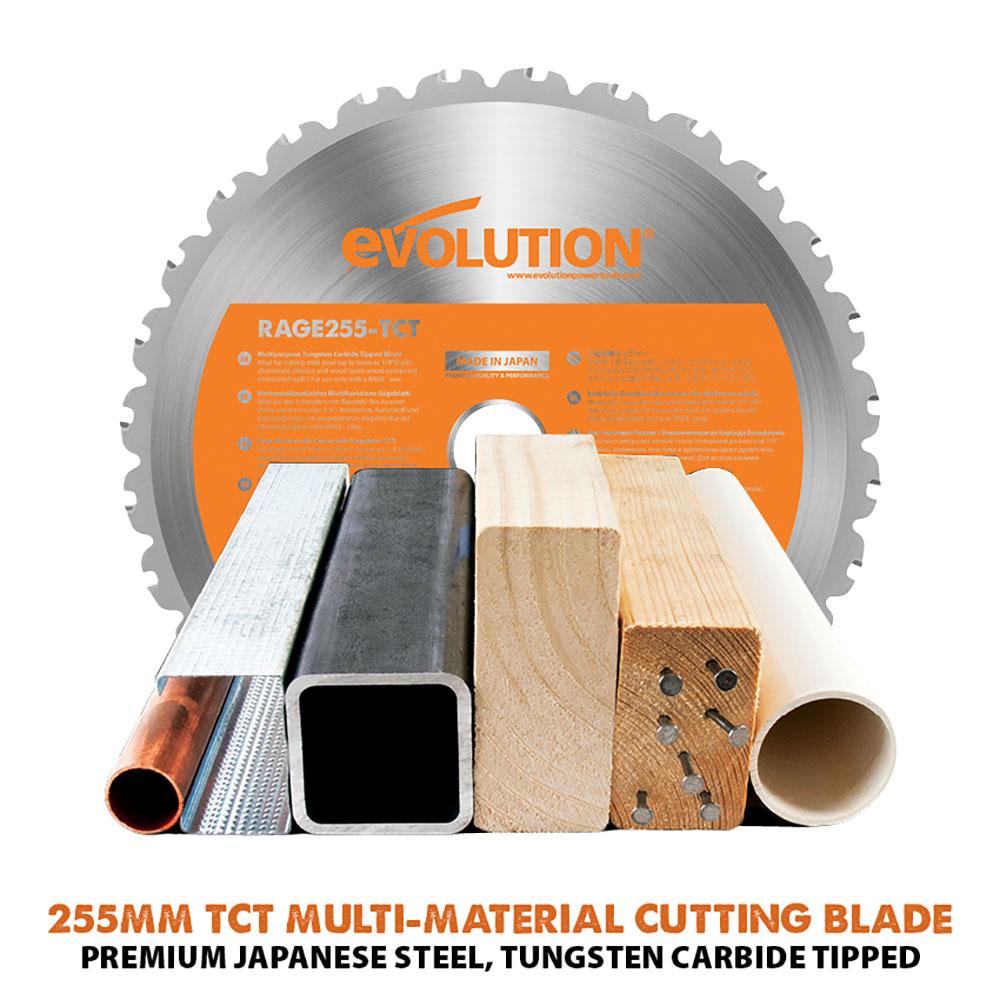

- Japanese Tungsten-Carbide-Tipped (TCT) 255mm blade included.
Specifications
| Motor (240V 50Hz): | 1500W |
| Speed No Load: | 2500rpm |
| Max. Bevel (Left): | 45° |
| Blade Dia.: | 255mm |
| No. of Teeth: | 24 |
| Bore: | 25.4mm |
| Kerf: | 2mm |
| Max. Depth of Cut (0°): | 83mm |
| Max. Depth of Cut (45°): | 58mm |

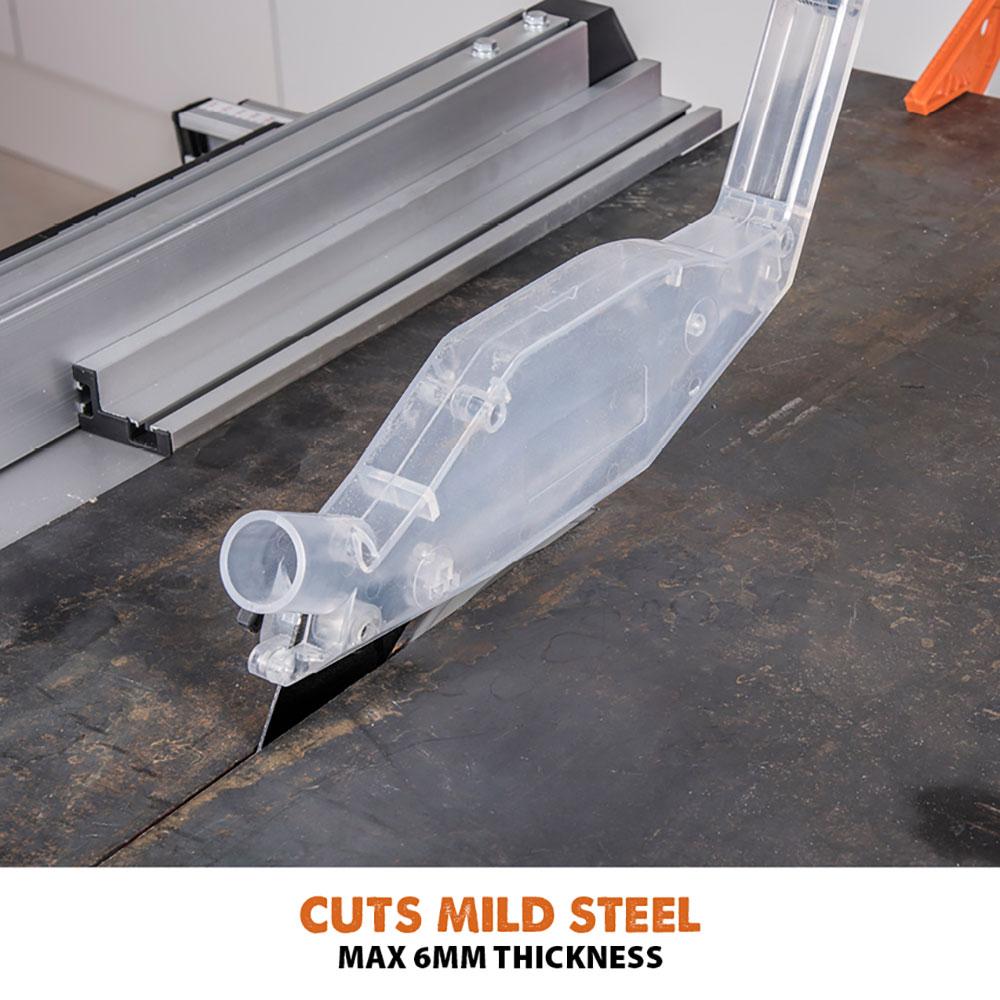

| Mild Steel Plate (Max. Thickness): |
6mm |
| Rip Capacity - Right of the blade | 605mm |
| Rip Capacity - Left of the blade | 305mm |
| Riving Knife Thickness | 1.8mm |
| Product Dimensions: | (With Leg Assembly) 1050mm x 750mm x 940mm |
| Product Dimensions: | (Without Leg Assembly) 880 x 730 x 330mm |
| Max. Table Dimensions | 1200mm x 640mm |
| Min. Table Dimensions | 745mm x 640mm |
| Packaging Dimensions: | 910mm x 370mm x 750mm |
| Storage Dimensions: | H 1110mm x D 660mm x W 825mm |
| Product Weight: | 28.5 kg |
| Packaged Weight: | 33.5 kg |
| Sound Pressure Level LPA: | 93,2dB(A) K:3dB(A) |
| Sound Power Level LWA: | 106,2dB(A) K=3 dB(A) |
Compatible With
FW255TCT-60 255mm, 60T Fine Wood Blade
GW255TCT-40 255mm, 40T General Wood Blade
FURYBLADE255MULTI 255mm, 24T Multi-material Blade
RAGEBLADE255MULTI 255mm, 28T Multi-material Blade
-
Quick-Assembly Guide
-
Step-By-Step Assembly & Calibration Guide
-
Advanced Setup Guide
Items Supplied
| 28T Multi-Material TCT Blade |
| Blade Guard with Extraction Port |
| Dust Extraction Hose |
| Mitre Gauge |
| Anti-Bounce Device |
| Adjustable Rip Fence |
| Push Stick |
| Blade Changing Spanners |
| Assorted fixings |
Accessories
-
£57.98
Blade Size 255mm Number Of Teeth 60 Bore Ø 25.4mm Kerf 2.4mm -
£48.98
Blade Size 255mm Number Of Teeth 40 Bore Ø 25.4mm Kerf 2.4mm -
£34.98
Blade Size 255mm Number Of Teeth 28 Bore Ø 25.4mm Kerf 2mm
Buy Now, Pay Later
Split your order total into 3 interest-free instalments with Klarna.
Shop
- Add items to your cart, and go to the checkout.
- Minimum order total: £35.00
- Select Klarna as your payment method.
- Please keep your proof of purchase / delivery.
- You don’t have to create a Klarna account, if you don’t want to. TIP: Just tap ‘Change’ under payment type and then ‘Add New Payment Method'.
Pay-In-3
- The first instalment will be taken from your card when you place your order.
- The next two remaining payments will be automatically charged 30 and 60 days later.
- For example: £150 mitre saw.
Day 1: £50. Day 30: £50. Day 60: £50. - With 0% Interest
- Note: You’ll get notifications when your payment is due and when it’s collected. There is zero interest and never any fees when you pay on time. If you return any items on your order, your Klarna statement and schedule will be updated.
To get started all you need is:
- A UK bank account with a good credit history.
- A credit/debit card to be valid for 60 days from the purchase date.
- To be 18 years of age or over.
- A UK residential address.
- A valid mobile number and email address.
How do I pay using Pay Later in 3 with Klarna?
- To pay using Klarna, your order total must be equal to or more than £35.00. When you get to checkout, click ‘change’ under payment type and then ‘Add New Payment Method’.
- You'll need to provide your mobile number as Klarna may need to contact you. You'll also need to include your email address so that Klarna can send your payment schedule. Klarna use this information to keep you up to date on any payments or refunds that are due, so it’s important the details you provide us with are correct.
When will I receive my payment schedule?
- You’ll be asked to pay the first of the 3 equal instalments once your order has been confirmed at checkout.
- Instalments 2 and 3 will automatically be collected from the debit or credit card you entered at checkout 30 and 60 days later, respectively.
- You'll receive a reminder from Klarna 2 days before each instalment is collected.
- If you miss one of your scheduled instalments and Klarna are unable to automatically withdraw the money from your account 2 days later, you'll be issued with a statement for the full amount due.
I'm having trouble paying with Klarna. If you have any trouble placing an order with Klarna, it could be due to one of the following reasons:
- Klarna payments are subject to your financial circumstances. Klarna may have rejected your application to Pay later in 3. We’d recommend choosing another type of payment or placing an order for a smaller amount.
- You may have outstanding payments on previous Klarna purchases with other retailers.
- You may have missed a required field at the checkout, such as filling in your date of birth.
Please note: That Klarna is an independent payment company and Evolution Power Tools Limited has no influence over whether your payment with Klarna is accepted or not. If you have any trouble with your order, please contact Klarna Customer Service.
- For terms on Pay Later in 3 with Klarna click here.
- For more information about Pay Later in 3 with Klarna, click here.
- To find out more about returns paid with Klarna, click here.
Terms & Conditions
Our website contains links to websites owned and operated by third parties; these are provided solely for your convenience. Evolution has no control over these sites and are not responsible for their content or availability.
- In cooperation with Klarna Bank AB (publ), Sveavägen 46, 111 34 Stockholm, Sweden, we offer you the following payment methods. Payment is to be made to Klarna.
- Financing: With the financing service from Klarna you can pay your purchase in flexible or fixed monthly instalments according to the conditions stated in the checkout. The instalment payment is due at the end of each month after submission of a separate monthly invoice by Klarna. Further information regarding Slice It including terms and conditions and Standard European Consumer Credit Information you can find here for the United Kingdom.
- Direct Debit: Your account will be debited after shipment of the goods or tickets/ availability date of the service or in case of a subscription in accordance with the timelines communicated. You will be notified about the date(s) by email.
- The payment method; Slice It and direct debit are only available in case of a positive credit assessment. For this purpose, during the order process and handling of your purchase, we forward your data for an address and credit check to Klarna. We can only offer you the payment methods available based on the result of the credit check. General information about Klarna and the user terms per country can be found on klarna.com.
- Your personal data is handled in accordance with applicable data protection law and in accordance with the information in Klarnas privacy statement. n cooperation with Klarna Bank AB (publ), Sveavägen 46, 111 34 Stockholm, Sweden, we offer you the following payment options. Payment is to be made to Klarna:
Financing - Pay in 3
- Further information and Klarnas user terms you can find here.
- General information on Klarna you can find here.
- Your personal data is handled in accordance with applicable data protection law and in accordance with the information in Klarnas privacy statement.
Privacy Policy
- In order to be able to offer you Klarna’s payment options, we will pass to Klarna certain aspects of your personal information, such as contact and order details, in order for Klarna to assess whether you qualify for their payment options and to tailor the payment options for you. General information on Klarna you can find here.
- Your personal data is handled in accordance with applicable data protection law and in accordance with the information in Klarna’s privacy policy.
3 Years Warranty
Please keep your proof of purchase / delivery.
- The warranty becomes effective at the date of purchase (or the date of delivery if this is later).
- You must provide proof of delivery/ purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
- All work will be carried out by Evolution.
- Any parts which are replaced will become the property of Evolution.
- The repair or replacement of your machine under warranty will not extend the period of warranty.
- The warranty provides benefits which are additional to and do not affect your statutory rights as a consumer.
- The repair or replacement of your machine (at Evolution’s discretion), if your machine is found to be defective due to faulty materials, workmanship or function within the warranty period (if any part is no longer available or out of manufacture, Evolution will replace it with a functional replacement part).
- Overseas users should contact the official importer for that country.
Evolution does not warrant the repair or replacement of a product when the following has occurred;
- Normal wear and tear (eg. Fuse, Fluids/Lubricants, Blades, etc.)
- Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the machine which is not in use with Evolution’s user guide.
- Lack of servicing.
- Use of parts not assembled or installed in accordance with the instructions of Evolution.
- Use of parts and accessories which are not Evolution Genuine Components.
- Faulty installation (except installation by Evolution).
- Repairs or alterations carried out by parties other than Evolution.
Description
Description
The 230v RAGE5-S Multipurpose Table Saw is the tool that all good workmen know. Powerful, with its high-torque motor and tungsten-carbide-tipped 255mm TCT 28T blade, it’s the most versatile multi-material cutting table saw you can buy for the money. The RAGE5-S will accurately & easily cut steel, aluminium, plastic, wood, even wood with embedded nails using just one blade. Excellent at ripping thin stock, making accurate crosscuts and handling sheet materials. It’s the perfect tool for the keen home diyer and construction crews alike.
The RAGE5-S specification includes a powerful 1,500W high-torque motor to make light work of any cut. Up to 45° bevel and 60° mitre cut ability can be fine tuned and easily adjusted. Blade depth can be adjusted across an 80mm height range. A full length adjustable fence, angle guide, adjustable material pusher and extendable platform on the left and right sides of the top plate make this a truly versatile table saw. The RAGE5-S has the power for the big jobs and the finesse to tackle the small ones. If you’re going to be specialising in one specific type of material cutting why not take in our range of material specific, wood, fine wood, mild steel, aluminium, stainless and diamond coated cutting blades.
Features
Features
- Multi-Material cutting technology. One saw, one blade, cuts all.*
- Accurate rip cutting, assisted by an adjustable, full-length, parallel fence with measuring rail guide.
- Reliable smooth square cutting every time in a variety of materials.
- Powerful hi-torque motor with an optimized gearbox & blade system.
- 0- 45-degree bevel tilt and 60 - 60-degree mitre fence covers all common, compound cutting angles.
- 83mm depth of cut at 90 degrees and 58mm depth of cut at 45 degrees.
- Integrated dust port above and below the blade captures dust effectively when fitted to an extraction unit/vacuum (sold separately).
- Collapsible frame with wheels for easy storage and portability.
- Left and right table extensions support wide work-pieces with a table surface area of 1200mm x 640mm when fully extended.
- 1.5m durable cable with the built-in storage cable holder.
- Push Stick included for safer operation when handling smaller offcuts.
- 3 Year limited warranty.
- Japanese Tungsten-Carbide-Tipped (TCT) 255mm blade included.
Specifications
Specifications
| Motor (240V 50Hz): | 1500W |
| Speed No Load: | 2500rpm |
| Max. Bevel (Left): | 45° |
| Blade Dia.: | 255mm |
| No. of Teeth: | 24 |
| Bore: | 25.4mm |
| Kerf: | 2mm |
| Max. Depth of Cut (0°): | 83mm |
| Max. Depth of Cut (45°): | 58mm |
| Mild Steel Plate (Max. Thickness): |
6mm |
| Rip Capacity - Right of the blade | 605mm |
| Rip Capacity - Left of the blade | 305mm |
| Riving Knife Thickness | 1.8mm |
| Product Dimensions: | (With Leg Assembly) 1050mm x 750mm x 940mm |
| Product Dimensions: | (Without Leg Assembly) 880 x 730 x 330mm |
| Max. Table Dimensions | 1200mm x 640mm |
| Min. Table Dimensions | 745mm x 640mm |
| Packaging Dimensions: | 910mm x 370mm x 750mm |
| Storage Dimensions: | H 1110mm x D 660mm x W 825mm |
| Product Weight: | 28.5 kg |
| Packaged Weight: | 33.5 kg |
| Sound Pressure Level LPA: | 93,2dB(A) K:3dB(A) |
| Sound Power Level LWA: | 106,2dB(A) K=3 dB(A) |
Items Supplied
Items Supplied
| 28T Multi-Material TCT Blade |
| Blade Guard with Extraction Port |
| Dust Extraction Hose |
| Mitre Gauge |
| Anti-Bounce Device |
| Adjustable Rip Fence |
| Push Stick |
| Blade Changing Spanners |
| Assorted fixings |
Compatible With
Compatible With
FW255TCT-60 255mm, 60T Fine Wood Blade
GW255TCT-40 255mm, 40T General Wood Blade
FURYBLADE255MULTI 255mm, 24T Multi-material Blade
RAGEBLADE255MULTI 255mm, 28T Multi-material Blade
-
Quick-Assembly Guide
-
Step-By-Step Assembly & Calibration Guide
-
Advanced Setup Guide
Accessories
Accessories
-
£57.98
Blade Size 255mm Number Of Teeth 60 Bore Ø 25.4mm Kerf 2.4mm -
£48.98
Blade Size 255mm Number Of Teeth 40 Bore Ø 25.4mm Kerf 2.4mm -
£34.98
Blade Size 255mm Number Of Teeth 28 Bore Ø 25.4mm Kerf 2mm
Buy Now, Pay Later
Buy Now, Pay Later
Split your order total into 3 interest-free instalments with Klarna.
Shop
- Add items to your cart, and go to the checkout.
- Minimum order total: £35.00
- Select Klarna as your payment method.
- Please keep your proof of purchase / delivery.
- You don’t have to create a Klarna account, if you don’t want to. TIP: Just tap ‘Change’ under payment type and then ‘Add New Payment Method'.
Pay-In-3
- The first instalment will be taken from your card when you place your order.
- The next two remaining payments will be automatically charged 30 and 60 days later.
- For example: £150 mitre saw.
Day 1: £50. Day 30: £50. Day 60: £50. - With 0% Interest
- Note: You’ll get notifications when your payment is due and when it’s collected. There is zero interest and never any fees when you pay on time. If you return any items on your order, your Klarna statement and schedule will be updated.
To get started all you need is:
- A UK bank account with a good credit history.
- A credit/debit card to be valid for 60 days from the purchase date.
- To be 18 years of age or over.
- A UK residential address.
- A valid mobile number and email address.
How do I pay using Pay Later in 3 with Klarna?
- To pay using Klarna, your order total must be equal to or more than £35.00. When you get to checkout, click ‘change’ under payment type and then ‘Add New Payment Method’.
- You'll need to provide your mobile number as Klarna may need to contact you. You'll also need to include your email address so that Klarna can send your payment schedule. Klarna use this information to keep you up to date on any payments or refunds that are due, so it’s important the details you provide us with are correct.
When will I receive my payment schedule?
- You’ll be asked to pay the first of the 3 equal instalments once your order has been confirmed at checkout.
- Instalments 2 and 3 will automatically be collected from the debit or credit card you entered at checkout 30 and 60 days later, respectively.
- You'll receive a reminder from Klarna 2 days before each instalment is collected.
- If you miss one of your scheduled instalments and Klarna are unable to automatically withdraw the money from your account 2 days later, you'll be issued with a statement for the full amount due.
I'm having trouble paying with Klarna. If you have any trouble placing an order with Klarna, it could be due to one of the following reasons:
- Klarna payments are subject to your financial circumstances. Klarna may have rejected your application to Pay later in 3. We’d recommend choosing another type of payment or placing an order for a smaller amount.
- You may have outstanding payments on previous Klarna purchases with other retailers.
- You may have missed a required field at the checkout, such as filling in your date of birth.
Please note: That Klarna is an independent payment company and Evolution Power Tools Limited has no influence over whether your payment with Klarna is accepted or not. If you have any trouble with your order, please contact Klarna Customer Service.
- For terms on Pay Later in 3 with Klarna click here.
- For more information about Pay Later in 3 with Klarna, click here.
- To find out more about returns paid with Klarna, click here.
Terms & Conditions
Our website contains links to websites owned and operated by third parties; these are provided solely for your convenience. Evolution has no control over these sites and are not responsible for their content or availability.
- In cooperation with Klarna Bank AB (publ), Sveavägen 46, 111 34 Stockholm, Sweden, we offer you the following payment methods. Payment is to be made to Klarna.
- Financing: With the financing service from Klarna you can pay your purchase in flexible or fixed monthly instalments according to the conditions stated in the checkout. The instalment payment is due at the end of each month after submission of a separate monthly invoice by Klarna. Further information regarding Slice It including terms and conditions and Standard European Consumer Credit Information you can find here for the United Kingdom.
- Direct Debit: Your account will be debited after shipment of the goods or tickets/ availability date of the service or in case of a subscription in accordance with the timelines communicated. You will be notified about the date(s) by email.
- The payment method; Slice It and direct debit are only available in case of a positive credit assessment. For this purpose, during the order process and handling of your purchase, we forward your data for an address and credit check to Klarna. We can only offer you the payment methods available based on the result of the credit check. General information about Klarna and the user terms per country can be found on klarna.com.
- Your personal data is handled in accordance with applicable data protection law and in accordance with the information in Klarnas privacy statement. n cooperation with Klarna Bank AB (publ), Sveavägen 46, 111 34 Stockholm, Sweden, we offer you the following payment options. Payment is to be made to Klarna:
Financing - Pay in 3
- Further information and Klarnas user terms you can find here.
- General information on Klarna you can find here.
- Your personal data is handled in accordance with applicable data protection law and in accordance with the information in Klarnas privacy statement.
Privacy Policy
- In order to be able to offer you Klarna’s payment options, we will pass to Klarna certain aspects of your personal information, such as contact and order details, in order for Klarna to assess whether you qualify for their payment options and to tailor the payment options for you. General information on Klarna you can find here.
- Your personal data is handled in accordance with applicable data protection law and in accordance with the information in Klarna’s privacy policy.
3 Years Warranty
3 Years Warranty
Please keep your proof of purchase / delivery.
- The warranty becomes effective at the date of purchase (or the date of delivery if this is later).
- You must provide proof of delivery/ purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
- All work will be carried out by Evolution.
- Any parts which are replaced will become the property of Evolution.
- The repair or replacement of your machine under warranty will not extend the period of warranty.
- The warranty provides benefits which are additional to and do not affect your statutory rights as a consumer.
- The repair or replacement of your machine (at Evolution’s discretion), if your machine is found to be defective due to faulty materials, workmanship or function within the warranty period (if any part is no longer available or out of manufacture, Evolution will replace it with a functional replacement part).
- Overseas users should contact the official importer for that country.
Evolution does not warrant the repair or replacement of a product when the following has occurred;
- Normal wear and tear (eg. Fuse, Fluids/Lubricants, Blades, etc.)
- Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the machine which is not in use with Evolution’s user guide.
- Lack of servicing.
- Use of parts not assembled or installed in accordance with the instructions of Evolution.
- Use of parts and accessories which are not Evolution Genuine Components.
- Faulty installation (except installation by Evolution).
- Repairs or alterations carried out by parties other than Evolution.
Downloads
Compare
-
£399.98Out of stockFeatures- Job site portability. Assemble or collapse in seconds.
- 8x4' sheet handling capacity.
- 83mm depth of cut at 90° and 57mm depth of cut at 45° bevel.
- Zero clearance Insert kit available.

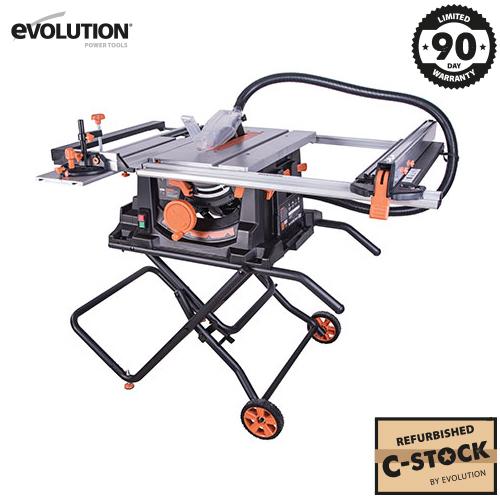

DescriptionThe 230v RAGE5-S Multipurpose Table Saw is the tool that all good workmen know. Powerful, with its high-torque motor and tungsten-carbide-tipped 255mm TCT 28T blade, it’s the most versatile multi-material cutting table saw you can buy for the money. The RAGE5-S will accurately & easily cut st...Read moreLearn MoreMax. Cut Depth 83mmMax. Cut Depth (45° Bevel) 58mmTable Size 640 x 745 mmMax. Table Size 1200 x 640 mmRip Capacity (Left) 305 mmRip Capacity (Right) 650 mmRack & Pinion Fence -Zero run out blade adjustment -Electronic Brake -Product Dimensions 880 x 730 x 330 mmPower Type CordedProduct Weight 35 kgNo-Load Speed (RPM) 2500Warranty 3 Years
Reviews
Recently Viewed Products
