Evolution R255PTS 255mm Table Saw With TCT Multi-Material Cutting Blade

Evolution R255PTS 255mm Table Saw With TCT Multi-Material Cutting Blade

SKU: 057-0007

Power Supply:Corded
Blade Size:255mm
Power:1500W
Please note: This product is available only at B&Q and Screwfix
* Free delivery, geographic exclusions apply. *Please note: Discounts cannot be applied on bundle deals, subscription blades or items already on sale. Multiple discount codes cannot be used in the same order.

Recommended Accessories

Description
 Features

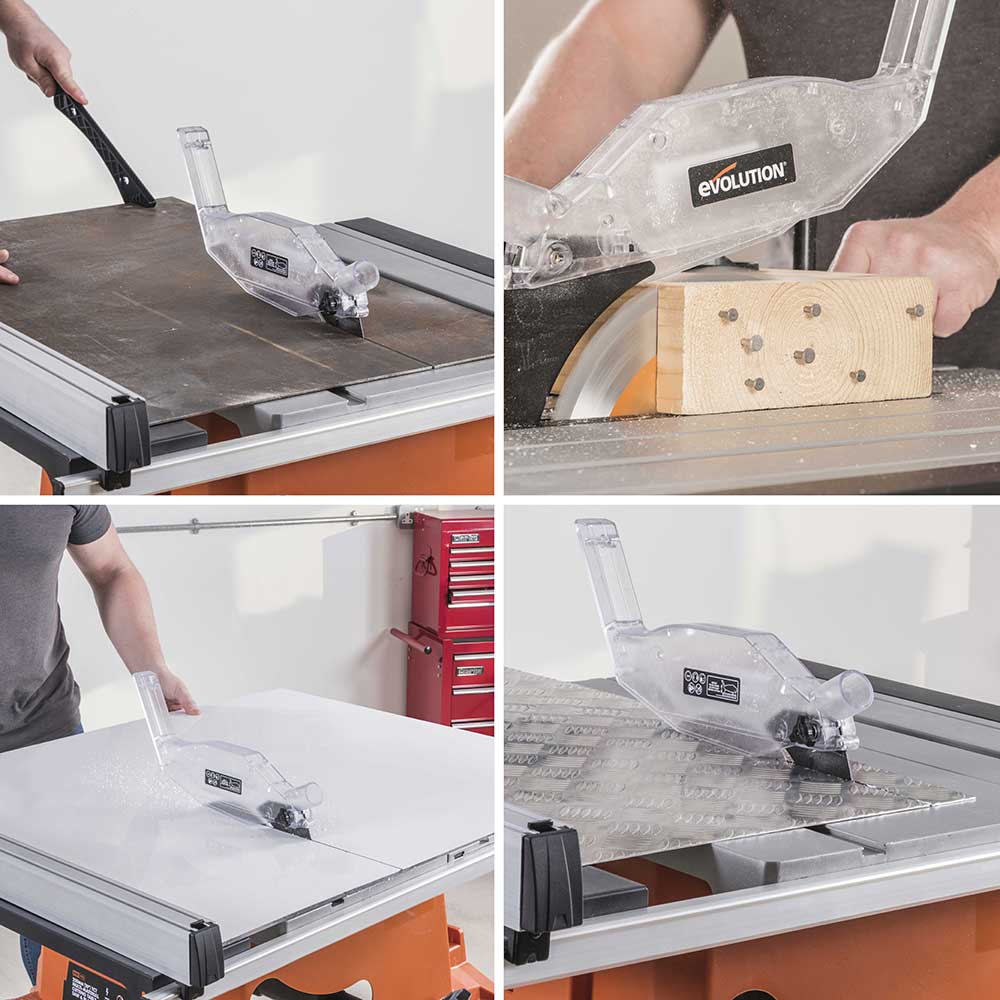

  • Multi-Material cutting technology. One saw, one blade, cuts all.*
  • Accurate rip cutting, assisted by an adjustable, full-length, parallel fence with measuring rail guide.
  • Reliable smooth square cutting every time in a variety of materials.

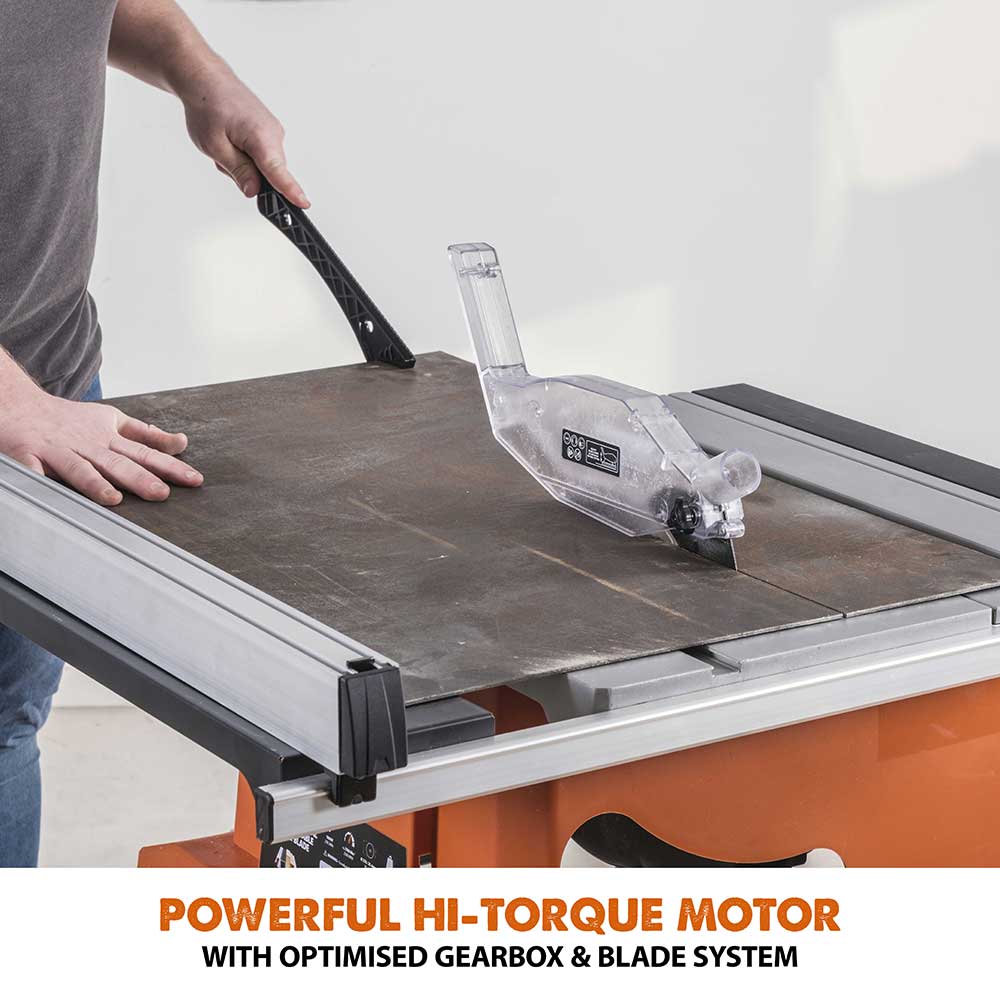

  • Powerful hi-torque motor with an optimized gearbox & blade system.

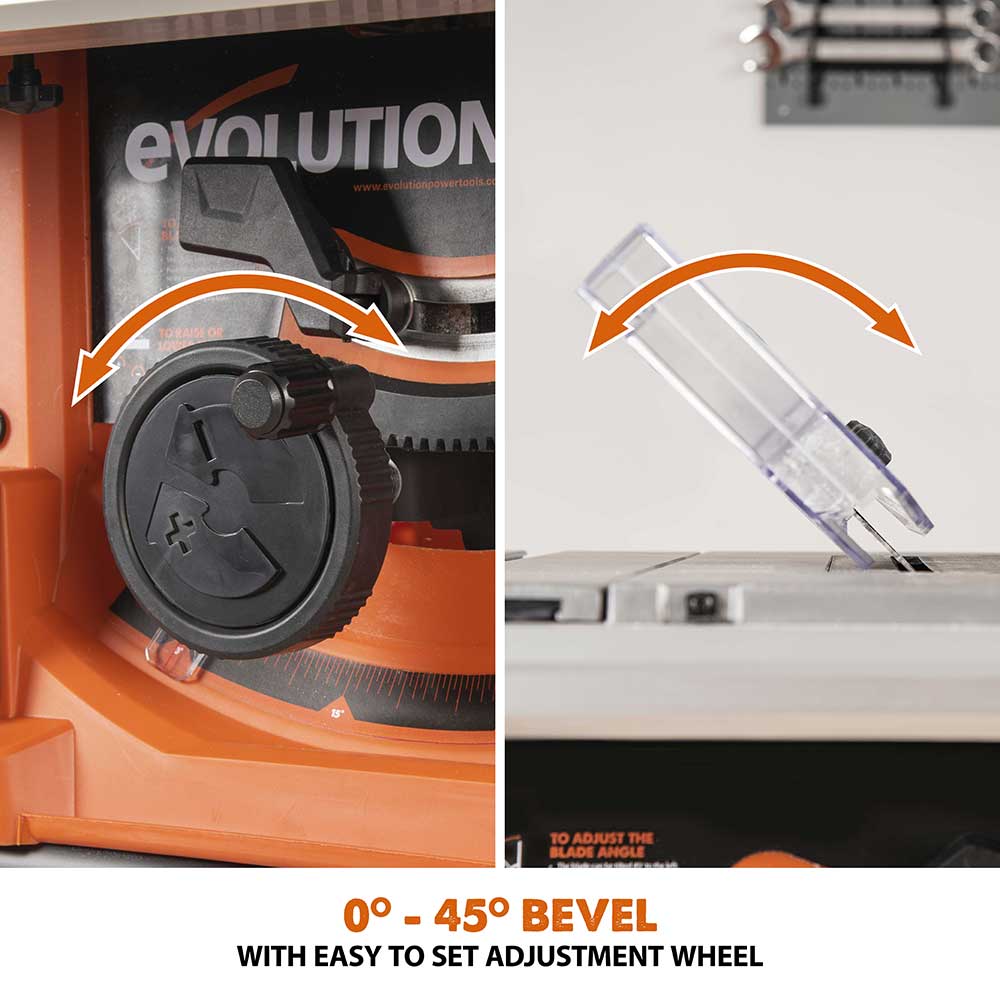

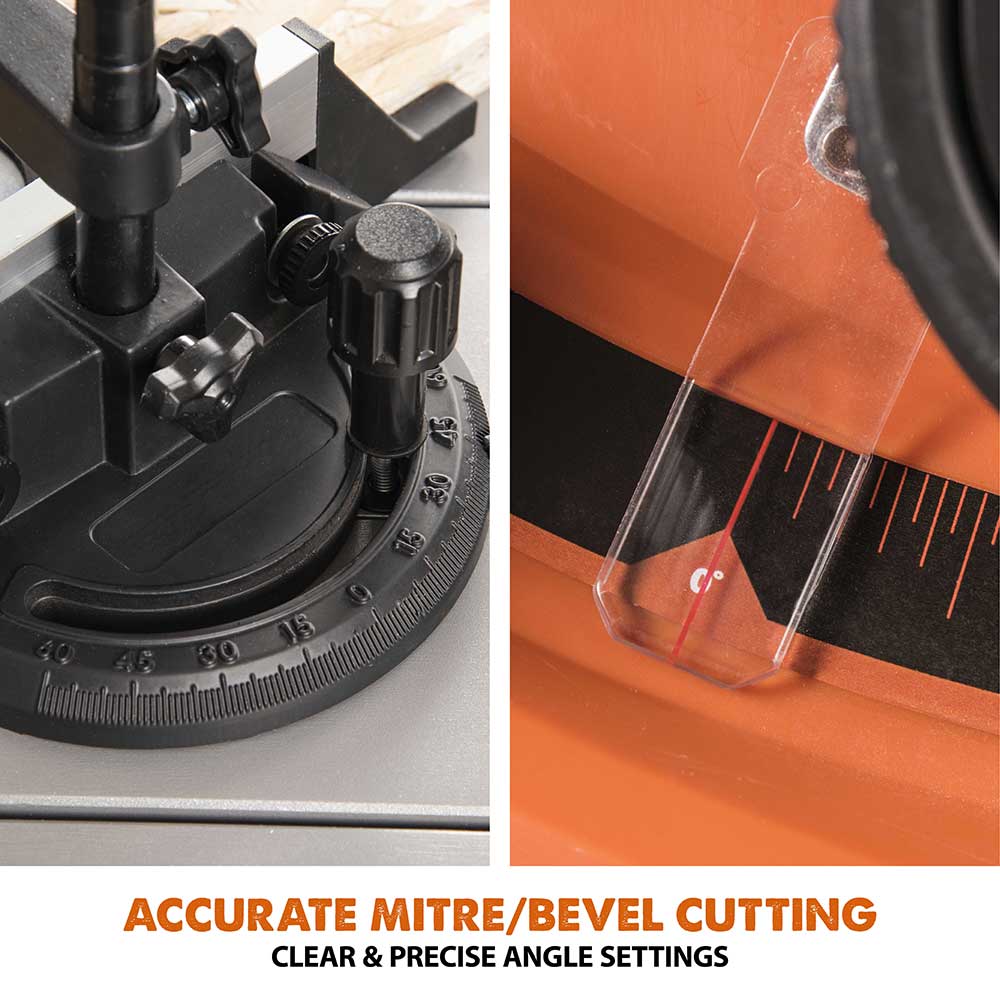

  • 0- 45-degree bevel tilt and 60 - 60-degree mitre fence covers all common, compound cutting angles.

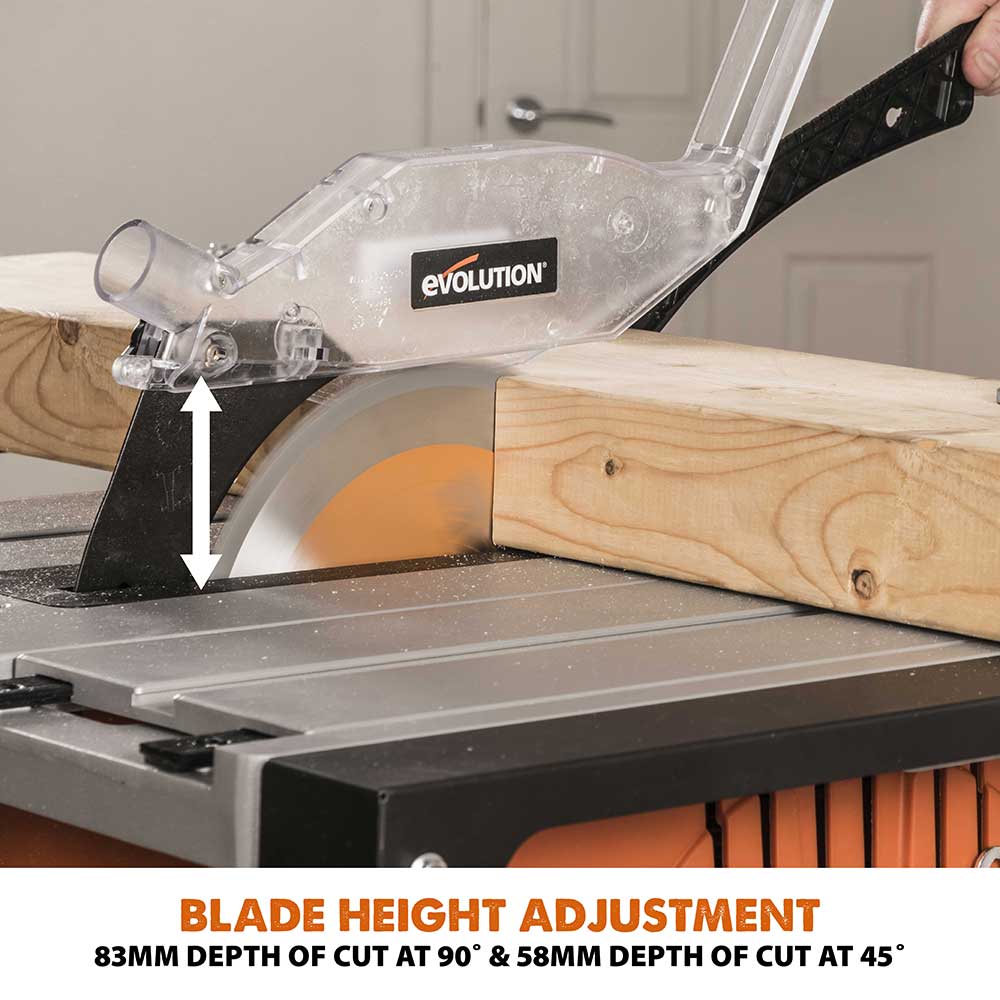

  • 83mm depth of cut at 90 degrees and 58mm depth of cut at 45 degrees.

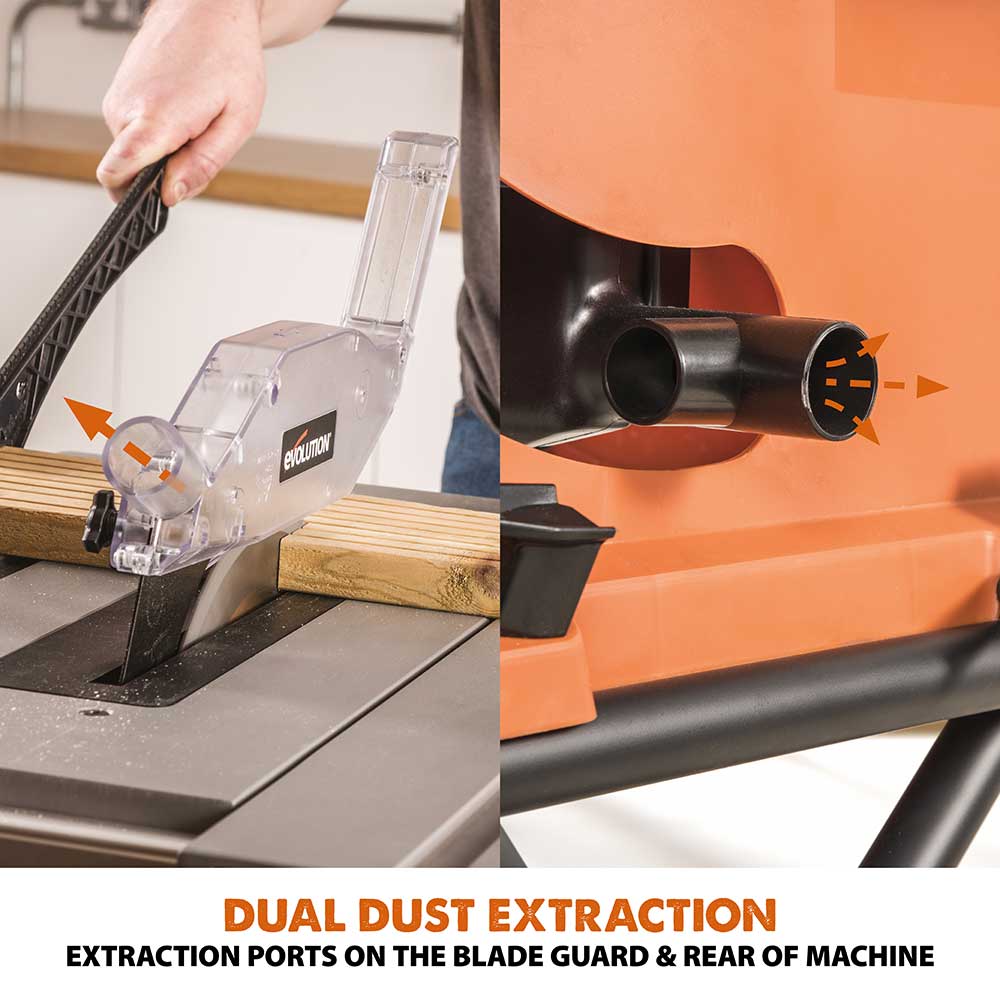

  • Integrated dust port above and below the blade captures dust effectively when fitted to an extraction unit/vacuum (sold separately).

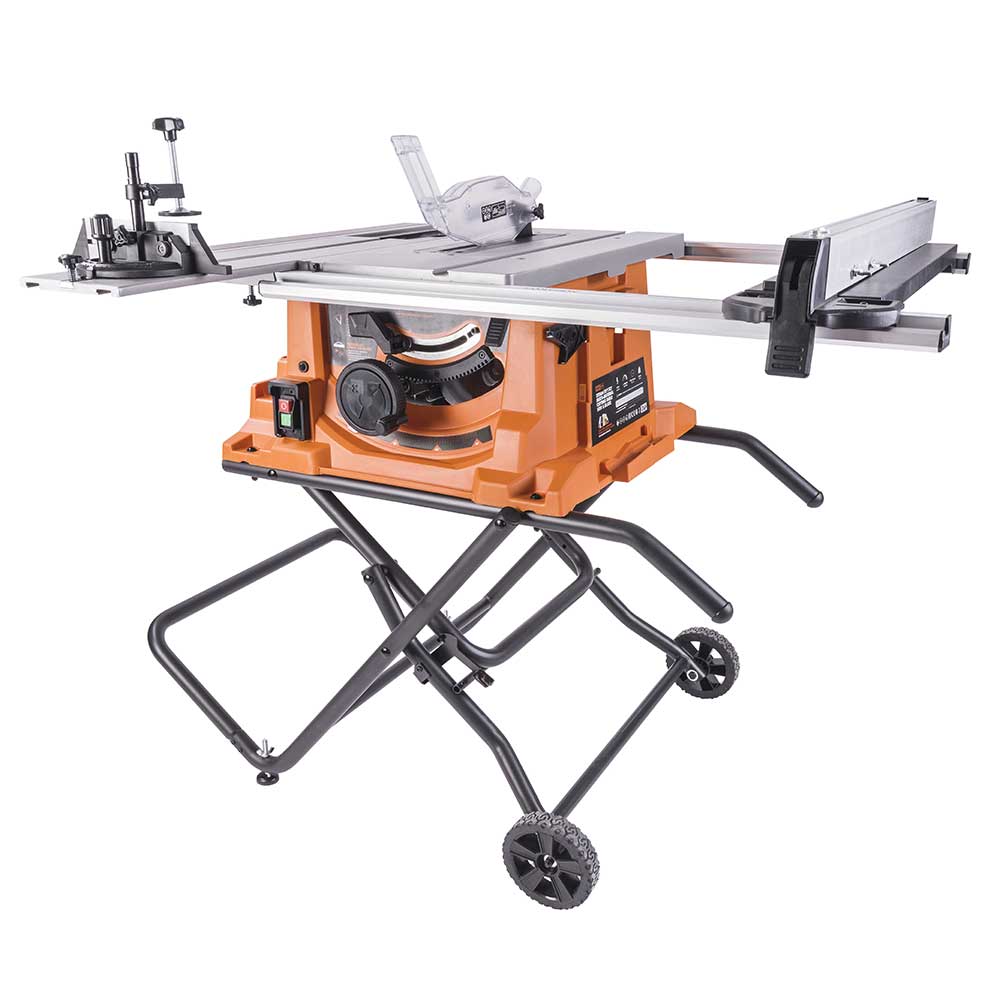

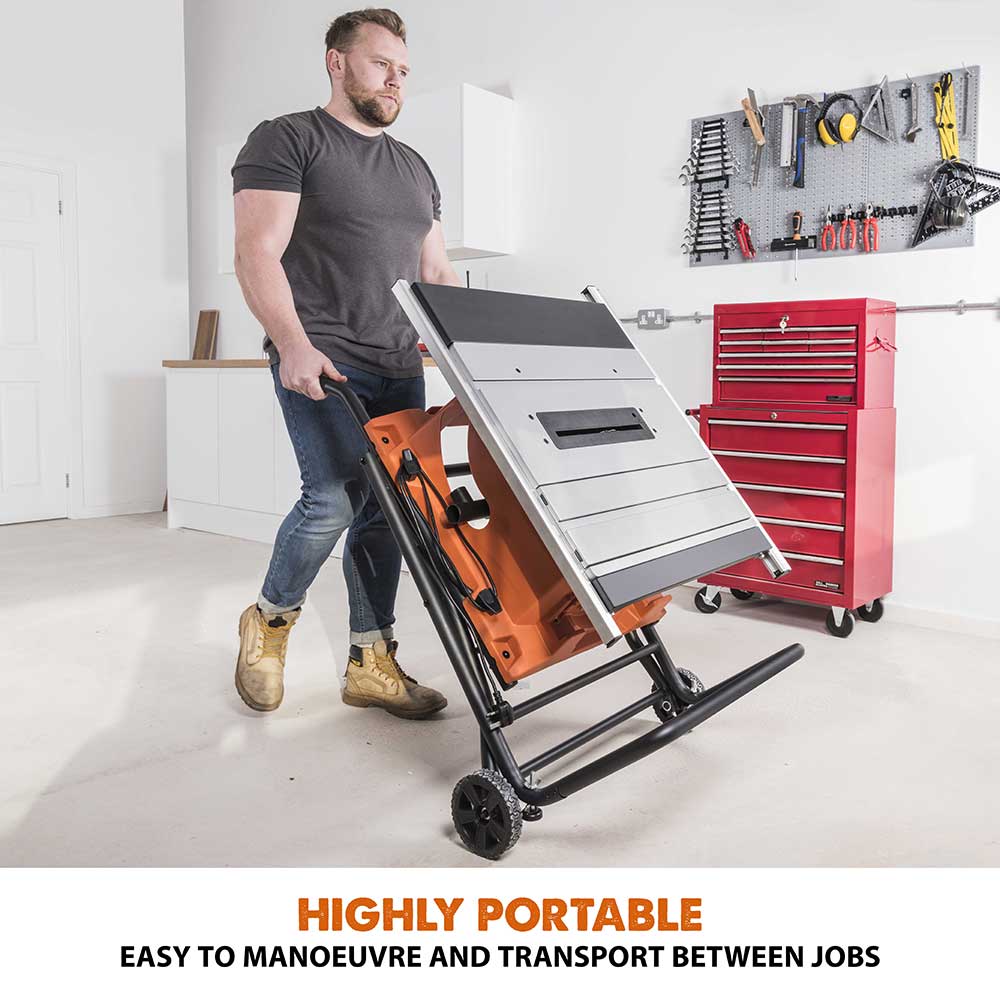

  • Collapsible frame with wheels for easy storage and portability.

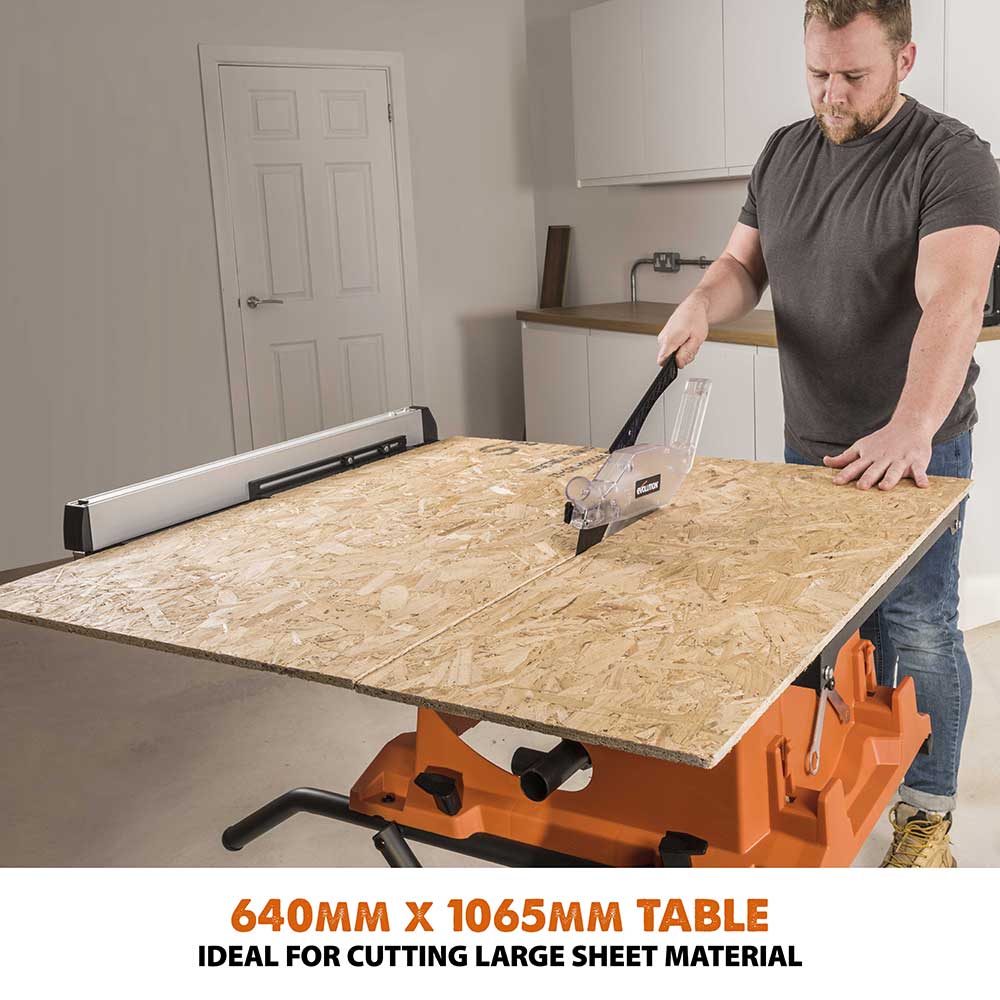

  • The table surface extends to the right, to support wide work-pieces with a table surface area of 1020mm x 640mm when fully extended.
  • 1.5m durable cable with the built-in storage cable holder.
  • Push Stick included for safer operation when handling smaller offcuts.
  • 3 Year limited warranty.
  • Japanese Tungsten-Carbide-Tipped (TCT) 255mm blade included.
 Specifications
Motor (240V 50Hz): 1500W
Motor (110V 50Hz): 1600W
Speed No Load: 2500rpm
Max. Bevel (Left): 45°
Blade Dia.: 255mm
No. of Teeth: 24
Bore: 25.4mm
Kerf: 2mm
Max. Depth of Cut (0°): 83mm
Max. Depth of Cut (45°): 58mm
Mild Steel Plate (Max. Thickness): 6mm
Rip Capacity - Right of the blade 605mm
Rip Capacity - Left of the blade 305mm
Riving Knife Thickness 1.8mm
Product Dimensions: (With Leg Assembly) 1050mm x 750mm x 940mm
Product Dimensions: (Without Leg Assembly) 880 x 730 x 330mm
Max. Table Dimensions 1020mm x 640mm
Min. Table Dimensions 745mm x 640mm
Packaging Dimensions: 910mm x 370mm x 750mm
Product Weight: 28.5 kg
Packaged Weight: 33.5 kg
Sound Pressure Level LPA: 93,2dB(A) K:3dB(A)
Sound Power Level LWA: 106,2dB(A) K=3 dB(A)
Items Included
24T Multi-Material TCT Blade
Blade Guard with Extraction Port
Mitre Gauge
Anti-Bounce Device
Adjustable Rip Fence
Push Stick
Blade Changing Spanners
Assorted fixings
3-Year Guarantee
Evolution Power Tools 3 Year Warranty

This tool is covered with Evolution's 3-year warranty

Summary
  • All Evolution single circular blade saws and magnetic drills are covered with 3 year warranty. All other Evolution power tools are covered with 2 year warranty.
  • Refurbished power tools by Evolution come with a 90 day warranty.
  • This warranty does not cover blades, accessories, Evolution branded clothing and spare parts.
  • Please keep your proof of purchase / delivery.
  • If you buy direct from Evolution your product warranty is automatically registered with us.
  • If you purchased your Evoluton product elsewhere you can register your product warranty with us.
  • The warranty becomes effective at the date of purchase (or the date of delivery if this is later).
  • You must provide proof of delivery / purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
  • All work will be carried out by Evolution.
  • Any parts which are replaced will become the property of Evolution.
  • The repair or replacement of your machine under warranty will not extend the period of warranty.
  • Evolution Power Tools reserves the right to optionally repair or replace it with the same or equivalent item.
  • This warranty statement provides benefits which are additional to and do not affect your statutory rights as a consumer.
What is covered?

The repair or replacement of your machine (at Evolution’s discretion), if your machine is found to be defective due to faulty materials, workmanship or function within the warranty period (if any part is no longer available or out of manufacture, Evolution will replace it with a functional replacement part).

What is not covered?

Evolution does not warrant the repair or replacement of a product when the following has occurred;

  • Normal wear and tear (eg. Fuse, Fluids / Lubricants, Blades, Consumable, etc.)
  • Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the machine which is not in use with Evolution’s user guide.
  • Lack of servicing.
  • Use of parts not assembled or installed in accordance with the instructions of Evolution.
  • Use of parts and accessories (including blades) which are not Evolution Genuine Components.
  • Faulty installation (except installation by Evolution).
  • Repairs or alterations carried out by parties other than Evolution.

If your Evolution power tool requires attention from our engineers, we aim to have it collected & repaired within 7-10 working days.
If you are not completely satisfied with the performance of your product, simply contact us. To speed up the process, remember to have your receipt, invoice or order reference number plus your product’s serial number found on the product’s motor label.
No officer, employee or agent of Evolution Power Tools is authorised to make oral representations of fitness or to waive any of the foregoing terms of sale and none shall be binding on Evolution Power Tools. Questions relating to this limited warranty should be directed to the company's head office, or call the appropriate Helpline number. In no event shall Evolution Power Tools be liable for loss or damage resulting directly or indirectly from the use of our merchandise or from any other cause. Evolution Power Tools is not liable for any costs incurred on such goods or consequential damages.
