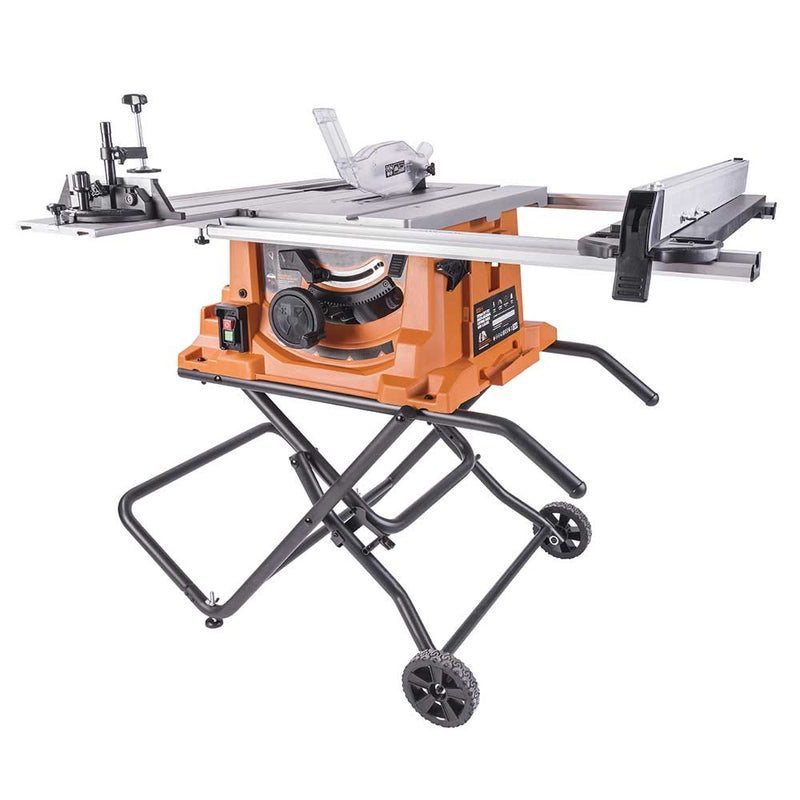

Evolution R255PTS 255mm Table Saw With TCT Multi-Material Cutting Blade

£289.98

Evolution R255PTS 255mm Table Saw With TCT Multi-Material Cutting Blade

SKU: 057-0007

Specifications

Blade Size 255mm
Warranty 3 Years
Power Corded
Learn More
Please note: This product is available only at B&Q and Screwfix

Free delivery, geographic exclusions apply please see shipping page for details. Please note: Discount codes may not be valid on some bundles, subscriptions, or sale items. Certain combinations of discount codes and promotions and giveaways cannot be used in a single order.

Recommended Accessories

Description
Features

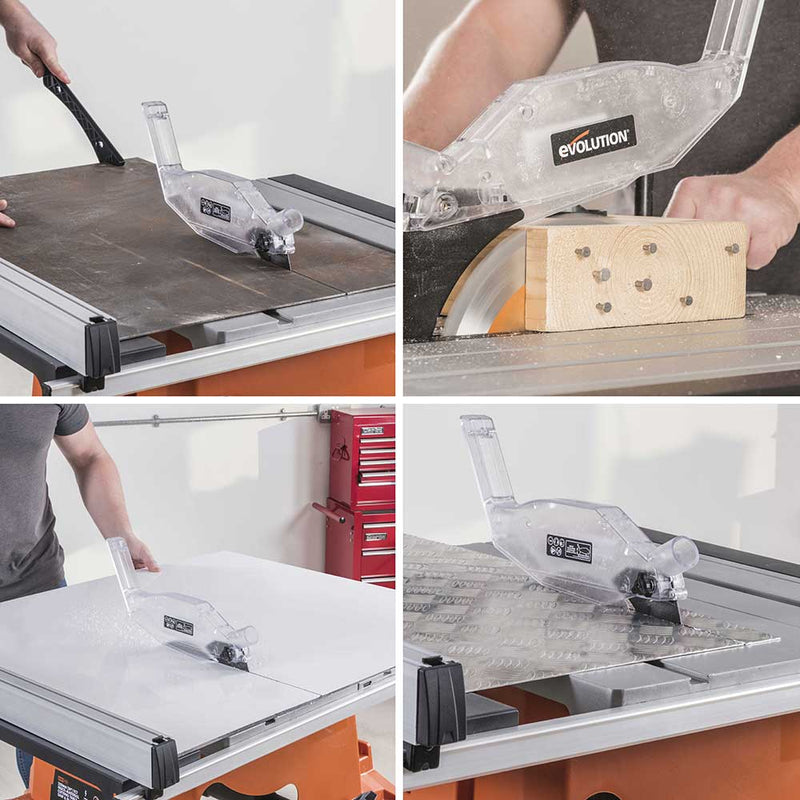

  • Multi-Material cutting technology. One saw, one blade, cuts all.*
  • Accurate rip cutting, assisted by an adjustable, full-length, parallel fence with measuring rail guide.
  • Reliable smooth square cutting every time in a variety of materials.

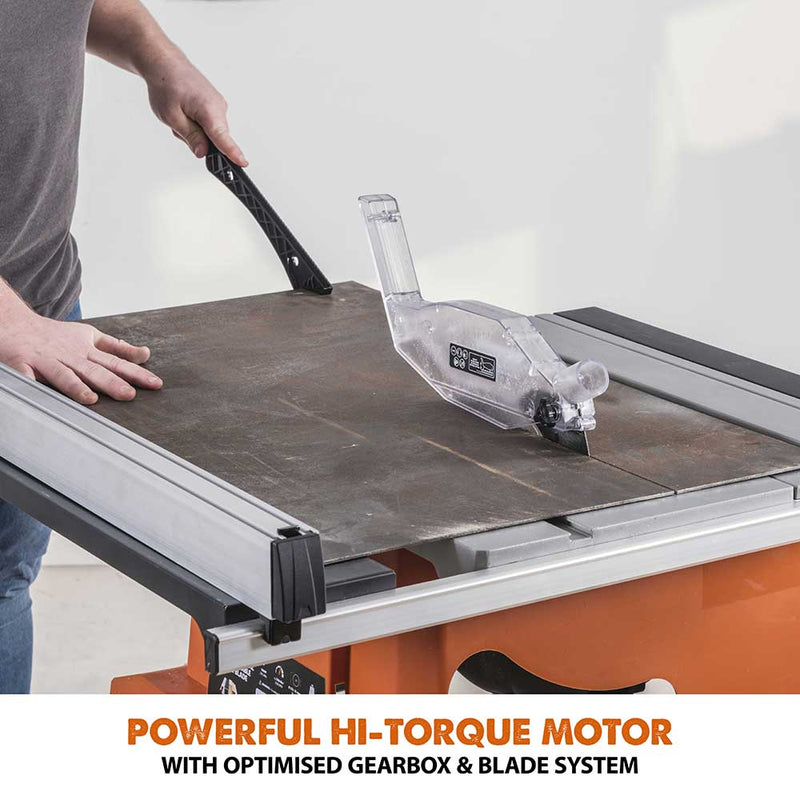

  • Powerful hi-torque motor with an optimized gearbox & blade system.

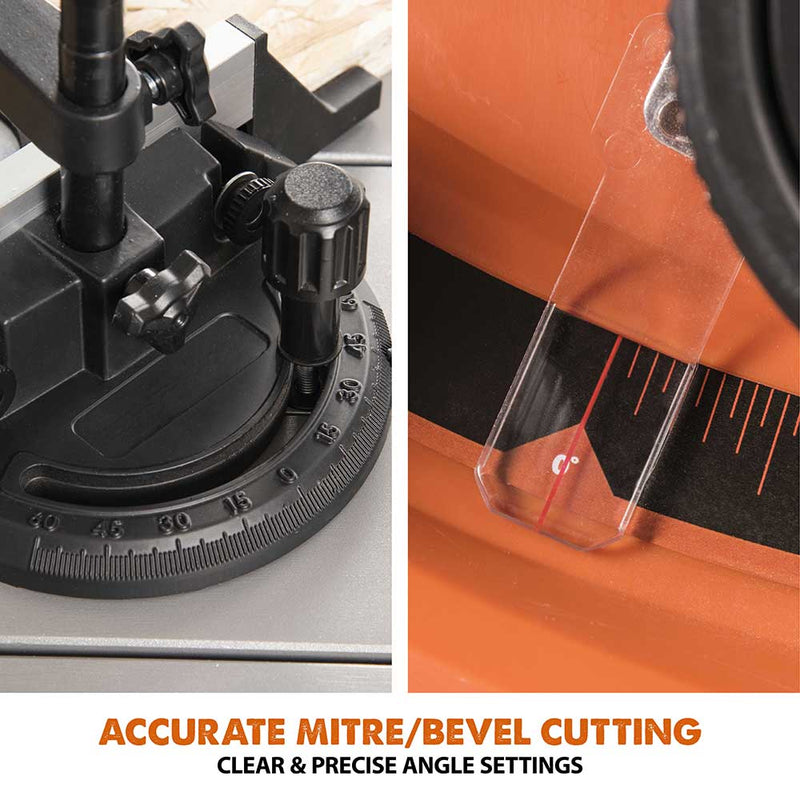

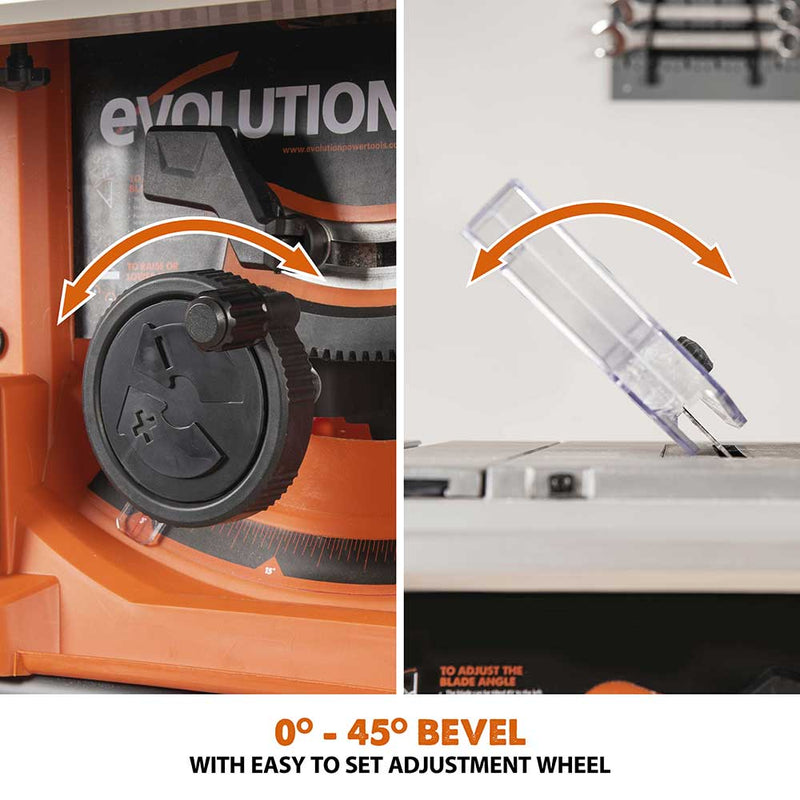

  • 0- 45-degree bevel tilt and 60 - 60-degree mitre fence covers all common, compound cutting angles.

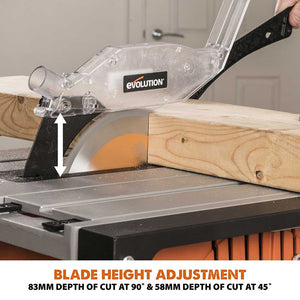

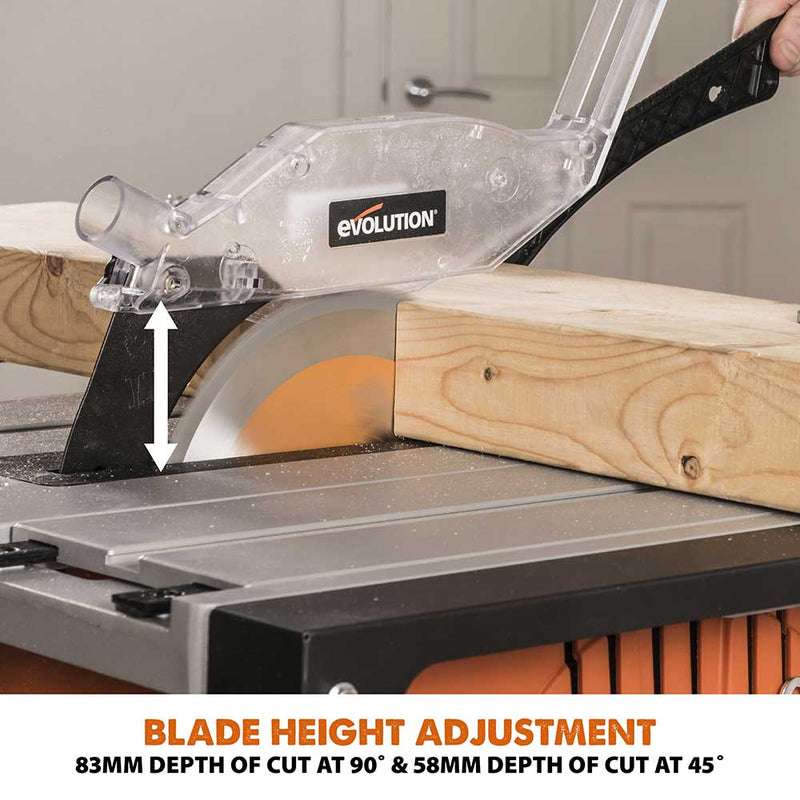

  • 83mm depth of cut at 90 degrees and 58mm depth of cut at 45 degrees.

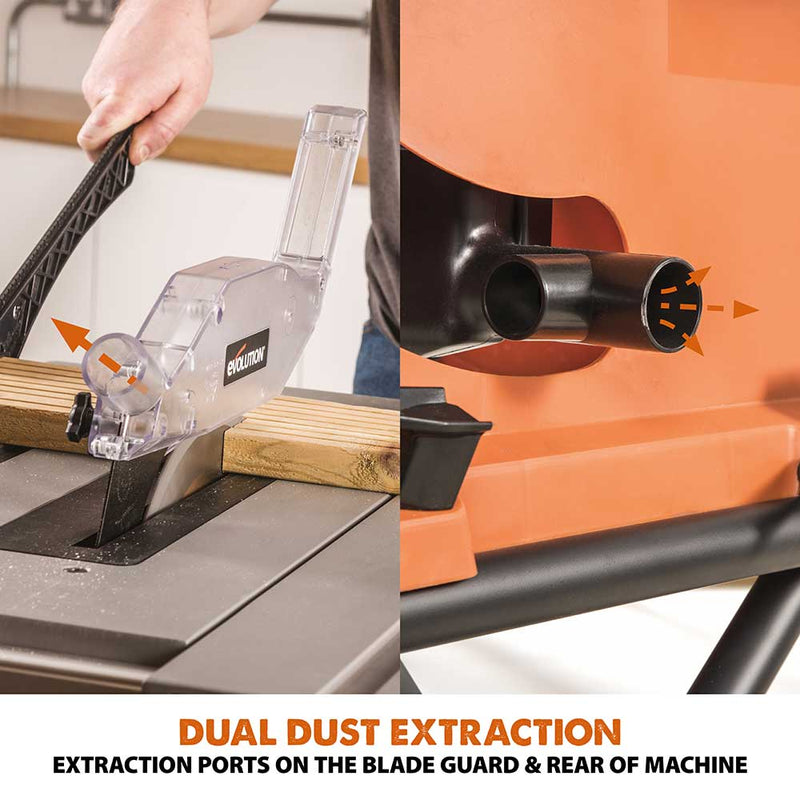

  • Integrated dust port above and below the blade captures dust effectively when fitted to an extraction unit/vacuum (sold separately).

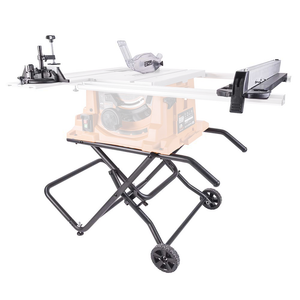

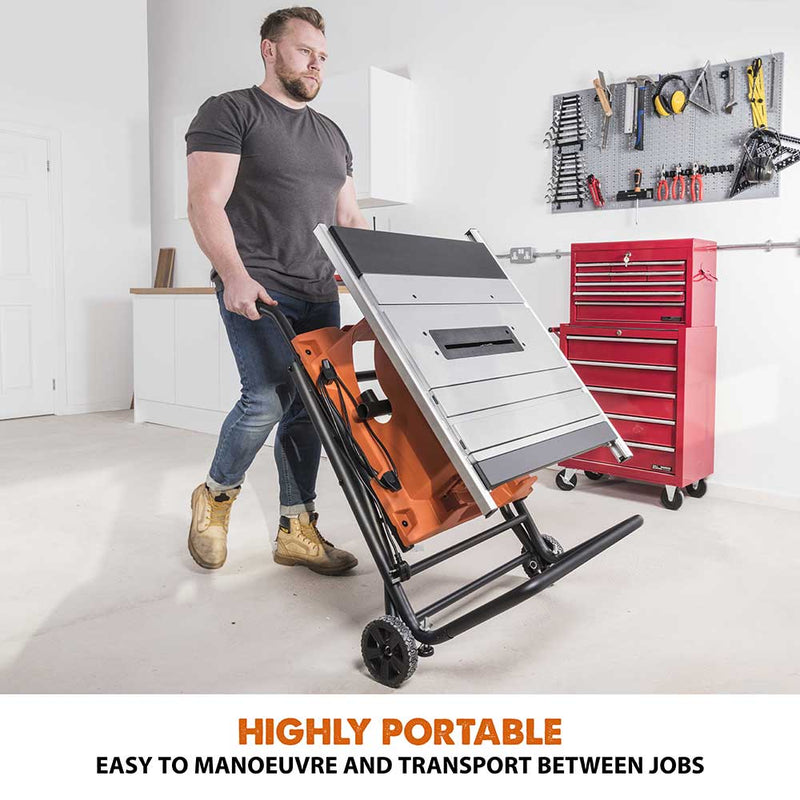

  • Collapsible frame with wheels for easy storage and portability.

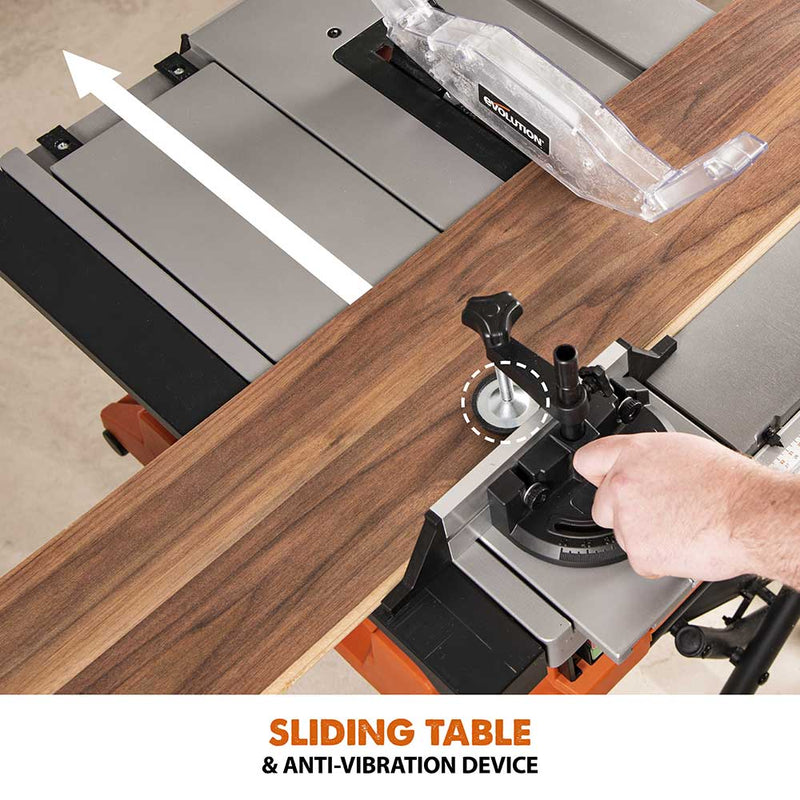

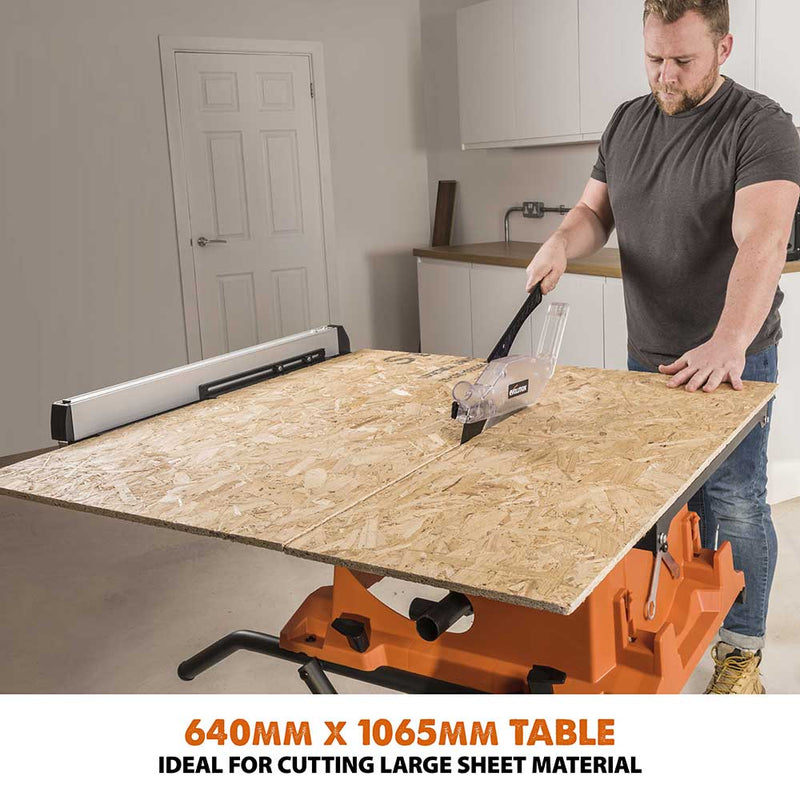

  • The table surface extends to the right, to support wide work-pieces with a table surface area of 1020mm x 640mm when fully extended.
  • 1.5m durable cable with the built-in storage cable holder.
  • Push Stick included for safer operation when handling smaller offcuts.
  • 3 Year limited warranty.
  • Japanese Tungsten-Carbide-Tipped (TCT) 255mm blade included.
Specifications
Motor (240V 50Hz): 1500W
Motor (110V 50Hz): 1600W
Speed No Load: 2500rpm
Max. Bevel (Left): 45°
Blade Dia.: 255mm
No. of Teeth: 24
Bore: 25.4mm
Kerf: 2mm
Max. Depth of Cut (0°): 83mm
Max. Depth of Cut (45°): 58mm
Mild Steel Plate (Max. Thickness): 6mm
Rip Capacity - Right of the blade 605mm
Rip Capacity - Left of the blade 305mm
Riving Knife Thickness 1.8mm
Product Dimensions: (With Leg Assembly) 1050mm x 750mm x 940mm
Product Dimensions: (Without Leg Assembly) 880 x 730 x 330mm
Max. Table Dimensions 1020mm x 640mm
Min. Table Dimensions 745mm x 640mm
Packaging Dimensions: 910mm x 370mm x 750mm
Product Weight: 28.5 kg
Packaged Weight: 33.5 kg
Sound Pressure Level LPA: 93,2dB(A) K:3dB(A)
Sound Power Level LWA: 106,2dB(A) K=3 dB(A)
Items Included
24T Multi-Material TCT Blade
Blade Guard with Extraction Port
Mitre Gauge
Anti-Bounce Device
Adjustable Rip Fence
Push Stick
Blade Changing Spanners
Assorted fixings
3-Year Guarantee

3-Year Guarantee

Evolution Power Tools 3 Year Warranty
Please keep your proof of purchase / delivery.
  • The guarantee becomes effective at the date of purchase (or the date of delivery if this is later).
  • You must provide proof of delivery/ purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
  • All work will be carried out by Evolution.
  • Any parts which are replaced will become the property of Evolution.
  • The repair or replacement of your machine under guarantee will not extend the period of guarantee.
  • The guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.
  • The repair or replacement of your machine (at Evolution’s discretion), if your machine is found to be defective due to faulty materials, workmanship or function within the guarantee period (if any part is no longer available or out of manufacture, Evolution will replace it with a functional replacement part).
  • Overseas users should contact the official importer for that country.
Evolution does not warrant the repair or replacement of a product when the following has occurred;
  • Normal wear and tear (eg. Fuse, Fluids/Lubricants, Blades, etc.)
  • Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the machine which is not in use with Evolution’s user guide.
  • Lack of servicing.
  • Use of parts not assembled or installed in accordance with the instructions of Evolution.
  • Use of parts and accessories which are not Evolution Genuine Components.
  • Faulty installation (except installation by Evolution).
  • Repairs or alterations carried out by parties other than Evolution.
