  • Evolution R255SMS & R255SMS+ Spares (Base Section) - Evolution Power Tools UK

Evolution R255SMS & R255SMS+ Sliding Mitre Saw Spare Parts (Base Section)

Latest Model
230V Parts List

Find and purchase any part for any Evolution power tool. If you can't find the part you need, then give our friendly, expert customer care team based in Sheffield a call. They will find the part and create the order for you, with next day delivery on orders placed before 4:45pm Monday to Friday. We even have a Saturday delivery option.

* Free delivery, geographic exclusions apply. *Please note: Discounts cannot be applied on bundle deals, subscription blades or items already on sale. Multiple discount codes/ promotions cannot be used in the same order.

Related Spare Parts

Evolution R255SMS & R255SMS+ Spares (Base Section) - Evolution Power Tools UK
Evolution R255SMS & R255SMS+ Sliding Mitre Saw Spare Parts (Base Section)

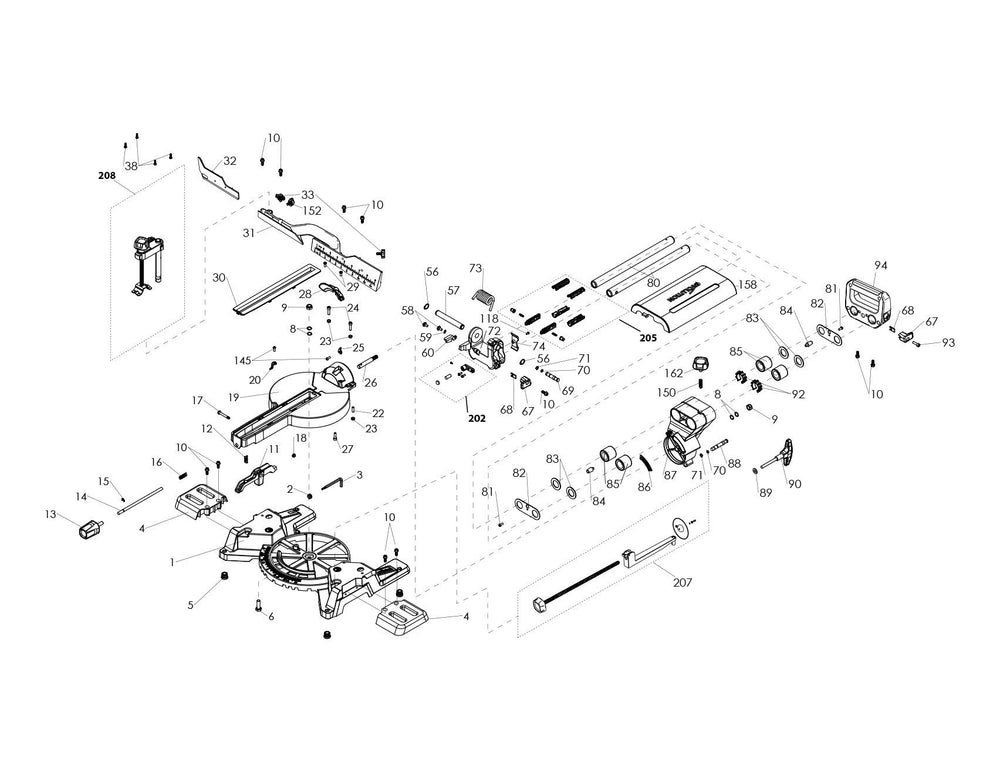

Parts List:

Please enter a search term before proceeding.
1 - Base (# 052-0101)
£114.98

Only 3 left

1 - Base - Black (# 052-0349)
£114.98

Only 3 left

2 - Grommet 10Mm (# 052-0102)
£3.98

Only 16 left

3 - Hex Key (# 052-0325)
£6.98

In Stock

4 - Table Extension (# 052-0104)
£7.98

In Stock

5 - Foot (# 052-0105)
£4.98

In Stock

6 - Hex Head Bolt M10x30 (# F-HB-M10-30-20-ST-BO)
£3.98

Only 2 left

8 - Wave Washer 12mm (# F-WW-M12-ST-BO)
£2.98

In Stock

9 - Nylock Nut M10 (# F-NNIF-M10-ST-BO)
£2.98

In Stock

10 - Flanged Cap Screw M6x16 (# F-SFCS-M6-16-ST-BO)
£3.98

Only 6 left

11 - Table Positioning Handle (Green) (# 052-0112)
£9.98

Only 7 left

11 - Table Positioning Handle (Orange) (# 052-0111)
£9.98

Only 10 left

12 - Spring (# 052-0113)
£2.98

In Stock

13 - Table Locking Knob (Green) (# 052-0115)
£10.98

Only 10 left

13 - Table locking knob (Orange) (# 052-0114)
£10.98

Only 4 left

14 - Push Rod (# 052-0116)
£4.98

Only 8 left

15 - External E-clip 6mm (# F-ECLIP-6-100-ST-BO)
£2.98

In Stock

16 - Spring (# 052-0118)
£2.98

Only 15 left

17 - Screw M6x45 (# F-SHCS-M6-45-ST-BO)
£3.98

In Stock

18 - Nylock Nut M6 (# F-NNIF-M6-ST-BO)
£1.98

In Stock

19 - Table (# 052-0121)
£78.98

Only 10 left

20 - Mitre Indicator (Green) (# 052-0123)
£3.98

Only 11 left

20 - Mitre Indicator (Orange) (# 052-0122)
£3.98

Only 20 left

22 - Grub Screw M6X20 (# F-SSCFP-M6-20-ST-BO)
£2.98

Only 2 left

23 - Hex Nut M6 (# F-NSF-M6-ST-BO)
£2.98

In Stock

24 - Cap screw M6x25 (# F-SHCS-M6-25-ST-BO)
£2.98

In Stock

25 - Bevel Indicator (Green) (# 052-0129)
£3.98

Only 10 left

25 - Bevel indicator (Orange) (# 052-0128)
£3.98

Only 19 left

26 - Connecting Bolt (# 052-0130)
£7.98

Only 10 left

27 - Cap Screw M6x20 (# F-SHCS-M6-20-ST-BO)
£2.98

In Stock

28 - Chip Deflector (# 052-0132)
£17.98

Only 4 left

29 - Cross Head Screw M6X16 (# F-SPHPZ-M6-16-ST-BO)
£2.98

In Stock

30 - Channel Guide (Green) (# 052-0135)
£11.98

Only 5 left

30 - Channel Guide (Orange) (# 052-0134)
£11.98

Only 14 left

31 - Fence (Eu) (# 052-0136)
£42.98

In Stock

31 - Fence (Plus version) (Black) (# 052-0350)
£44.98

In Stock

32 - Adjustable Fence (Plus version) (Black) (# 052-0139)
£15.98

In Stock

32 - Adjustable Fence (Eu) (# 052-0138)
£11.98

In Stock

33 - Wing Screw (Green) (# 052-0141)
£3.98

In Stock

33 - Wing screw (Orange) (# 052-0140)
£3.98

In Stock

38 - Tapping Screw 4X16 (# F-TFPX-4-16-ST-BO)
£2.98

In Stock

56 - External Circlip 16mm (# F-CCEXT-16-100-ST-PO)
£3.98

In Stock

57 - Head Pivot Axle (# 052-0176)
£9.98

Only 4 left

58 - Cross Head Shoulder Screw M5X8 (# 052-0177)
£3.98

Only 19 left

59 - Wave Washer 7mm (# F-WW-M7-ST-BO)
£2.98

In Stock

60 - Trench Stop (# 052-0179)
£6.98

Only 18 left

67 - Cable Tidy (Green) (# 052-0182)
£3.98

Only 7 left

67 - Cable tidy (Orange) (# 052-0181)
£3.98

In Stock

68 - Cable Strain (# 052-0183)
£2.98

In Stock

69 - Lockdown Pin Knob (# 052-0184)
£4.98

Only 11 left

70 - O-Ring (# 052-0185)
£3.98

In Stock

71 - External E-clip 8mm (# F-ECLIP-8-070-ST-PO)
£3.98

In Stock

72 - Head Pivot (# 052-0187)
£28.98

Only 5 left

73 - Torsion Spring (# 052-0188)
£11.98

Only 10 left

74 - Laser Wire Cover (# 052-0189)
£3.98

Only 7 left

80 - Rail (Eu) (# 052-0190)
£40.98

Only 5 left

81 - Cross Head Screw M5X10 (# F-SPHPZ-M5-10-ST-BO)
£2.98

In Stock

82 - Bevel Bracket Cover (Eu) (# 052-0193)
£6.98

Only 10 left

83 - Shaft Seal Ring (# 052-0194)
£3.98

In Stock

84 - Rubber Stop (# 052-0195)
£3.98

Only 20 left

85 - Linear Ball Beaing (# 052-0196)
£17.98

Only 18 left

86 - Bevel Label (# 052-0197)
£3.98

In Stock

87 - Neck (Eu) (# 052-0198)
£64.98

Only 6 left

88 - 33.9 Pin (# 052-0200)
£6.98

In Stock

89 - Flat Washer 8mm (# F-W-M8-ST-BO)
£1.98

In Stock

90 - Bevel Lock Lever (Green) (# 052-0203)
£9.98

Only 9 left

90 - Bevel Lock lever (Orange) (# 052-0202)
£9.98

Only 11 left

91 - Sliding Lock Screw (Green) (# 052-0205)
£9.98

Only 9 left

91 - Sliding Lock Screw (Orange) (# 052-0204)
£9.98

In Stock

92 - Bearing Spacer (# 052-0206)
£4.98

Out of Stock

93 - Socket Head Cap Tapping Screw (St4.5X1) (# 052-0319)
£2.98

In Stock

94 - Rear Handle (Green) (# 052-0209)
£16.98

Only 19 left

94 - Rear Handle (Orange) (# 052-0208)
£16.98

Only 7 left

94 - Rear Handle (USA) & (Plus Version) (Black) (# 052-0210)
£16.98

Only 8 left

118 - Tapping Screw (# F-TFPX-4-8-ST-BO)
£2.98

In Stock

150 - Spring (# 052-0316)
£2.98

In Stock

152 - Wing Screw (Green) (# 052-0323)
£3.98

Only 18 left

152 - Wing screw (Orange) (# 052-0322)
£3.98

In Stock

154 - Shoulder Screw M6 X 12 (# 052-0332)
£3.98

In Stock

155 - Screw M5 x 18 (# F-SPHPZ-M5-18-ST-BO)
£3.98

Only 12 left

158 - Slide Rail Cover (# 052-0335)
£10.98

Only 8 left

162 - Sliding Lock Screw (Orange) Plus Unit (# 052-0339)
£9.98

Only 17 left

202 - Laser Assembly (Uk/Eu) (# 052-0052)
£15.98

In Stock

204 - Armature Assembly 2000W (UK/EU 230V) (# 052-0054)
£76.98

In Stock

205 - Slide Shaft Locking Unit (# 052-0062)
£9.98

Only 14 left

206 - Basic Work Piece Clamp (Green) (# 052-0064)
£11.98

Only 18 left

206 - Basic Work piece clamp (Orange) (# 052-0063)
£11.98

Only 10 left

207 - Front Clamp (Green) (# 052-0327)
£13.98

In Stock

207 - Front Clamp (Orange) (# 052-0326)
£13.98

In Stock

208 - 3 Piece quick release clamp (orange) (# 052-0324)
£13.98

In Stock

Cant find what you are looking for?  Contact Us Give us a call on:  +44 (0)114 251 1022
