  • Evolution R300DCT Spare Parts - Evolution Power Tools UK

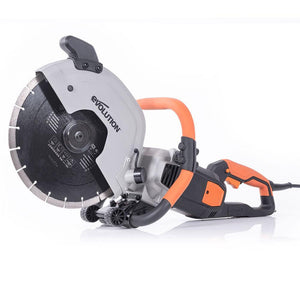

Evolution R300DCT Disc Cutter / Concrete Saw Spare Parts

Latest Model
110V & 230V Parts List

Find and purchase any part for any Evolution power tool. If you can't find the part you need, then give our friendly, expert customer care team based in Sheffield a call. They will find the part and create the order for you, with next day delivery on orders placed before 4:45pm Monday to Friday. We even have a Saturday delivery option.

* Free delivery, geographic exclusions apply. *Please note: Discounts cannot be applied on bundle deals, subscription blades or items already on sale. Multiple discount codes/ promotions cannot be used in the same order.
Evolution R300DCT Spare Parts - Evolution Power Tools UK
Evolution R300DCT Disc Cutter / Concrete Saw Spare Parts

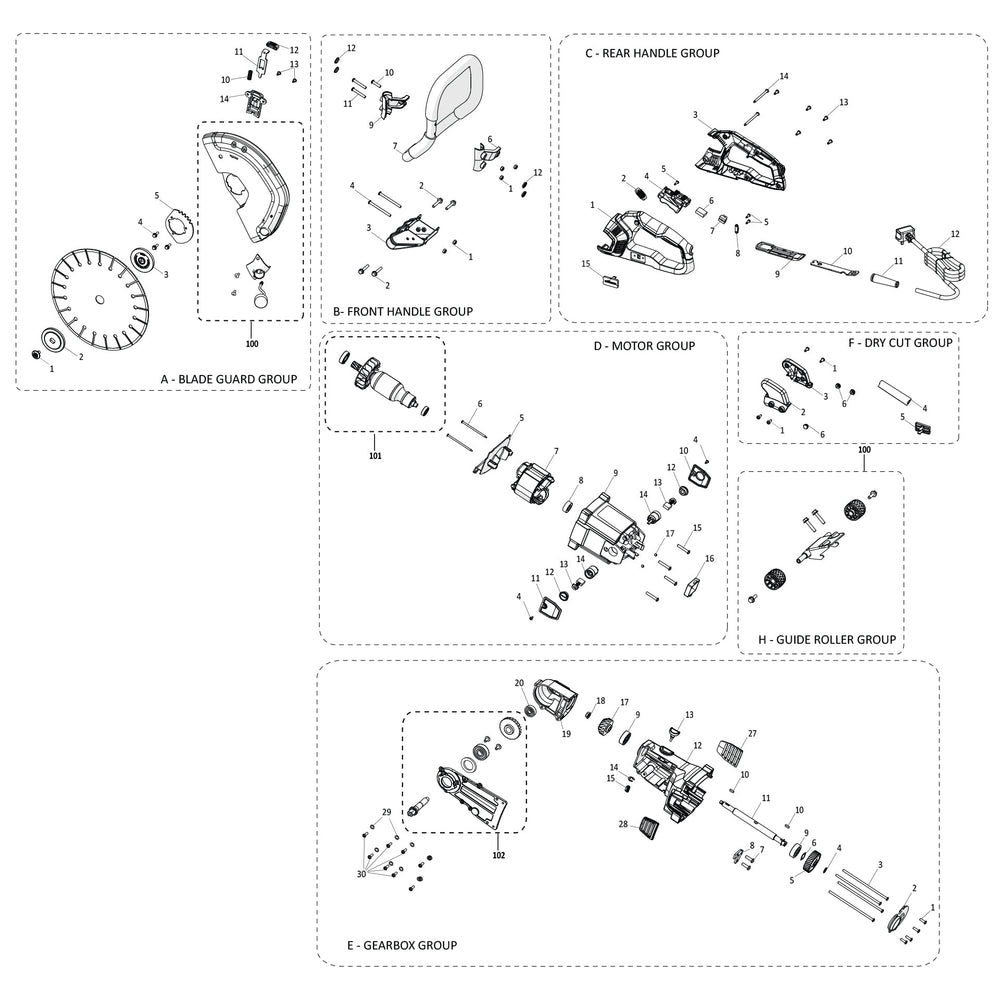

Parts List:

Please enter a search term before proceeding.
A01 - Blade Bolt (# 012-0211)
£2.98

In Stock

A02 - Flange Outer 70Mm Pressed (# 012-0203)
£10.98

In Stock

A03 - Flange Inner 70Mm Pm Uk/Eu (20/22.2Mm) (# 012-0204)
£10.98

In Stock

A05 - 12" Blade Guard Retaining Plate (# 012-0119-A2)
£2.98

Only 20 left

A100 - 12" Guard Assembly (# 012-0055)
£52.98

Only 5 left

A10 - 12" Blade Guard Rotation Lock Spring (# 012-0122-A1)
£2.98

Only 20 left

A11 - 12" Blade Guard Rotation Lock Tab (# 012-0121-A2)
£2.98

Only 20 left

A12 - 12" Blade Guard Rotation Lock Knob (# 012-0124-A1)
£2.98

Only 14 left

A14 - 12" Blade Guard Rotation Lock Cover (# 012-0123-A3)
£2.98

Only 17 left

B03 - Skid Plate (# 012-0120-A2)
£6.98

In Stock

B06 - Front Bale Handle Support Bracket Back (# 012-0166-A1)
£2.98

In Stock

B07 - Front Bale Handle W / Overmould (# 012-0181)
£69.98

In Stock

B09 - Front Bale Handle Support Bracket Front (# 012-0165-A1)
£2.98

In Stock

B12 - Front Handle Bracket Screw Cap (# 012-0209)
£2.98

In Stock

C01 - Rear Handle Rh (# 012-0153-1-A1)
£11.98

Only 10 left

C02 - Rf Choke (# 012-0131)
£2.98

Out of Stock

C03 - Rear Handle Lh (# 012-0152-1-A1)
£11.98

Only 14 left

C04 - Trigger Switch (# 012-0135)
£24.98

In Stock

C06* - Capacitor 220-240V (# 012-0132)
£2.98

Only 4 left

C07 - Wire Block Connector (# 012-0136)
£2.98

Only 10 left

C08 - Wire Restraint Saddle (# 012-0174-A1)
£2.98

In Stock

C09 - Tool Storage Housing (# 012-0175-A1)
£2.98

Out of Stock

C10 - Spanner (# 012-0176-A1)
£2.98

Only 13 left

C11* - Cable Strain Relief (# 012-0180-A1)
£2.98

Only 20 left

C12* - Cable Uk 230V 3M (# 012-0137)
£20.98

Only 7 left

C15 - Rear Handle Lh Water Blanking Plate (# 012-0158-A1)
£3.48

Only 18 left

D05 - Motor Fan Baffle (# 012-0130-A1)
£2.98

Only 6 left

D07* - Field Coil 2400W 220-240V (# 012-0195)
£60.98

Only 19 left

D08 - Rear Motor Bearing Bush (# 012-0173-A1)
£3.48

Only 1 left

D09 - Motor Housing (# 012-0151-A1)
£42.98

Only 3 left

D101 - 2400W Armature Assembly 230V Eu/Uk/Aus (# 012-0050)
£95.98

In Stock

D10 - Brush Cover Cap Lh (# 012-0154-A1)
£2.98

In Stock

D11 - Brush Cover Cap Rh (# 012-0155-A1)
£2.98

In Stock

D12 - Brush Holder Screw Cap (# 010-0160)
£2.98

Only 1 left

D13* - Carbon brush (# 012-0172-A1)
£12.48

In Stock

D14 - Brush Holder (# 012-0168-A1)
£10.98

In Stock

D16* - Soft Start PCB 220-240V (# 012-0148)
£36.98

Only 19 left

E02 - Helical Gearbox Cover (# 012-0103-A1)
£3.48

Only 8 left

E05 - Helical Gear (# 012-0106-A1)
£18.98

In Stock

E08 - Front Handle Clamp Mount Bracket (# 012-0127-A3)
£2.98

In Stock

E09 - 6301-2Z Bearing Ball 37Od 12Id 12W (# F-B-6301-2Z)
£9.98

In Stock

E102 - Bevel Gearbox Assembly (# 012-0060)
£46.98

Only 9 left

E10 - Key Woodruff 4X4X12 (# 012-0197)
£2.98

In Stock

E11 - Drive Shaft (# 012-0111-A2)
£25.98

Only 14 left

E12 - Helical Gearbox (# 012-0101-A1)
£38.98

Only 7 left

E13 - Arbor Lock Pin (# 012-0112-A2)
£2.98

Only 18 left

E15 - Arbor Lock Spring (# 012-0113-A1)
£2.98

Only 14 left

E17 - Bevel Pinion (# 012-0107-A1)
£25.98

In Stock

E19 - Bevel Gearbox (# 012-0102-A1)
£30.98

Only 17 left

E20 - 6200 Bearing Ball 30Od 10Id 09W (# F-B-6200-2Z)
£10.98

In Stock

E27 - Front Vent Left (# 012-0207)
£2.98

Only 14 left

E28 - Front Vent Right (# 012-0208)
£2.98

Only 10 left

F02 - None Water Outlet Handle Lh (# 012-0177-A1)
£2.98

Only 16 left

F03 - None Water Outlet Handle Rh (# 012-0178-A1)
£2.98

In Stock

F04 - Motor Housing Water Guide Blanking Plate (# 012-0157-A1)
£2.98

Only 20 left

F05 - Rear Handle Lh Water Blanking Plate (# 012-0158-A1)
£3.48

Only 18 left

F06 - None Water Bung (# 012-0206)
£2.98

Only 16 left

H100 - Trolley Assembly (# 012-0213)
£16.98

Only 19 left

Cant find what you are looking for?  Contact Us Give us a call on:  +44 (0)114 251 1022
