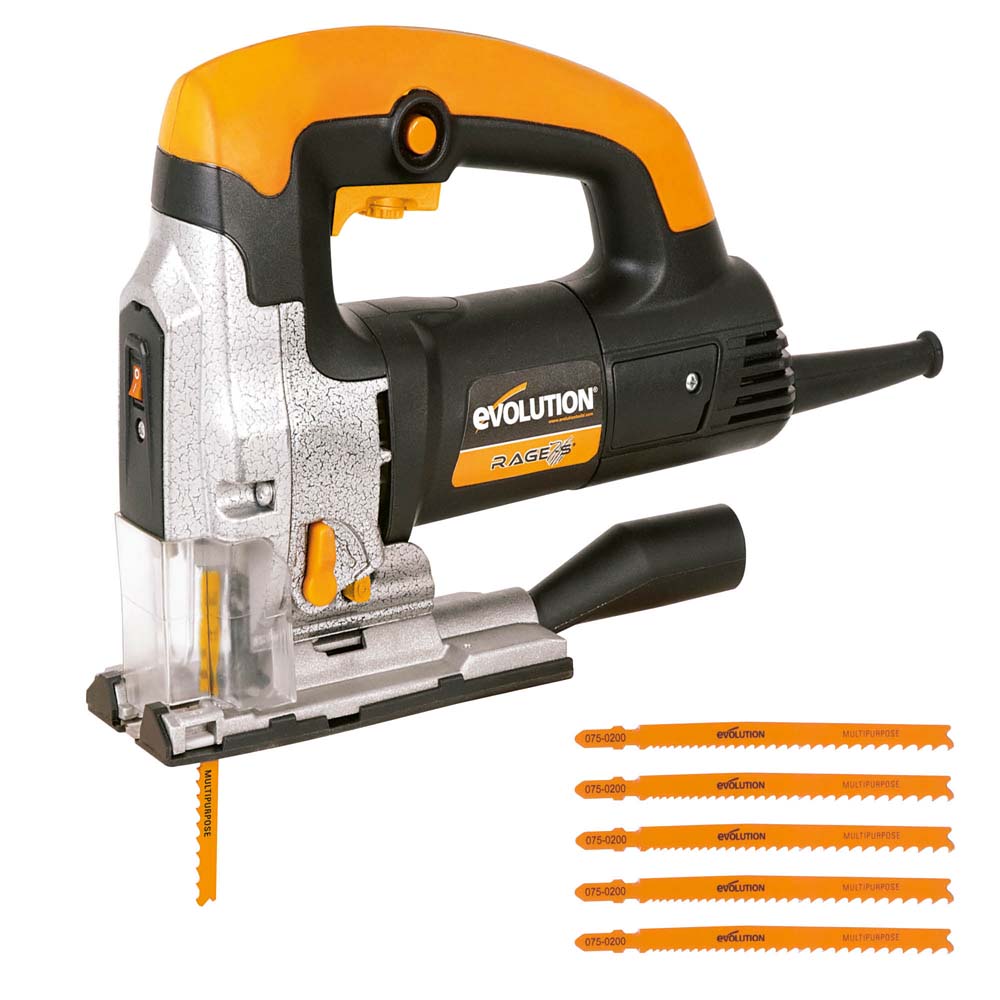

Evolution RAGE7-S 710W Jigsaw
SKU: 075-0002
EAN/UPC: 00849713053411
- Multi-material cutting Jigsaw.
- Powerful, compact, lightweight.
- Adjustable speed, bevel angle and pendulum for efficient cuts.
- Laser guided cutting accuracy.
- Description
- Specifications
- Items Supplied
- Accessories
- Buy Now, Pay Later
- 2 Years Warranty
- Downloads
Description

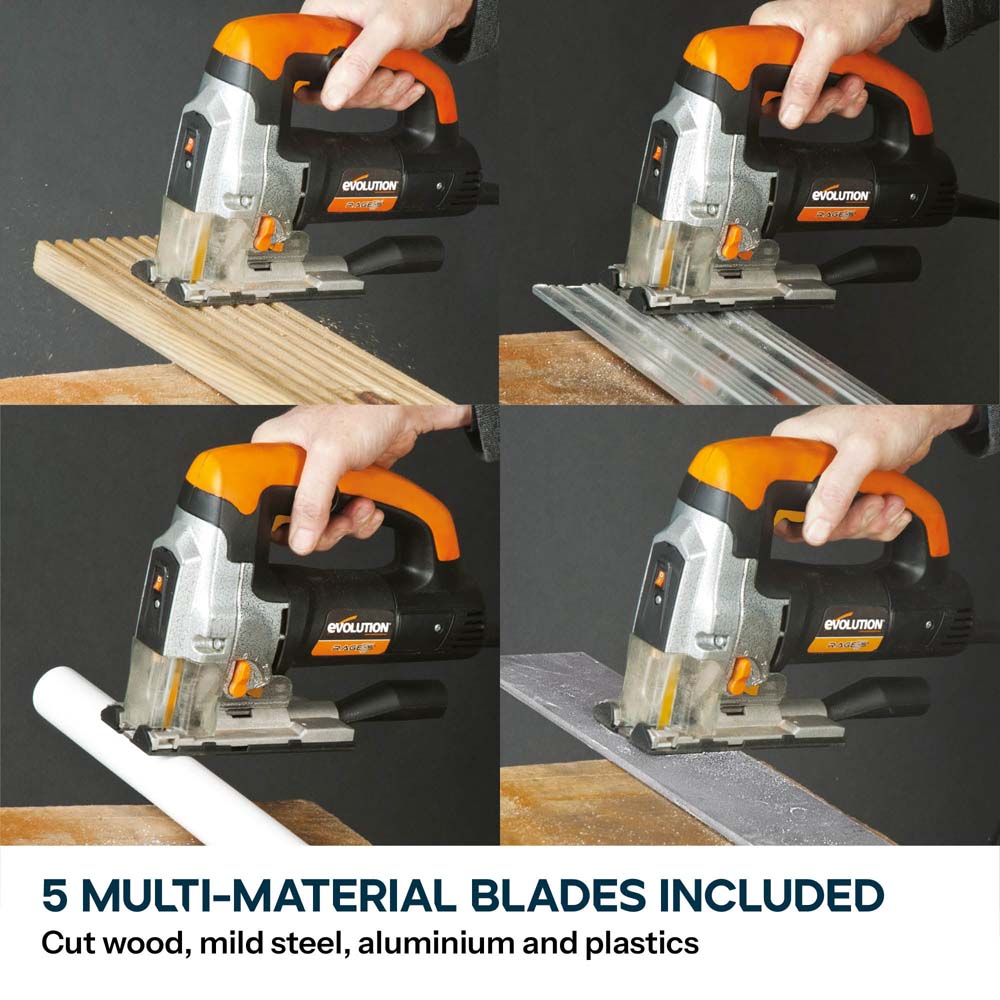

The Evolution RAGE7-S 710W Jigsaw puts Multi-material cutting performance in the palm of your hand. Capable of cutting wood, plastic, mild steel and non-ferrous metals the RAGE7-S delivers effortless cuts through sheet materials, powering its way through wood up to 80mm, plastics up to 60mm and through 6mm thick mild steel thanks to its powerful DC motor, 26mm blade stroke and our multi-material cutting technology.

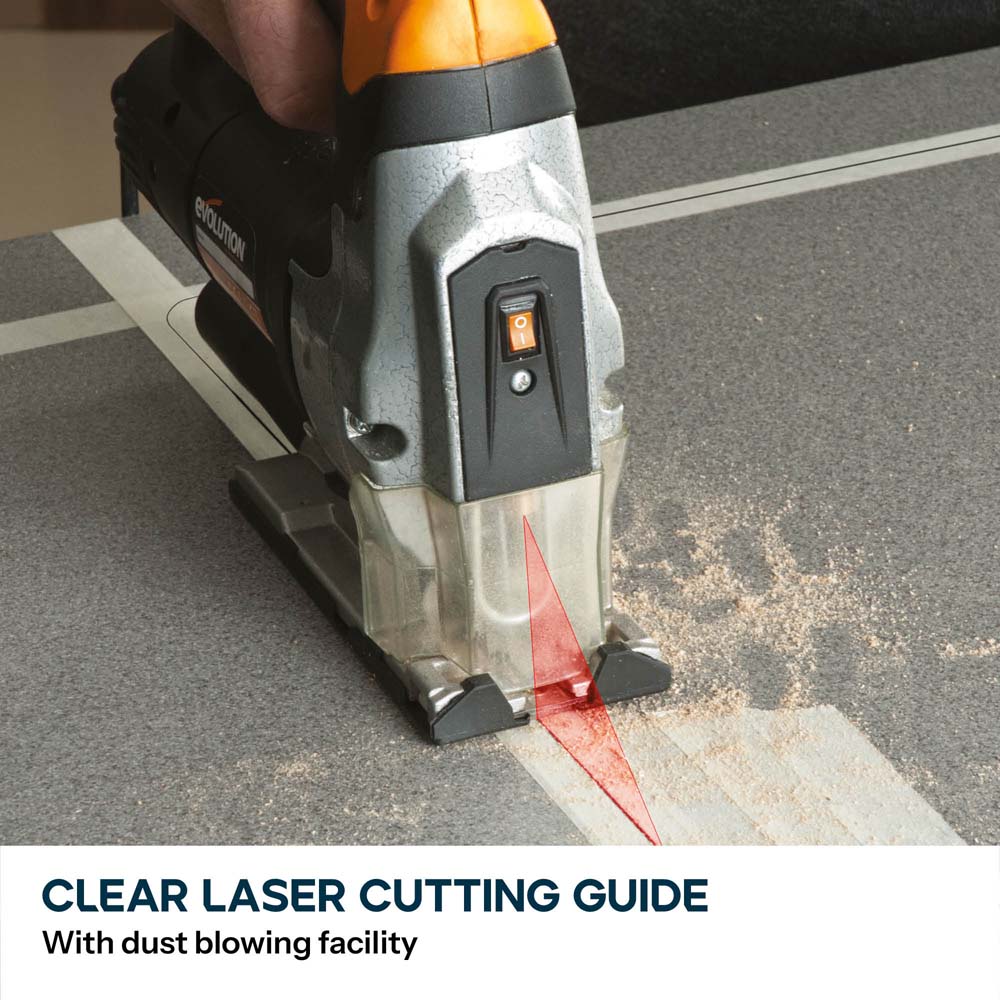

For freehand scroll cuts the RAGE7-S couldn't be any easier. When you need precision you can rely on its parallel edge guide and laser blade line indicator to help you make the most accurate cuts.
The RAGE7-S Jigsaw is packed with features; Multi-Material cutting technology, dust collection & vacuum attachment port, its maximum 80mm depth of cut, +/- 45˚ bevel capability and adjustable speed and pendulum angle provide real versatility. Our Multi-material cutting technology takes almost all materials in its stride. Add in great ergonomics, compact size and a parallel edge guide for straight cuts and the RAGE7-S is the perfect cordless Jigsaw for use anywhere, anytime.
- Supplied with one pack of Jigsaw blades for multipurpose cutting.
- A powerful and versatile Jigsaw, capable of cutting many different materials. A large cutting capacity of up to 80mm thickness (wood). The ergonomic, soft-grip handle gives superb operator comfort and control. Fitted with a variable speed trigger control. Dial the speed you need, and then, for great operator convenience lock the trigger in place.

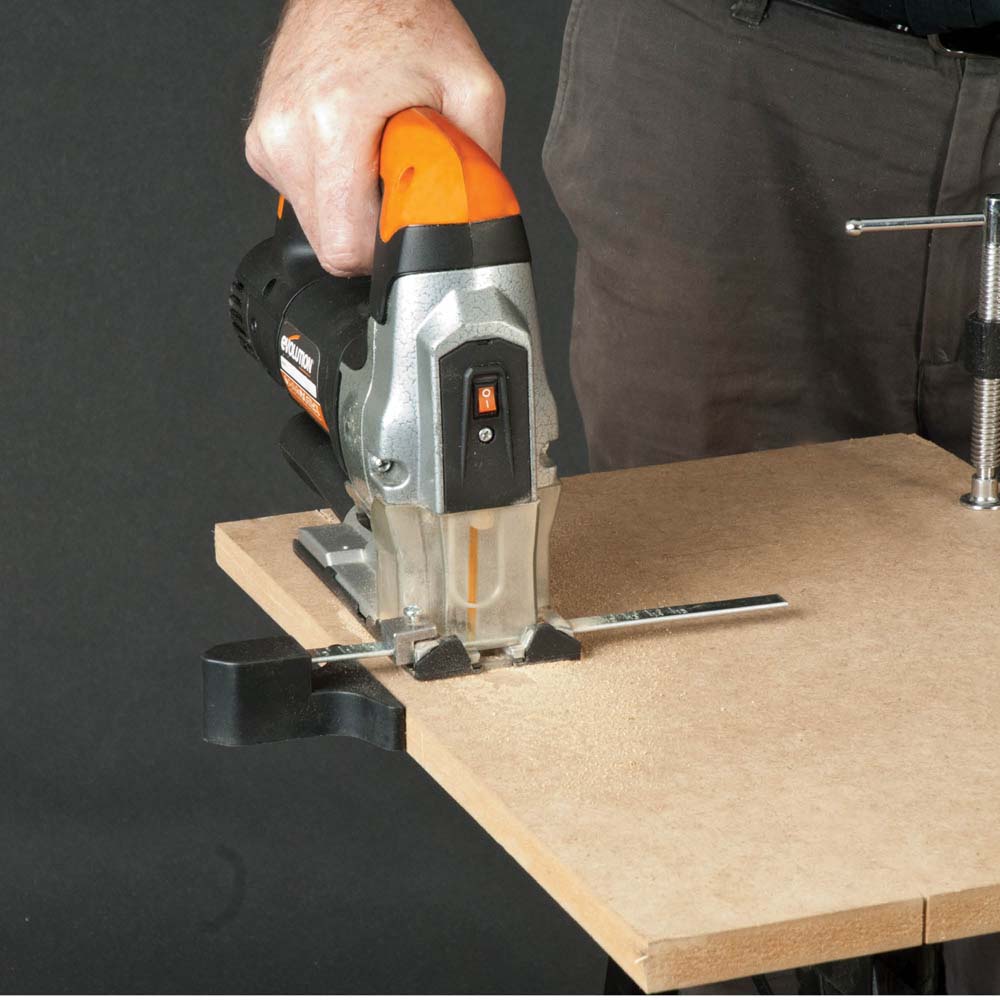

- Supplied with an adjustable parallel edge guide - a useful aid when cutting and trimming laminate flooring, where accurate parallel cuts are often needed. Removal (or installation) of the edge guide is easy, enabling a quick return to freehand cutting when required.

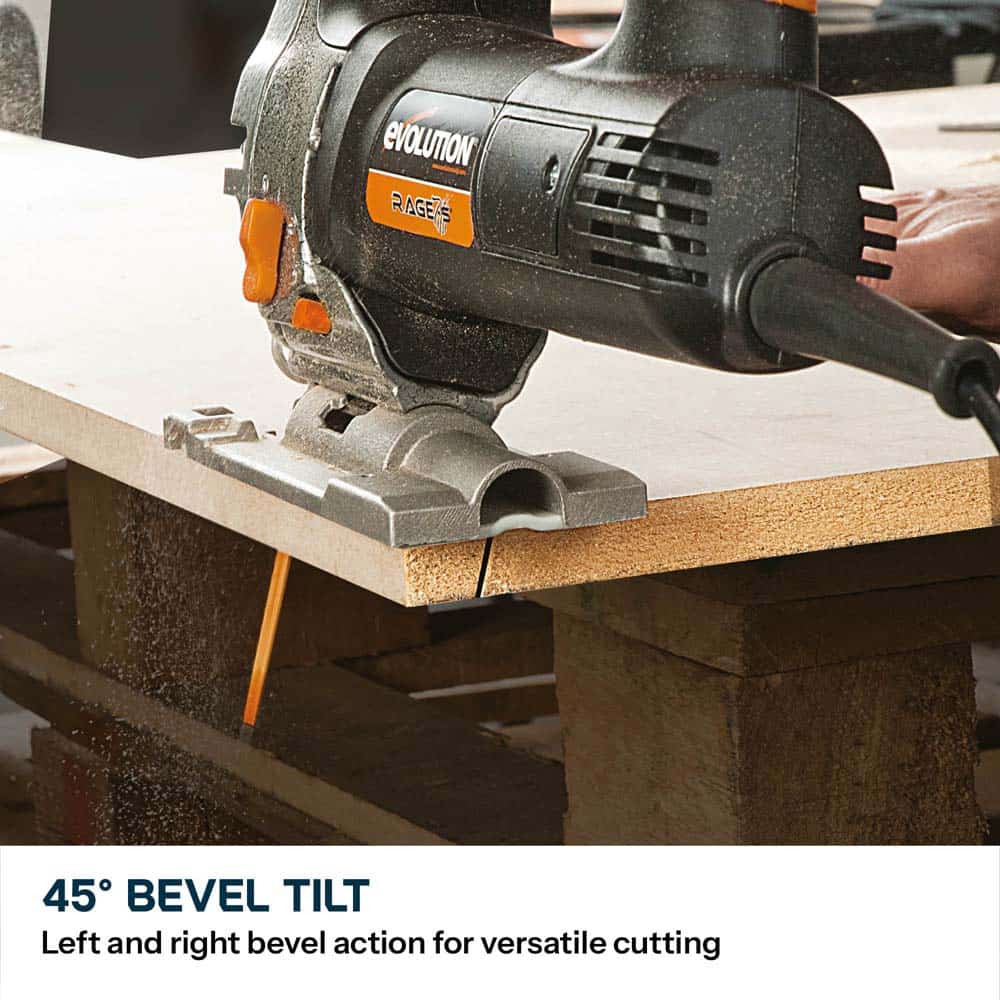

- Adjustable footplate (up to 45° right and left) allows bevel cutting - a very useful feature when cutting and fitting skirting board, architrave or coving. Positive stops are provided at 45°, 30°, 15° to both right hand and left-hand sides, and at 0°.

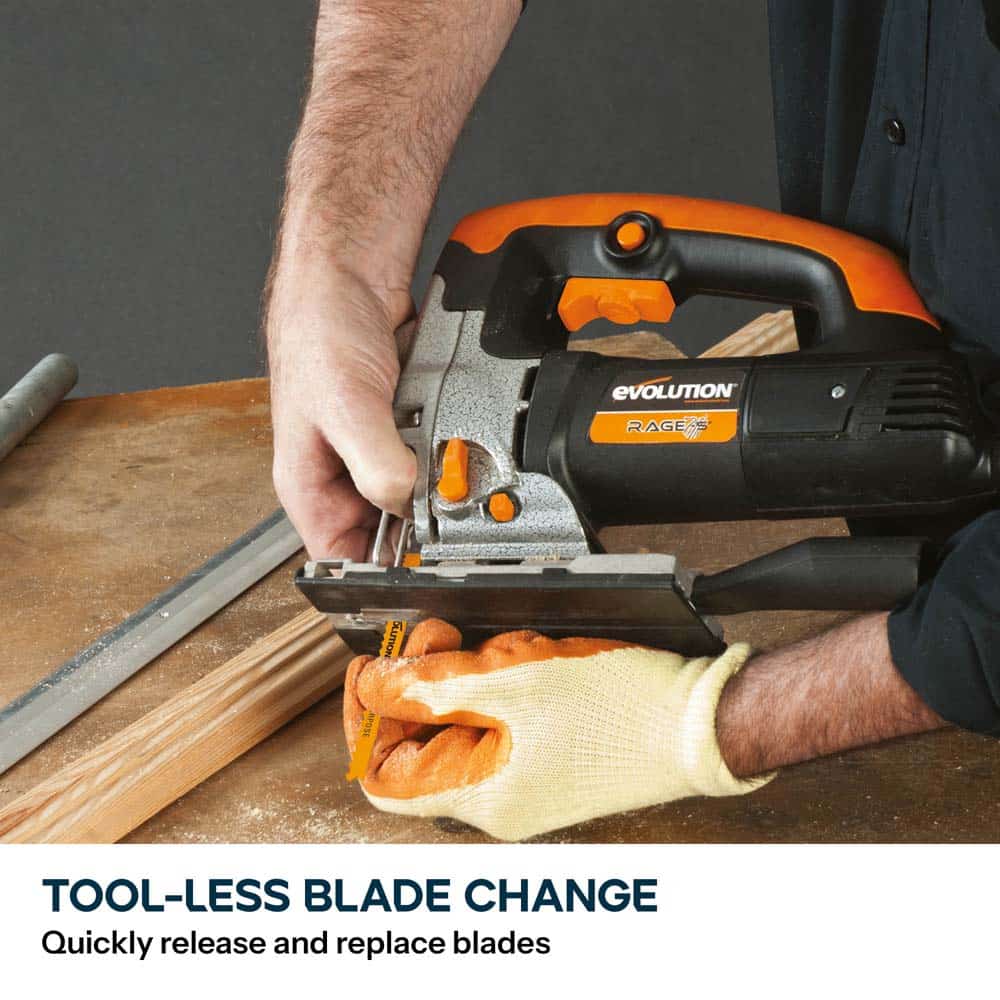

- Fitted with a quick release, tool-less chuck, which gives very rapid and easy installation or removal of the blade. A multipurpose jigsaw blade capable of cutting a wide variety of materials such as Steel, Aluminium, Wood, and Plastics, is included with this machine.
- Equipped with an air blower to blow dust away from the blade and the working area. Cutting lines are kept clear and readily visible aiding cutting accuracy. Also supplied with an adaptor tube that enables connection to a vacuum cleaner. Suck the dust away and keep your workplace clean and dust-free.
Specifications
| Motor (110V 50Hz): | 600 W |
| Motor (240V 50Hz): | 710 W |
| Speed No Load: | 0 - 3000min-1 |
| Recommended Max Duty Cycle | 30 Minutes |
| Stroke Length | 26mm |
| Insulation Class | II |
| Wood | 80mm |
| Metal | 8mm |
| Sound Pressure Level LPA: | 87dB(A) K=3 dB(A) |
| Sound Power Level LWA: | 98dB(A) K=3 dB(A) |
| Uncertainty K: | 3:129/s2 K=1.5m/s2 |

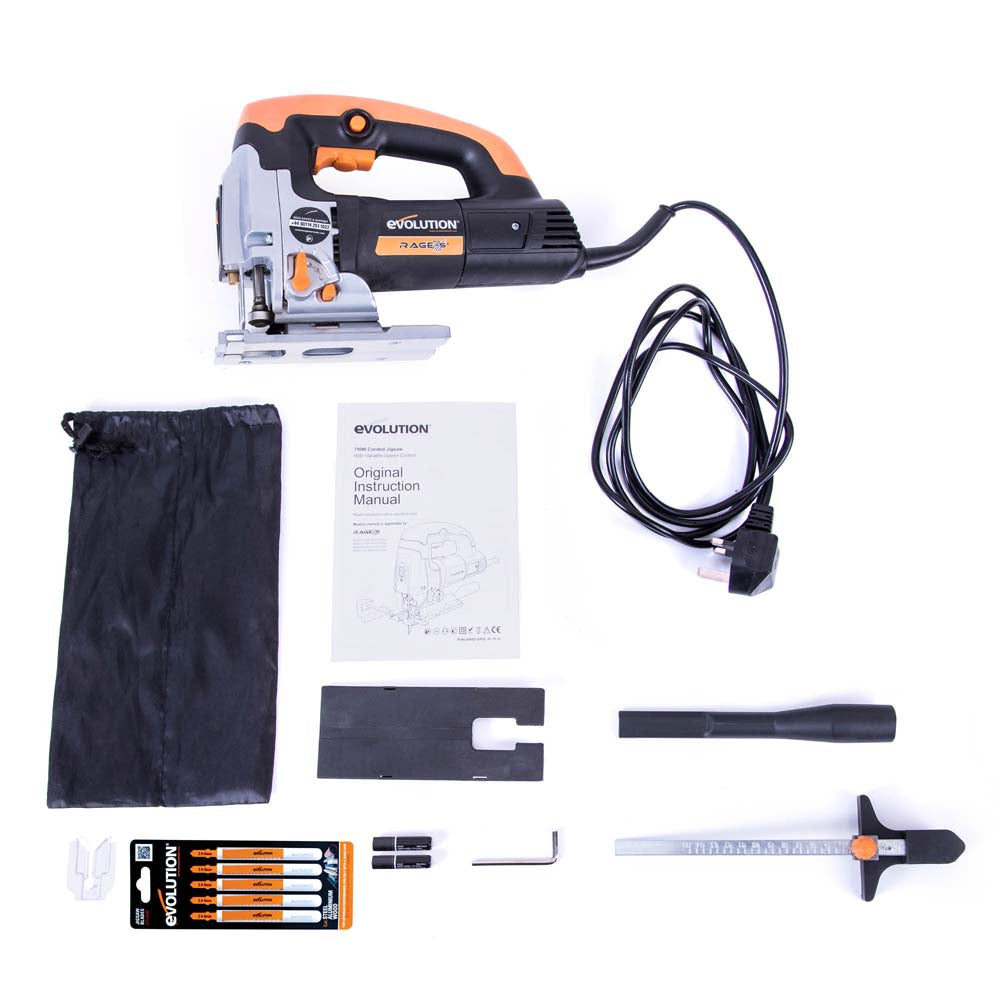

Items Supplied
| Instruction Manual |
| Hex Key 4mm |
| Footplate Shoe |
| Jigsaw Blades (1 Pack) |
| Parallel Edge Guide |
| Dust Extraction Adaptor |
| Chip Guard (Front) |
| Chip Guard (Footplate) |
| Batteries ‘AAA’ x2 |
Buy Now, Pay Later
Split your order total into 3 interest-free instalments with Klarna.
2 Years Warranty
- The warranty becomes effective at the date of purchase (or the date of delivery if this is later).
- You must provide proof of delivery/ purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
- All work will be carried out by Evolution.
- Any parts which are replaced will become the property of Evolution.
- The repair or replacement of your machine under warranty will not extend the period of warranty.
- The warranty provides benefits which are additional to and do not affect your statutory rights as a consumer.
- The repair or replacement of your machine (at Evolution’s discretion), if your machine is found to be defective due to faulty materials, workmanship or function within the warranty period (if any part is no longer available or out of manufacture, Evolution will replace it with a functional replacement part).
- Overseas users should contact the official importer for that country.
- Normal wear and tear (eg. Fuse, Fluids/Lubricants, Blades, etc.)
- Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the machine which is not in use with Evolution’s user guide.
- Lack of servicing.
- Use of parts not assembled or installed in accordance with the instructions of Evolution.
- Use of parts and accessories which are not Evolution Genuine Components.
- Faulty installation (except installation by Evolution).
- Repairs or alterations carried out by parties other than Evolution.
