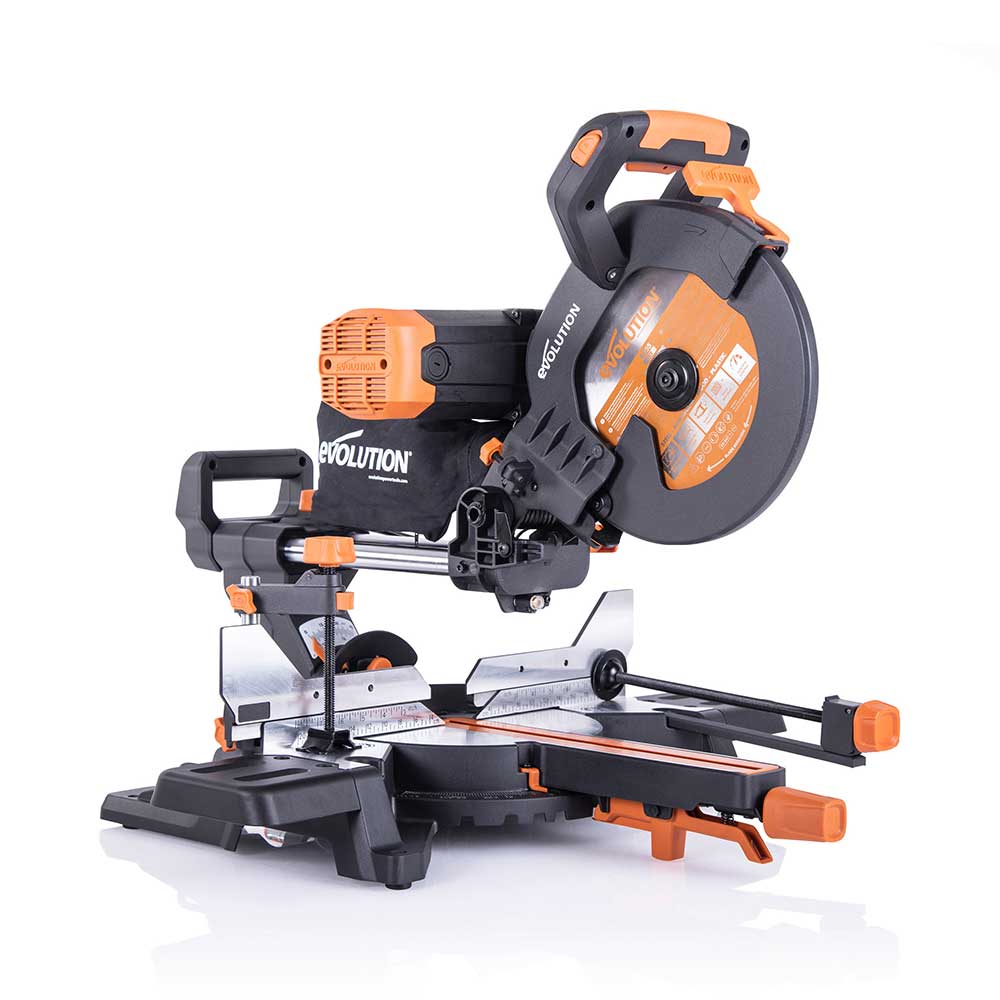

Evolution R255SMS-DB+ 255mm Double Bevel Mitre Saw & XL Rolling Stand — Evolution Power Tools UK Skip to content

Evolution R255SMS-DB+ 255mm Double Bevel Mitre Saw & XL Rolling Stand Bundle

  • Multi-Material cutting technology.
  • Accurate cutting with 300mm sliding functionality.
  • Cut 45° - 45° (L & R) bevel tilt and 50˚ - 50˚ miter angles.

45 Day Returns

420 EVO Points + 5% off your first order

Frequently Bought Together

With a 255mm blade and a huge 90mm x 300mm crosscut capability the R255SMS-DB+ is the most capable and powerful Mitre Saw in the Evolution line-up. With 2,000 watts of power and a multi-material blade that slices through wood, plastic, metal, and even reclaimed wood with embedded nails it offers best in class power and versatility.

Paired with our new XL Rolling Mitre Saw Stand it's the perfect portable jobsite Mitre Saw, ready to tackle the biggest jobs on-site or at home. Packed with features this double bevel mitre saw cuts 45 ° bevels in both directions. An integrated laser cutting guide and positive bevel stops provide accuracy for every cut. A durable die-cast aluminium base is tough enough to handle any material. With great ergonomics, single-handed cutting action and easy access storage tools and workpiece clamps the R255SMS-DB+ is the ultimate trade and workshop mitre saw, you can pay more but you can't buy better.

*This version of the R255SMS-DB+ mitre Saw includes a 28T multi-material blade and an additional 40T carbide-tipped Wood Blade for when you need the ultimate precision.

Features

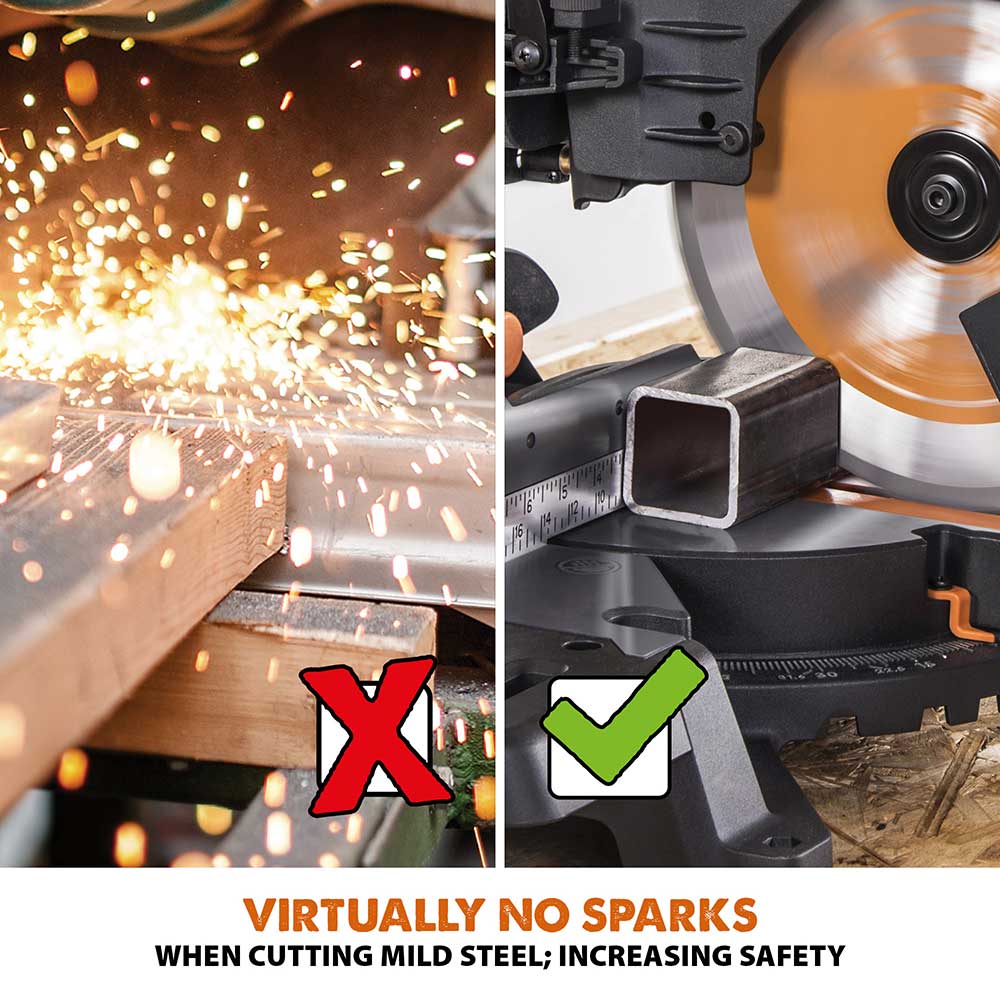

  • Multi-Material cutting technology. One saw, one blade, cuts all.*
  • Accurate cutting with 300mm sliding functionality, adjustable depth of cut and laser precision guidance.

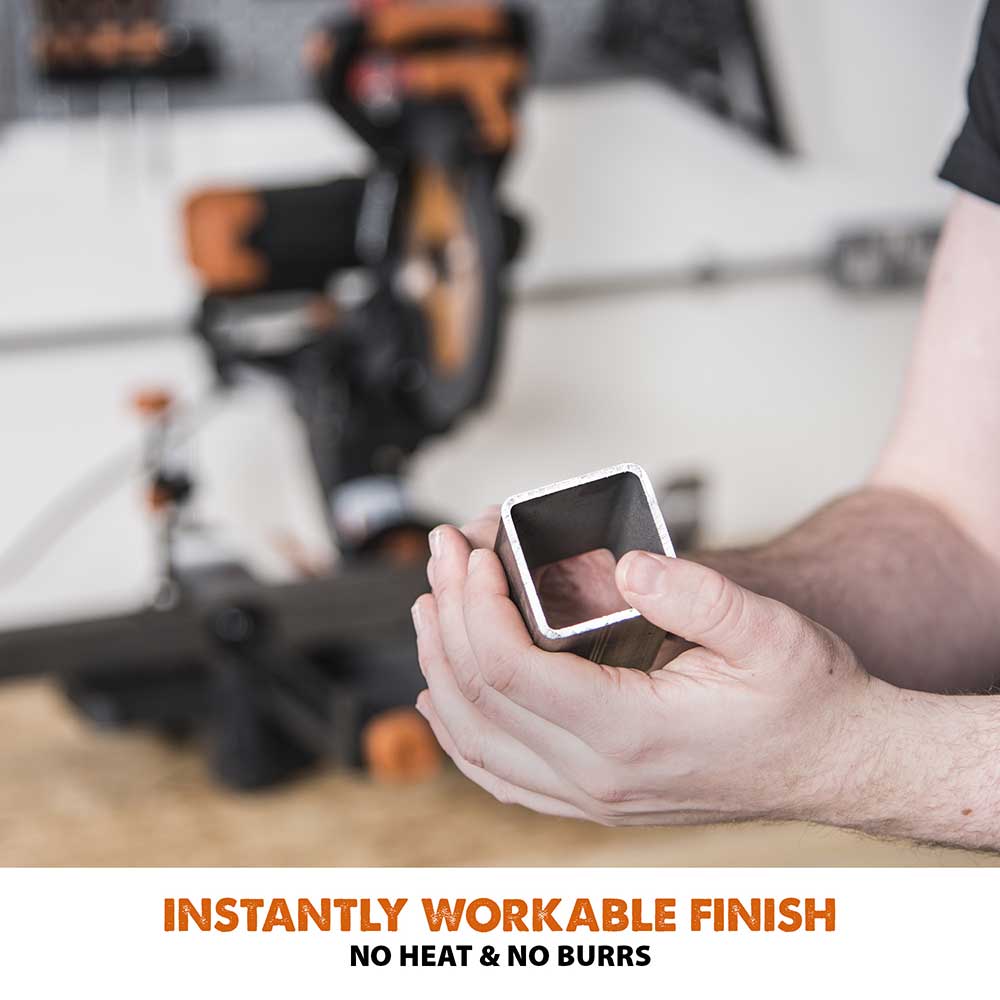

  • Smooth, square, reliable cutting every time in a variety of materials. Cut mild steel with no heat, no burrs & virtually no sparks.
  • Powerful 2000W (230v option), 1600W (110v option), hi-torque optimised gearbox and blade system increases motor and blade life to cut through a variety of materials with ease.
  • Perform accurate Crosscuts, Mitre cuts, Bevel cuts and Compound cuts with adjustable precision settings.

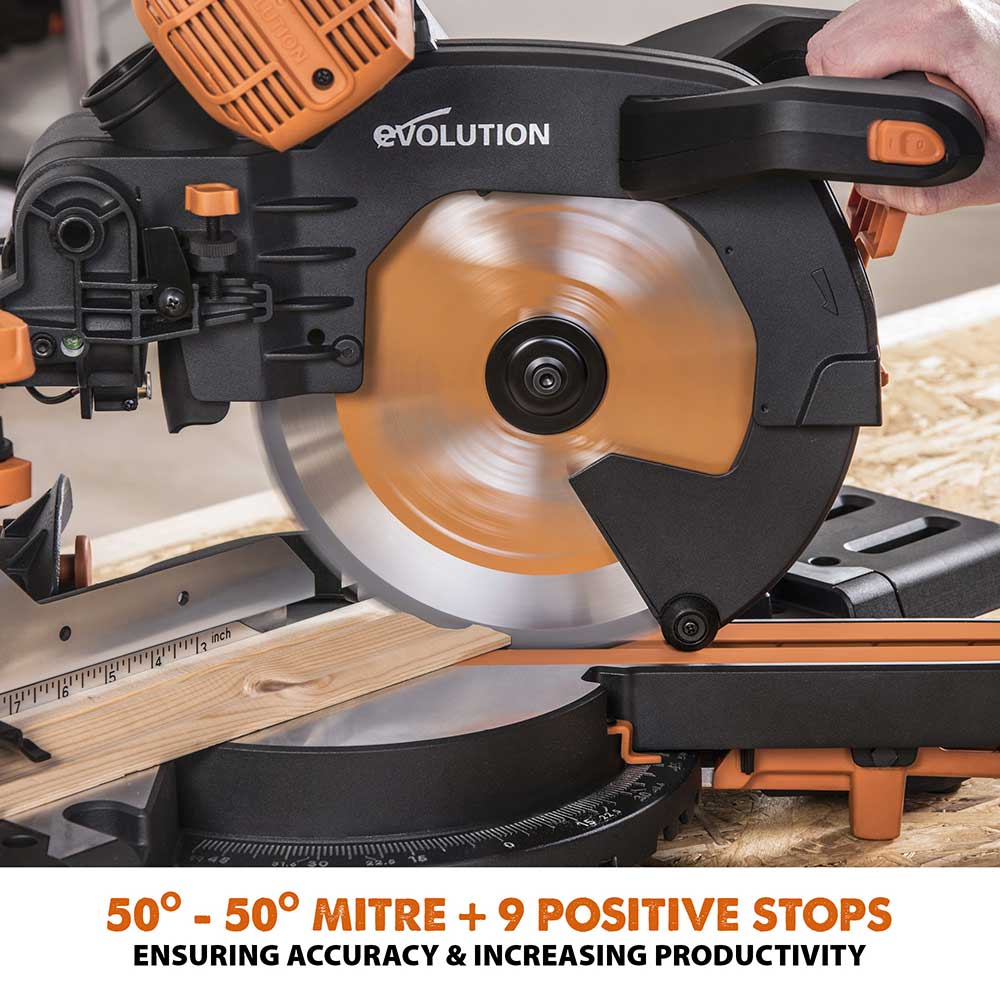

  • Cut to within +/- 0.5˚ with 45° - 45° bevel tilt and 50˚ - 50˚ mitre angles with quick click mitre stops at 0˚, 15, 22.5, 30, and 45˚ both left & right.

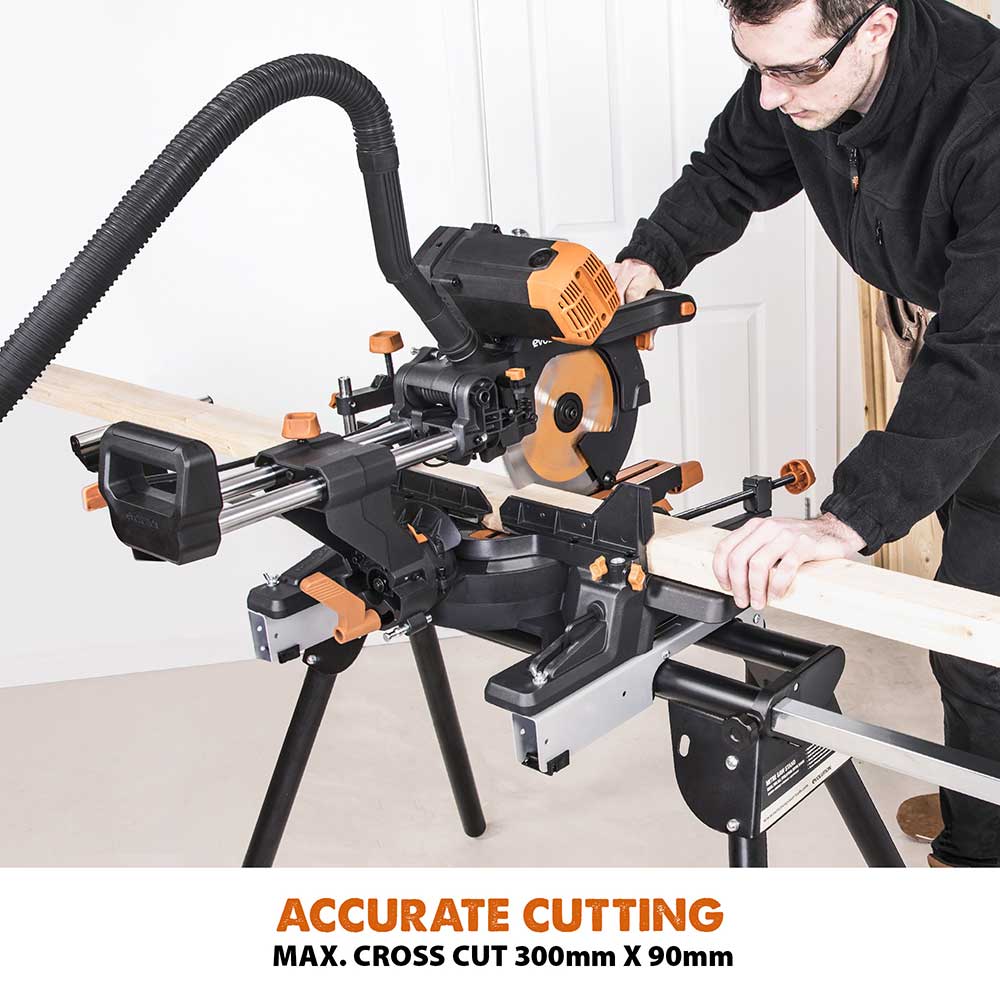

  • An impressive 300mm x 90mm max. crosscut capacity enables you to cut through most framing beams.

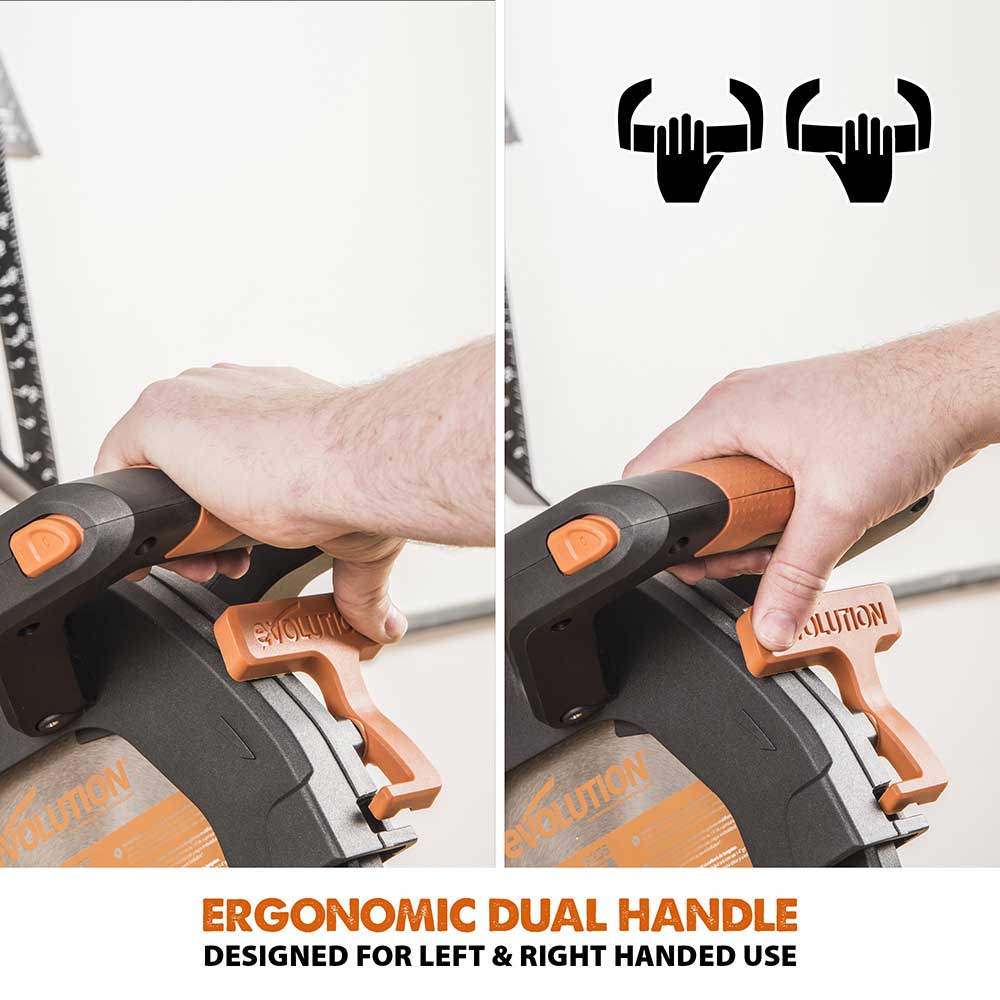

  • Ambidextrous, ergonomic, horizontal trigger with comfortable grip = combats repetitive strain.
  • Compatible with Evolution's Mitre Saw Stand, giving you full control to cut accurate repeated lengths on wide and long materials with ease.

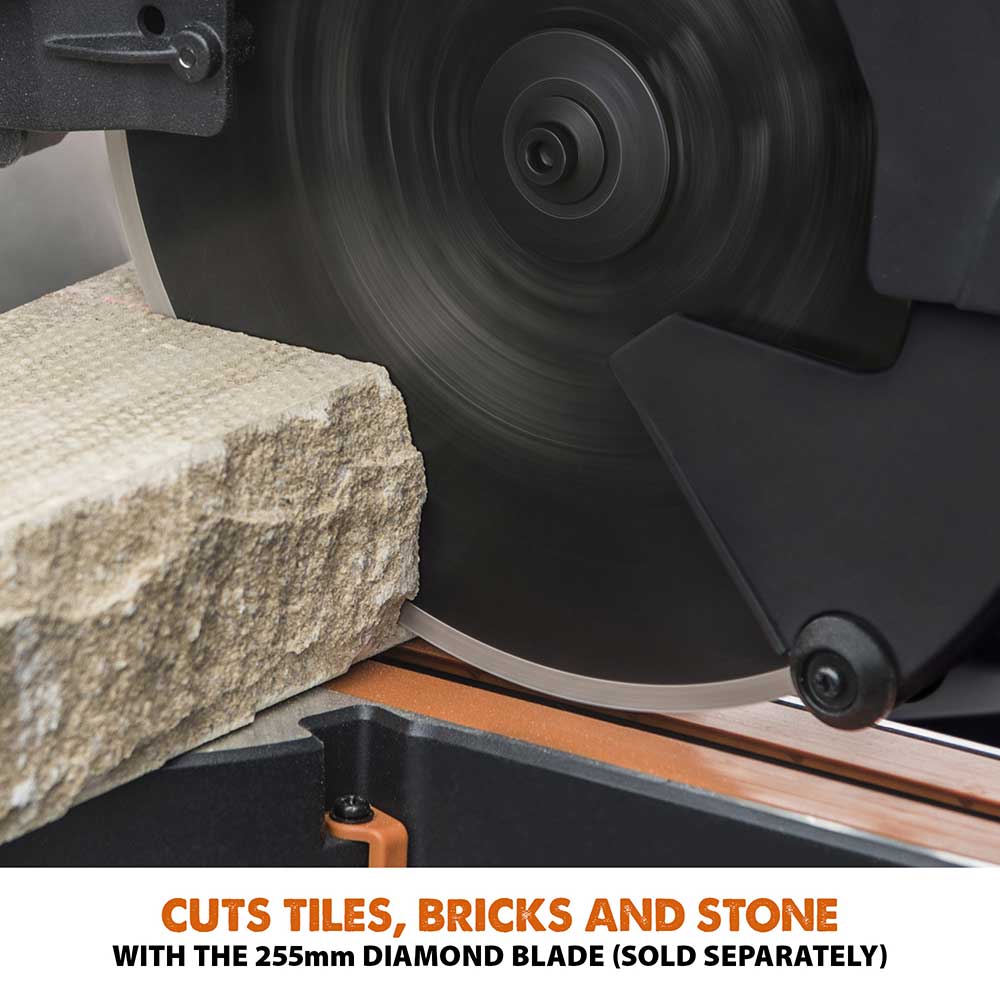

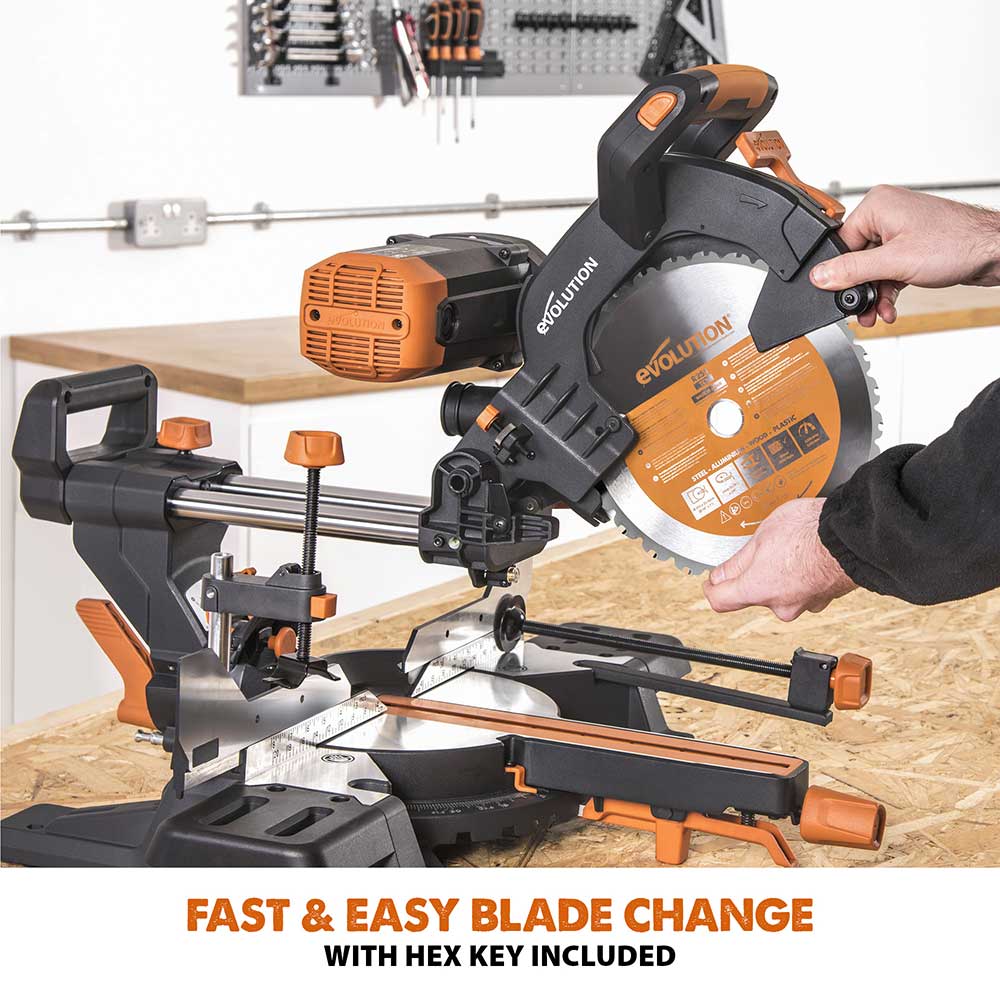

  • The Evolution 255mm Diamond blade can also be fitted for cutting ceramic tiles and ornamental stone, (sold separately).
  • 3-year limited warranty.

PLUS+ Features



  • Premium Japanese 28T Tungsten-Carbide-Tipped (TCT) 255mm blade included for long-life, multi-material cutting.
  • Premium Japanese 40T Tungsten Carbide-Tipped (TCT) 255mm General Wood Blade for crosscut and ripping duty.

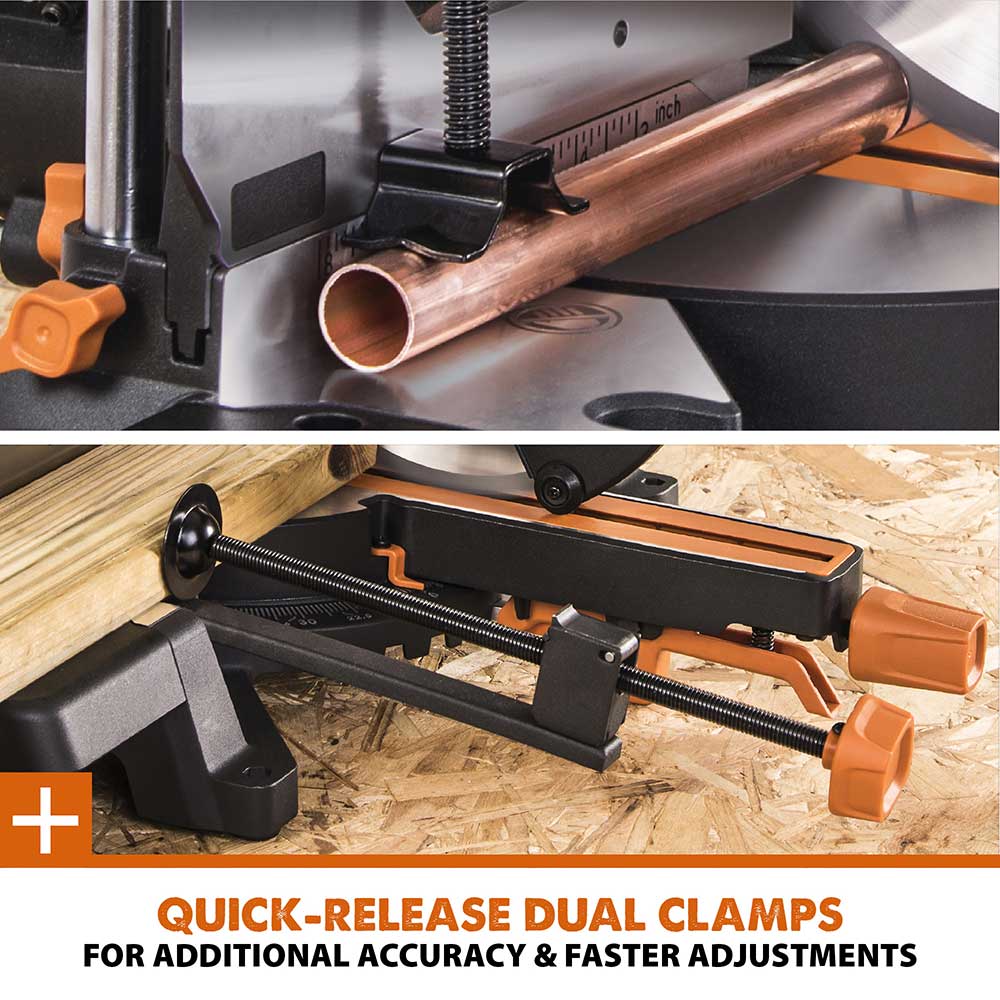

  • Quick-Release top clamp included for additional safety and faster adjustments.
  • Tall neck and fences for increase cut capacity and versatility when cutting materials stood upright such as skirting and cornices.

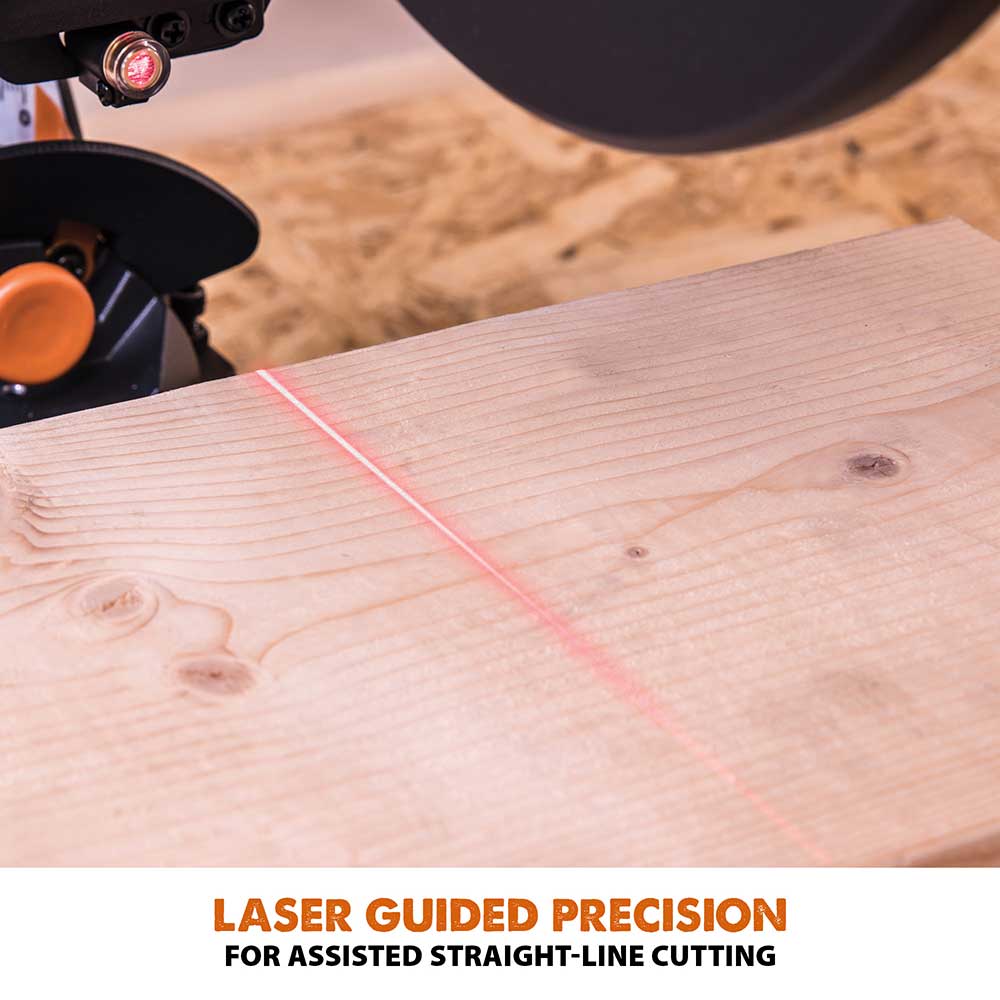

  • Laser-guided precision projects the cutting line on your workpiece for assisted straight-line cutting.

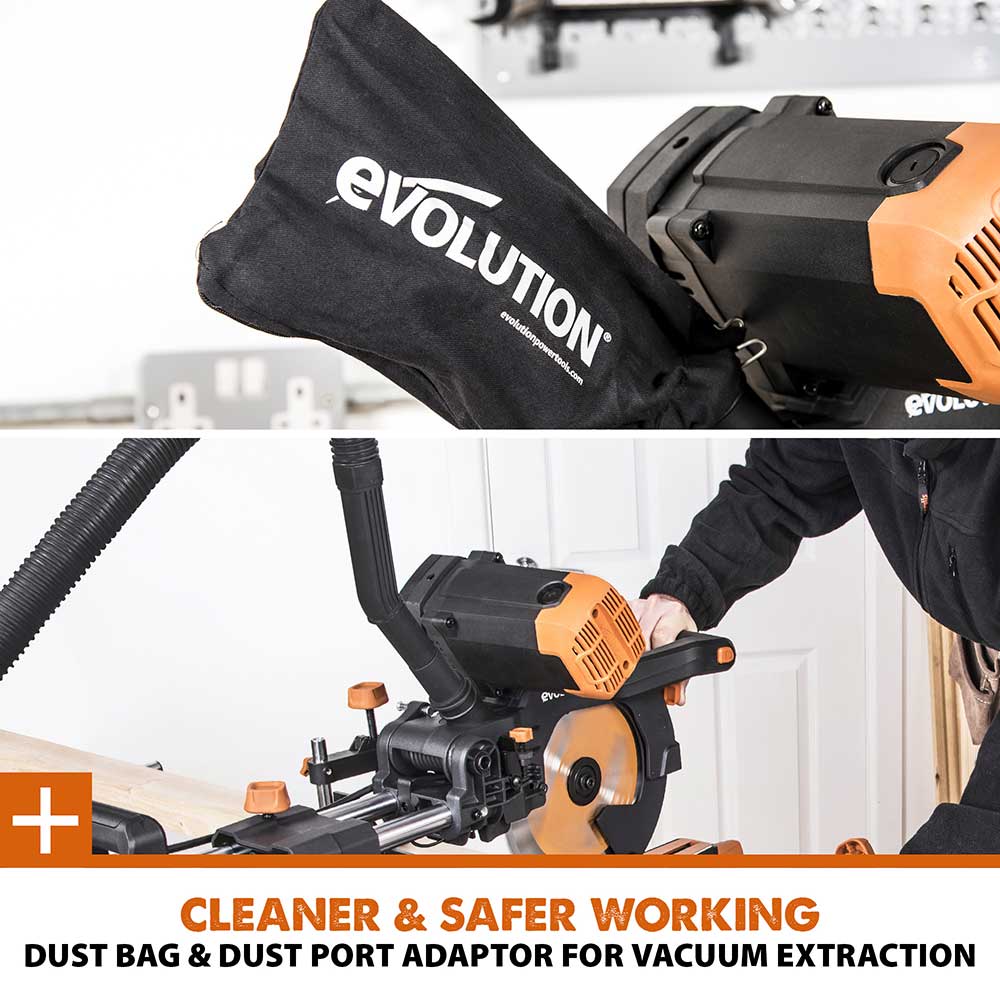

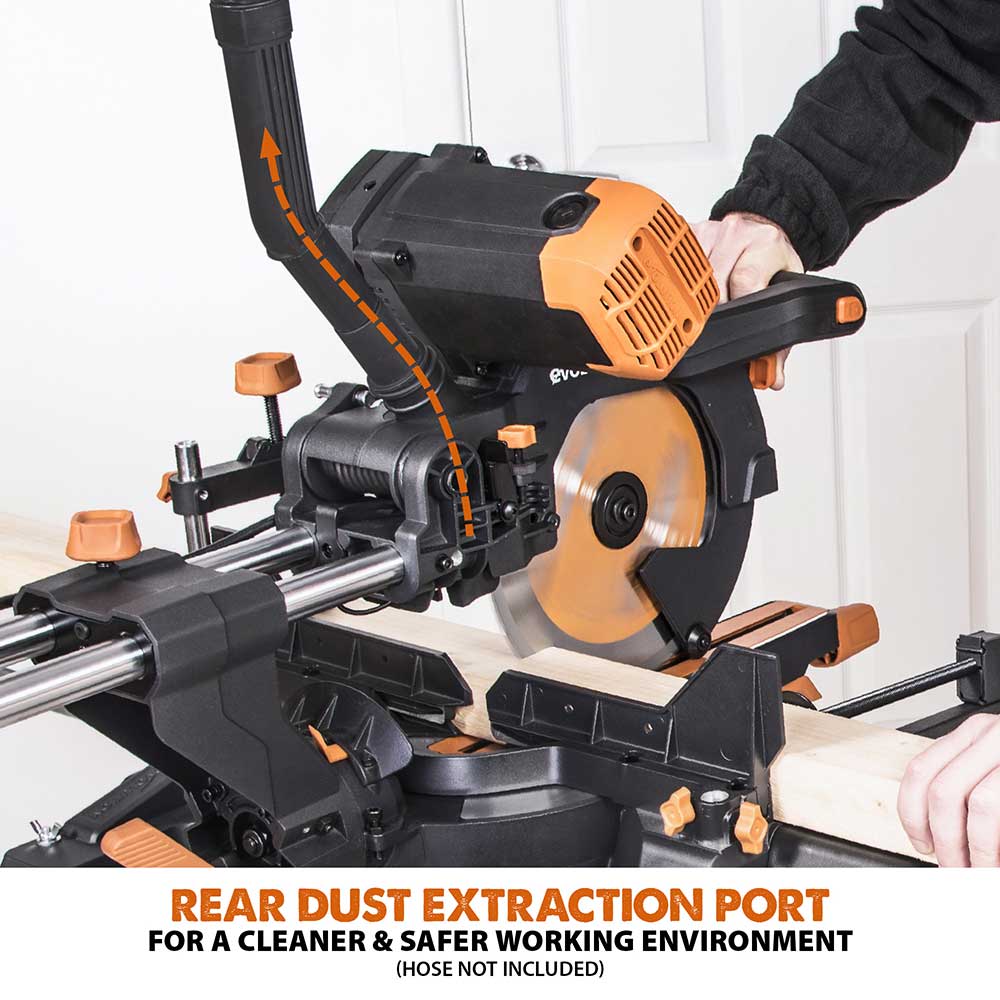

  • Cleaner and safer working environment with a dust collection bag and dust port adaptor for use with vacuum extraction.
  • Integrated carry handles - easy to carry and transport around the workplace.

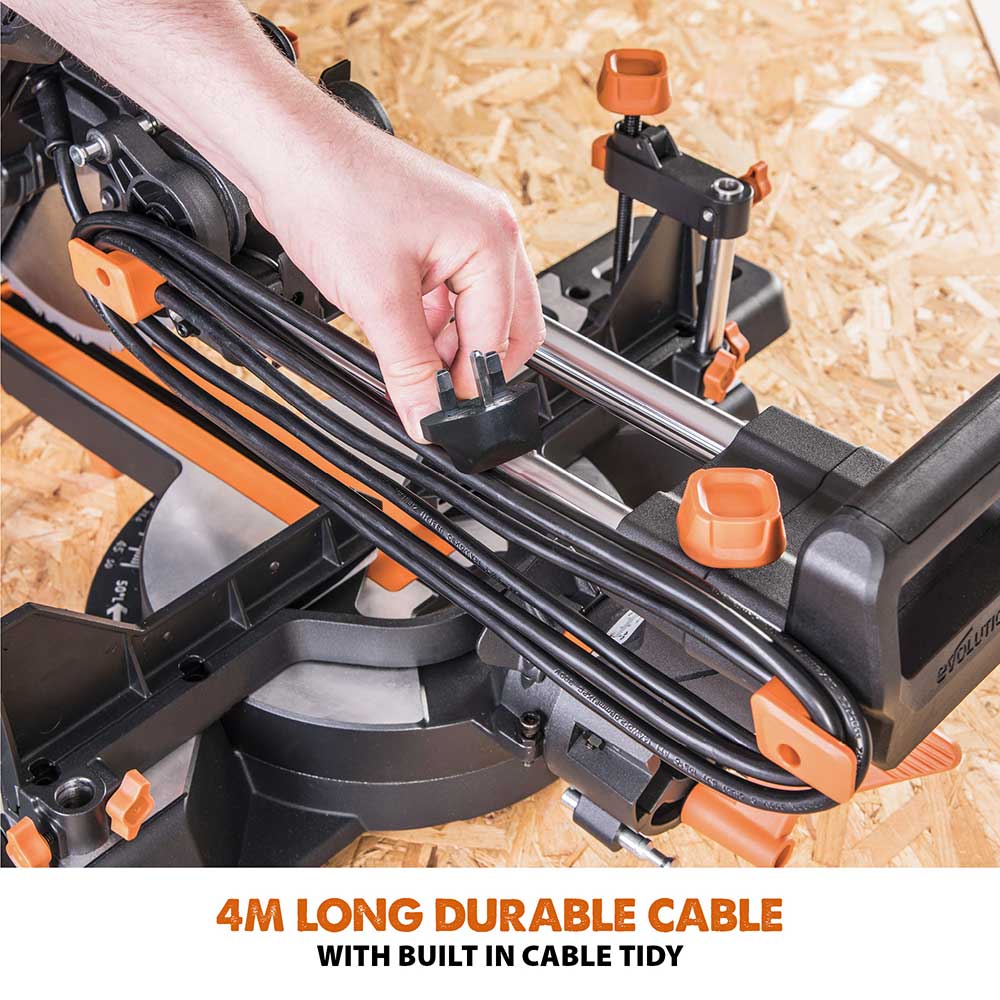

  • 4m rubber power cable gives you the power and reach you need to get the job done.

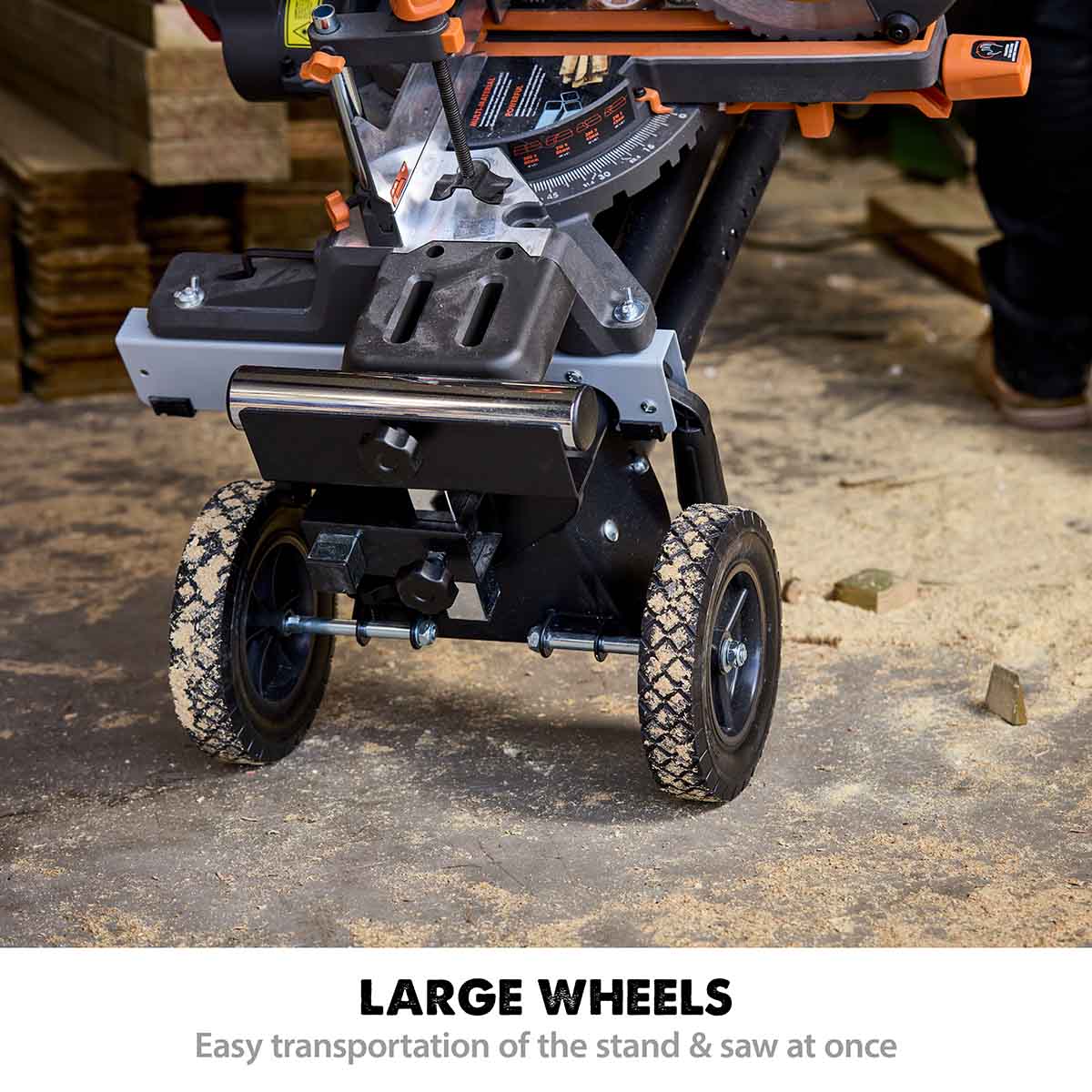

XL Rolling Mitre Saw Stand

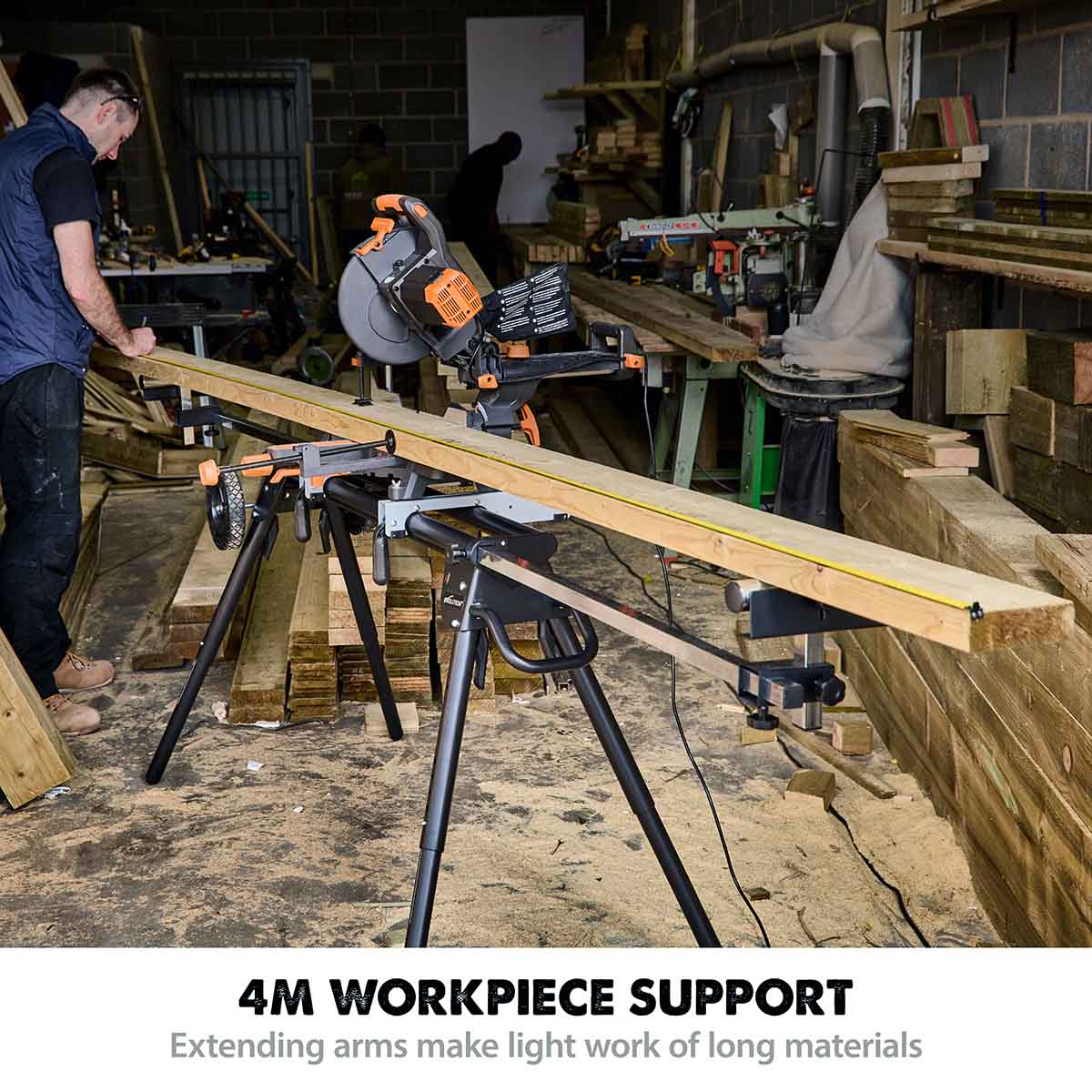

The XL Rolling version of Evolution's best-selling Mitre Saw Stand supports more weight, offers more stability, 5-position height adjustment, wheels for easy portability and almost universal compatibility with other manufacturers' Mitre Saw models. This versatile and portable Mitre Saw Stand is perfect for home, workshop and heavy-duty on-site use. Weighing only 25kg it's light enough to be manoeuvred with one hand and, thanks to its folding legs and telescopic arms, it folds down to a compact 200mm x 270mm x 1400mm.

This light and compact Mitre Saw Stand can safely support up to 300kg, and long work-pieces up to 4m in length on its extendable arms. The quick-release mounting brackets allow the mounting of any saw with the standard mounting hole fitment in the range of to 680mm x 370mm. The supplied extension brackets allow use with saws with mounting holes in excess of this range.

  • Quick & easy set-up.
  • Easy to transport and store away.
  • Fits most brands of mitre saws.

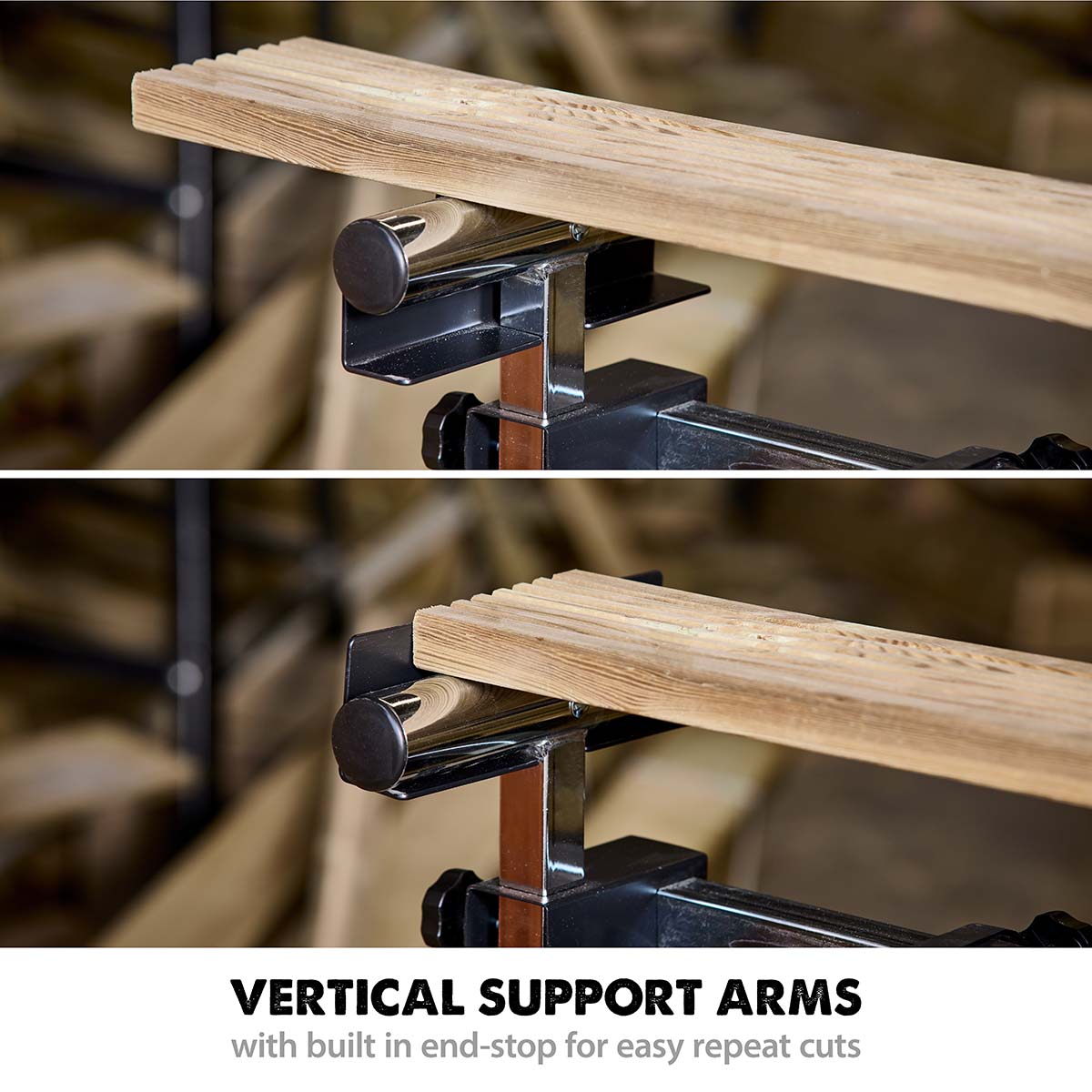

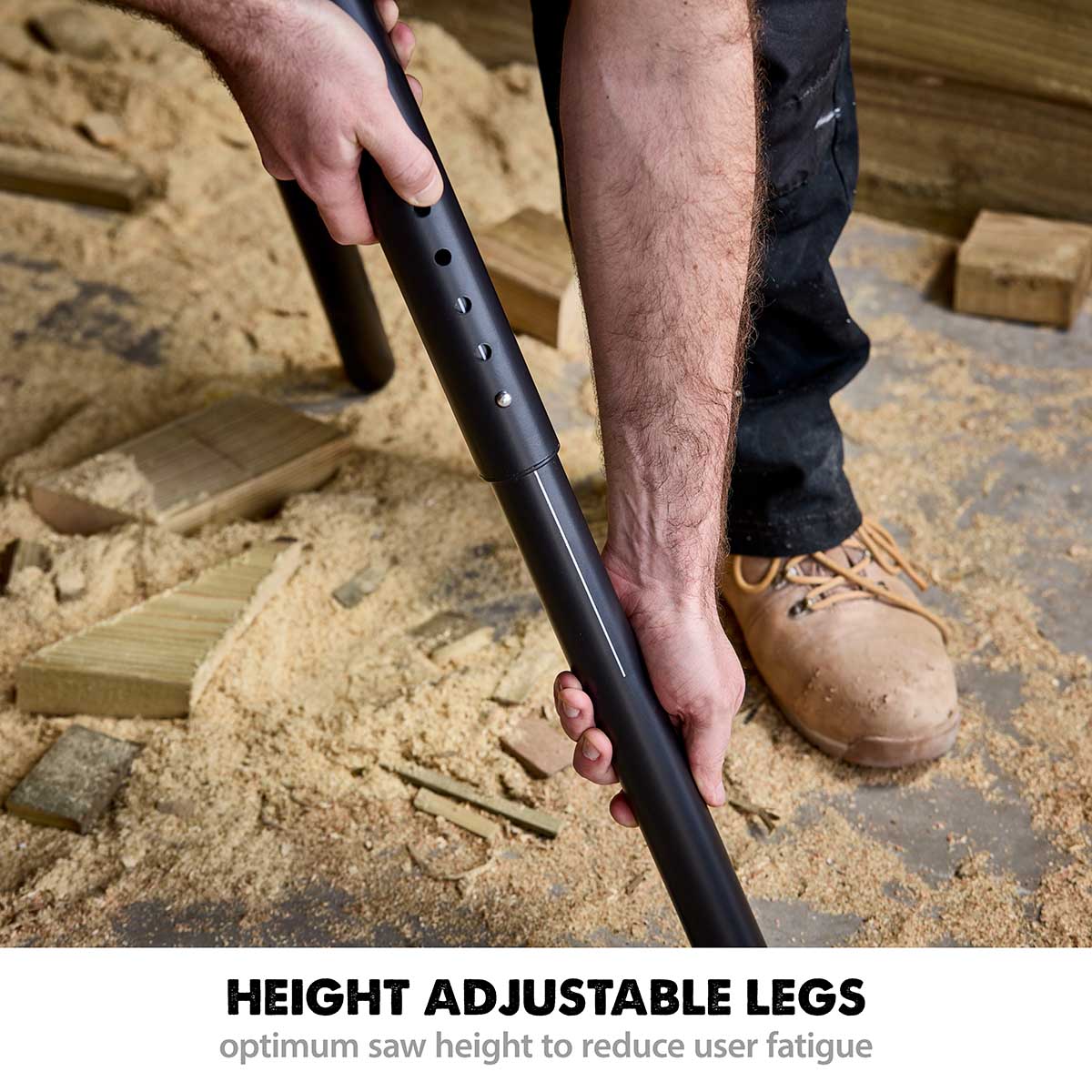

  • Height adjustable rollers with built-in end stop. Perfect for repeat cutting.

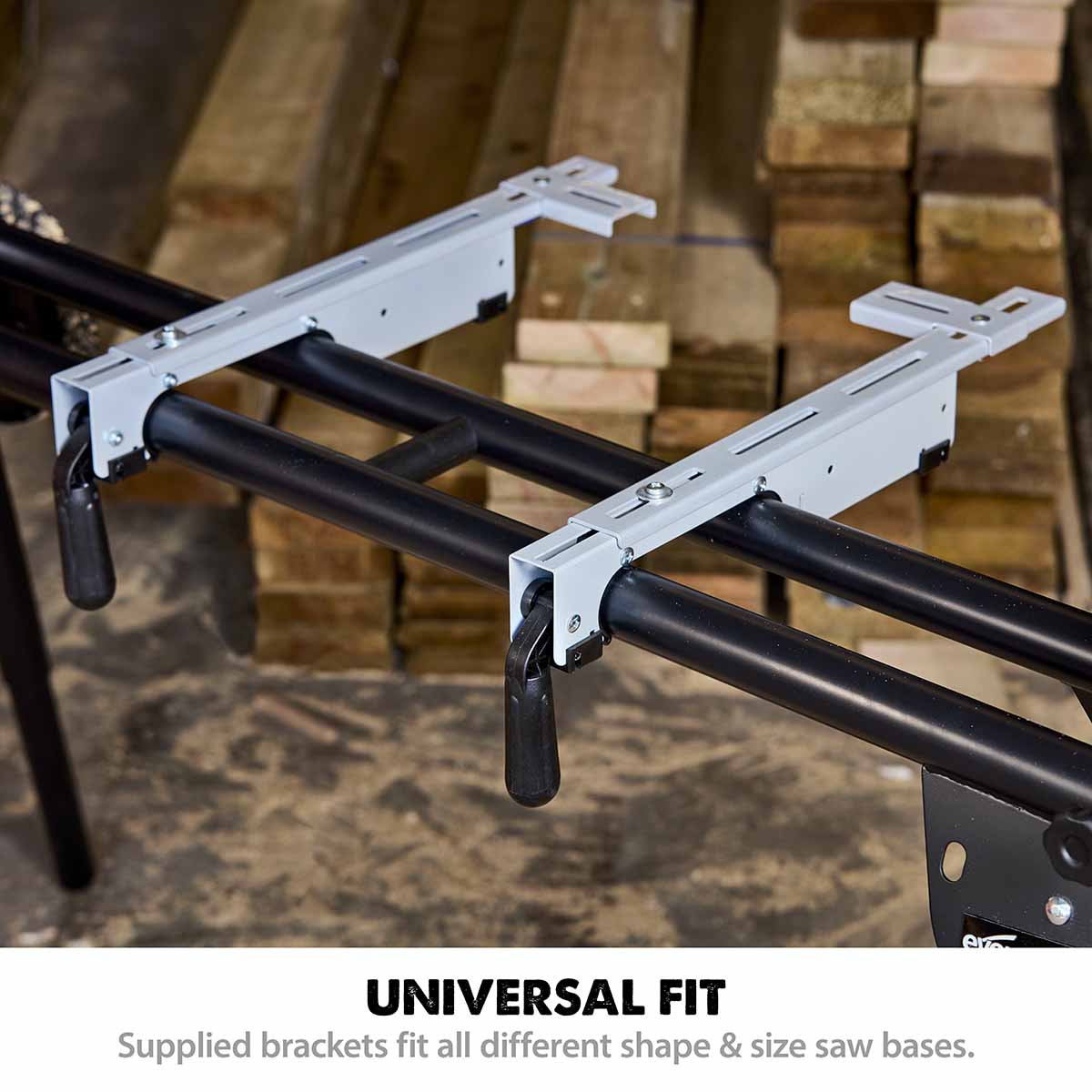

  • Quick-release brackets for fast saw fitting and removal.
  • Support up to 3m long work-pieces and up to 150kg of weight.
  • 3 Year limited warranty.
Specifications

R255SMS-DB+ Mitre Saw

Motor (240V 50Hz): 2000W
Motor (110V 50Hz): 1600W
Speed No Load: 2600 min-1
Max. Bevel (Left): 45° - 45°
Max. Mitre: 50° - 50°
Cable Length: 4m
Blade Dia.: 255mm
No. of Teeth: 28
Bore: 25.4mm / 1 in.
Kerf: 2mm

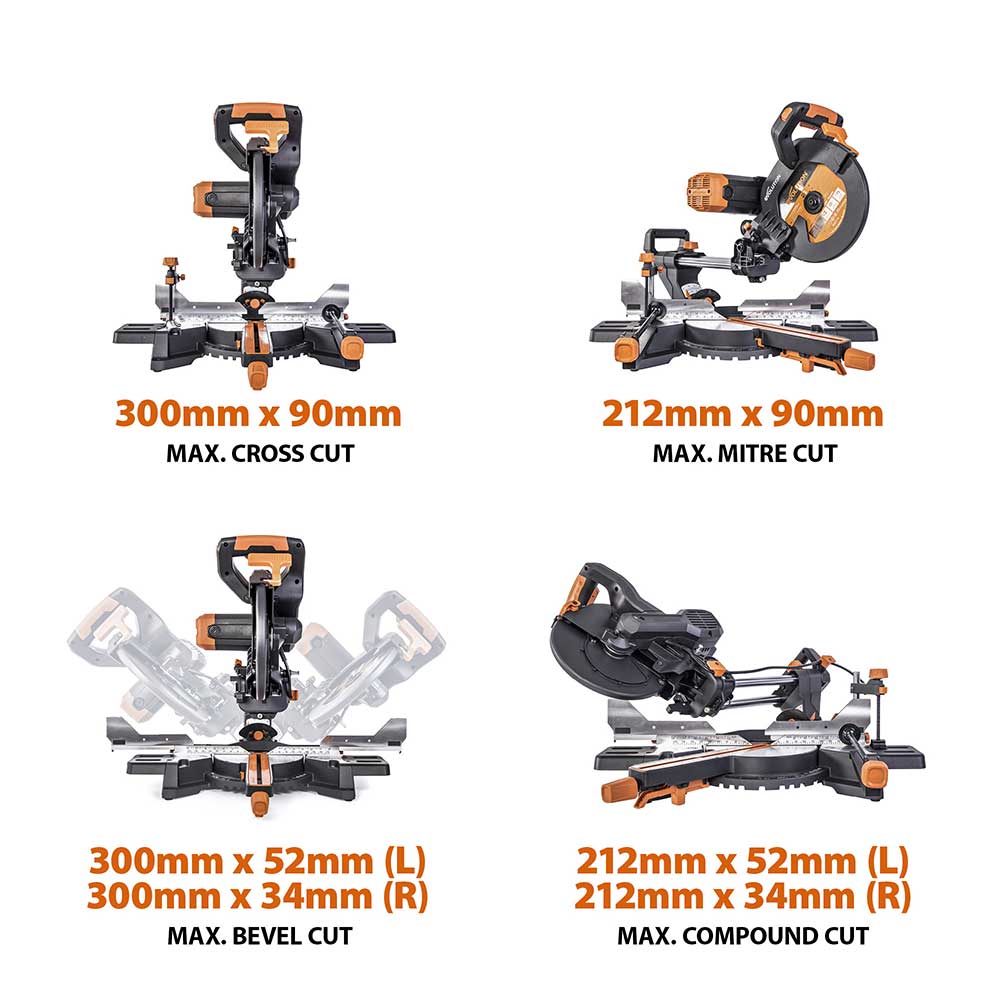

Max. Cross Cut (0° x 0°): 300mm x 90mm
Max. Bevel Cut Left (0° x 45°): 300mm x 52mm
Max. Bevel Cut Right (0° x 45°): 300mm x 34mm
Max. Mitre Cut (45° x 0°): 212mm x 90mm
Max. Compound Cut Left (45° x 45°): 212mm x 52mm
Max. Compound Cut Right (45° x 45°): 212mm x 34mm
Mild Steel Plate
(Max. Thickness):
1/4 in.
Mild Steel Box Section
(Max. Wall Thickness):
1/8 in.
Product Dimensions: 570 x 545 x 385mm
Packaging Dimensions: 575 x 545 x 385mm
Product Weight: 18.24 kg
Packaged Weight: 20.5 kg
Sound Pressure Level LPA: 95,8 dB(A) K=3 dB(A)
Sound Power Level LWA: 108,8 dB(A) K=3 dB(A)


Mitre Saw Stand

Max. Length Material Support: 4m
Max. Load: 300kg
Max. Saw Mounting Hole Spacing: 680mm x 330mm


Dimensions & Weight

Collapsed Product Dimensions: 1000mm x 280mm x 230mm
Assembled Product Dimensions: 1100mm x 600mm x 750mm
Arms Fully Extended Product Dimensions: 1970mm x 600mm x 750mm
Packaging Dimensions: 945mm x 265mm x 300mm
Product Weight: 15.5kg
Packaged Weight: 17.65kg
Items Supplied
255mm (10 In.) 28 Tooth Multi-Material Cutting Blade Machine Table Extensions x2
6mm & 4mm Dual-Ended Hex Key Rotary Table And Neck
Cutting Head Carriage Slides
Mitre Locking Knob Mains Cable
Guide/Clamp Self Tapping Cap Screw x1
M6 x 16mm Socket Headed Screws x4 M5 x 12mm
Socket Headed Screws x2 Laser Lens Cap
Cable Clip Slide Locking Knob
Dust Port Adaptor Dust Collection Bag
Quick Release Hold Down Clamp Instruction Manual
3-Year Guarantee
Evolution Power Tools 3 Year Warranty

This tool is covered with Evolution's 3-year warranty

Summary
  • All Evolution single circular blade saws and magnetic drills are covered with 3 year warranty. All other Evolution power tools are covered with 2 year warranty.
  • Refurbished power tools by Evolution come with a 90 day warranty.
  • This warranty does not cover blades, accessories, Evolution branded clothing and spare parts.
  • Please keep your proof of purchase / delivery.
  • If you buy direct from Evolution your product warranty is automatically registered with us.
  • If you purchased your Evoluton product elsewhere you can register your product warranty with us.
  • The warranty becomes effective at the date of purchase (or the date of delivery if this is later).
  • You must provide proof of delivery / purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
  • All work will be carried out by Evolution.
  • Any parts which are replaced will become the property of Evolution.
  • The repair or replacement of your machine under warranty will not extend the period of warranty.
  • Evolution Power Tools reserves the right to optionally repair or replace it with the same or equivalent item.
  • This warranty statement provides benefits which are additional to and do not affect your statutory rights as a consumer.
What is covered?

The repair or replacement of your machine (at Evolution’s discretion), if your machine is found to be defective due to faulty materials, workmanship or function within the warranty period (if any part is no longer available or out of manufacture, Evolution will replace it with a functional replacement part).

What is not covered?

Evolution does not warrant the repair or replacement of a product when the following has occurred;

  • Normal wear and tear (eg. Fuse, Fluids / Lubricants, Blades, Consumable, etc.)
  • Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the machine which is not in use with Evolution’s user guide.
  • Lack of servicing.
  • Use of parts not assembled or installed in accordance with the instructions of Evolution.
  • Use of parts and accessories (including blades) which are not Evolution Genuine Components.
  • Faulty installation (except installation by Evolution).
  • Repairs or alterations carried out by parties other than Evolution.

If your Evolution power tool requires attention from our engineers, we aim to have it collected & repaired within 7-10 working days.
If you are not completely satisfied with the performance of your product, simply contact us. To speed up the process, remember to have your receipt, invoice or order reference number plus your product’s serial number found on the product’s motor label.
No officer, employee or agent of Evolution Power Tools is authorised to make oral representations of fitness or to waive any of the foregoing terms of sale and none shall be binding on Evolution Power Tools. Questions relating to this limited warranty should be directed to the company's head office, or call the appropriate Helpline number. In no event shall Evolution Power Tools be liable for loss or damage resulting directly or indirectly from the use of our merchandise or from any other cause. Evolution Power Tools is not liable for any costs incurred on such goods or consequential damages.

Buy Now, Pay Later

Split your order total into 3 interest-free instalments with Klarna.

Shop

  • Add items to your cart, and go to the checkout.
  • Minimum order total: £35.00
  • Select Klarna as your payment method.
  • Please keep your proof of purchase / delivery.
  • You don’t have to create a Klarna account, if you don’t want to. TIP: Just tap ‘Change’ under payment type and then ‘Add New Payment Method'.

Pay-In-3

  • The first instalment will be taken from your card when you place your order.
  • The next two remaining payments will be automatically charged 30 and 60 days later.
  • For example: £150 mitre saw.
    Day 1: £50. Day 30: £50. Day 60: £50.
  • With 0% Interest
  • Note: You’ll get notifications when your payment is due and when it’s collected. There is zero interest and never any fees when you pay on time. If you return any items on your order, your Klarna statement and schedule will be updated.

To get started all you need is:

  • A UK bank account with a good credit history.
  • A credit/debit card to be valid for 60 days from the purchase date.
  • To be 18 years of age or over.
  • A UK residential address.
  • A valid mobile number and email address.

How do I pay using Pay Later in 3 with Klarna?

  • To pay using Klarna, your order total must be equal to or more than £35.00. When you get to checkout, click ‘change’ under payment type and then ‘Add New Payment Method’.
  • You'll need to provide your mobile number as Klarna may need to contact you. You'll also need to include your email address so that Klarna can send your payment schedule. Klarna use this information to keep you up to date on any payments or refunds that are due, so it’s important the details you provide us with are correct.

When will I receive my payment schedule?

  • You’ll be asked to pay the first of the 3 equal instalments once your order has been confirmed at checkout.
  • Instalments 2 and 3 will automatically be collected from the debit or credit card you entered at checkout 30 and 60 days later, respectively.
  • You'll receive a reminder from Klarna 2 days before each instalment is collected.
  • If you miss one of your scheduled instalments and Klarna are unable to automatically withdraw the money from your account 2 days later, you'll be issued with a statement for the full amount due.

I'm having trouble paying with Klarna. If you have any trouble placing an order with Klarna, it could be due to one of the following reasons:

  • Klarna payments are subject to your financial circumstances. Klarna may have rejected your application to Pay later in 3. We’d recommend choosing another type of payment or placing an order for a smaller amount.
  • You may have outstanding payments on previous Klarna purchases with other retailers.
  • You may have missed a required field at the checkout, such as filling in your date of birth.

Please note: That Klarna is an independent payment company and Evolution Power Tools Limited has no influence over whether your payment with Klarna is accepted or not. If you have any trouble with your order, please contact Klarna Customer Service.

  • For terms on Pay Later in 3 with Klarna click here.
  • For more information about Pay Later in 3 with Klarna, click here.
  • To find out more about returns paid with Klarna, click here.


Terms & Conditions

Our website contains links to websites owned and operated by third parties; these are provided solely for your convenience. Evolution has no control over these sites and are not responsible for their content or availability.

  • In cooperation with Klarna Bank AB (publ), Sveavägen 46, 111 34 Stockholm, Sweden, we offer you the following payment methods. Payment is to be made to Klarna.
  • Financing: With the financing service from Klarna you can pay your purchase in flexible or fixed monthly instalments according to the conditions stated in the checkout. The instalment payment is due at the end of each month after submission of a separate monthly invoice by Klarna. Further information regarding Slice It including terms and conditions and Standard European Consumer Credit Information you can find here for the United Kingdom.
  • Direct Debit: Your account will be debited after shipment of the goods or tickets/ availability date of the service ​or in case of a subscription in accordance with the timelines communicate​d. You will be notified about the date(s) by email.
  • The payment method; Slice It and direct debit are only available in case of a positive credit assessment. For this purpose, during the order process and handling of your purchase, we forward your data for an address and credit check to Klarna. We can only offer you the payment methods available based on the result of the credit check. General information about Klarna and the user terms per country can be found on klarna.com.
  • Your personal data is handled in accordance with applicable data protection law and in accordance with the information in Klarnas privacy statement. n cooperation with Klarna Bank AB (publ), Sveavägen 46, 111 34 Stockholm, Sweden, we offer you the following payment options. Payment is to be made to Klarna:

Financing - Pay in 3

  • Further information and Klarnas user terms you can find here.
  • General information on Klarna you can find here.
  • Your personal data is handled in accordance with applicable data protection law and in accordance with the information in Klarnas privacy statement.

Privacy Policy

  • In order to be able to offer you Klarna’s payment options, we will pass to Klarna certain aspects of your personal information, such as contact and order details, in order for Klarna to assess whether you qualify for their payment options and to tailor the payment options for you. General information on Klarna you can find here.
  • Your personal data is handled in accordance with applicable data protection law and in accordance with the information in Klarna’s privacy policy.

Multi-Material Cutting Technology

Wood
Hardwood & tanalised decking, MDF laminates, mouldings, reclaimed wood with nails, scaffold boards & poles, stud-work.

Ferrous Metal
Mild Steel, angled, box section, square tube, metal stud dry walling, rebar, plate (1/4 inch), unistrut.

Non-Ferrous Metal
Aluminium, armoured cables, cable tray, copper, floor edgings, roof flashings, stair nosings.

Plastic
Electrical conduit, plastic pipes, plexiglas, rubber & reinforced hoses, (WPC) Wood Plastic Composites.

Not Recommended
Hardened high carbon, coated and stainless steel. Note: Cutting galvanised steel may reduce blade life. See our stainless steel cutting blades.
