Evolution R255TBL Portable Table Saw 230v 255mm With TCT Multi-material Blade
With Stand / 230V / 230V
Evolution R255TBL Portable Table Saw 230v 255mm With TCT Multi-material Blade
SKU: 119-0006
EAN/UPC: 05056583007627
- 255mm Portable Jobsite Table Saw.
- Dual Rack & Pinion Rip Fence.
- Precision Cutting, Tool Free Set-up.
- Bench or Stand Mount.
Specifications
| Blade Size | 255mm |
| Power | Corded |
| Max. Cut Depth | 85mm |
Similar Products
-
2 FREE Upgrades
£379.98Blade Size 255mm Power Corded Max. Cut Capacity 87mm at 0° Bevel Max. Cut Depth 85mm Warranty 3 Years -
Discontinued
£399.98Blade Size 255mm Power Corded Max. Cut Depth 83mm Warranty 3 Years -
£229.98£199.98Save: £30.00Blade Size 255mm Power Corded Max. Cut Depth 85mm Warranty 3 Years
Related Accessories
-
£57.98Blade Size 255mm Number Of Teeth 60 Bore 25.4mm Kerf 2.4mm -
£48.98Blade Size 255mm Number Of Teeth 40 Bore 25.4mm Kerf 2.4mm -
£34.98Blade Size 255mm Number Of Teeth 28 Bore 25.4mm Kerf 2mm
Evolution R255TBL Portable Table Saw 230v 255mm With TCT Multi-material Blade
£399.98
£333.32
EX VAT
Save
£-399.98
Pay-in-3 £133.32 per month
Pay-In-12 :
£33.33
per month with Iwoca Pay
Frequently Bought Together
Videos
- Description
- Features
- Specifications
- Related Accessories
- Buy Now, Pay Later
- Downloads
Description
Evolution's R255TBL Portable Table Saw is the perfect upgrade to your existing Table Saw. If you're looking for improved performance, greater cutting accuracy, easier set-up, safer and quieter operation and want to achieve it all on a budget then the R255TBL with it's Double Rack and Pinion Fence and Integrated Mitre Sled is the obvious choice.
The R255TBL sets new standards for accuracy and reliability in the sub £400 segment, starting from just £329.99 it's ready to cut new and reclaimed wood, metal, plastics and more and is packed with features that are only usually available on much more expensive saws.
The R255TBL Table Saw is more accurate than the competition. It features a Dual Rack & Pinion Rip-Fence for accurate, repeatable cuts. A gear-driven Blade Height and Angle Adjustment Mechanism makes repeat cuts easy and accurate. Our patented Blade-to-Rip-Fence Parallelism Adjustment allows for perfectly aligned cuts in full-size sheets with no binding or kickback. The R255TBL also features a Metal Throat Plate with corner height adjustment as standard - there's no plastic here.,
The R255TBL is more versatile. The Integrated Mitre Sled uses an industry-standard channel profile for compatibility with 3rd party accessories, and our own Mitre Guide. It offers an 85mm cut depth at 90 degrees and 58mm at 45 degrees. It features a wider, thick, cast aluminium table top designed to excel at handling 8x4 sheets but still weighs less than the RAGE5-S. Add in improved dust extraction, Multi-material cutting ability, tool free set-up and adjustment and you have the most versatile Table Saw we've ever made.
This R255TBL Table Saw is more portable. Smaller and lighter than the RAGE5-S the R255TBL is mounted within a light, roll-cage chassis, with integral carry handles. It’s an easy one man carry without the wheeled stand, and superbly mobile on its large all-terrain wheels when you buy the matching stand, it easily passes straight through a standard width internal door (32") making it the perfect jobsite saw.
The R255TBL is safer. The more powerful 1,650w motor features thermal overload protection and a paddle style emergency stop. The transparent blade guard offers improved cut visibility, and the Quick Release Riving Knife features offset-angle and lateral adjustment for safer cutting. The new motor housing offers improved dust extraction, better access for cleaning, and blade swaps are easier than ever before, just pop out the Metal Throat plate .
The R255TBL 255mm Portable Table Saw is built to take on any home project or jobsite cutting task. It’s more powerful, accurate, safer, and quicker and easier to set-up than the RAGE5-S Table Saw that it replaces. It’s ready to deliver our 'one blade cuts all' multi-material technology as well as the accuracy and finish quality required for your woodwork projects.
*The R255TBLX version comes equipped with the new tubular steel all-terrain wheeled support as standard. Fixed to the table with 4 bolts it gives you the flexibility to run your new table saw as a bench mount or stand mount unit and to swap between the two options in less than a minute.
Features

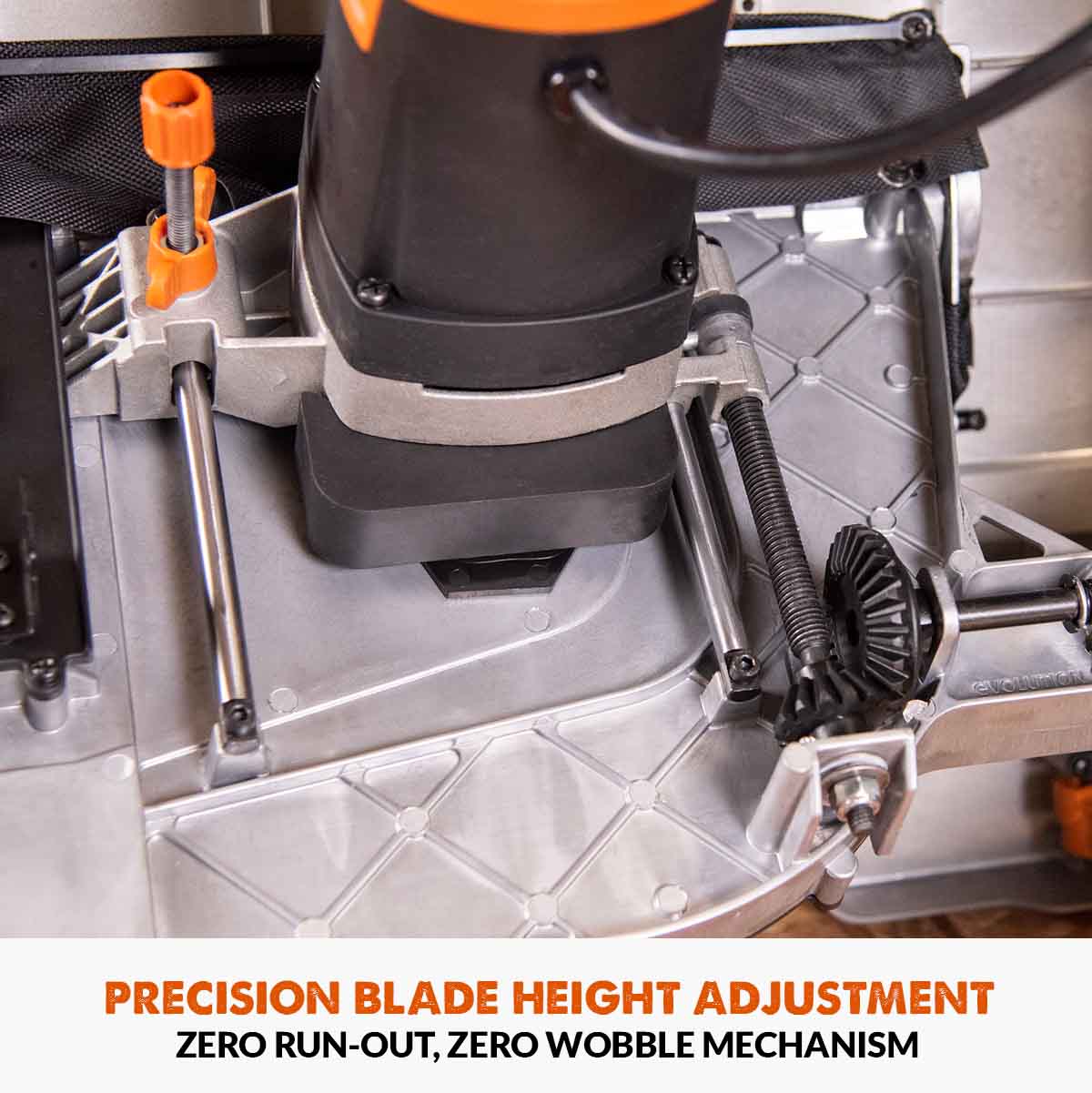

- More portable, powerful, accurate and easier to adjust and calibrate.
- Improved accuracy for every cut type and ease of set-up

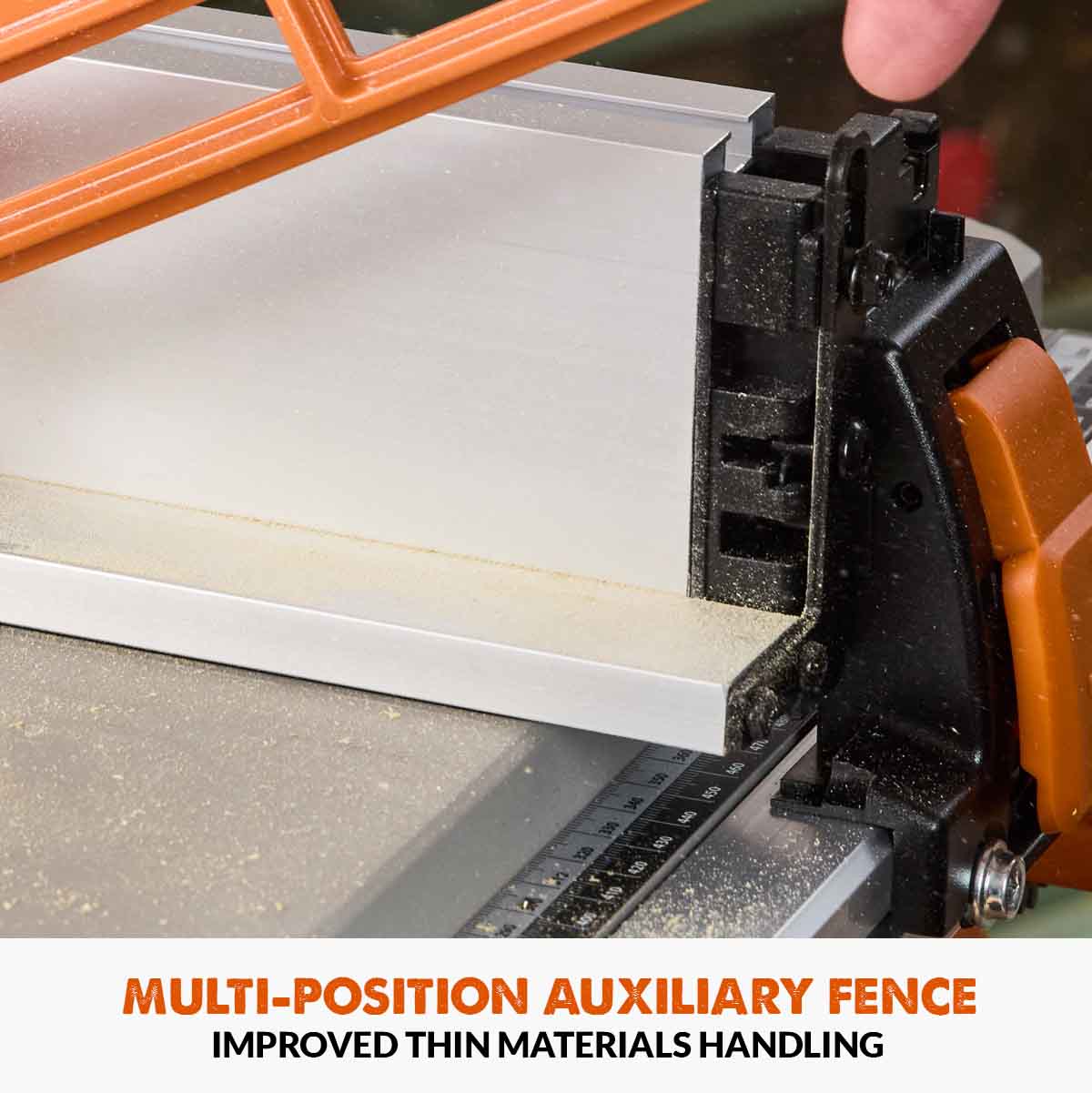

- Dual Rack & pinion parallel fence for precision rip cuts.

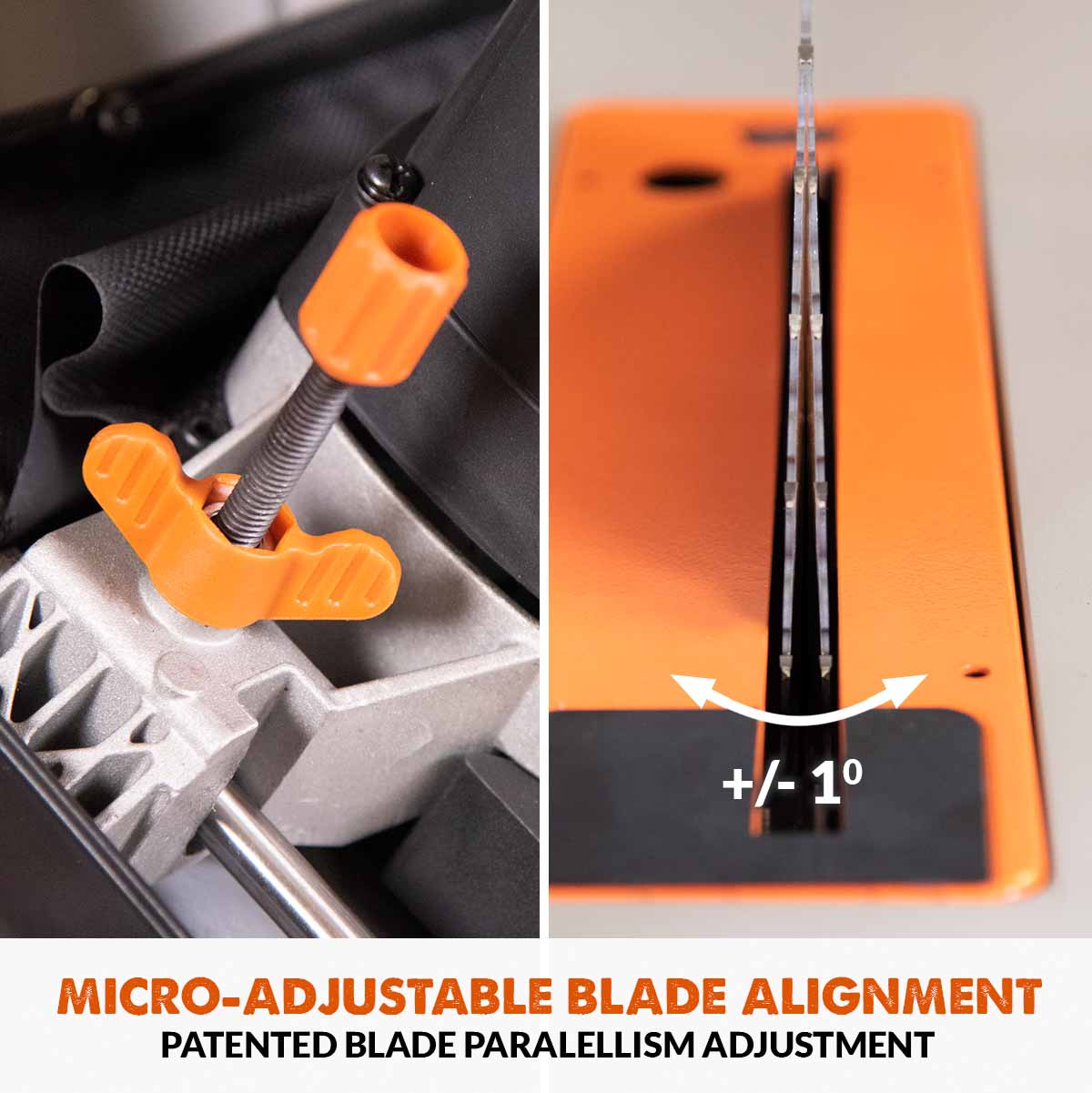

- Pat pending blade-to-fence parallelism adjustment.

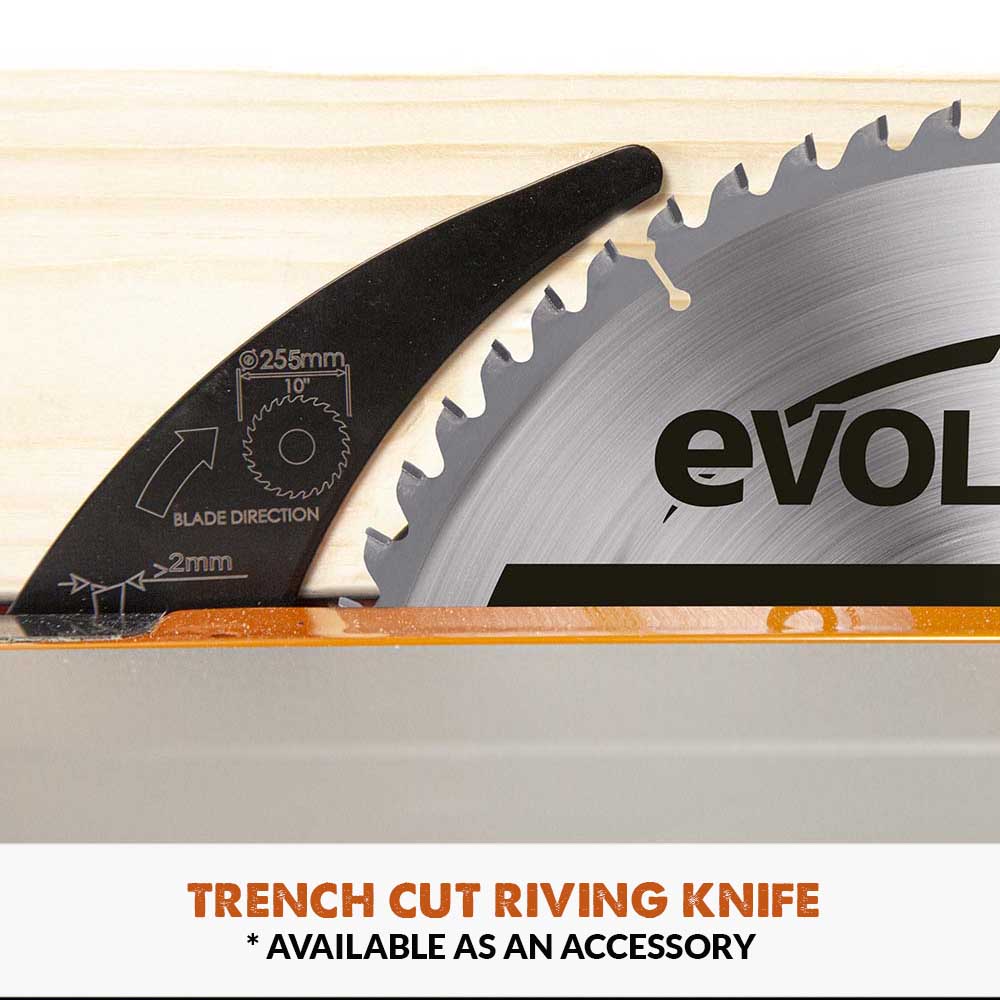

- Quick Release Riving Knife with 2-axis adjustment.

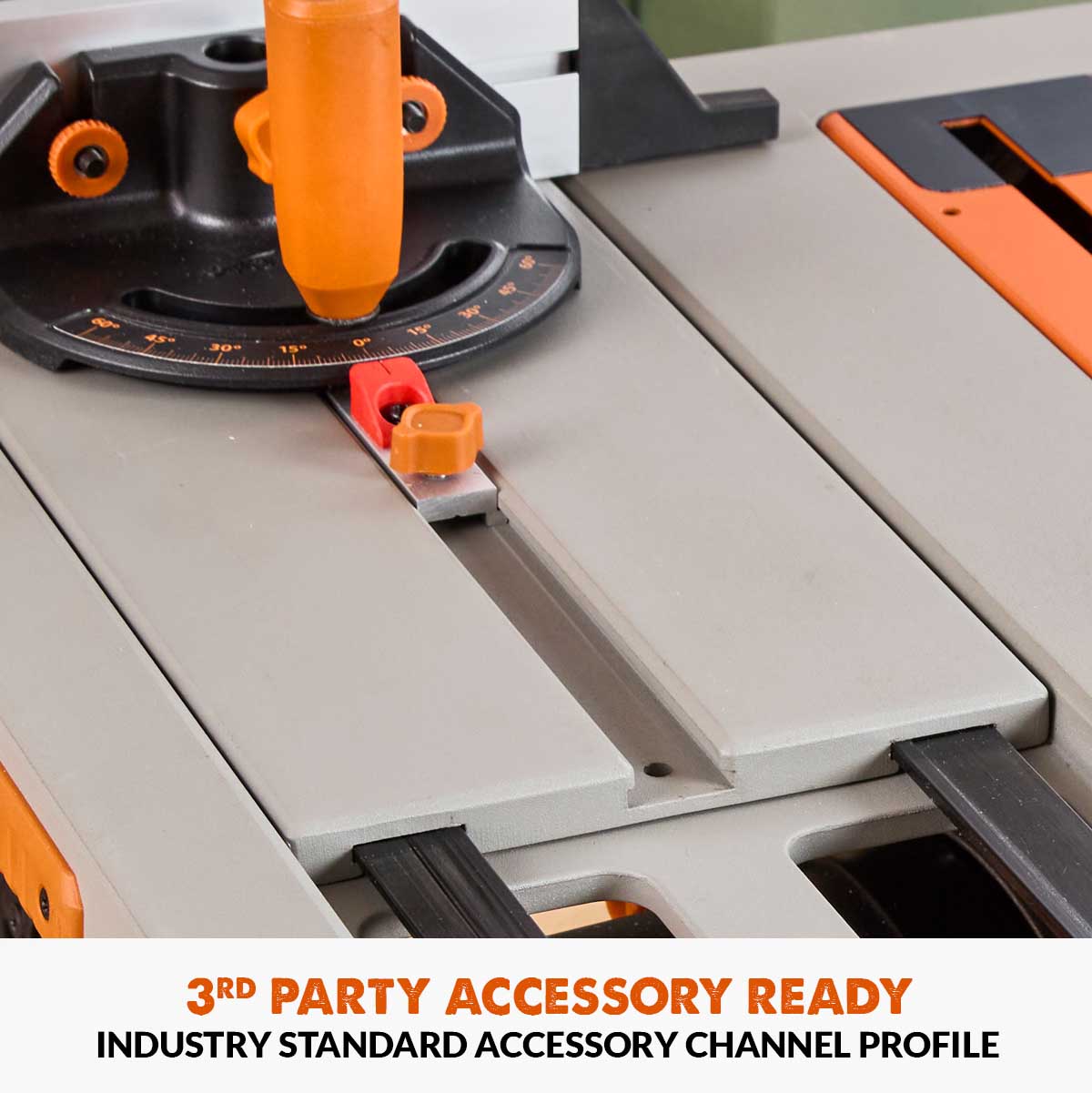

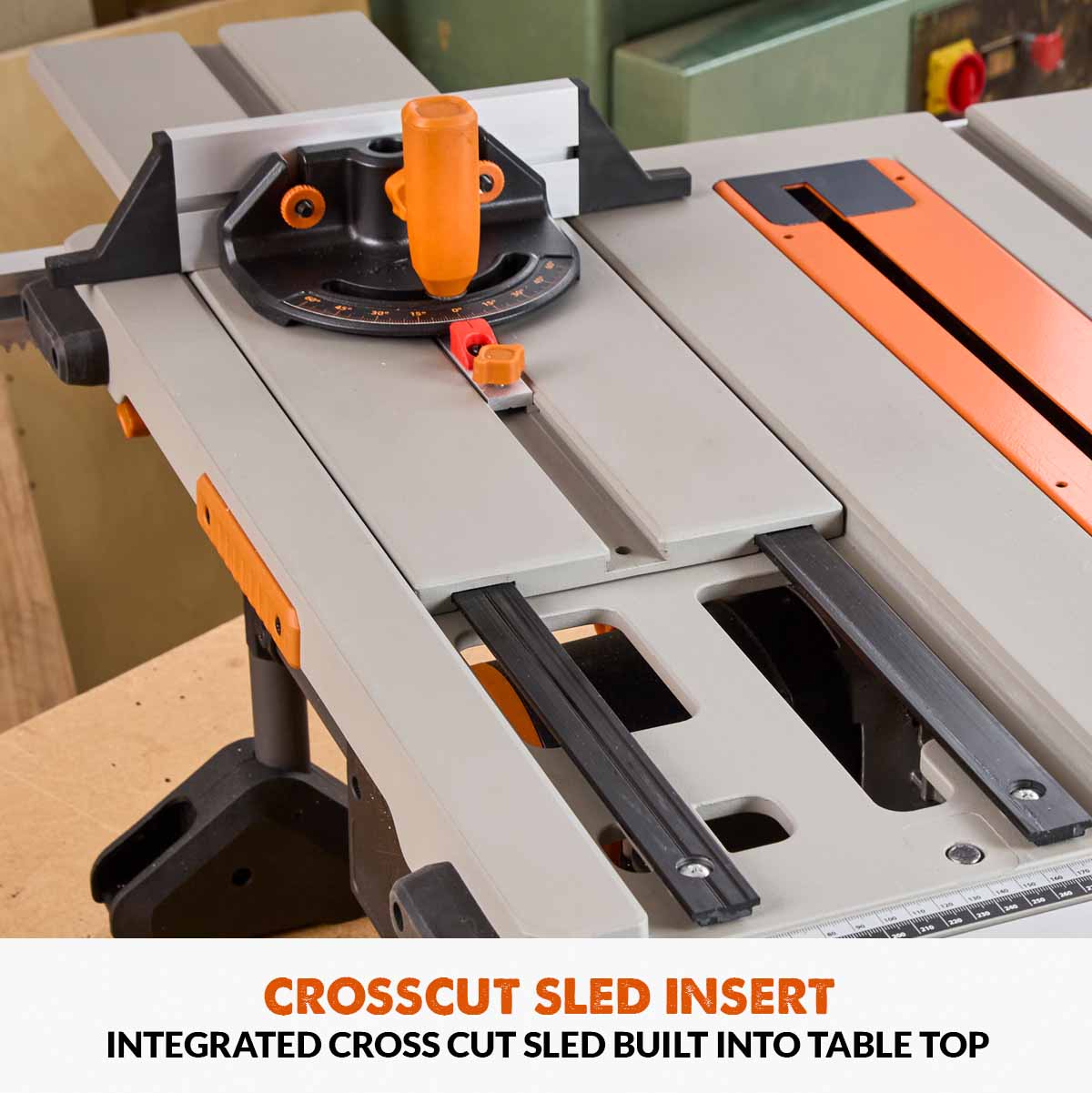

- Crosscut Sled Insert – industry standard accessory channel profile for 3rd party Mitre Guides

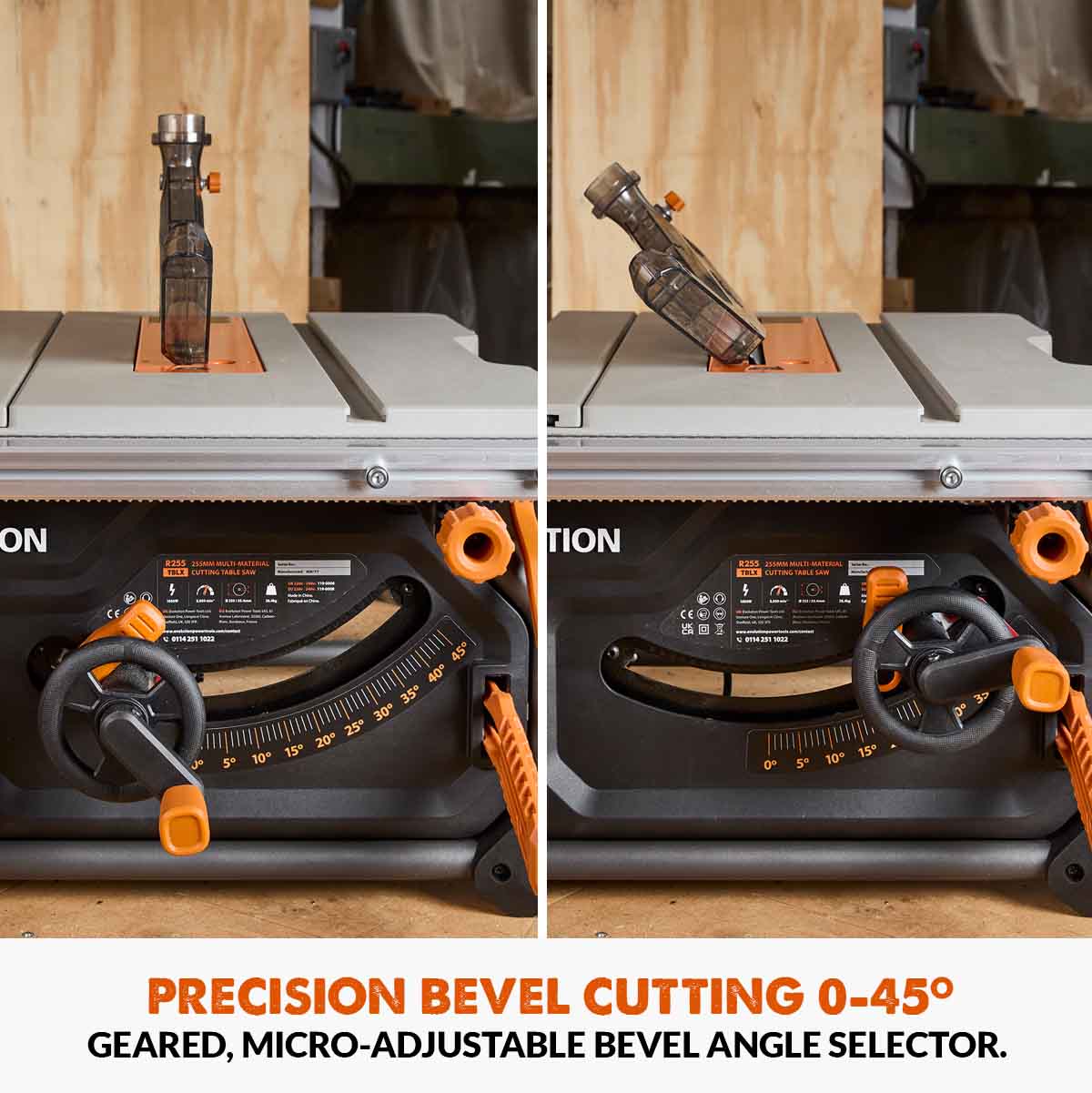

- Geared micro-adjustable bevel angle selector 45° Range (+ and - 2°)

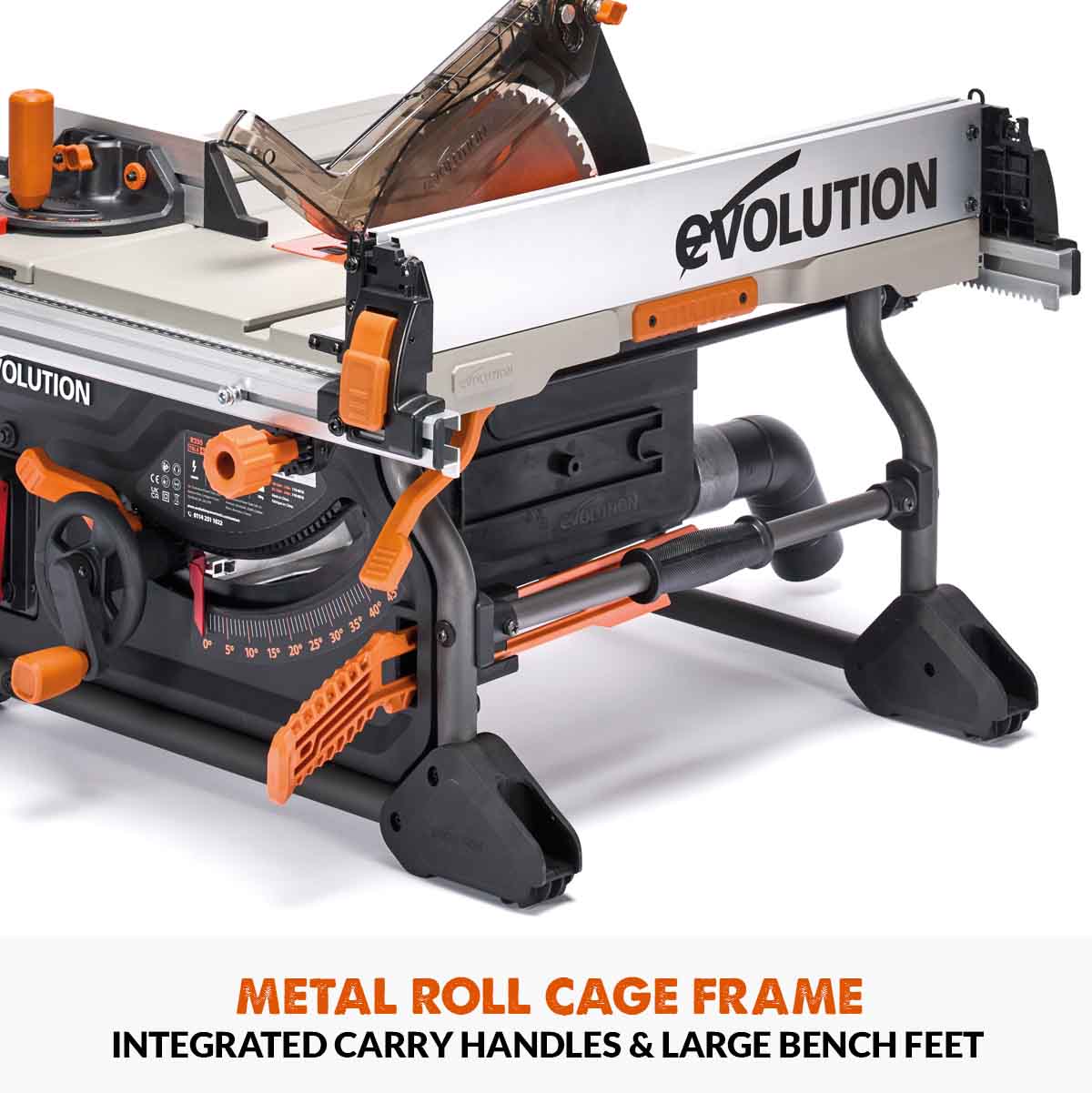

- Metal roll cage chassis with integrated carry handles.

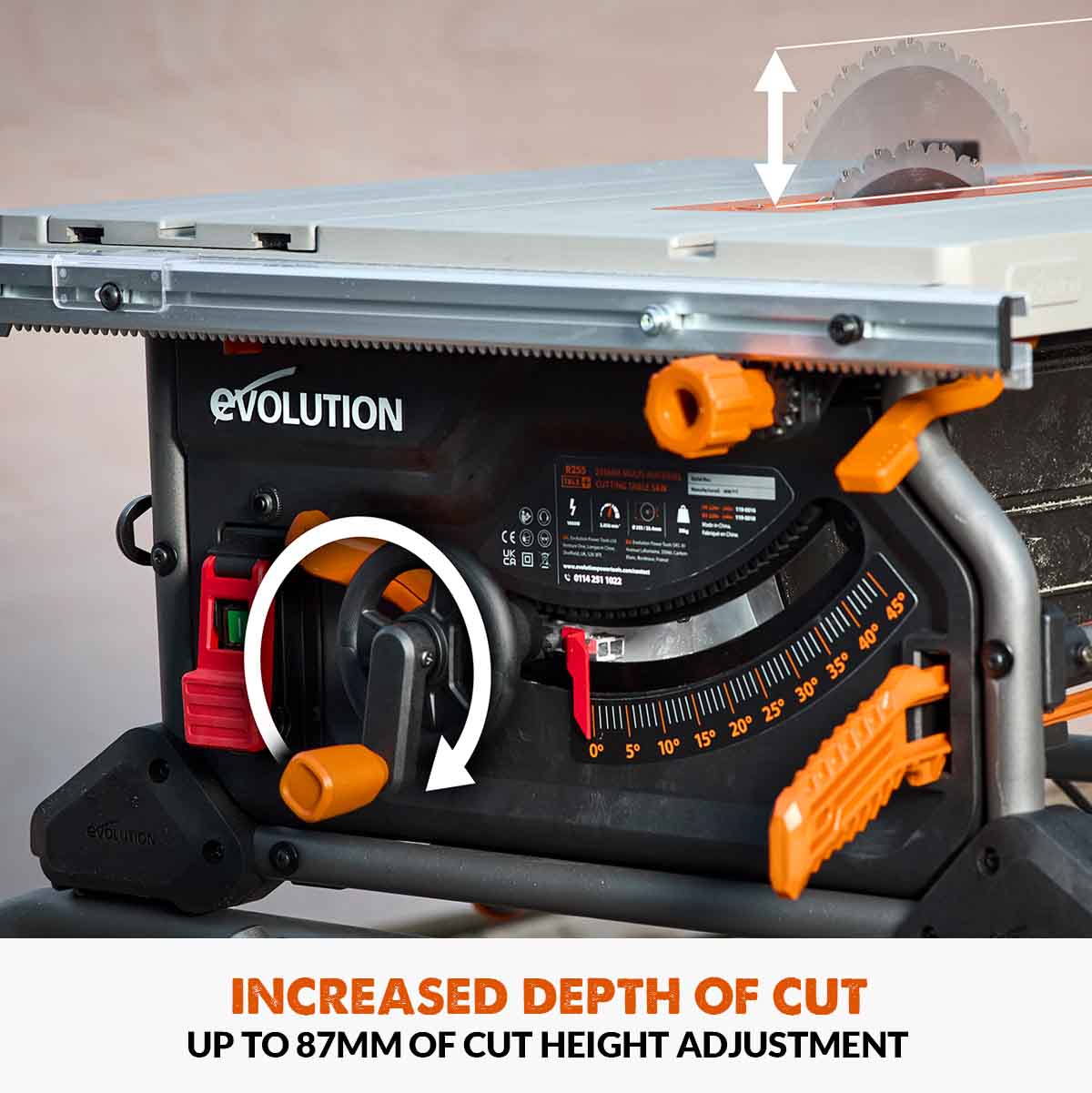

- Increased depth of cut 85mm at 90° and 58mm depth of cut at 45 degrees.

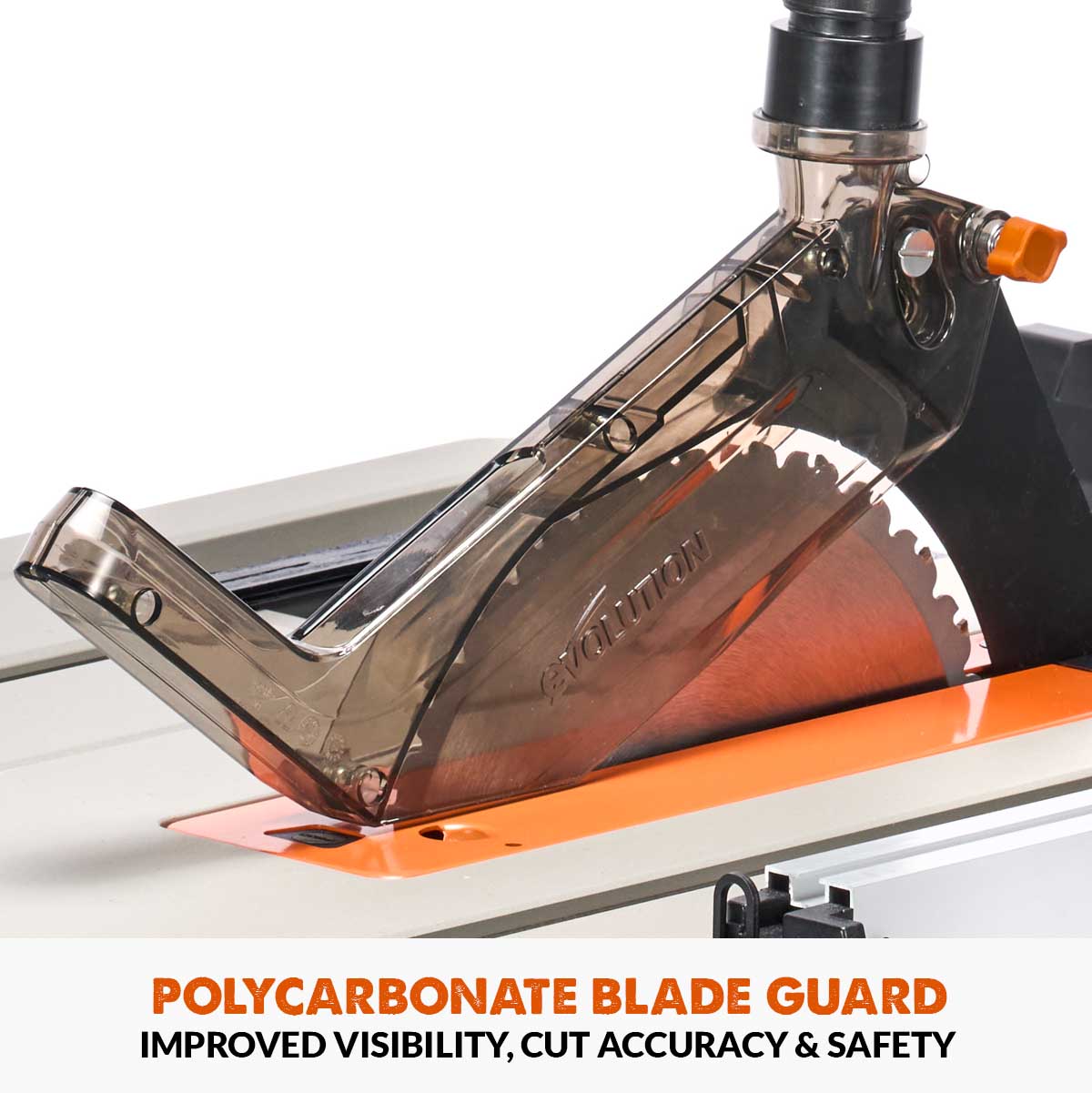

- New blade guard. easier adjustment and enhanced cut visibility & dust extraction.

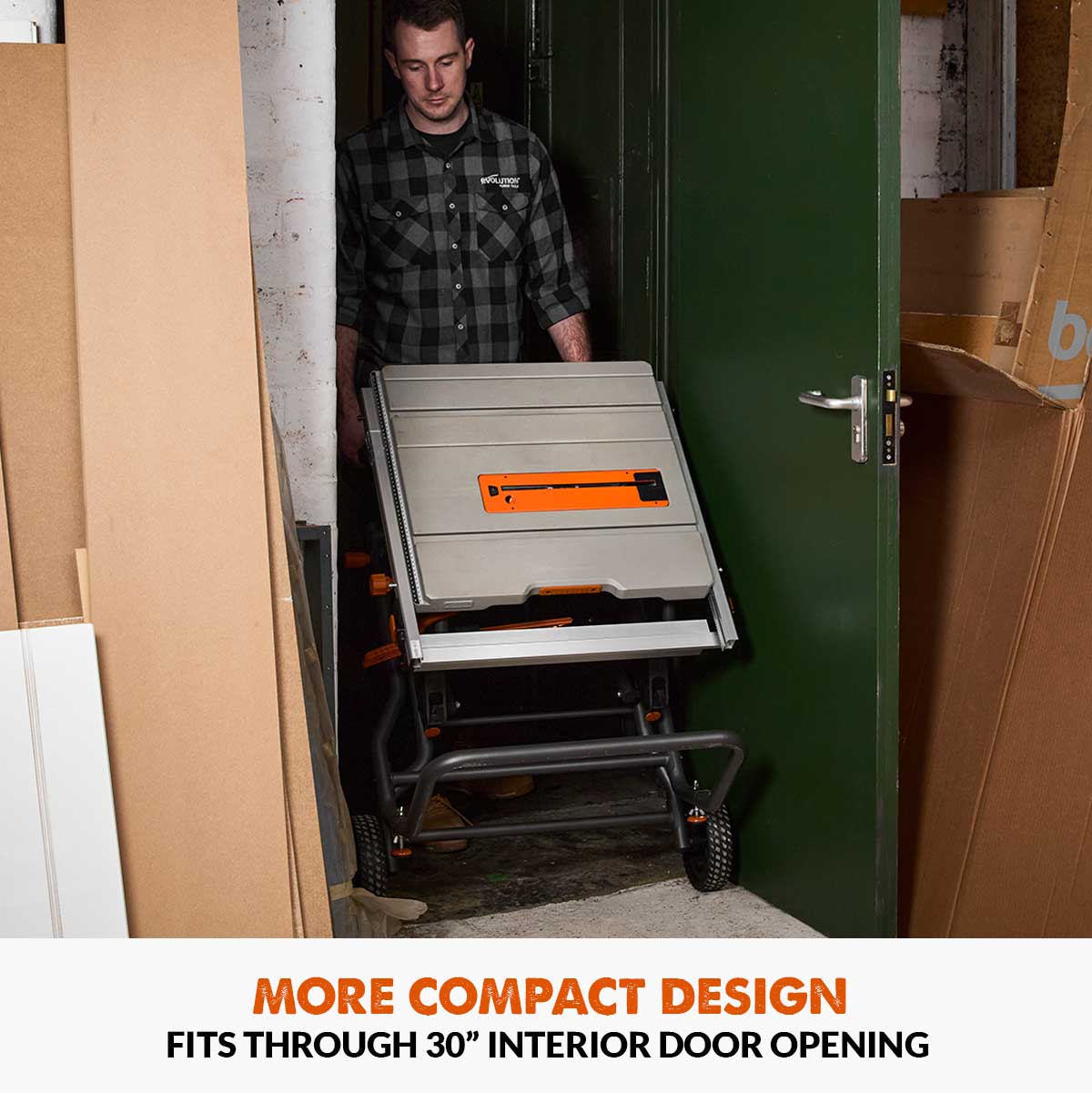

- More compact and portable wheeled support – rolls through standard-width door.

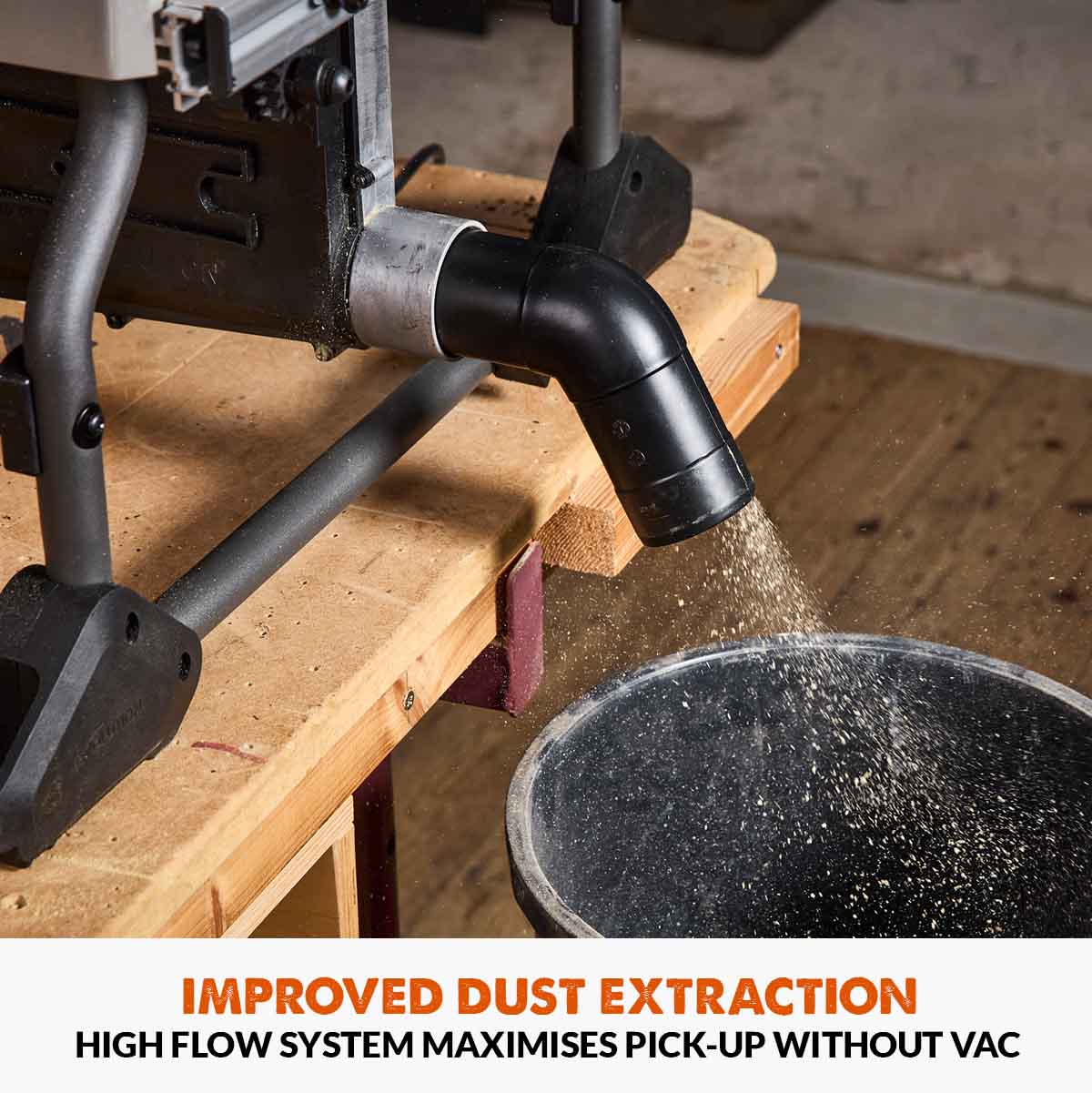

- ADC Active Dust Collection. Improved dust extraction and release (all-new dust system)
- Intelligent Motor Overload Protection.

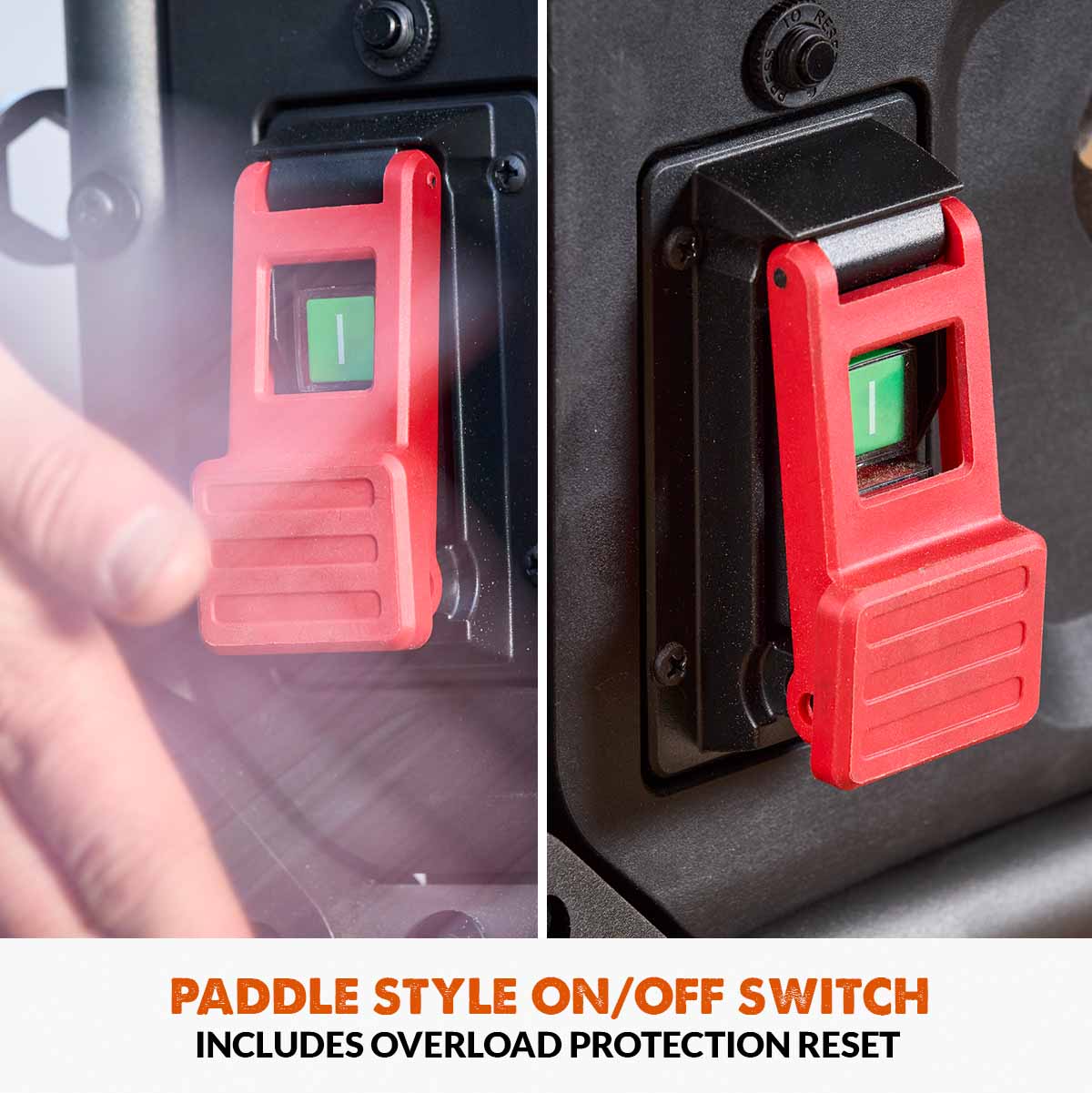

- Paddle Style Emergency Stop Switch provides increased user safety.
- Reduced pack and storage size.

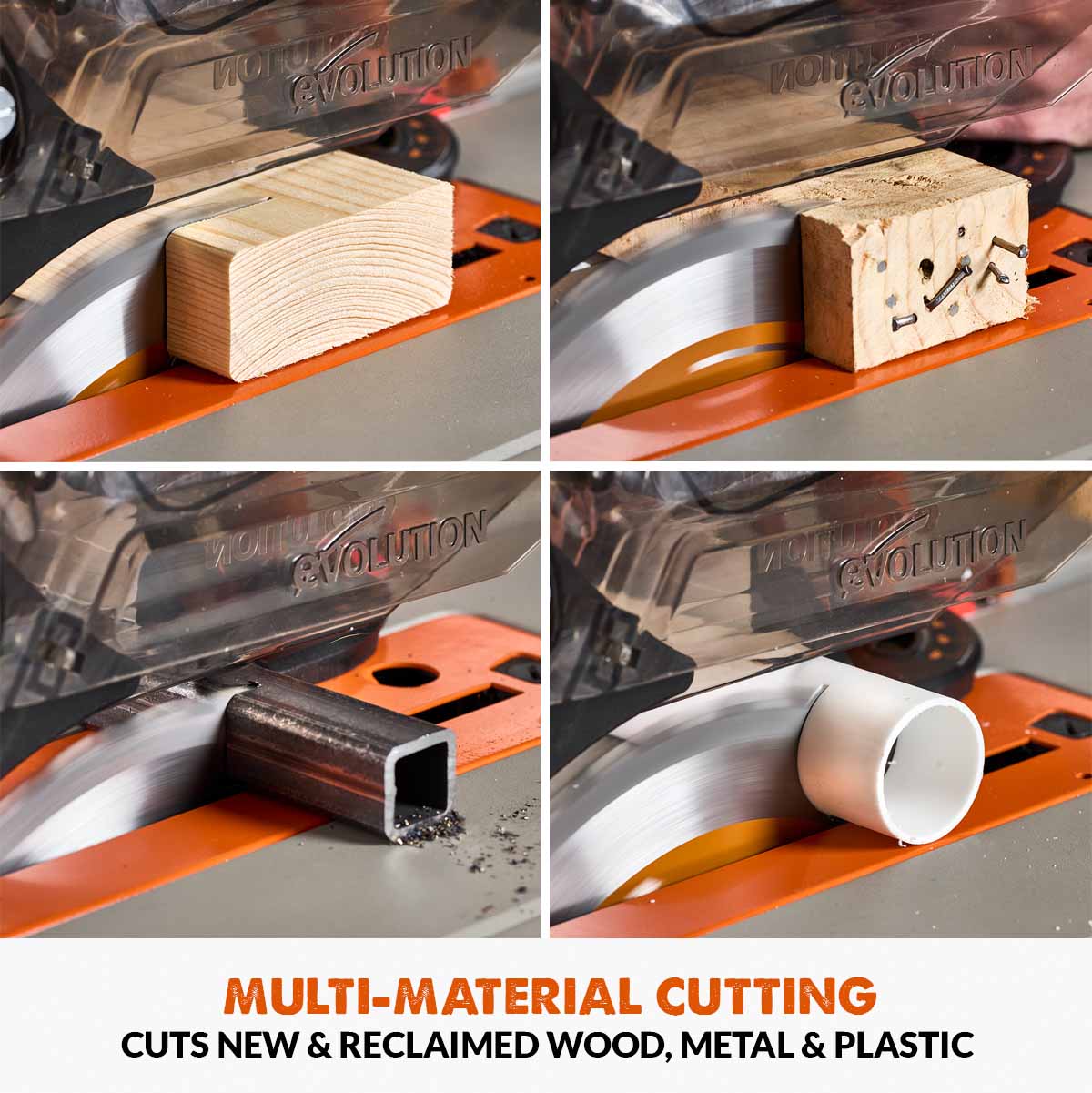

- Multi-Material cutting technology. One saw, one blade, cuts all.*
- Powerful, 1,650W hi-torque motor
- 45° bevel tilt and +/-60° mitre guide covers common, compound cutting angles.
- Increased table-top size.
- 3m durable cable with the built-in storage cable holder.

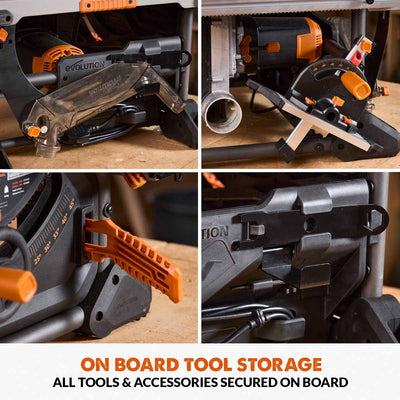

- All tools and accessories stored on tool frame.
- 3 Year limited warranty.
- Multi-material cut capable, Japanese Tungsten-Carbide-Tipped (TCT) 255mm 24T blade included.

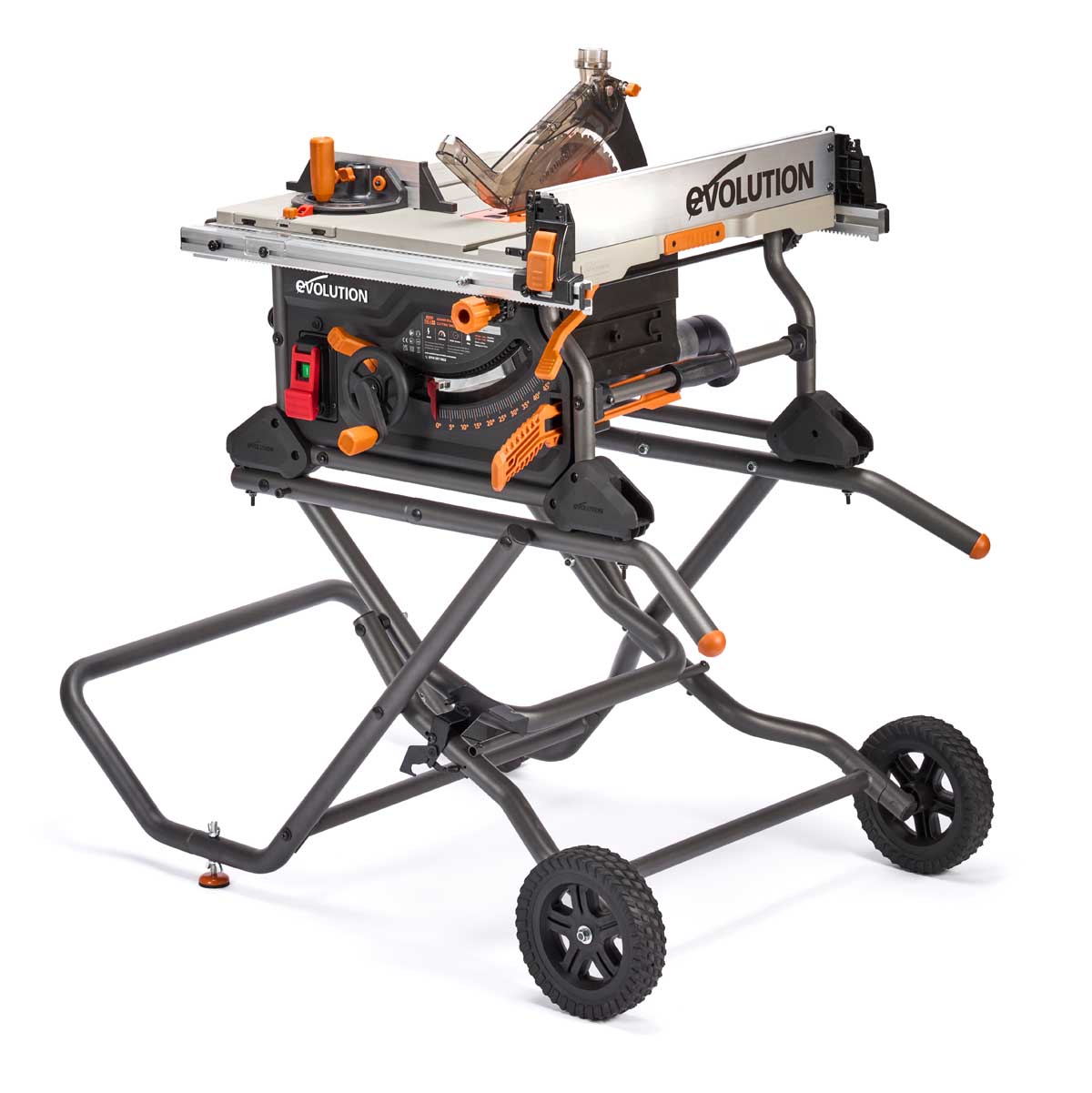

- Available with or without folding, wheeled accessory stand.
- UK Customer support & servicing
Specifications
| Motor (240V 50Hz): | 1,650W |
| Speed No Load: | 2,500rpm |
| Max. Bevel (Left): | 45° (-2 to 47° with stop washers removed) |
| Blade Dia.: | 255mm |
| No. of Teeth: | 24 |
| Bore: | 25.4mm |
| Kerf: | 2mm |
| Max. Depth of Cut (0°): | 85mm |
| Max. Depth of Cut (45°): | 58mm |
| Mild Steel Plate (Max. Thickness): |
6mm |
| Rip Capacity - Right of the blade | 650mm |
| Rip Capacity - Left of the blade | 371mm |
| Riving Knife Thickness | 1.8mm |
| Product Dimensions: | (With Leg Assembly) 1050mm x 750mm x 940mm |
| Product Dimensions: | (Without Leg Assembly) 880 x 730 x 330mm |
| Max. Table Dimensions | 1200mm x 640mm |
| Min. Table Dimensions | 745mm x 640mm |
| Packaging Dimensions: | 750mm x 430mm x 740mm (119-0006) |
| Storage Dimensions: folded with stand | H 1110mm x D 760mm x W 850mm |
| Product Weight: | 21.2 kg |
| Packaged Weight: | 33.5 kg |
| Sound Pressure Level LPA: | 93,2dB(A) K:3dB(A) |
| Sound Power Level LWA: | 106,2dB(A) K=3 dB(A) |
