110v Version of the R185CCS Circular Saw, designed specifically for site use when powered by a 110v mains transformer.

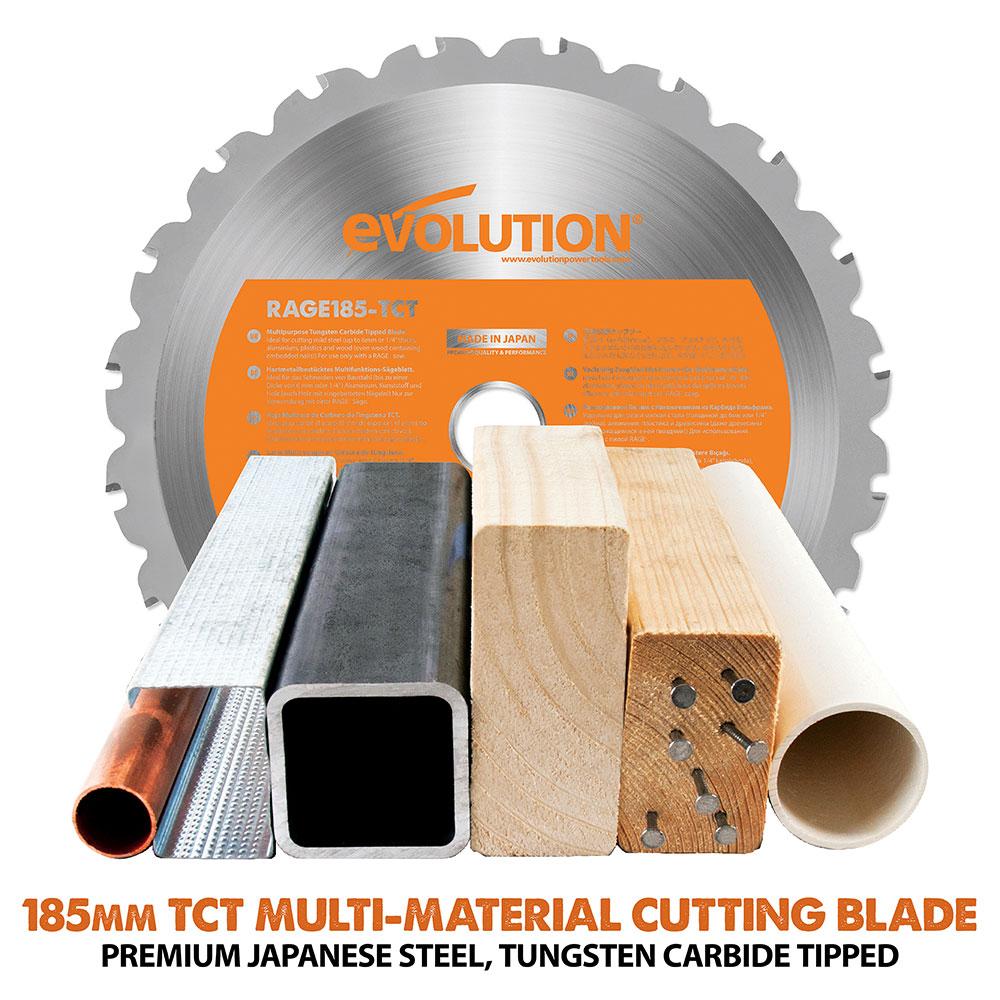

Trade rated, best in class, 185mm circular saw, ideal for any professional. Designed in Sheffield, South Yorkshire, this impressive multi-material cutting circular saw with 1600W, the powerful, hi-torque motor is capable of cutting wood even with embedded nails, laminate, aluminium, plastic and even 6mm thick mild steel, all with the same Japanese made, tungsten carbide tipped blade.
Motor (110V 50Hz): | 1600W |
Speed No Load (110V): | 3700 rpm |
Speed No Load (240V): | 3900 rpm |
Max. Bevel (Left): | 60° |
Circular Saw Base: | Cast Aluminium |

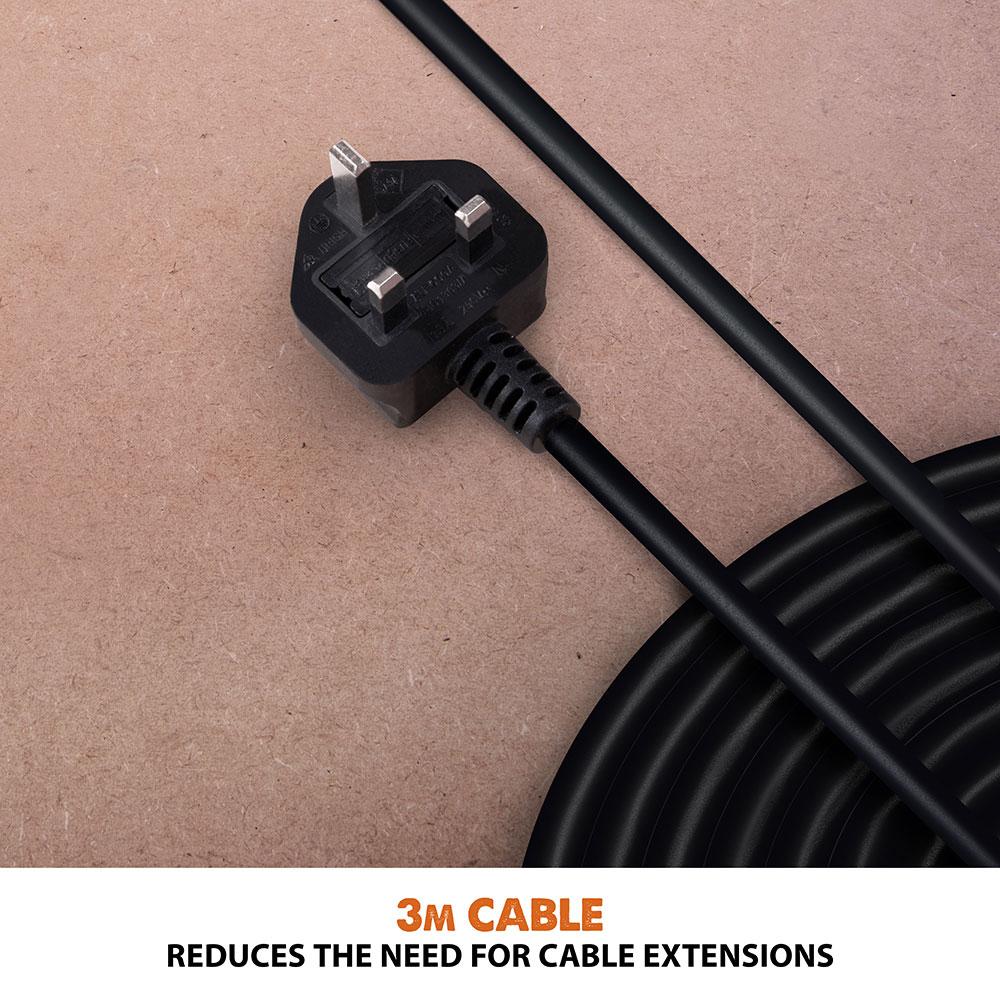

Cable Length: | 3m |
Blade Dia.: | 185mm |
No. of Teeth: | 20 |
Bore: | 20mm |
Kerf: | 1.7mm |
Max. Depth of Cut (0°): | 64mm |
Max. Depth of Cut (45°): | 40mm |
Max. Depth of Cut (60°): | 24mm |
Mild Steel Plate (Max. Thickness): |
6mm |
Mild Steel Box Section (Max. Wall Thickness): |
6mm |
Product Dimensions: | 255mm x 375mm x 265mm |
Packaging Dimensions: | 370mm x 278mm x 218mm |
Product Weight: | 4.9 kgs |
Packaged Weight: | 6 kgs |
Sound Pressure Level LPA: | 94,3dB(A) K=3 dB(A) |
Sound Power Level LWA: | 105,3dB(A) K=3 dB(A) |
Vibration - Main Handle (Sawing Wood): | Ah,w= 3,347m/s2 |
Vibration - Auxiliary Handle (Sawing Wood): | Ah,w= 3,119m/s2 |
Vibration - Main Handle (Sawing Metal): | Ah,M= 3,572m/s2 |
Vibration - Auxiliary Handle (Sawing Metal): | Ah,M= 3,241m/s2 |
Uncertainty K: | 1,5m/s2 |
20T Multi-Material TCT Blade |

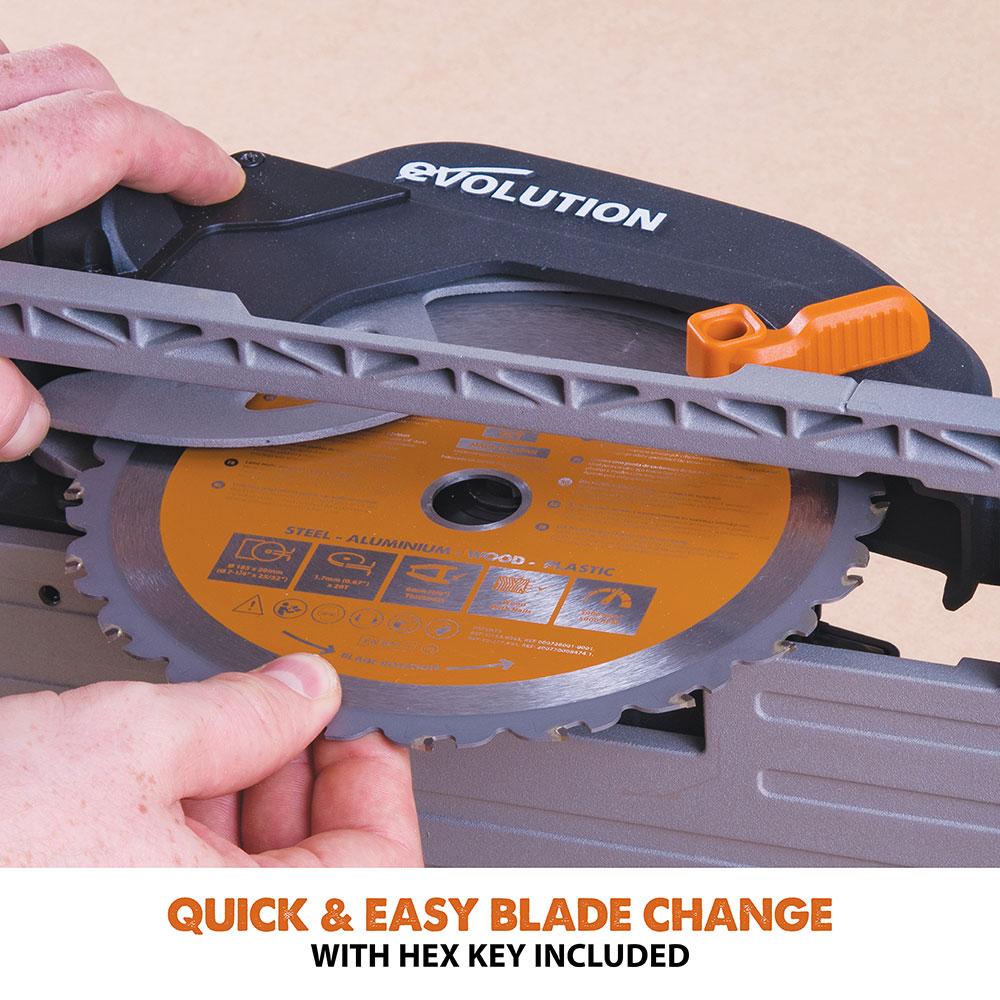

Hex Key (Blade Change) |
Parallel Edge Guide |
Dust Port Adapter |
Dust Hose Connector |
The repair or replacement of your machine (at Evolution’s discretion), if your machine is found to be defective due to faulty materials, workmanship or function within the warranty period (if any part is no longer available or out of manufacture, Evolution will replace it with a functional replacement part).
What is not covered?Evolution does not warrant the repair or replacement of a product when the following has occurred;
If your Evolution power tool requires attention from our engineers, we aim to have it collected & repaired within 7-10 working days.
If you are not completely satisfied with the performance of your product, simply contact us. To speed up the process, remember to have your receipt, invoice or order reference number plus your product’s serial number found on the product’s motor label.
No officer, employee or agent of Evolution Power Tools is authorised to make oral representations of fitness or to waive any of the foregoing terms of sale and none shall be binding on Evolution Power Tools. Questions relating to this limited warranty should be directed to the company's head office, or call the appropriate Helpline number.
In no event shall Evolution Power Tools be liable for loss or damage resulting directly or indirectly from the use of our merchandise or from any other cause. Evolution Power Tools is not liable for any costs incurred on such goods or consequential damages.
Shop
Pay-In-3
To get started all you need is:
How do I pay using Pay Later in 3 with Klarna?
When will I receive my payment schedule?
I'm having trouble paying with Klarna. If you have any trouble placing an order with Klarna, it could be due to one of the following reasons:
Please note: That Klarna is an independent payment company and Evolution Power Tools Limited has no influence over whether your payment with Klarna is accepted or not. If you have any trouble with your order, please contact Klarna Customer Service.
Terms & Conditions
Our website contains links to websites owned and operated by third parties; these are provided solely for your convenience. Evolution has no control over these sites and are not responsible for their content or availability.
Financing - Pay in 3
Privacy Policy
Wood
Hardwood & tanalised decking, MDF laminates, mouldings, reclaimed wood with nails, scaffold boards & poles, stud-work.
Ferrous Metal
Mild Steel, angled, box section, square tube, metal stud dry walling, rebar, plate (1/4 inch), unistrut.
Non-Ferrous Metal
Aluminium, armoured cables, cable tray, copper, floor edgings, roof flashings, stair nosings.
Plastic
Electrical conduit, plastic pipes, plexiglas, rubber & reinforced hoses, (WPC) Wood Plastic Composites.
Not Recommended
Hardened high carbon, coated and stainless steel. Note: Cutting galvanised steel may reduce blade life. See our stainless steel cutting blades.

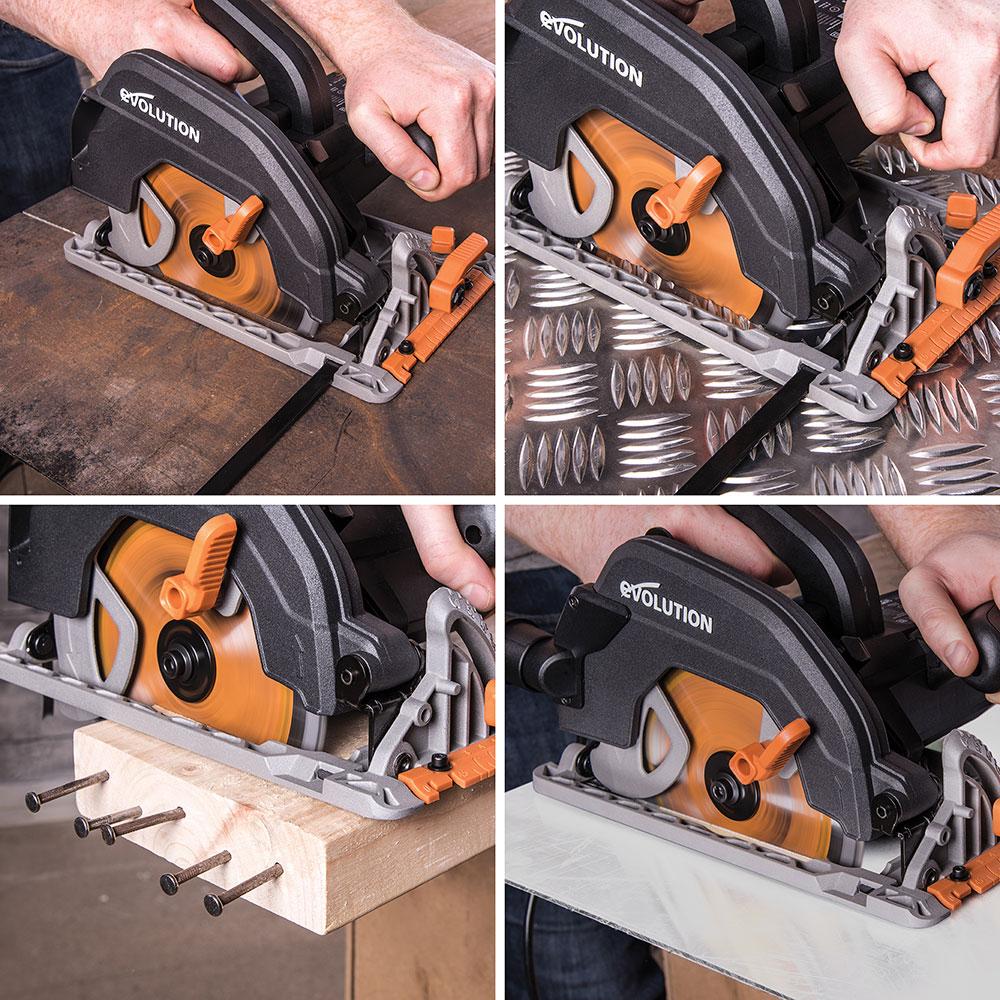

Mild Steel

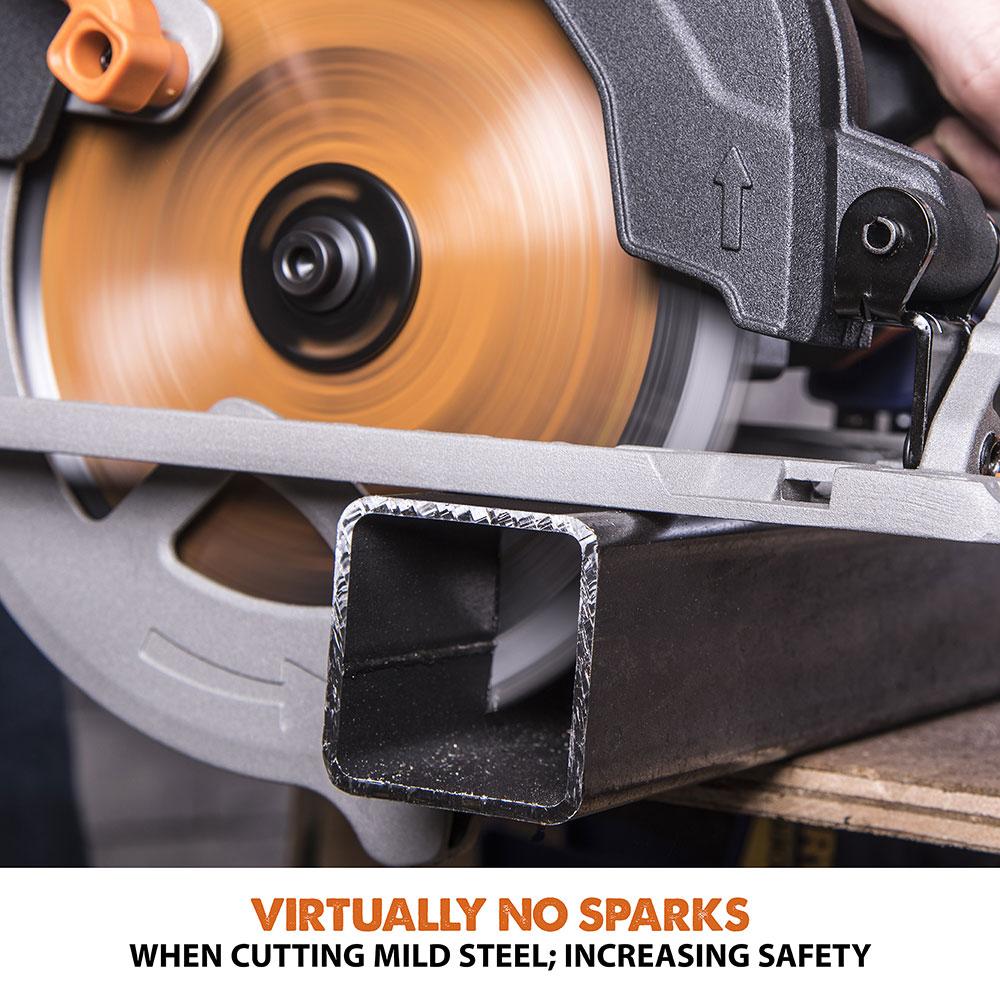

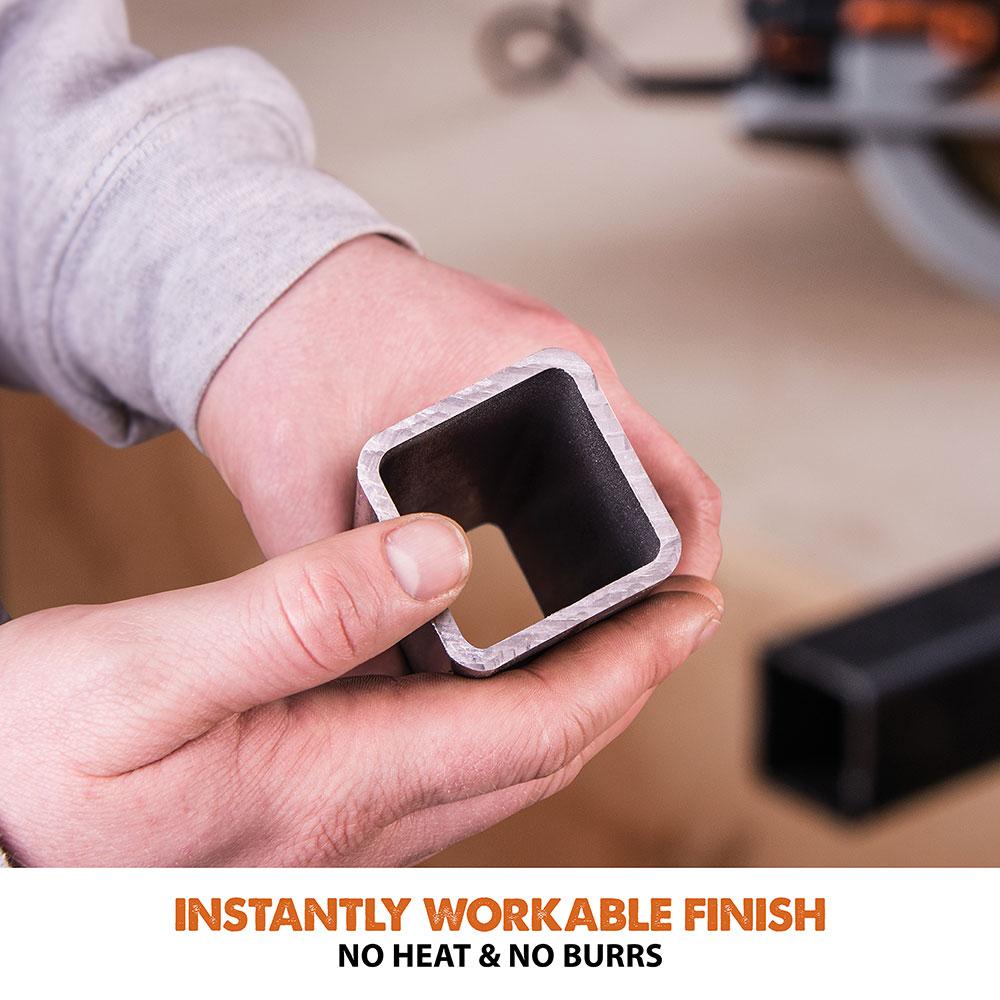

Achieve ready-to-weld cuts through mild steel, whether that be sheet, box section & angle iron.
Wood with Nails
Cut through hardwood, softwood, reclaimed timber. Even wood with embedded nails!
Aluminium
Cuts through aluminium materials such as checker plate with no heat, burrs & virtually no sparks!
Plastic
Cuts through plastic such as acrylic & drainage tubing cleanly without burning or melting the workpiece.
0° - 60° Bevel Cutting
Achieve up to a 60° finish on your workpiece by loosening the bevel thumb lever and using the bevel scale to get the required angle.

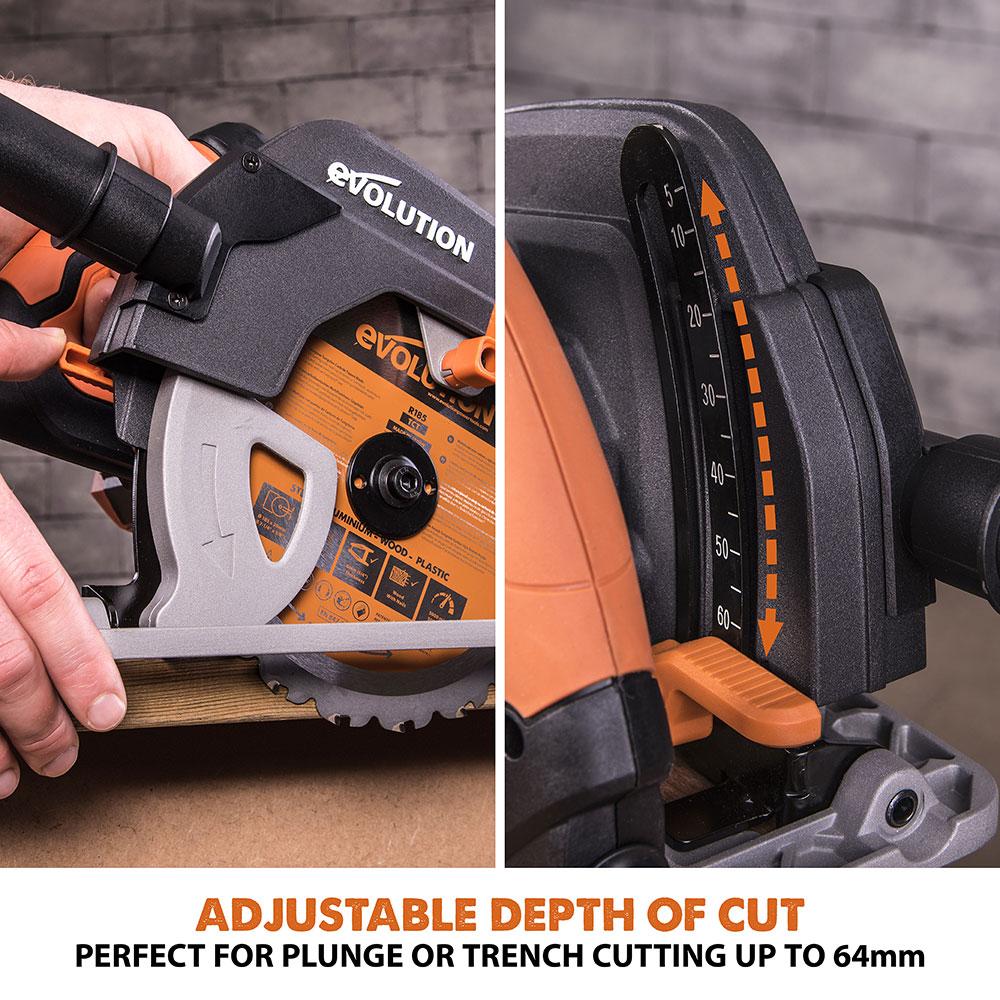

Adjustable Depth of Cut
Plunge made easy! Simply loosen the rear thumb lever to find your depth of cut, from 0 to 64mm and anywhere in between.

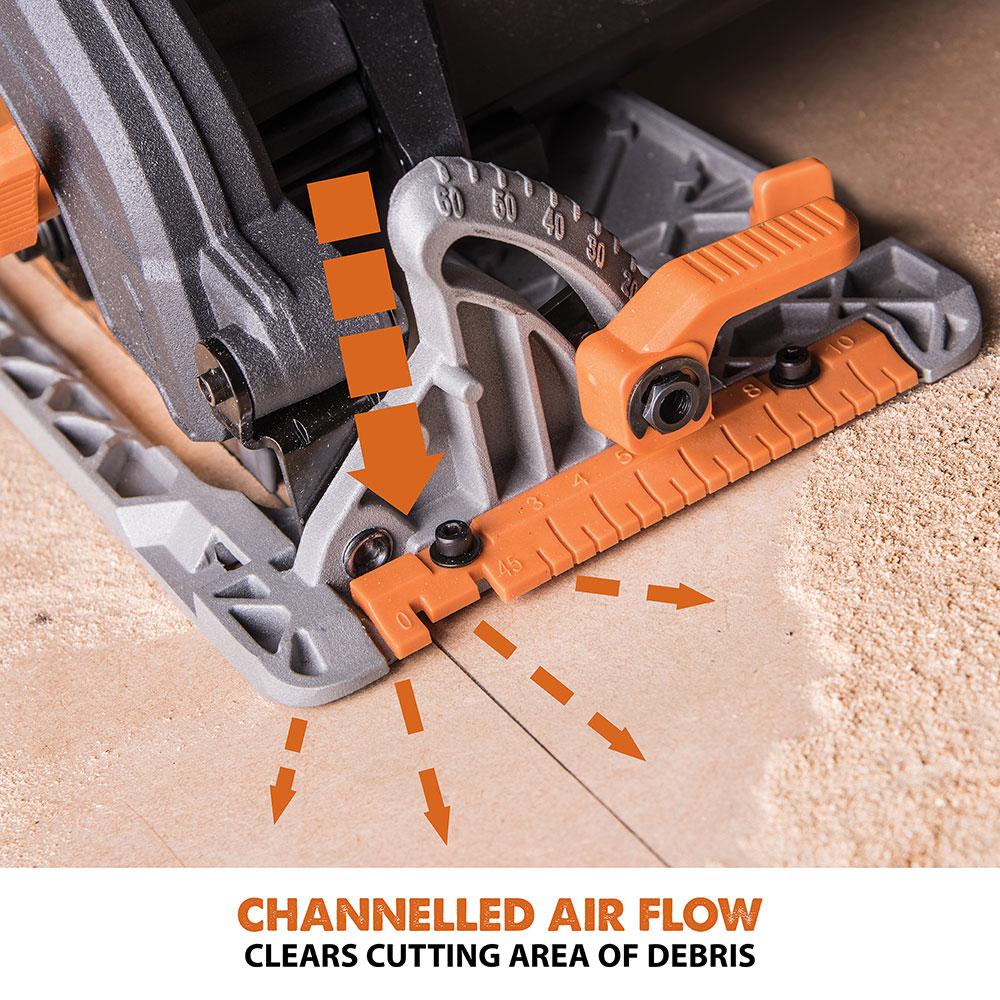

Channelled air flow
Rather than workpiece debris impeding the cutting line, the channelled air flow clears the immediate area when cutting

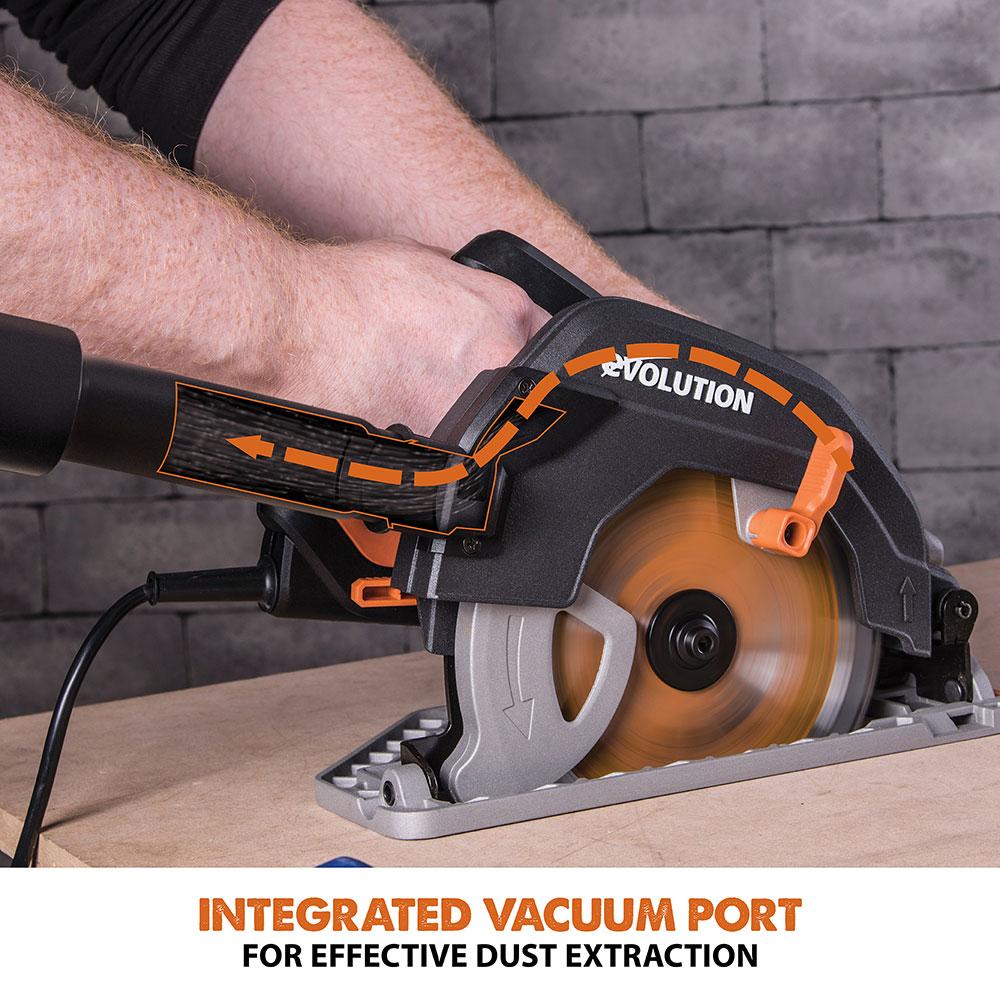

Dust Port Adapter
Keep your work environment clean & safe! Simply attach an external, hosed vacuum system to the provided dust port adapter.
Accurate Cutting

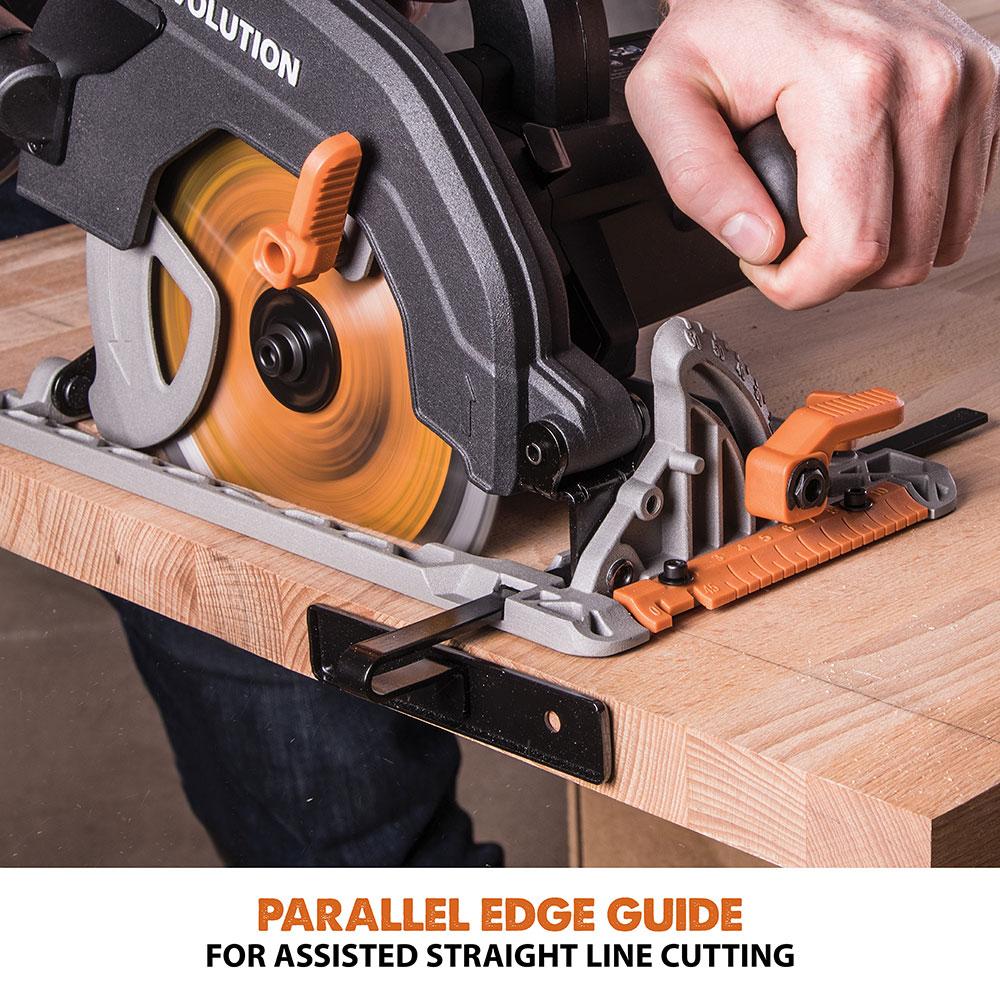

As well as a powerful 1600W motor, the R185CCS also has accuracy. The thin kerf of the TCT blade helps provide precision cuts to within 0.5°. A parallel edge guide is included, perfect for worktops & doors.
SKU: 027-0002C
