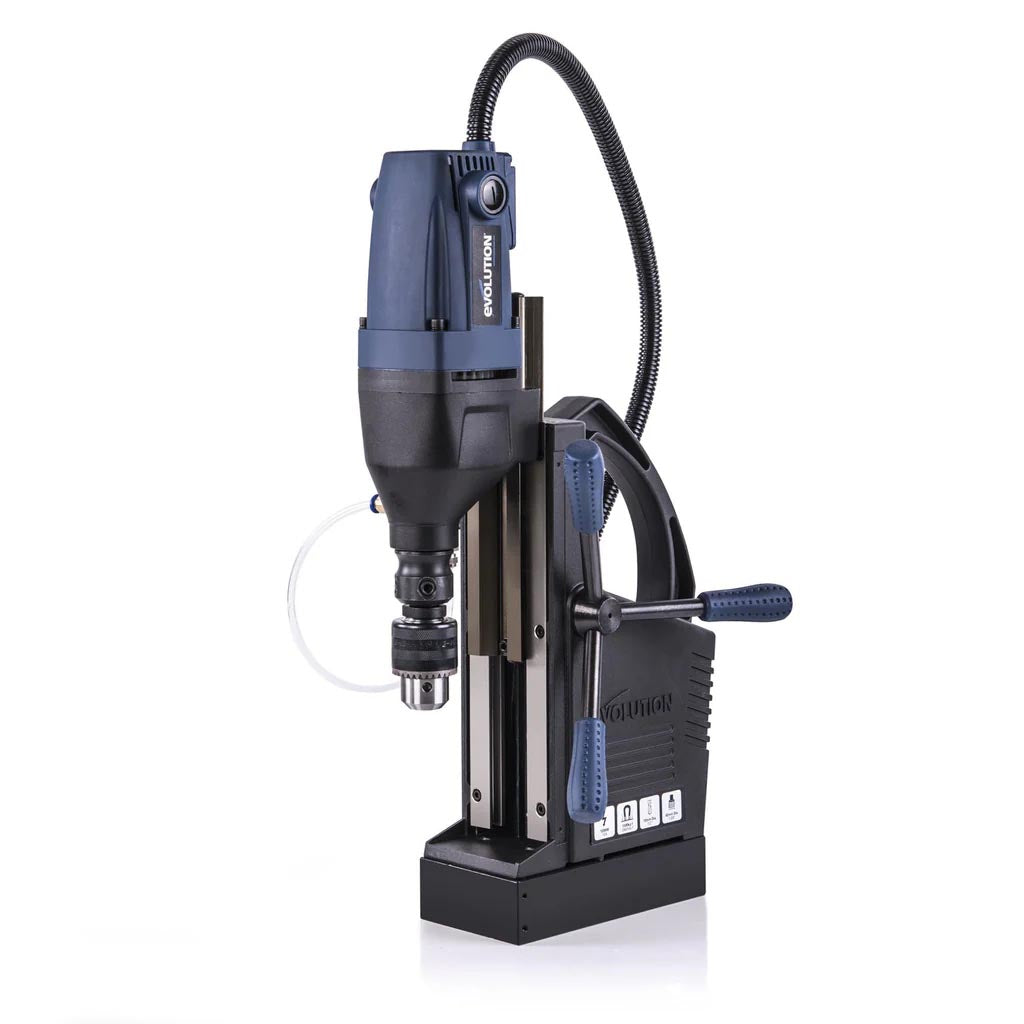

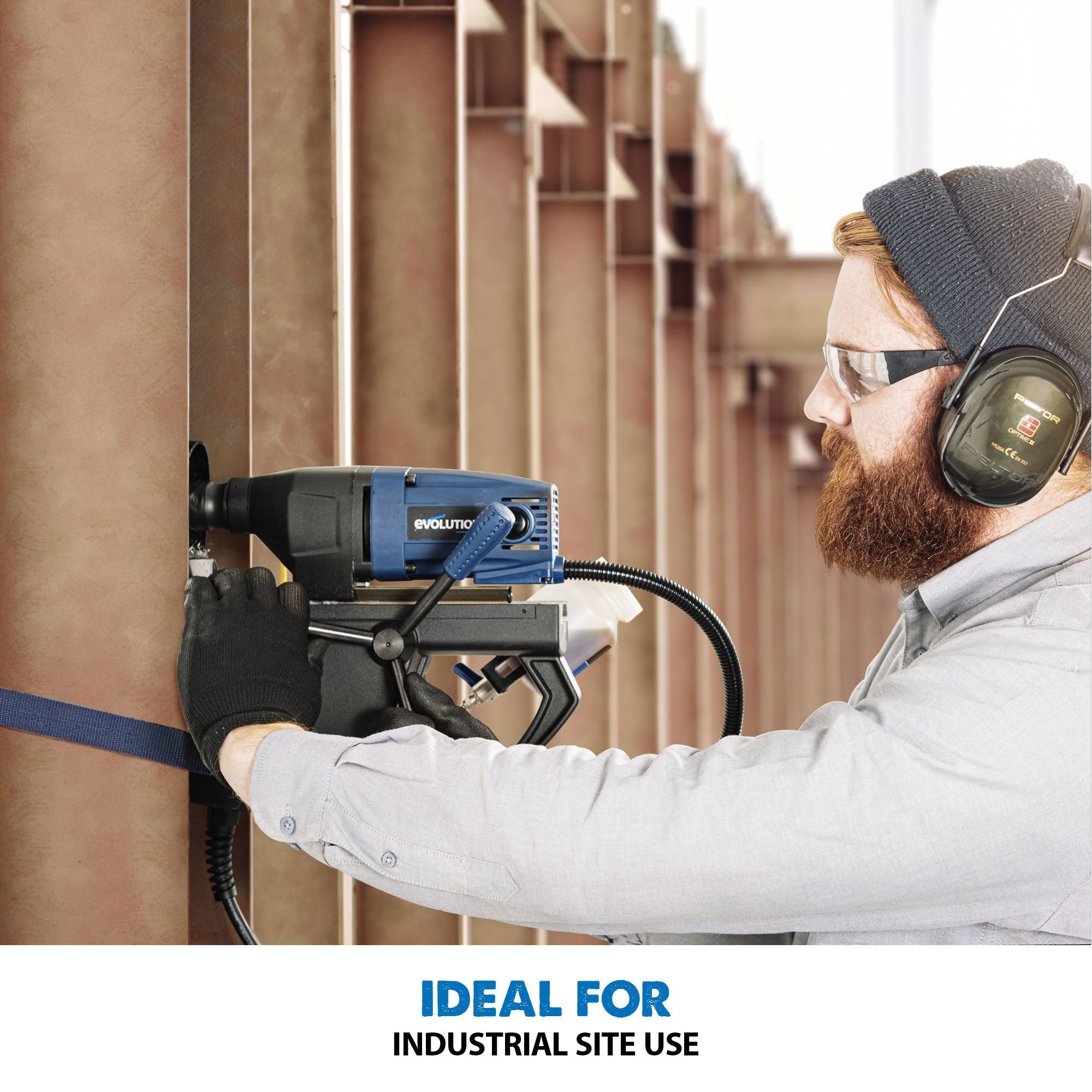

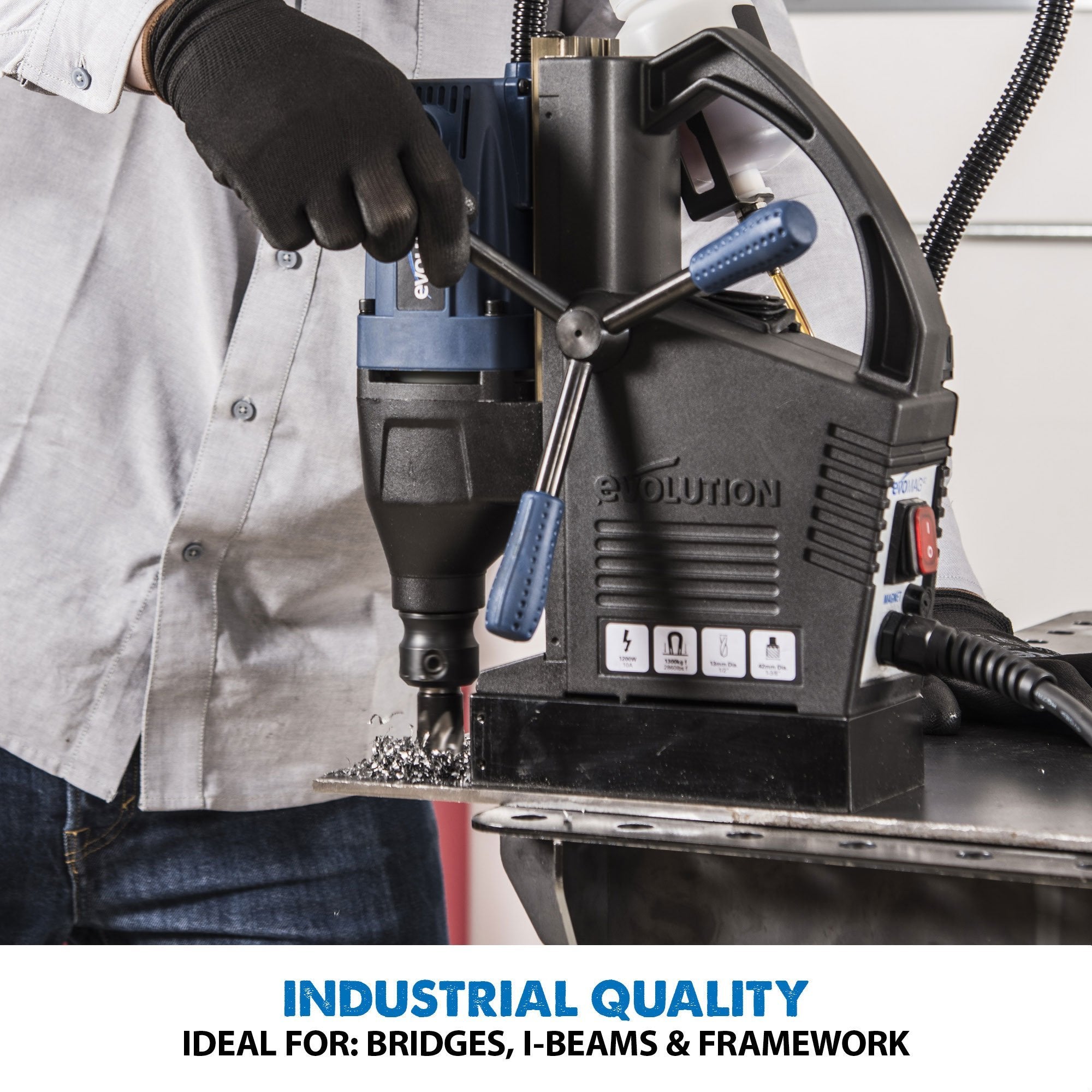

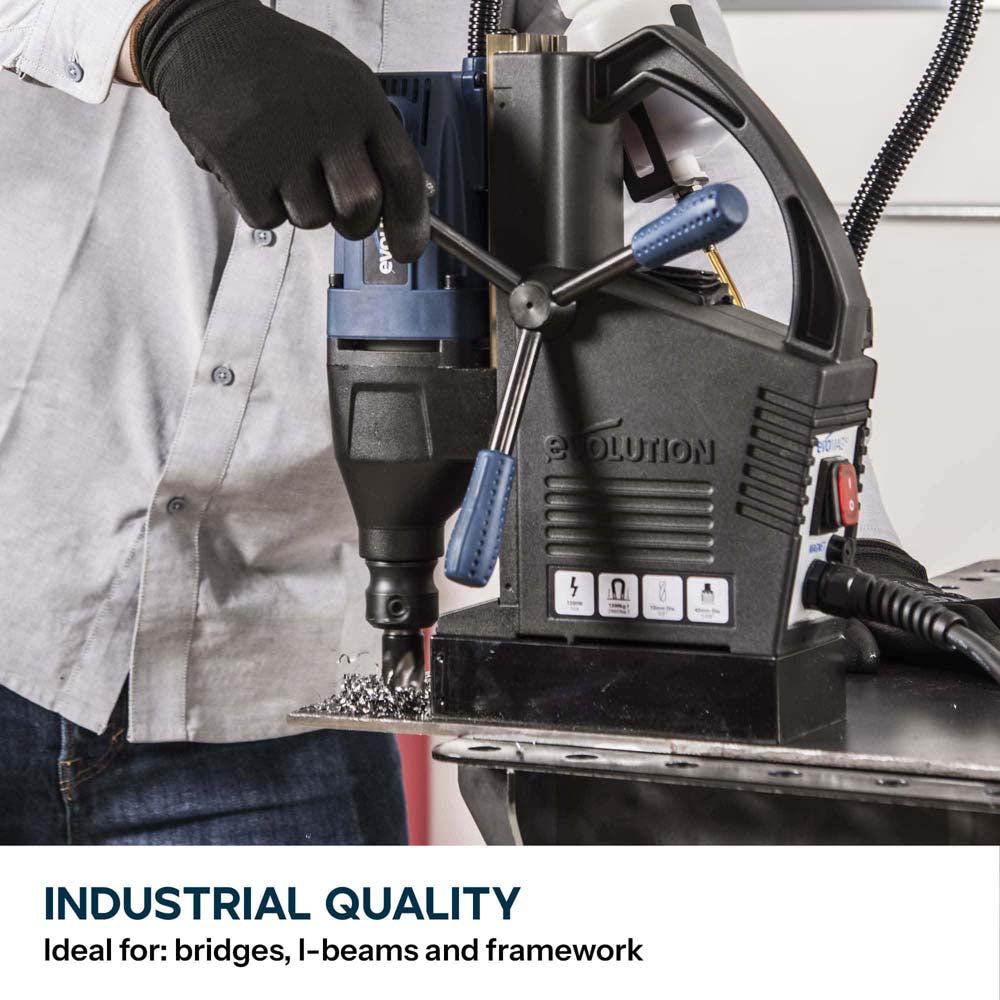

Evolution’s S28 Portable Magnetic Drill is the perfect tool for tackling power-hungry metal fabrication cutting tasks on the job site and in the workshop. When you have to drill holes through sheet steel, heavy plate or I-beam and the only option is to bring the tool to the job then the S28MAG is the right tool every time.

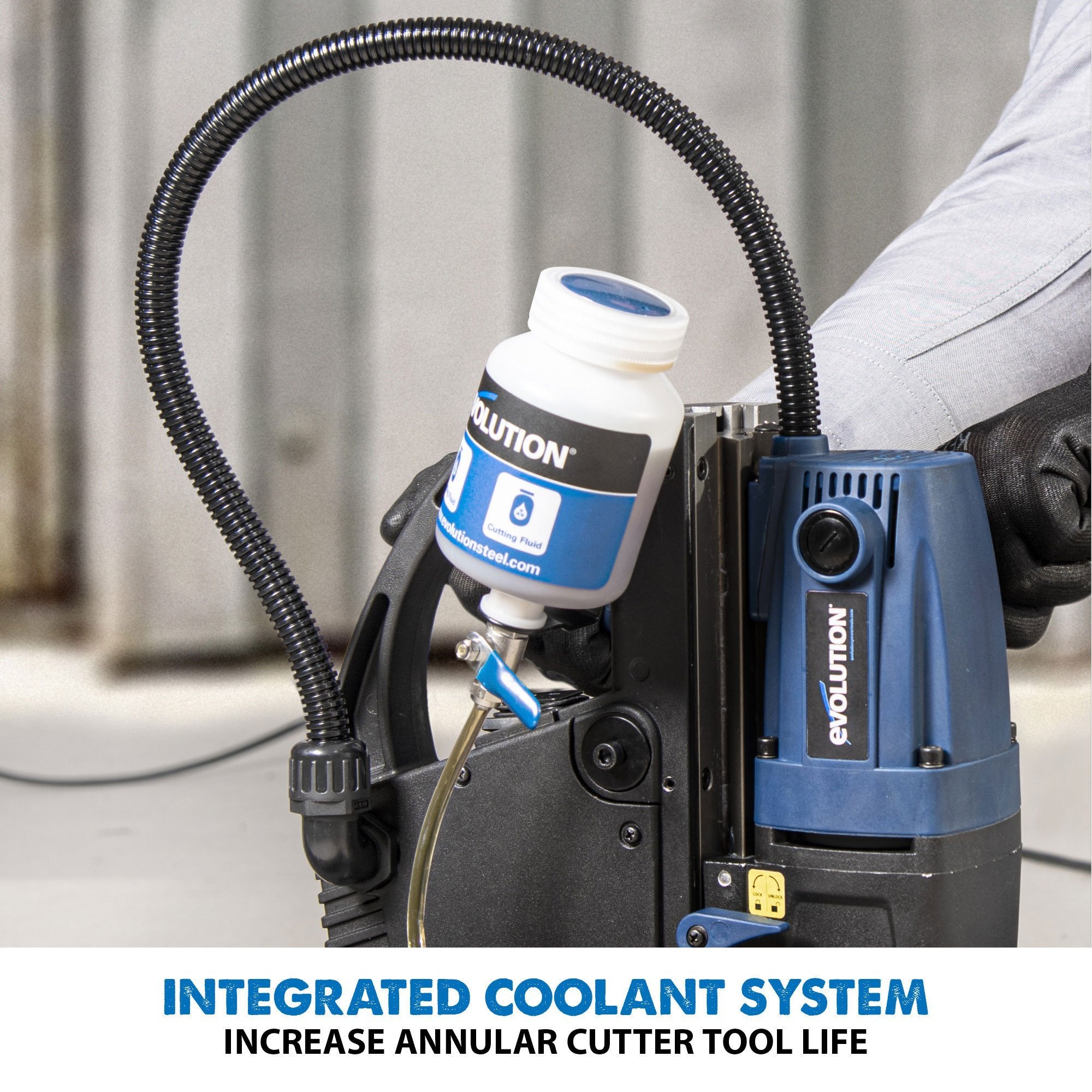

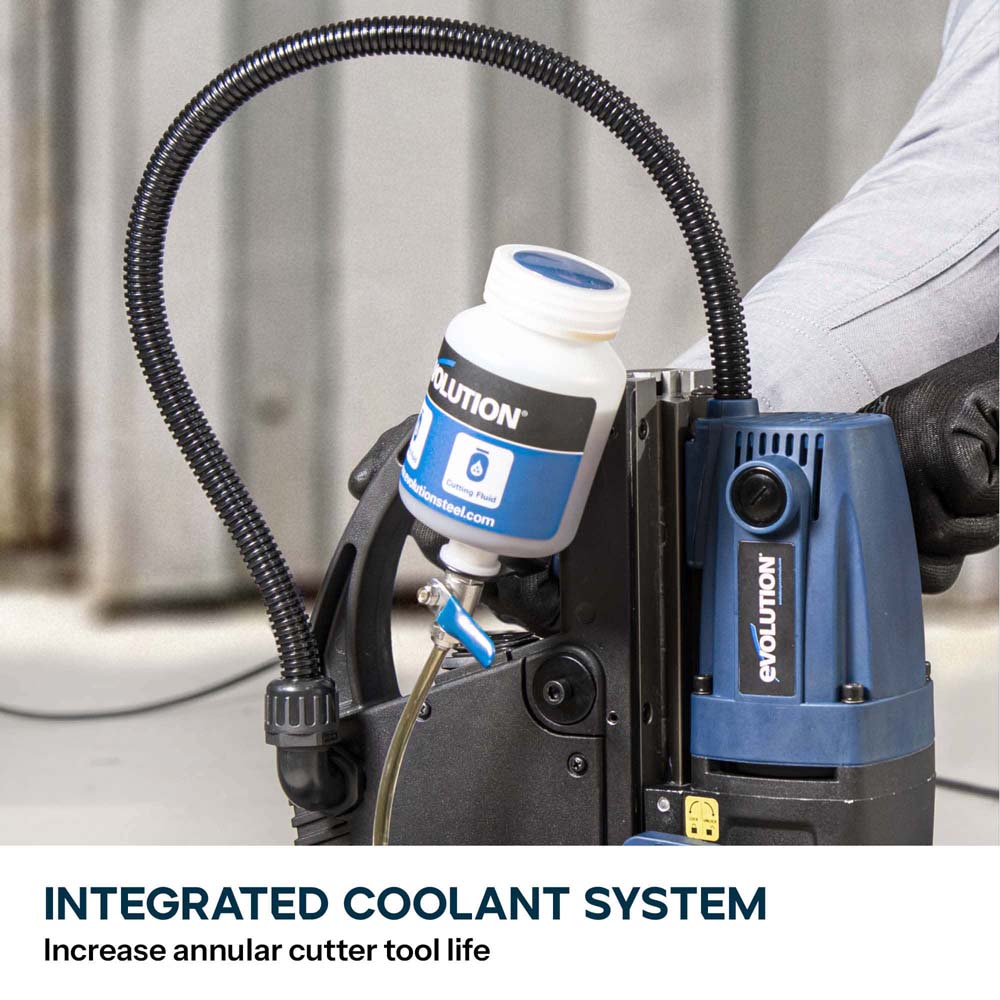

Compact and easy to carry, the 450rpm, 1200 Watt motor inside the S28 provides enough power to make light work of any drilling task. 1200kg of magnetic clamping force secures the S28MAG in any position, on any job. With a small footprint, ambidextrous plunge handles and its own coolant source the S28 Magnetic Drill is ready to go straight out of the box.
If you’ve ever paid to hire a magnetic drill you already know what an essential fabrication tool it is. The Evolution S28MAG has power to put its rivals to shame and is priced so that it will have paid for itself after just a few jobs.

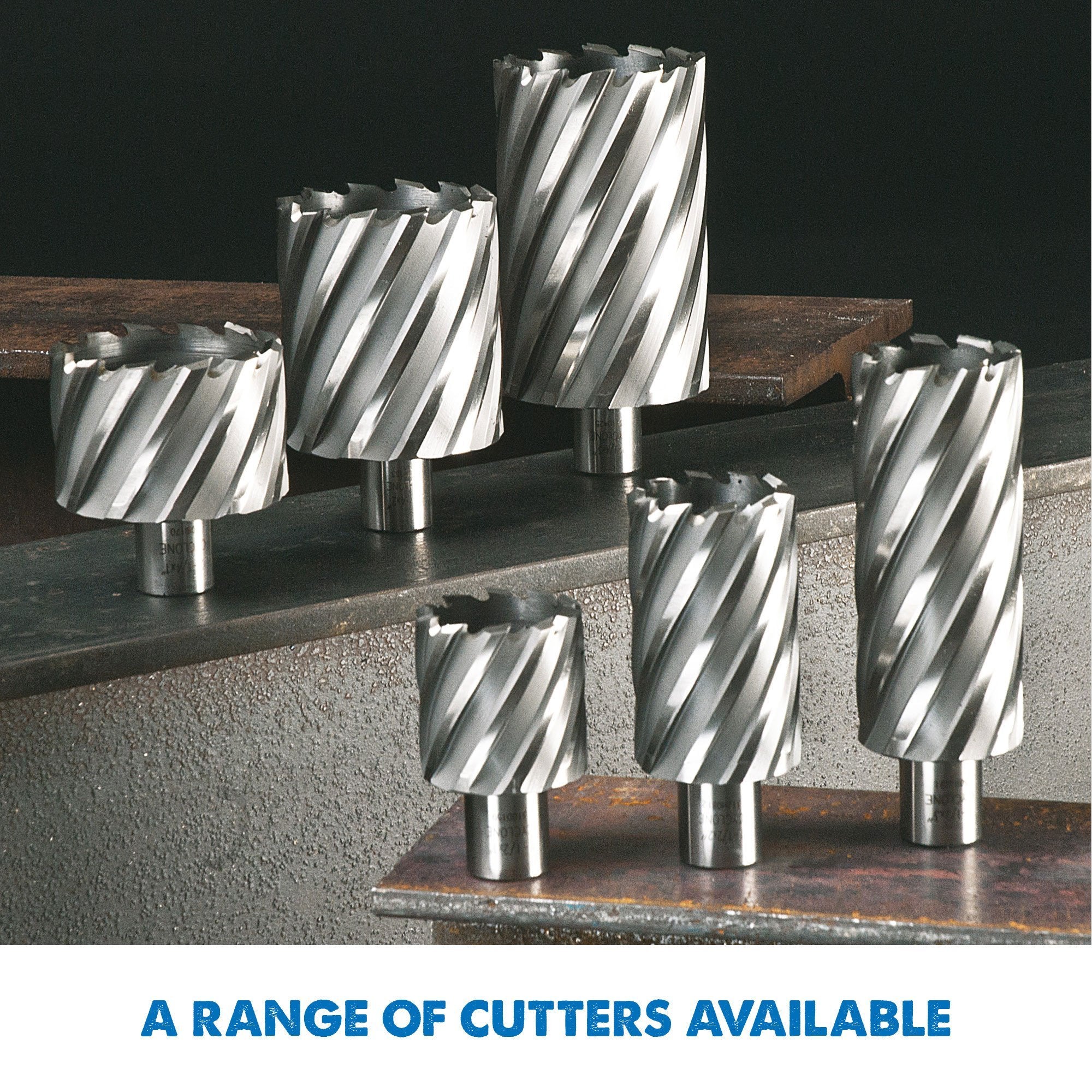

Our Cyclone Premium Annular Cutters are available in 25mm and 50mm depth of cuts and diameters from 12mm-28mm are suitable for this tool. These precision ground and hardened S360 Tungsten Molybdenum cutters boast exception cutting performance and durability and are heat treated to 68RC.
|Motor (240V 50Hz):||1200W|
|Motor (110V 50Hz):||1200W|
|Speed No Load:||480 min-1|
|Number of Speeds||1|
|Magnetic Adhesion||1300kg f|

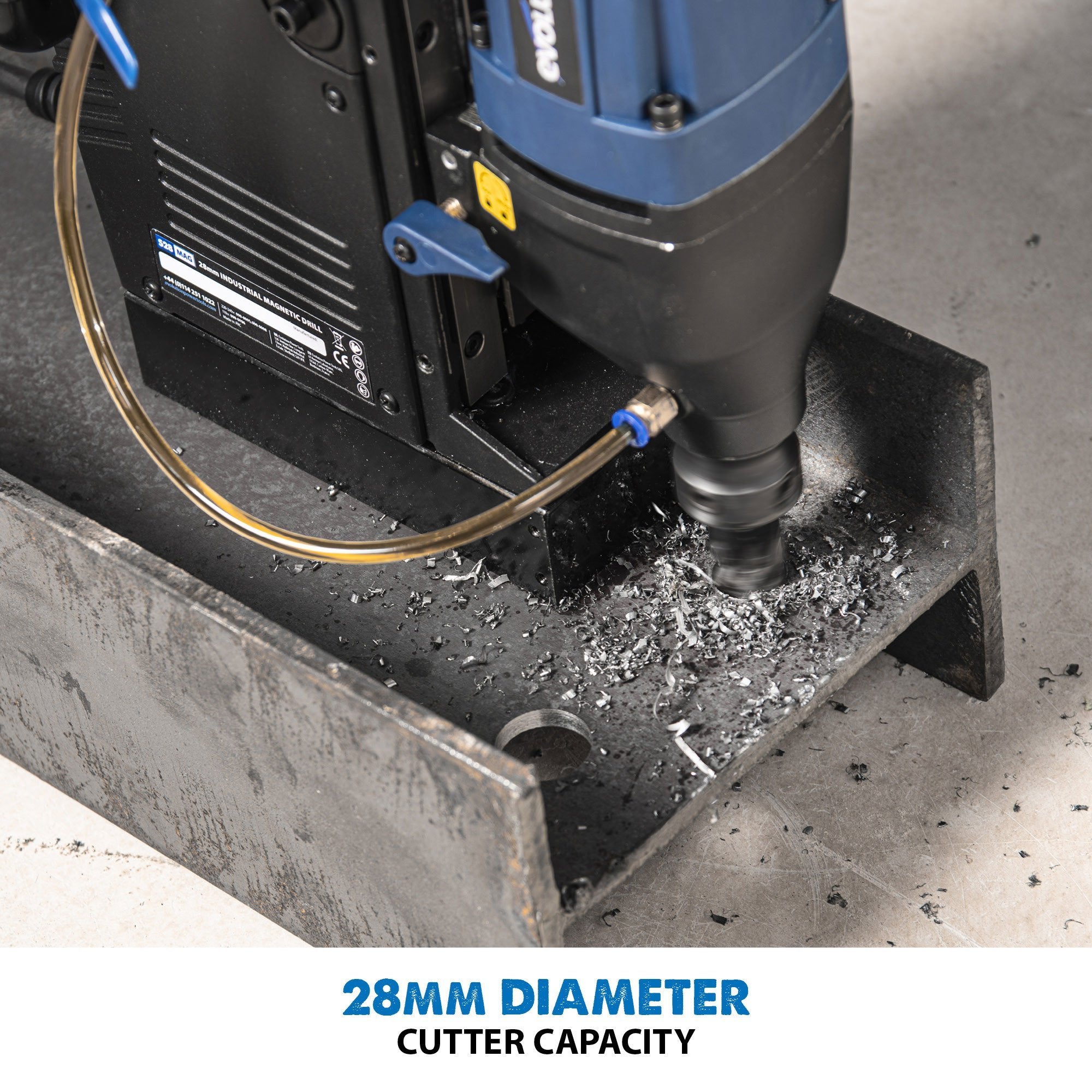

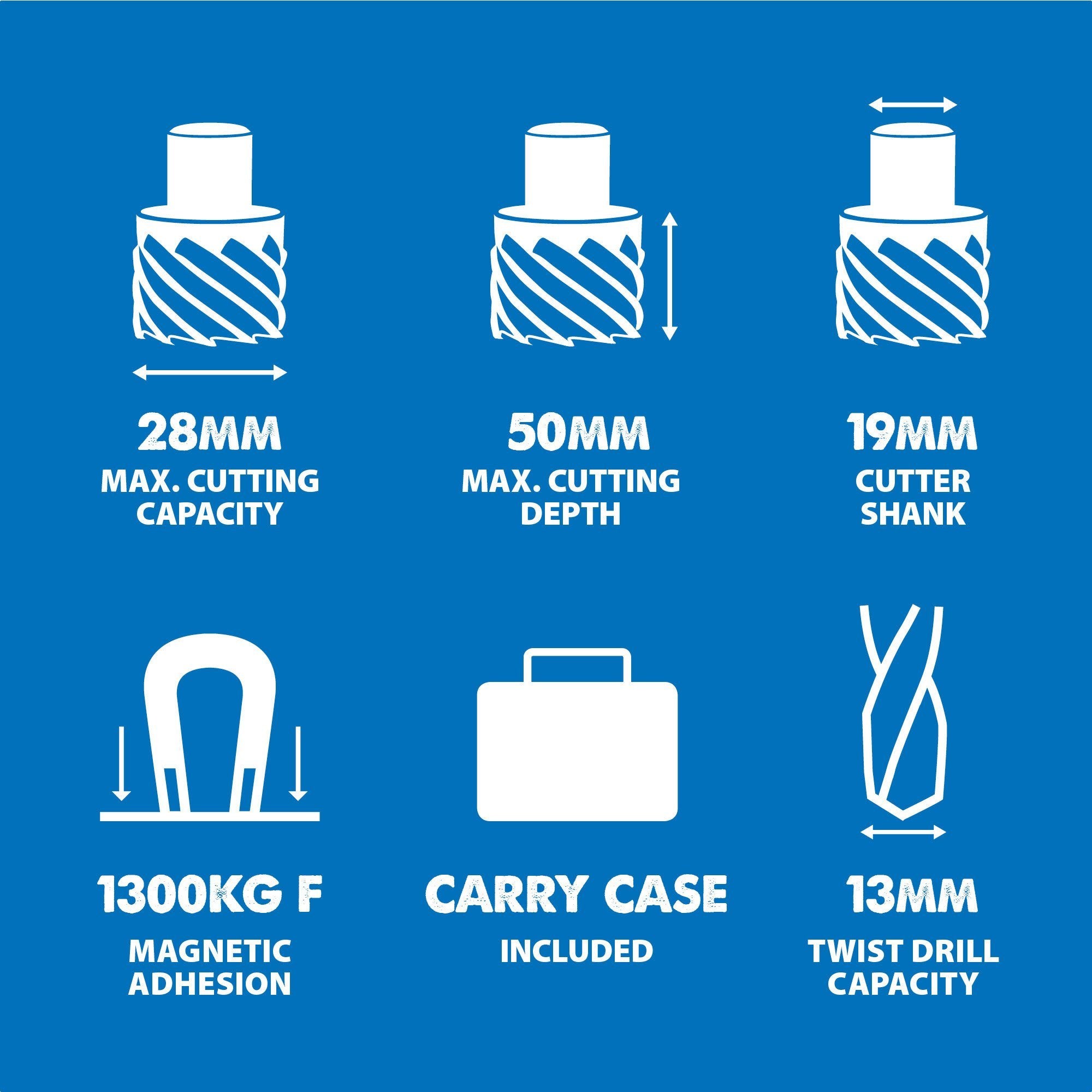

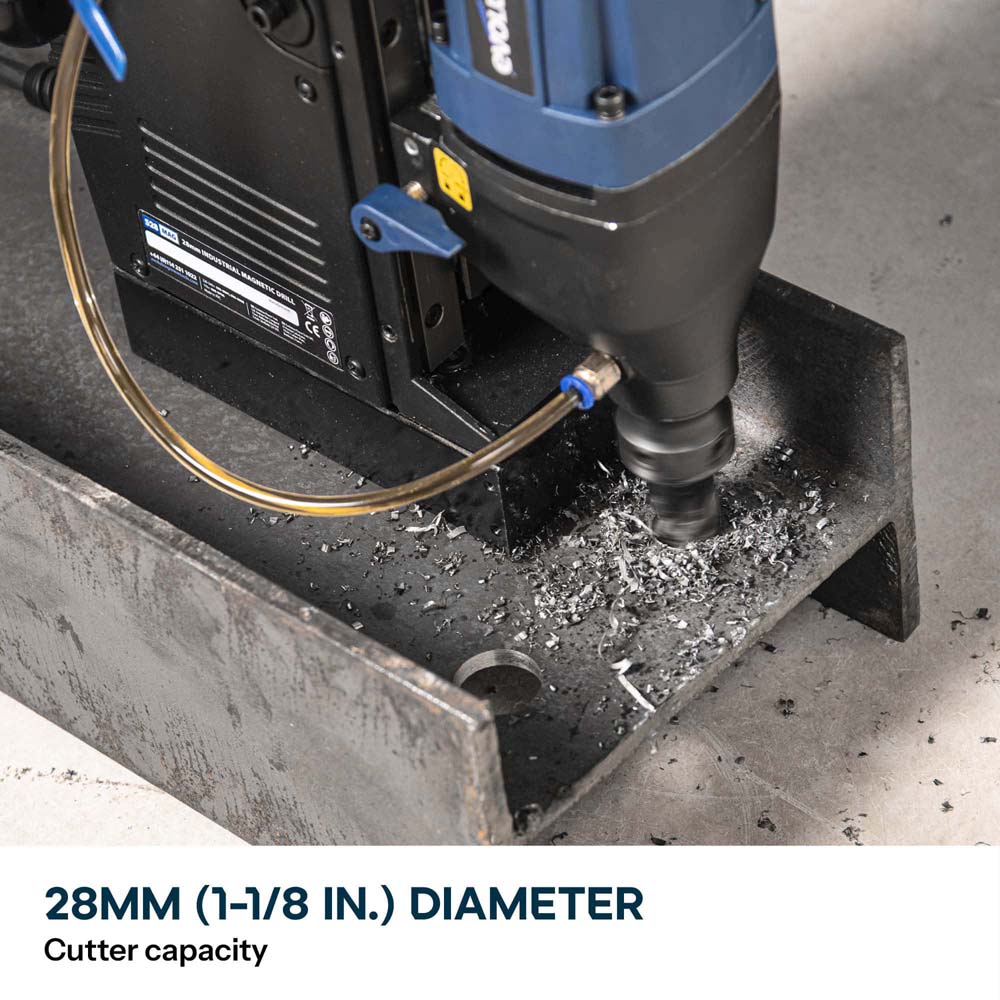

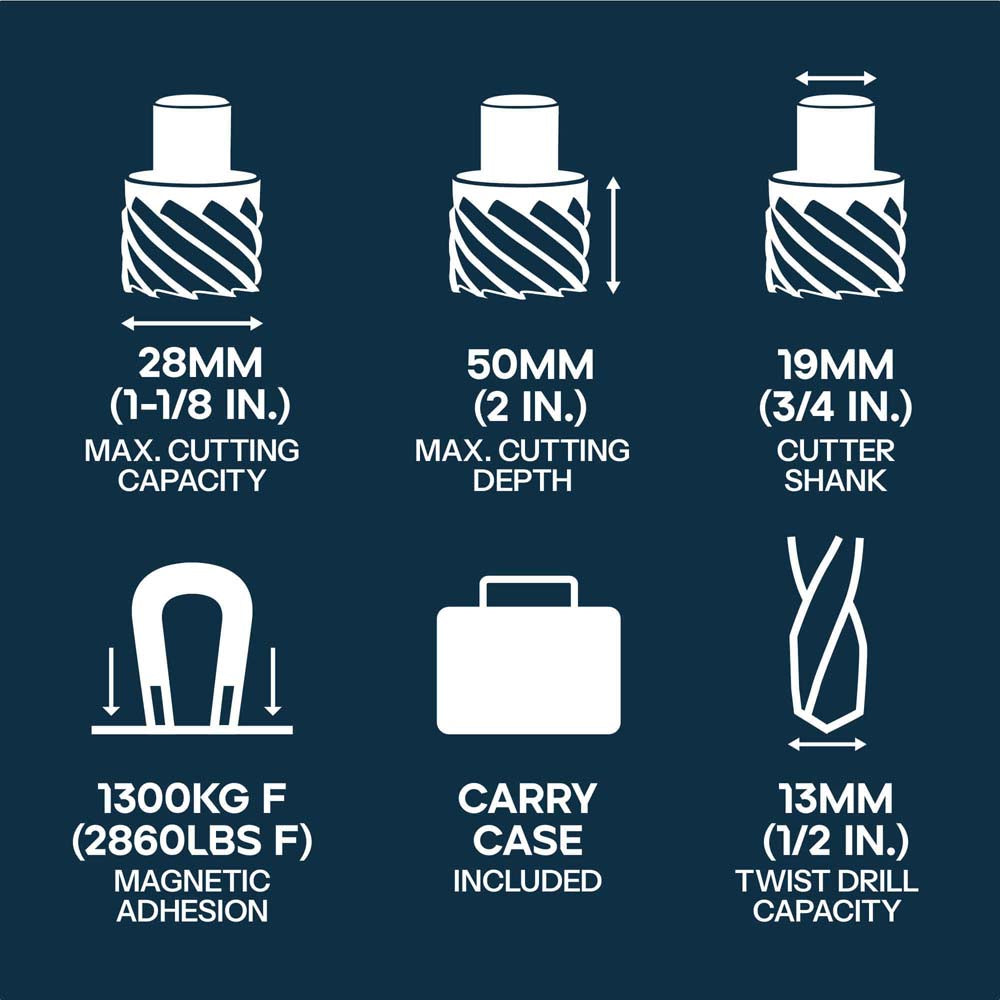

|Maximum Annular Cutting Capacity||28mm|

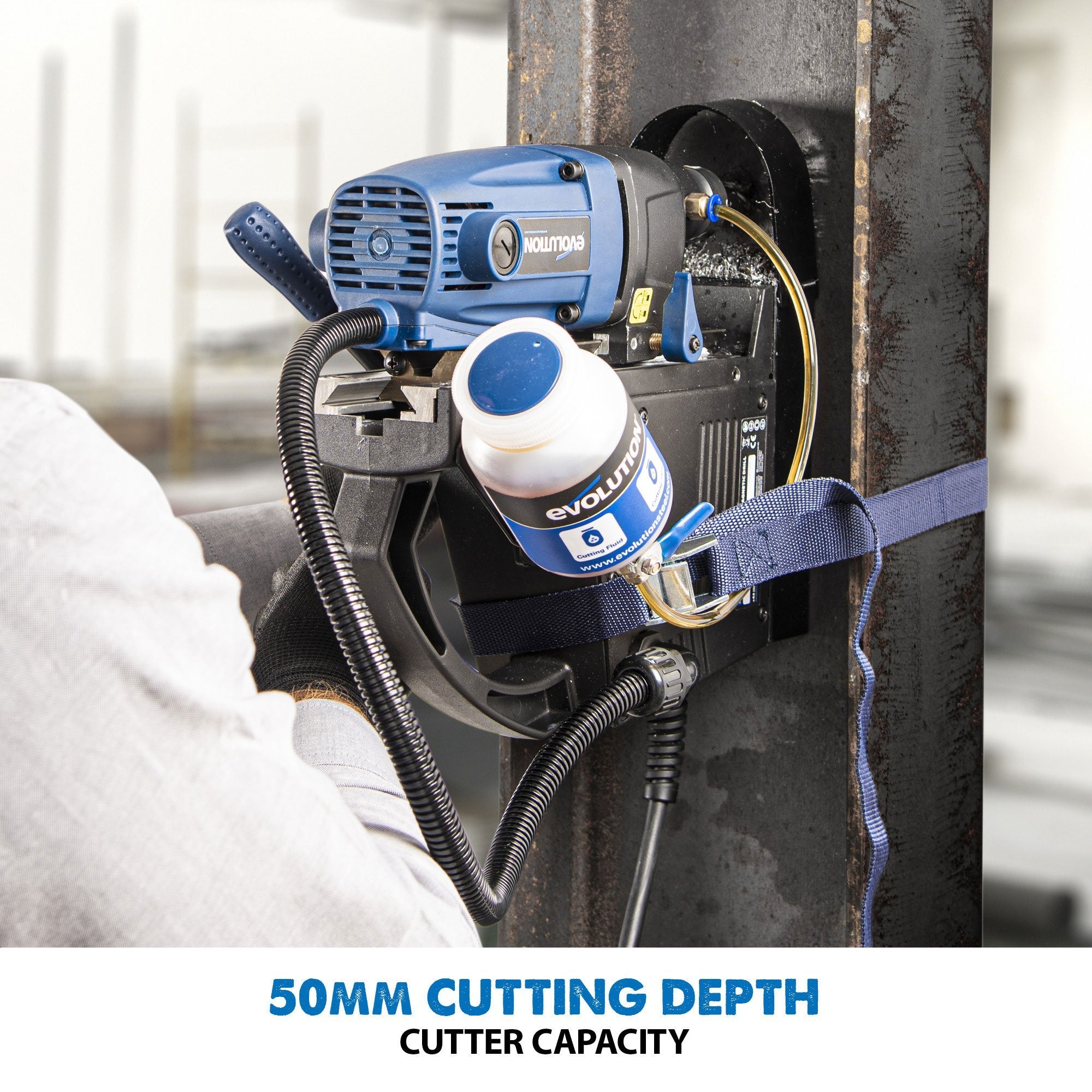

|Maximum Cutting Depth||50mm|

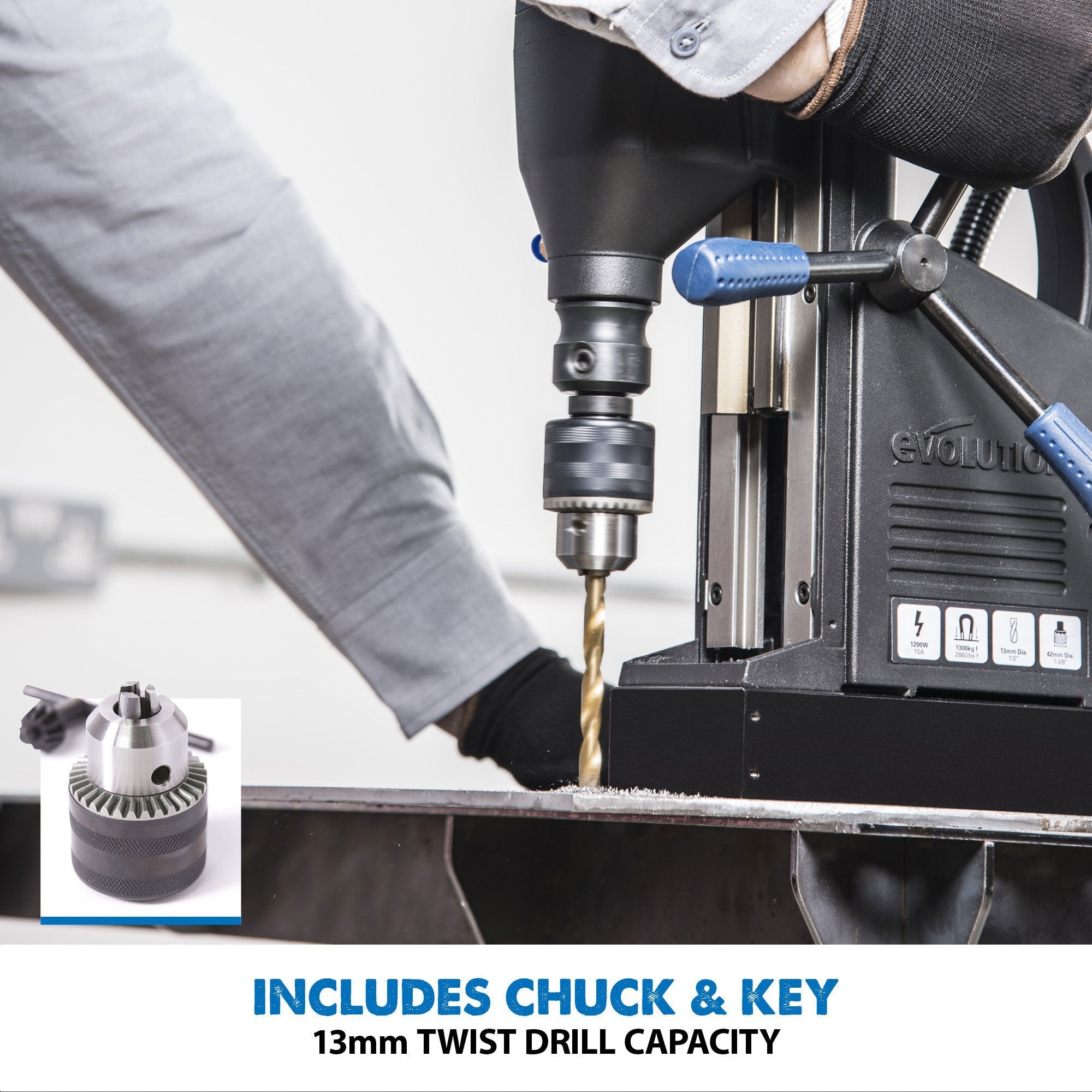

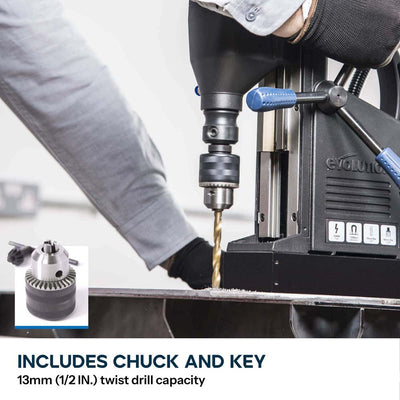

|Standard Twist Drill Capacity||13mm|
|Minimum Plate Thickness||10mm|
|Magnet Dimension||40 x 90 x 180mm|
|Maximum Machine Height||650mm|
|Minimum Machine Height||420mm|
|Product Dimensions:||275 x 132 x 338mm|
|Blow Moulded Carry Case Dimensions:||570 x 200 x 450mm|
|Packaging Dimensions:||570 x 470 x 210mm|
|Product Weight:||12 kg|
|Packaged Weight:||17 kg|
|Sound Pressure Level LPA:||91dB(A) K:3dB(A)|
|Sound Power Level LWA:||102dB(A) K=3 dB(A)|
|Hand Arm Vibration||2.41m/s2 K= 1.5m/s2|
|Safety Guard & Fixings|
|Feed Handles x3|
|Hex Keys - x2|
|Chuck with Chuck Key|
