Bundle Offer
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

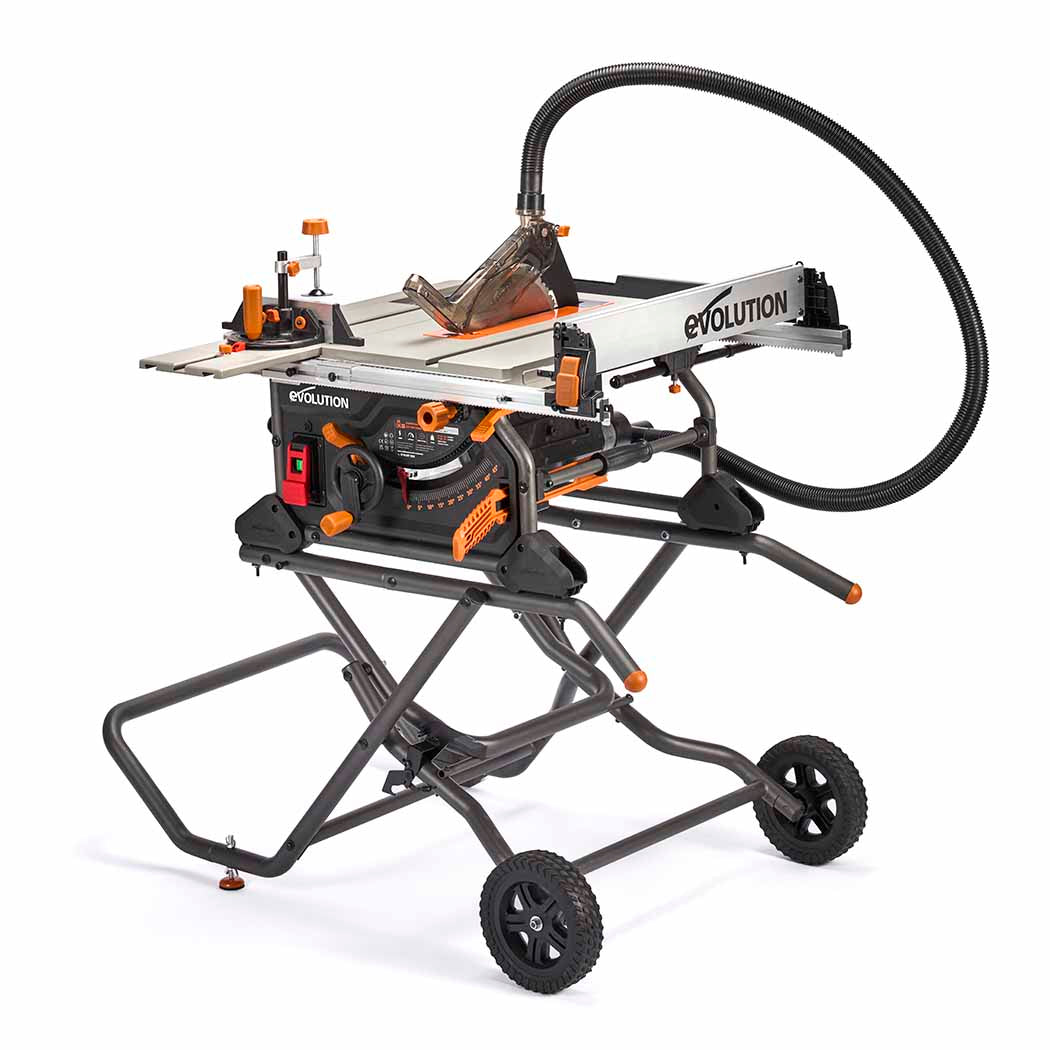

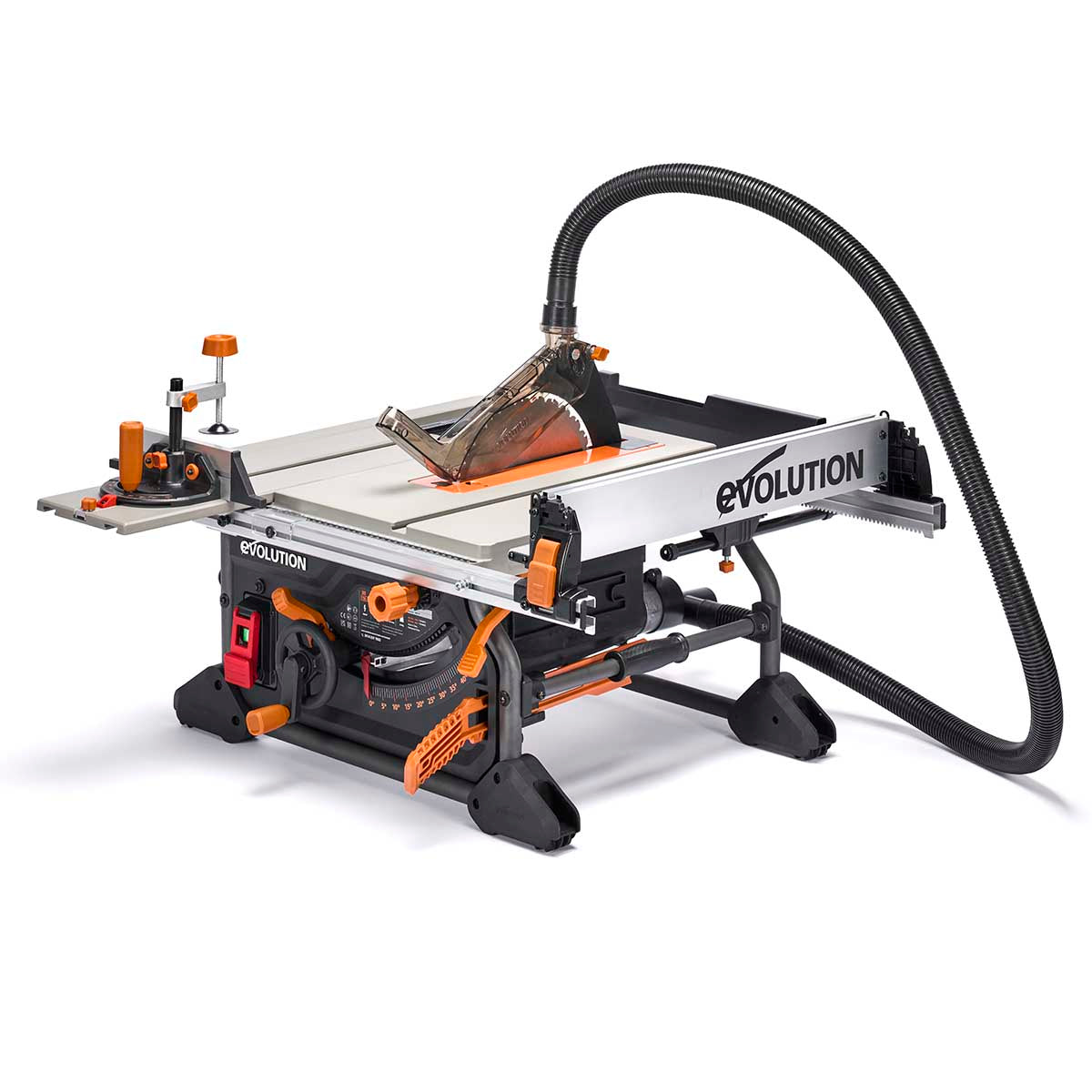

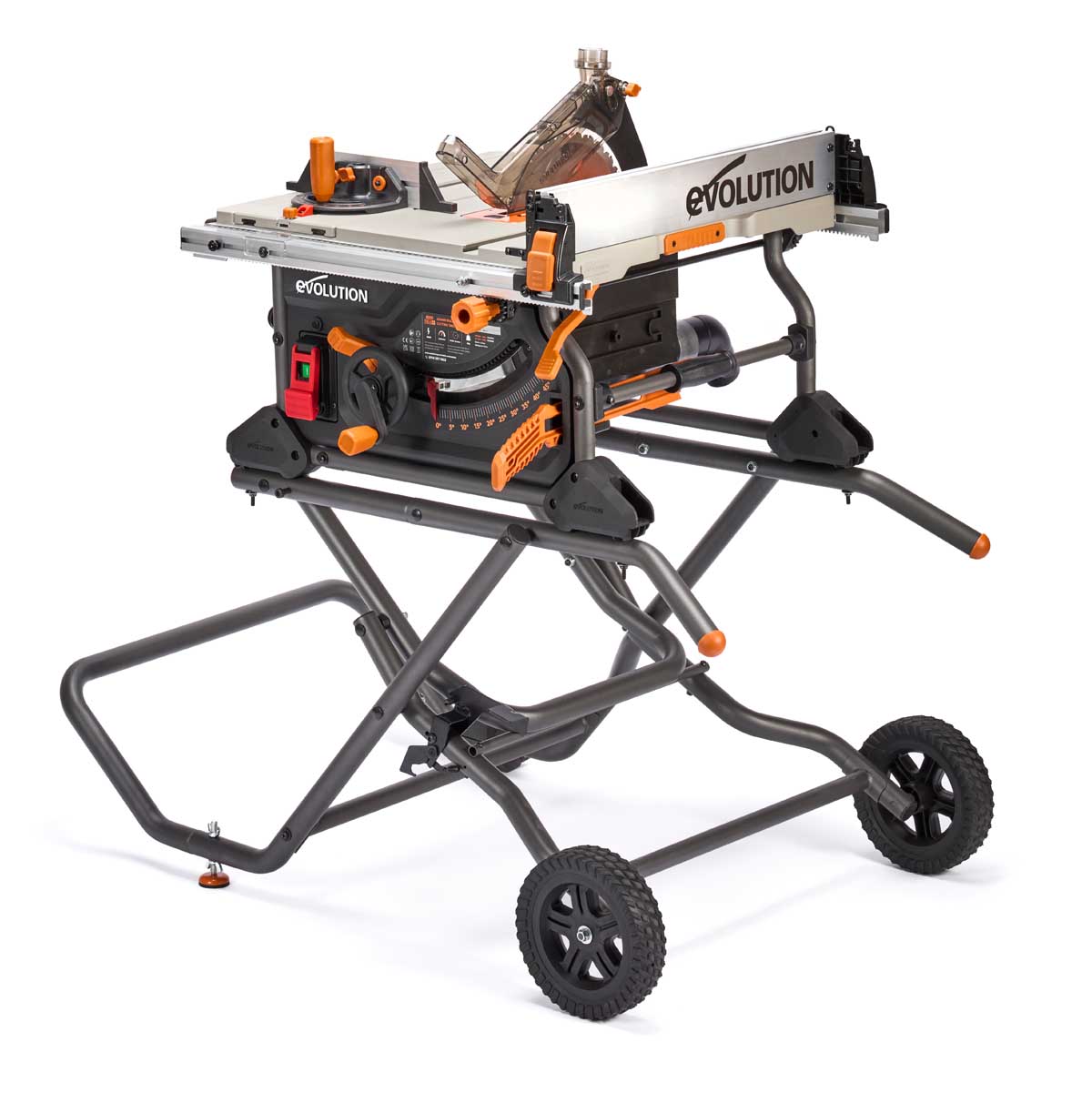

Evolution R255TBL 230v Portable Jobsite Table Saws with R15VAC Wet & Dry Vacuum & Dust Port Kit
SKU: 119-0011+086-0001+119-0057
EAN/UPC: 5056583037440
- 255mm Portable Jobsite Table Saw.
- Dual Rack & Pinion Rip Fence, Soft Start & E-Brake.
- More Powerful, Precision Cutting, Tool Free Set-up.
- Wheeled Stand Included
- Includes R15VAC Wet & dry Vacuum
Specifications
| Blade Size | 255mm |
| Power Type | Corded |
| Max. Cut Depth | 85mm |
- Description
- Features
- Specifications
- Compatible With
- Items Supplied
- Accessories
- Buy Now, Pay Later
- 3 Years Warranty
- Downloads
Description
R255TBL/X/+ Table saw + Wet & Dry workshop Vac Bundle and new dust port adaptor.
If you want a one-stop table saw and workshop vac solution look no further than these R255TBL Table Saw and R15VAC bundles.
The R255TBL/X/+ 255mm Portable Table Saws are built to take on the jobsite. They're more powerful, more accurate, safer to use, and quicker and easier to set-up than the discontinued RAGE5-S Table Saw and it offers better for money than competing brands. They're ready to deliver multi-material cutting performance as well as the accuracy and finish quality required for your fine woodwork projects. There are two version the basic and + models and each of these is available with or without the folding wheeled stand. Specification detail are shown in the table below.
The R15VAC Wet & Dry Workshop Vacuum is the perfect wet & dry vacuum cleaner for your jobsite, workshop & general cleaning tasks. The powerful 1,000w motor has an impressive 42.5L/s of airflow for easy pickup of bulky building debris, fine dust, liquids, mud & more. It's seriously capable with bag-less wet and dry filter technology and a large quick-empty waste bin.
The power take-off socket simplifies effective dust extraction when used with a power tool. It starts the vacuum automatically when you press the start button on the connected power-tool. Specified at 1,700W the power take off port is compatible with the R255TBLX+ due to the soft start capability of the Table Saw.
The R15VAC Wet & Dry Workshop Vacuum also doubles up as a powerful blower ideal for dislodging debris from hard-to-reach areas. The compact design makes it highly portable and ideal for taking between jobs. It features on-board accessory storage for quick access to nozzles, a carry handle & cable tidy. Compact, powerful, and incredibly capable with wet & dry functionality the R15VAC is here to help you clean up your act.

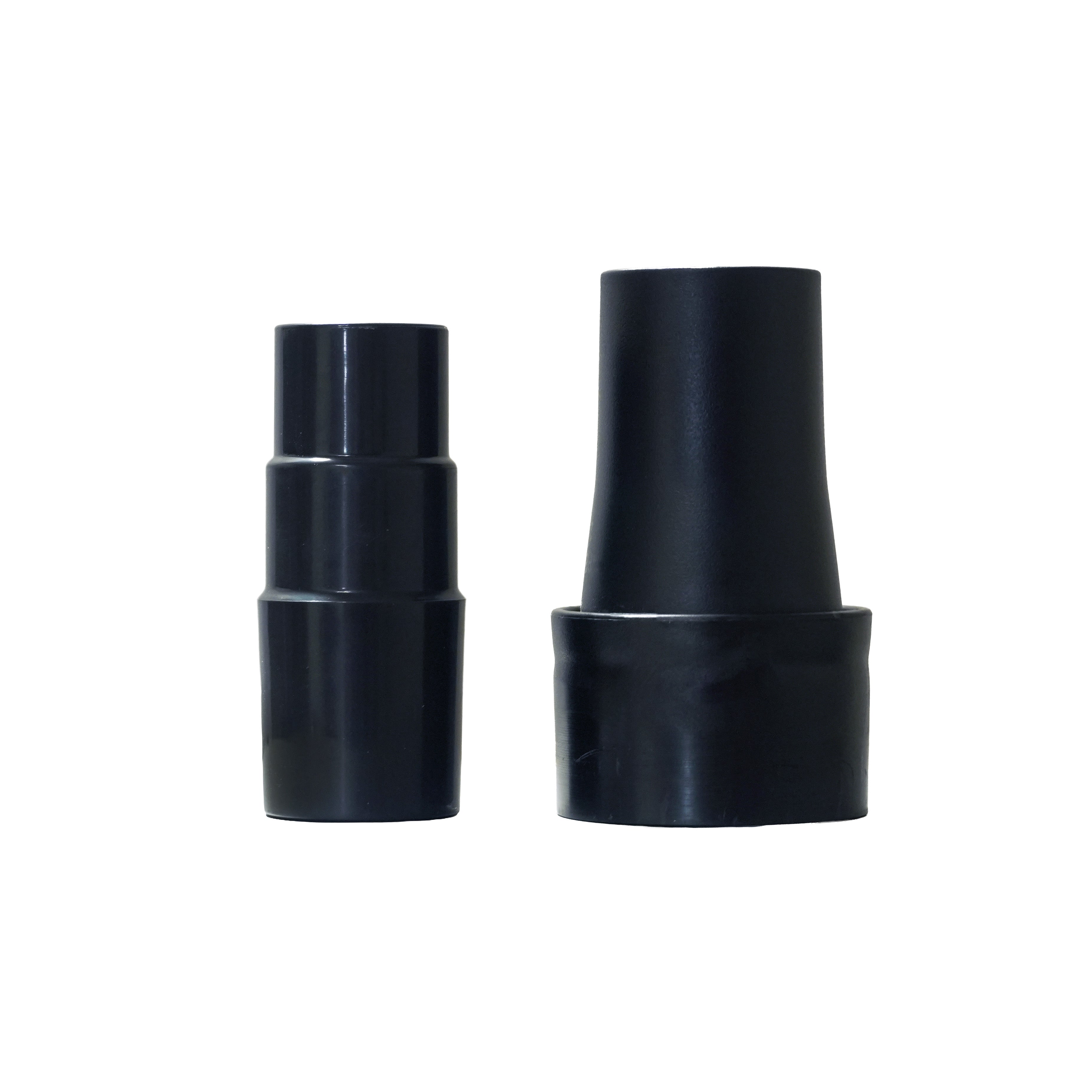

We've also included the new Maxi dust extraction adaptor this allows you to plug the R15VAC straight into the lower dust port on any of our R255TBL table Saws, giving a one-stop table saw and dust extraction solution. With £50 off the combined price.
Features
- More portable, powerful, accurate and easier to adjust and calibrate.
- Improved accuracy for every cut type and ease of set-up
- Dual Rack & pinion parallel fence for precision rip cuts, left and right mount.
- Crosscut Sled Insert – industry standard accessory channel profile for Mitre Guide
- Geared micro-adjustable blade height and bevel angle selector 45° Range (+&- 2°)
- Pat pending, tool-free blade to fence parallelism adjustment.
- Quick Release Riving Knife with offset angle and lateral adjustment.
- Metal roll cage chassis with integrated carry handles
- Increased depth of cut 85mm at 90° and 58mm depth of cut at 45 degrees
- New blade guard. easier adjustment and enhanced cut visibility & dust extraction
- More compact and portable wheeled support – rolls through standard width door
- ADC Active Dust Collection. Improved dust extraction and release (all new dust system)
- AOS Active Overload System enhanced reliability Soft Start, E-Brake, Intelligent Motor Overload Protection
- Paddle Style Emergency Stop Switch provides increased user safety
- Reduced pack and storage size
- Multi-Material cutting technology. One saw, one blade, cuts all.*
- More powerful, 1,800W hi-torque motor
- 45° bevel tilt and +/-60° mitre guide covers common, compound cutting angles
- Increased table-top size - includes table extenders and outfeed supports
- 4m durable cable with the built-in storage cable holder
- Includes Outfeed Support
- Includes Dual Inlet Vacuum Hose Kit
- All tools and accessories stored on tool frame
- 3 Year limited warranty
- Multi-material cut capable, Japanese Tungsten-Carbide-Tipped (TCT) 255mm 28T blade included
- Available with or without folding, wheeled accessory stand
- EU Customer support
Specifications
| Motor (240V 50Hz): | 1,800W |
| Speed No Load: | 3,050rpm |
| Max. Bevel (Left): | 45° (-2 to 47° with stop washers removed) |
| Blade Dia.: | 255mm |
| No. of Teeth: | 28 |
| Bore: | 25.4mm |
| Kerf: | 2mm |
| Max. Depth of Cut (0°): | 85mm |
| Max. Depth of Cut (45°): | 58mm |
| Mild Steel Plate (Max. Thickness): |
6mm |
| Rip Capacity - Right of the blade | 650mm |
| Rip Capacity - Left of the blade | 371mm |
| Riving Knife Thickness | 1.8mm |
| Product Dimensions: | (With Leg Assembly) 340 x 965 x 653mm |
| Product Dimensions: | (Without Leg Assembly) 340x 659x 653mm |
| Max. Table Dimensions | 1200mm x 640mm |
| Min. Table Dimensions | 745mm x 640mm |
| Packaging Dimensions: | 910mm x 370mm x 750mm |
| Storage Dimensions: folded with stand | H 1110mm x D 760mm x W 850mm |
| Product Weight: | 23.33 kg |
| Packaged Weight: | 26.25 kg |
| Sound Pressure Level LPA: | 93,2dB(A) K:3dB(A) |
| Sound Power Level LWA: | 106,2dB(A) K=3 dB(A) |
Compatible With
Trench Cut Riving Knife
Wheeled Folding Stand
FW255TCT-60 255mm, 60T Fine Wood Blade
GW255TCT-40 255mm, 40T General Wood Blade
FURYBLADE255MULTI 255mm, 24T Multi-material Blade
RAGEBLADE255MULTI 255mm, 28T Multi-material Blade
Items Supplied
R15VAC 15L wet & Dry Workshop Vac with power take off
| 24T Multi-Material TCT Blade |
| 24T Multi-Material TCT Blade |
| Built In Crosscut Sled |
| Blade Guard with Dust Extraction Port |
| Dust Extraction Hose & fittings |
| Mitre Gauge & Top Clamp |
| Outfeed Support |
| Adjustable Rip Fence |
| Push Stick |
| Riving Knife |
| Blade Changing Spanners |
| Assorted fixings |
Buy Now, Pay Later
Split your order total into 3 interest-free instalments with Klarna.
3 Years Warranty
- The warranty becomes effective at the date of purchase (or the date of delivery if this is later).
- You must provide proof of delivery/ purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
- All work will be carried out by Evolution.
- Any parts which are replaced will become the property of Evolution.
- The repair or replacement of your machine under warranty will not extend the period of warranty.
- The warranty provides benefits which are additional to and do not affect your statutory rights as a consumer.
- The repair or replacement of your machine (at Evolution’s discretion), if your machine is found to be defective due to faulty materials, workmanship or function within the warranty period (if any part is no longer available or out of manufacture, Evolution will replace it with a functional replacement part).
- Overseas users should contact the official importer for that country.
- Normal wear and tear (eg. Fuse, Fluids/Lubricants, Blades, etc.)
- Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the machine which is not in use with Evolution’s user guide.
- Lack of servicing.
- Use of parts not assembled or installed in accordance with the instructions of Evolution.
- Use of parts and accessories which are not Evolution Genuine Components.
- Faulty installation (except installation by Evolution).
- Repairs or alterations carried out by parties other than Evolution.
Description
R255TBL/X/+ Table saw + Wet & Dry workshop Vac Bundle and new dust port adaptor.
If you want a one-stop table saw and workshop vac solution look no further than these R255TBL Table Saw and R15VAC bundles.
The R255TBL/X/+ 255mm Portable Table Saws are built to take on the jobsite. They're more powerful, more accurate, safer to use, and quicker and easier to set-up than the discontinued RAGE5-S Table Saw and it offers better for money than competing brands. They're ready to deliver multi-material cutting performance as well as the accuracy and finish quality required for your fine woodwork projects. There are two version the basic and + models and each of these is available with or without the folding wheeled stand. Specification detail are shown in the table below.
The R15VAC Wet & Dry Workshop Vacuum is the perfect wet & dry vacuum cleaner for your jobsite, workshop & general cleaning tasks. The powerful 1,000w motor has an impressive 42.5L/s of airflow for easy pickup of bulky building debris, fine dust, liquids, mud & more. It's seriously capable with bag-less wet and dry filter technology and a large quick-empty waste bin.
The power take-off socket simplifies effective dust extraction when used with a power tool. It starts the vacuum automatically when you press the start button on the connected power-tool. Specified at 1,700W the power take off port is compatible with the R255TBLX+ due to the soft start capability of the Table Saw.
The R15VAC Wet & Dry Workshop Vacuum also doubles up as a powerful blower ideal for dislodging debris from hard-to-reach areas. The compact design makes it highly portable and ideal for taking between jobs. It features on-board accessory storage for quick access to nozzles, a carry handle & cable tidy. Compact, powerful, and incredibly capable with wet & dry functionality the R15VAC is here to help you clean up your act.
We've also included the new Maxi dust extraction adaptor this allows you to plug the R15VAC straight into the lower dust port on any of our R255TBL table Saws, giving a one-stop table saw and dust extraction solution. With £50 off the combined price.
Features
- More portable, powerful, accurate and easier to adjust and calibrate.
- Improved accuracy for every cut type and ease of set-up
- Dual Rack & pinion parallel fence for precision rip cuts, left and right mount.
- Crosscut Sled Insert – industry standard accessory channel profile for Mitre Guide
- Geared micro-adjustable blade height and bevel angle selector 45° Range (+&- 2°)
- Pat pending, tool-free blade to fence parallelism adjustment.
- Quick Release Riving Knife with offset angle and lateral adjustment.
- Metal roll cage chassis with integrated carry handles
- Increased depth of cut 85mm at 90° and 58mm depth of cut at 45 degrees
- New blade guard. easier adjustment and enhanced cut visibility & dust extraction
- More compact and portable wheeled support – rolls through standard width door
- ADC Active Dust Collection. Improved dust extraction and release (all new dust system)
- AOS Active Overload System enhanced reliability Soft Start, E-Brake, Intelligent Motor Overload Protection
- Paddle Style Emergency Stop Switch provides increased user safety
- Reduced pack and storage size
- Multi-Material cutting technology. One saw, one blade, cuts all.*
- More powerful, 1,800W hi-torque motor
- 45° bevel tilt and +/-60° mitre guide covers common, compound cutting angles
- Increased table-top size - includes table extenders and outfeed supports
- 4m durable cable with the built-in storage cable holder
- Includes Outfeed Support
- Includes Dual Inlet Vacuum Hose Kit
- All tools and accessories stored on tool frame
- 3 Year limited warranty
- Multi-material cut capable, Japanese Tungsten-Carbide-Tipped (TCT) 255mm 28T blade included
- Available with or without folding, wheeled accessory stand
- EU Customer support
Specifications
| Motor (240V 50Hz): | 1,800W |
| Speed No Load: | 3,050rpm |
| Max. Bevel (Left): | 45° (-2 to 47° with stop washers removed) |
| Blade Dia.: | 255mm |
| No. of Teeth: | 28 |
| Bore: | 25.4mm |
| Kerf: | 2mm |
| Max. Depth of Cut (0°): | 85mm |
| Max. Depth of Cut (45°): | 58mm |
| Mild Steel Plate (Max. Thickness): |
6mm |
| Rip Capacity - Right of the blade | 650mm |
| Rip Capacity - Left of the blade | 371mm |
| Riving Knife Thickness | 1.8mm |
| Product Dimensions: | (With Leg Assembly) 340 x 965 x 653mm |
| Product Dimensions: | (Without Leg Assembly) 340x 659x 653mm |
| Max. Table Dimensions | 1200mm x 640mm |
| Min. Table Dimensions | 745mm x 640mm |
| Packaging Dimensions: | 910mm x 370mm x 750mm |
| Storage Dimensions: folded with stand | H 1110mm x D 760mm x W 850mm |
| Product Weight: | 23.33 kg |
| Packaged Weight: | 26.25 kg |
| Sound Pressure Level LPA: | 93,2dB(A) K:3dB(A) |
| Sound Power Level LWA: | 106,2dB(A) K=3 dB(A) |
Items Supplied
R15VAC 15L wet & Dry Workshop Vac with power take off
| 24T Multi-Material TCT Blade |
| 24T Multi-Material TCT Blade |
| Built In Crosscut Sled |
| Blade Guard with Dust Extraction Port |
| Dust Extraction Hose & fittings |
| Mitre Gauge & Top Clamp |
| Outfeed Support |
| Adjustable Rip Fence |
| Push Stick |
| Riving Knife |
| Blade Changing Spanners |
| Assorted fixings |
Compatible With
Trench Cut Riving Knife
Wheeled Folding Stand
FW255TCT-60 255mm, 60T Fine Wood Blade
GW255TCT-40 255mm, 40T General Wood Blade
FURYBLADE255MULTI 255mm, 24T Multi-material Blade
RAGEBLADE255MULTI 255mm, 28T Multi-material Blade
Buy Now, Pay Later
Split your order total into 3 interest-free instalments with Klarna.
3 Years Warranty
- The warranty becomes effective at the date of purchase (or the date of delivery if this is later).
- You must provide proof of delivery/ purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
- All work will be carried out by Evolution.
- Any parts which are replaced will become the property of Evolution.
- The repair or replacement of your machine under warranty will not extend the period of warranty.
- The warranty provides benefits which are additional to and do not affect your statutory rights as a consumer.
- The repair or replacement of your machine (at Evolution’s discretion), if your machine is found to be defective due to faulty materials, workmanship or function within the warranty period (if any part is no longer available or out of manufacture, Evolution will replace it with a functional replacement part).
- Overseas users should contact the official importer for that country.
- Normal wear and tear (eg. Fuse, Fluids/Lubricants, Blades, etc.)
- Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the machine which is not in use with Evolution’s user guide.
- Lack of servicing.
- Use of parts not assembled or installed in accordance with the instructions of Evolution.
- Use of parts and accessories which are not Evolution Genuine Components.
- Faulty installation (except installation by Evolution).
- Repairs or alterations carried out by parties other than Evolution.
