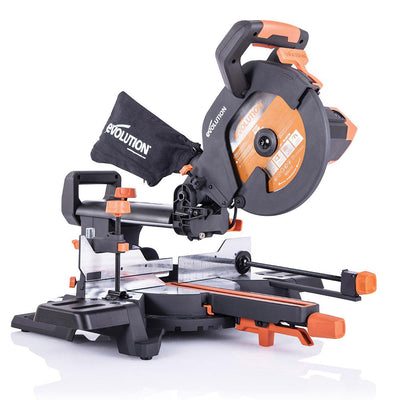

Evolution R255SMS 255mm Sliding Mitre Saw With TCT Multi-Material Cutting Blade

£199.99

Evolution R255SMS 255mm Sliding Mitre Saw With TCT Multi-Material Cutting Blade

SKU: 052-0001

Power Supply:Corded
Blade Size:255mm
Please note: This product is available only at B&Q and Screwfix
* Free delivery, geographic exclusions apply. *Please note: Discounts cannot be applied on bundle deals, subscription blades or items already on sale. Multiple discount codes cannot be used in the same order.

Recommended Accessories

Description

This product is only for display purposes, it is not available for sale

Utilising Evolution's patented multi-material cutting technology. New & improved from its 'RAGE3' predecessor, the R255SMS sliding mitre saw is optimised to cut mild steel, non-ferrous metals, wood, even wood with embedded nails and plastic with one blade. No blade changes = Faster work! Perfect for any trade & DIY enthusiast.

  • Multi-Material cutting technology. One saw, one blade, cuts all.*
  • Accurate cutting with 300mm sliding functionality, adjustable depth of cut and laser precision guidance.
  • Smooth, square, reliable cutting every time in a variety of materials.
  • Powerful 2000W hi-torque optimised gearbox and blade system increases motor and blade life to cut through a variety of materials with ease.
  • Cuts to within +/- 0.5˚ with 0° - 45° bevel tilt and 50˚ mitre both left and right to perform precise bevel, mitre and compound cutting.
  • A huge crosscut capacity enables you to trim skirting boards, cornices, boards, decking and more up to 300mm x 80mm.
  • Ambidextrous, ergonomic, horizontal trigger with comfortable grip = combats repetitive strain.
  • Compatible with Evolution's Mitre Saw Stand allows you full control to cut accurate repeated lengths on wide and long materials with ease.
  • The Evolution 255mm Diamond blade can also be fitted for cutting ceramic tiles and ornamental stone, (sold separately).
  • Japanese Tungsten-Carbide-Tipped (TCT) 255mm blade included.

Specifications
Motor (110V 50Hz): 1600W
Motor (240V 50Hz): 2000W
Speed No Load: 2500 rpm
Max. Mitre: 50° - 50°
Max. Bevel (Left): 45°
Blade Guard: Cast Aluminium
Cable Length: 2m
Dust Port Diameter: 36mm
Blade Dia.: 255mm
No. of Teeth: 24
Bore: 25.4mm
Kerf: 2mm
Max. Cross Cut (0° x 0°): 300mm x 80mm
Max. Bevel Cut (0° x 45°): 300mm x 45mm
Max. Mitre Cut (45° x 0°): 210mm x 80mm
Max. Compound Cut (45° x 45°): 210mm x 45mm
Mild Steel Plate
(Max. Thickness):
6mm
Mild Steel Box Section
(Max. Wall Thickness):
3mm
Product Dimensions: 360mm x 705mm x 730mm
Packaging Dimensions: 565mm x 365mm x 520mm
Product Weight: 15.3 kg
Packaged Weight: 17.6 kg
Sound Pressure Level LPA: 95,8dB(A)
K:3dB(A)
Sound Power Level LWA: 108,8dB(A)
K=3 dB(A)
Items Included
24T Multi-Material TCT Blade
Hex Key (Blade Change)
Machine Table Extensions
Rotary Table And Neck
Cutting Head
Carriage Slides
Mitre Locking Knob
Mains Cable Guide/Clamp
Self Tapping Cap Screw
Socket Headed Screws
Cable Clamp Component
Laser Lens Cap
Double Ended Cable Clip
2pc Hold Down Clamp
Compatible With
255mm Multi-Material Cutting TCT Blade
255mm Diamond Masonry Cutting Blade
255mm Wood Cutting Blade
Mitre Saw Stand
Where To Buy
3-Year Guarantee
Evolution Power Tools 3 Year Warranty

This tool is covered with Evolution's 3-year warranty

Summary
  • All Evolution single circular blade saws and magnetic drills are covered with 3 year warranty. All other Evolution power tools are covered with 2 year warranty.
  • Refurbished power tools by Evolution come with a 90 day warranty.
  • This warranty does not cover blades, accessories, Evolution branded clothing and spare parts.
  • Please keep your proof of purchase / delivery.
  • If you buy direct from Evolution your product warranty is automatically registered with us.
  • If you purchased your Evoluton product elsewhere you can register your product warranty with us.
  • The warranty becomes effective at the date of purchase (or the date of delivery if this is later).
  • You must provide proof of delivery / purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
  • All work will be carried out by Evolution.
  • Any parts which are replaced will become the property of Evolution.
  • The repair or replacement of your machine under warranty will not extend the period of warranty.
  • Evolution Power Tools reserves the right to optionally repair or replace it with the same or equivalent item.
  • This warranty statement provides benefits which are additional to and do not affect your statutory rights as a consumer.
What is covered?

The repair or replacement of your machine (at Evolution’s discretion), if your machine is found to be defective due to faulty materials, workmanship or function within the warranty period (if any part is no longer available or out of manufacture, Evolution will replace it with a functional replacement part).

What is not covered?

Evolution does not warrant the repair or replacement of a product when the following has occurred;

  • Normal wear and tear (eg. Fuse, Fluids / Lubricants, Blades, Consumable, etc.)
  • Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the machine which is not in use with Evolution’s user guide.
  • Lack of servicing.
  • Use of parts not assembled or installed in accordance with the instructions of Evolution.
  • Use of parts and accessories (including blades) which are not Evolution Genuine Components.
  • Faulty installation (except installation by Evolution).
  • Repairs or alterations carried out by parties other than Evolution.

If your Evolution power tool requires attention from our engineers, we aim to have it collected & repaired within 7-10 working days.
If you are not completely satisfied with the performance of your product, simply contact us. To speed up the process, remember to have your receipt, invoice or order reference number plus your product’s serial number found on the product’s motor label.
No officer, employee or agent of Evolution Power Tools is authorised to make oral representations of fitness or to waive any of the foregoing terms of sale and none shall be binding on Evolution Power Tools. Questions relating to this limited warranty should be directed to the company's head office, or call the appropriate Helpline number. In no event shall Evolution Power Tools be liable for loss or damage resulting directly or indirectly from the use of our merchandise or from any other cause. Evolution Power Tools is not liable for any costs incurred on such goods or consequential damages.
