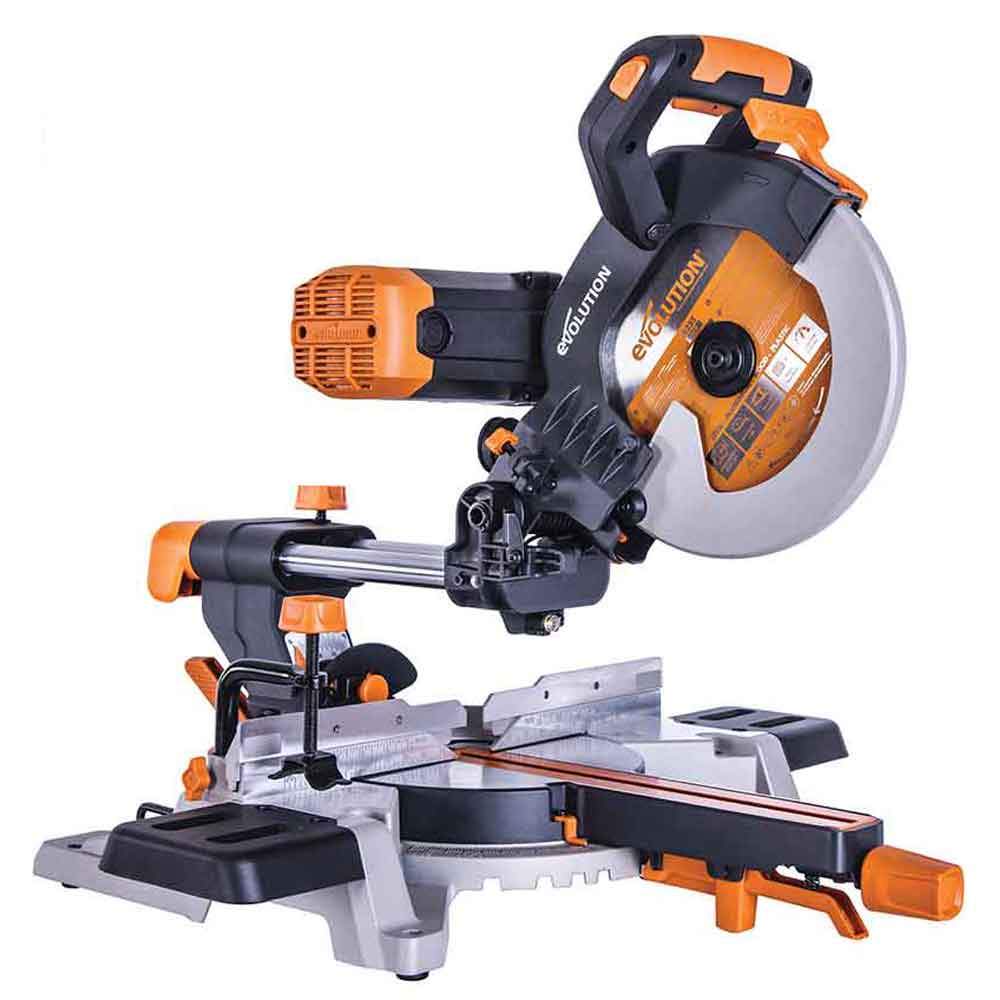

SKU: 053-0001
Power Supply: | Corded |
Max. Cross Cut: | 300 x 90mm |
Max. Bevel Cut: | 300 x 52mm (Left), 34mm (Right) |

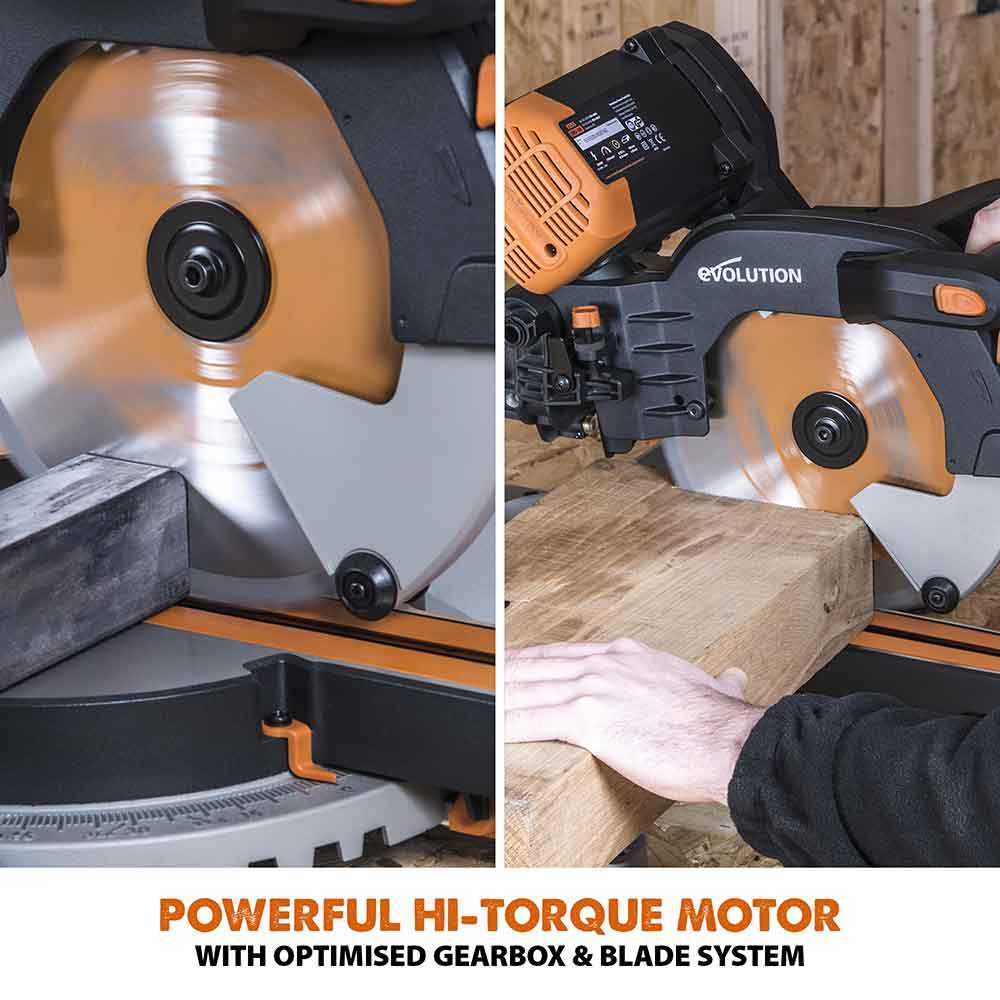

Motor (110V 50Hz): | 1600W |
Motor (240V 50Hz): | 2000W |
Speed No Load: | 2600 min-1 |

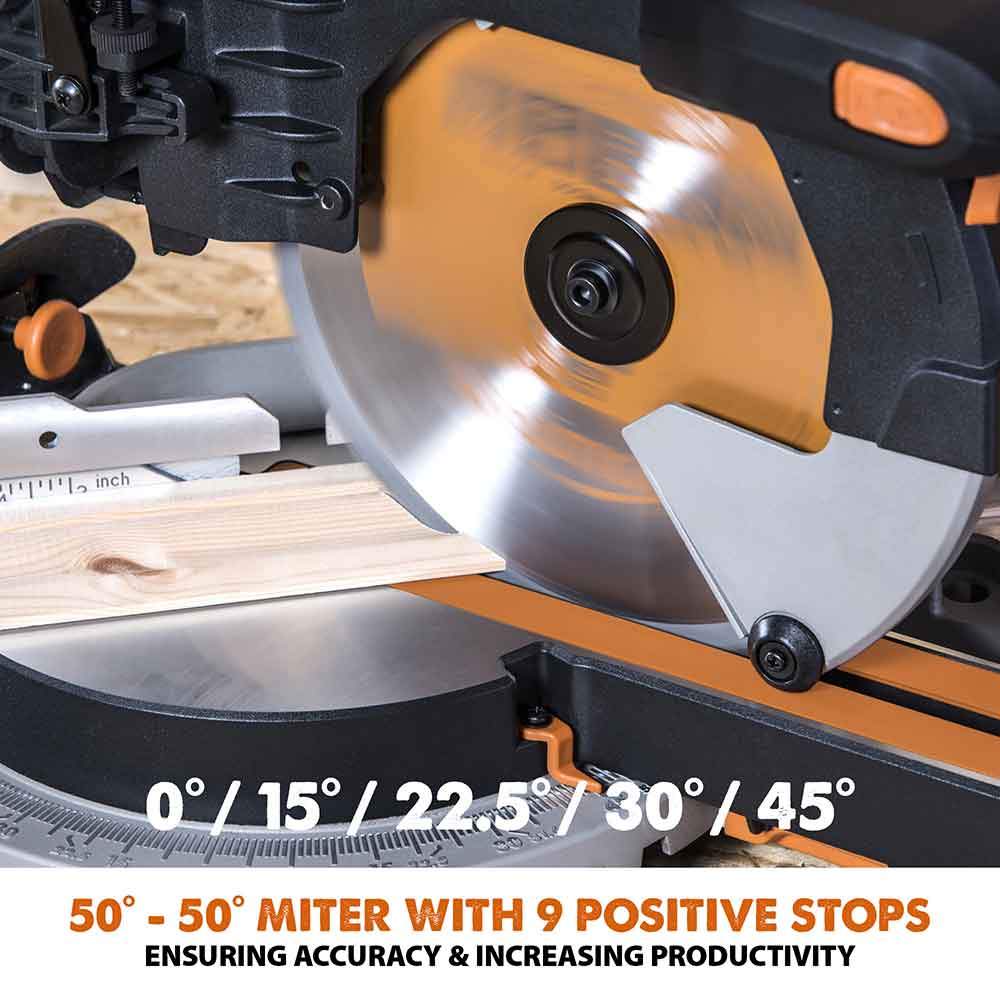

Max. Mitre: | 50° - 0° - 50° |

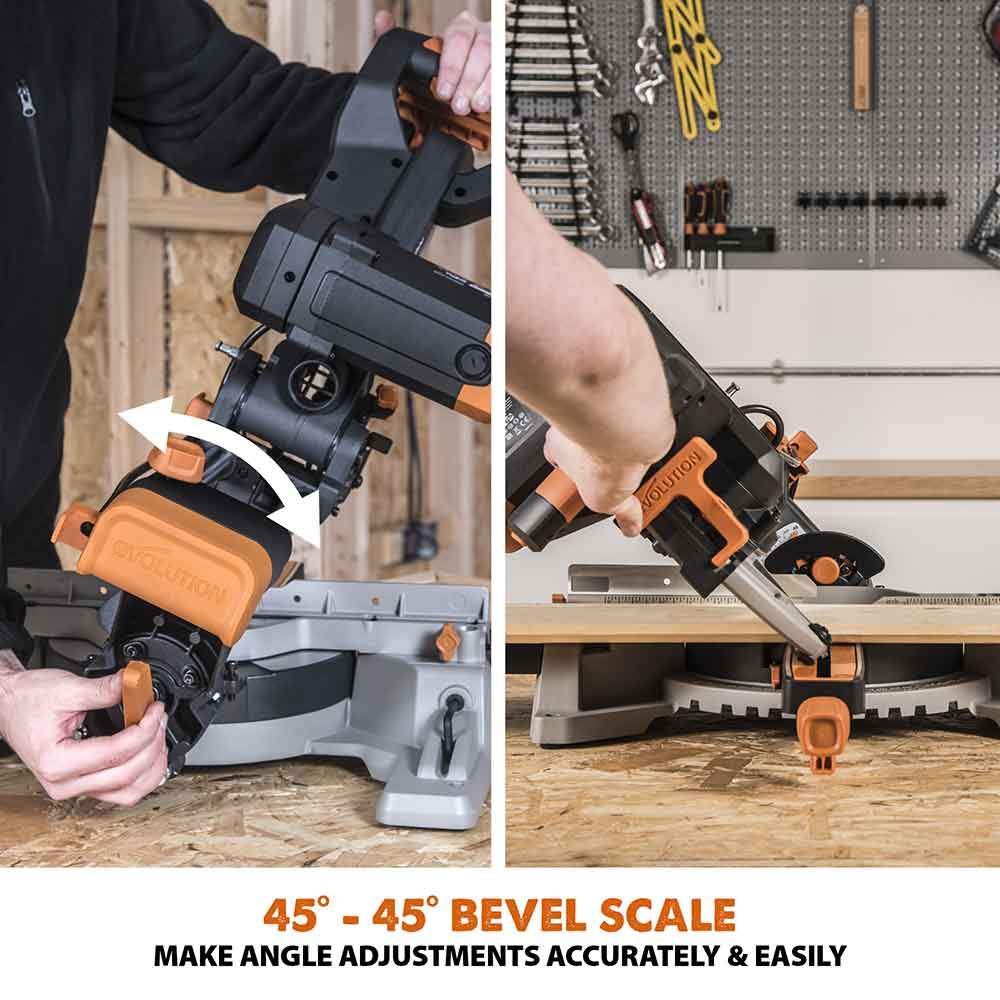

Max. Bevel (Left & Right) | 45° - 0° - 45° |
Blade Guard: | Cast Aluminium |

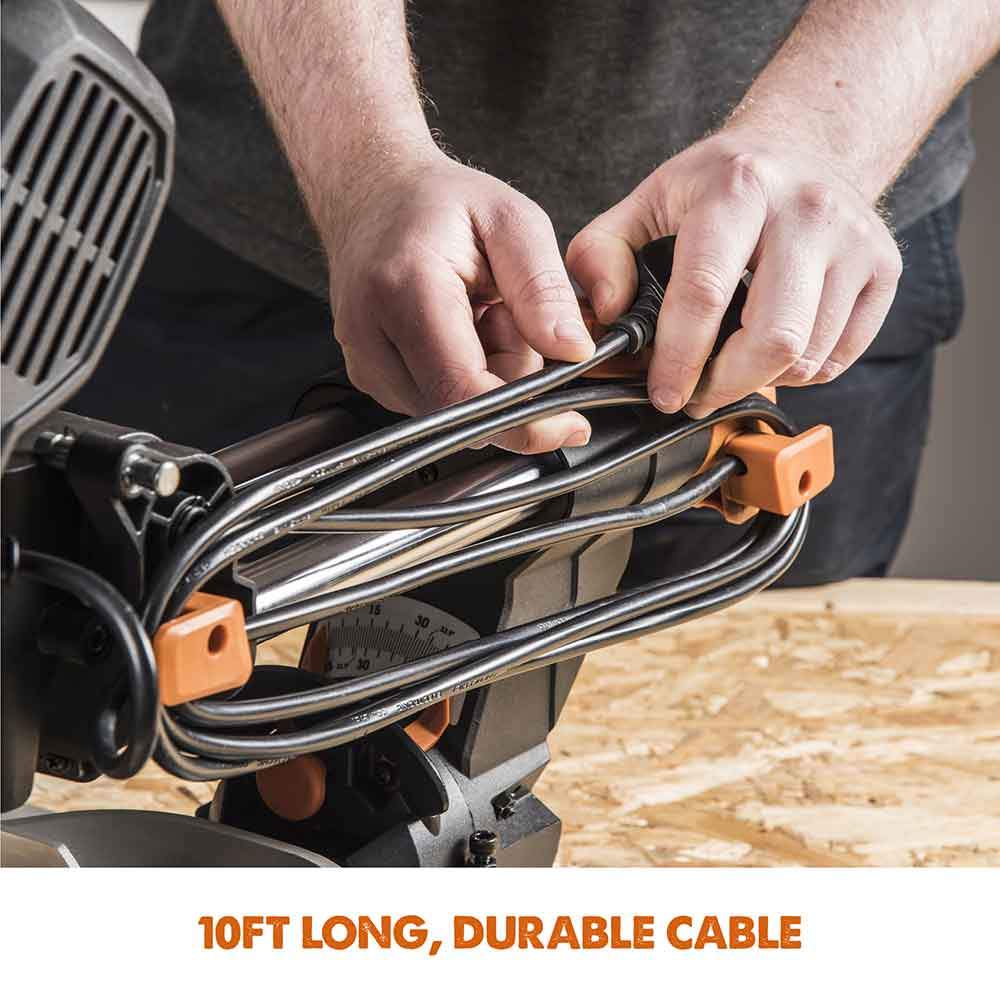

Cable Length: | 3m |
Blade Dia.: | 255mm |
No. of Teeth: | 24 |
Bore: | 25.4mm |
Kerf: | 2mm |

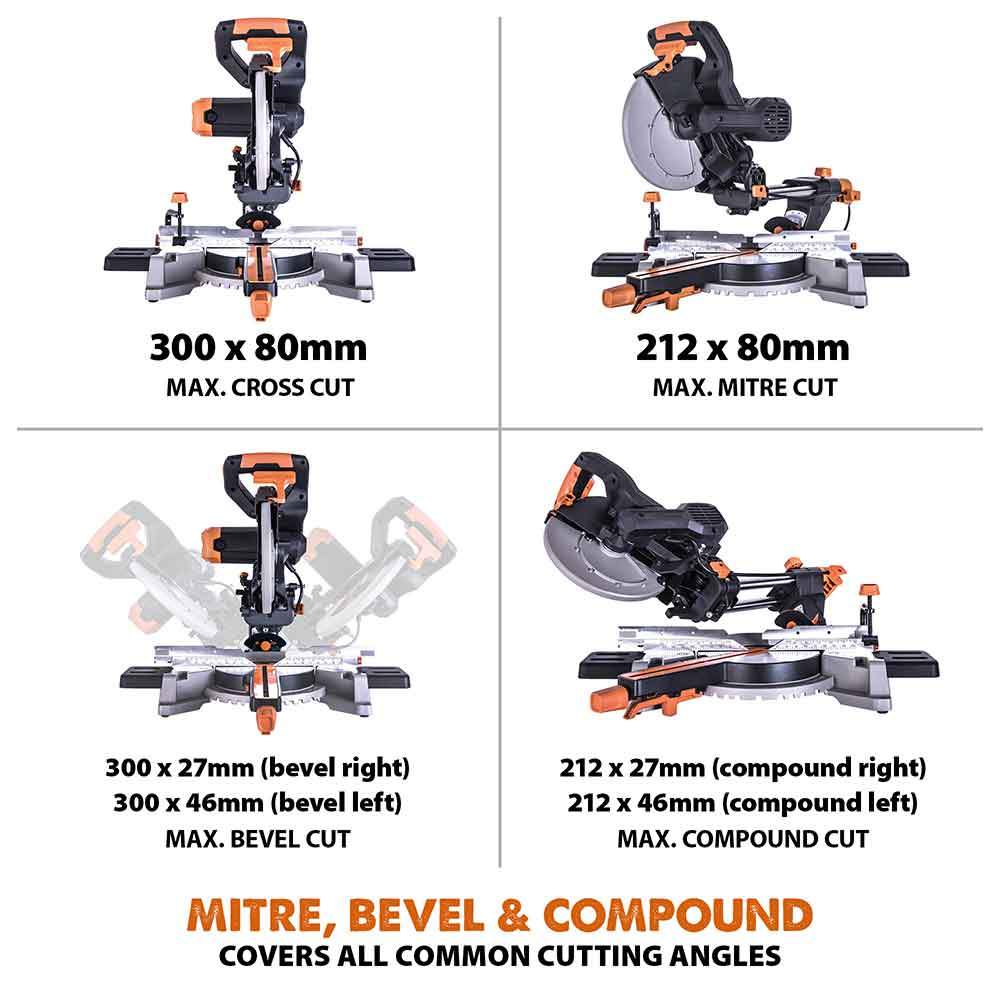

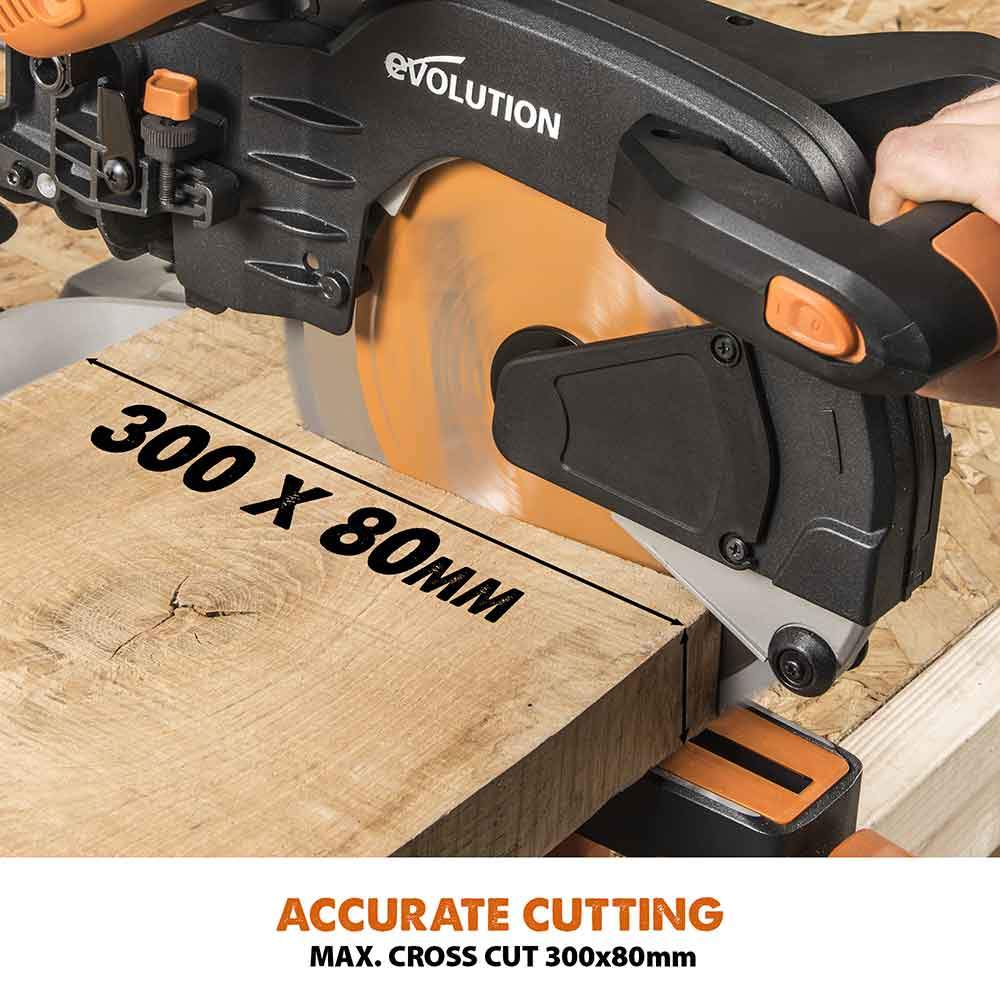

Max. Cross Cut (0° x 0°): | 300mm x 80mm |
Max. Bevel Cut (0° x 45°): | 300mm x 46mm |
Max. Mitre Cut (45° x 0°): | 212mm x 80mm |
Max. Compound Cut (45° x 45°): | 212mm x 46mm |

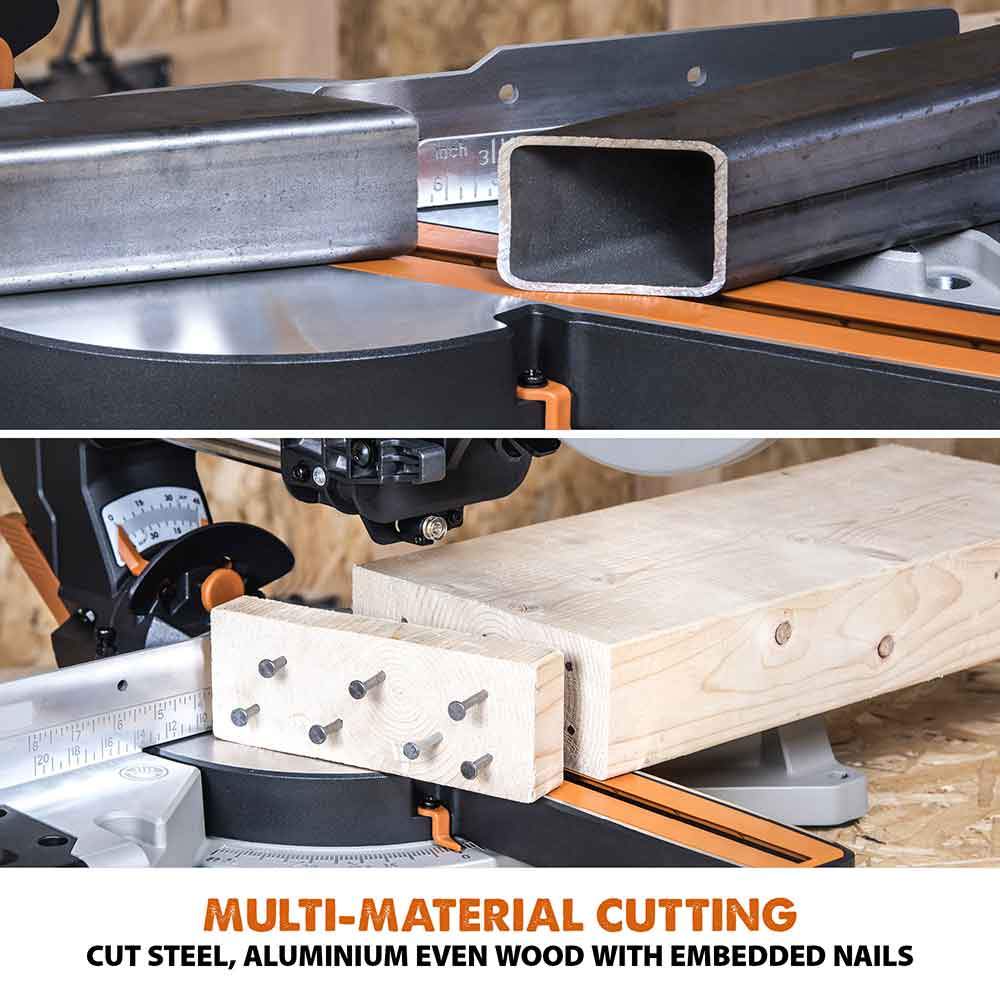

Mild Steel Plate (Max. Thickness): | 6mm |

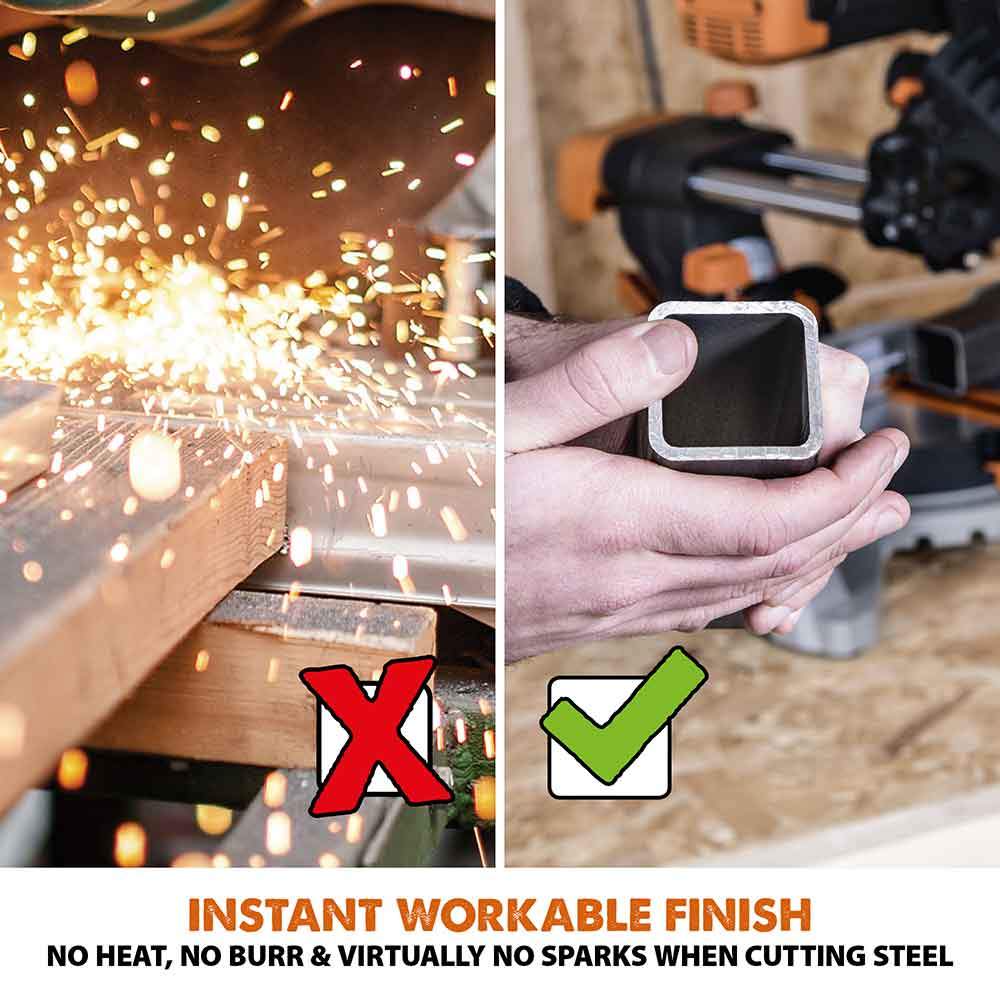

Mild Steel Box Section (Max. Wall Thickness): | 3mm |
Product Dimensions: | 740mm x 705mm x 460mm |
Packaging Dimensions: | 570mm x 545mm x 385mm |
Product Weight: | 17.1 kg |
Packaged Weight: | 20.5 kg |
Sound Pressure Level LPA: | 110V: 96.4 dB(A) / 220-240V: 96.9dB(A) |
Sound Power Level LWA: | 110V: 109.4 dB(A) / 220-240V: 109.9dB(A) |
Uncertainty K: | KpA & KWA: K=3 dB(A) |

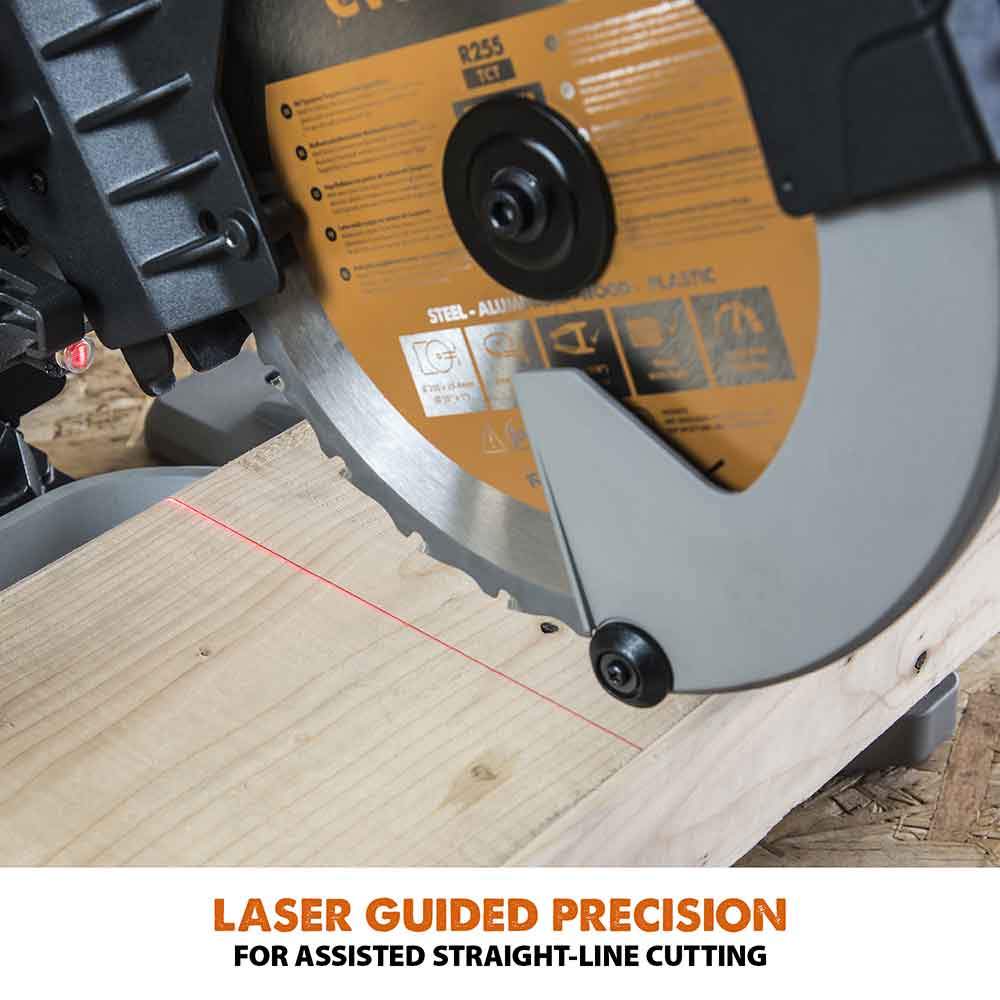

Laser Class: | Class 2 |
Laser Source: | Laser Diode |
Laser Output Power (Max): | <1mW |
Wave Length (Nm): | 650 |
Machine Table Extensions | Double Ended Hex Key (M6 & M5) |
Rotary Table And Neck | Cutting Head |
Carriage Slides | Mitre Locking Knob |
Mains Cable Guide/Clamp | Self Tapping Cap Screw |
Socket Headed Screws | Cable Clamp Component |
Laser Lens Cap | Double Ended Cable Clip |
Carry Handle | Slide Rail Protector |

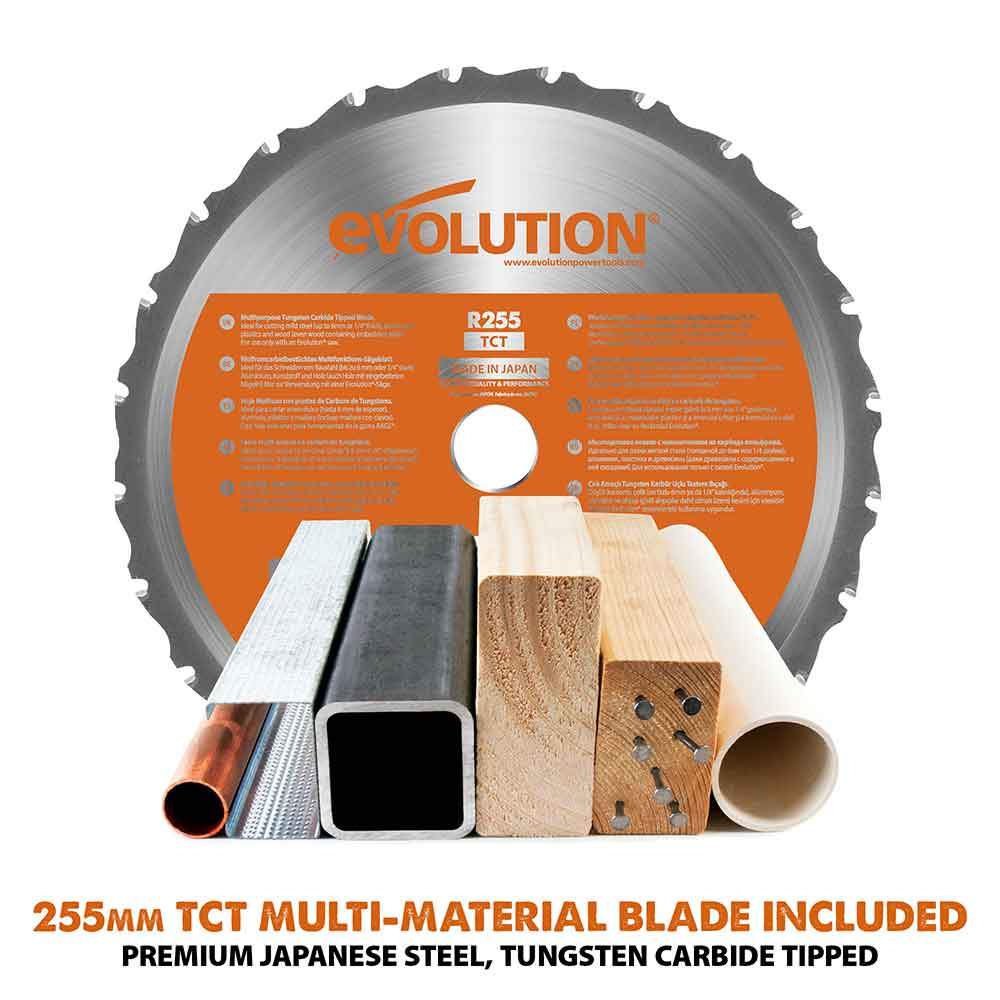

Hold Down Clamp | 255mm 24 Tooth Blade |
The repair or replacement of your machine (at Evolution’s discretion), if your machine is found to be defective due to faulty materials, workmanship or function within the warranty period (if any part is no longer available or out of manufacture, Evolution will replace it with a functional replacement part).
What is not covered?Evolution does not warrant the repair or replacement of a product when the following has occurred;
If your Evolution power tool requires attention from our engineers, we aim to have it collected & repaired within 7-10 working days.
If you are not completely satisfied with the performance of your product, simply contact us. To speed up the process, remember to have your receipt, invoice or order reference number plus your product’s serial number found on the product’s motor label.
No officer, employee or agent of Evolution Power Tools is authorised to make oral representations of fitness or to waive any of the foregoing terms of sale and none shall be binding on Evolution Power Tools. Questions relating to this limited warranty should be directed to the company's head office, or call the appropriate Helpline number.
In no event shall Evolution Power Tools be liable for loss or damage resulting directly or indirectly from the use of our merchandise or from any other cause. Evolution Power Tools is not liable for any costs incurred on such goods or consequential damages.
