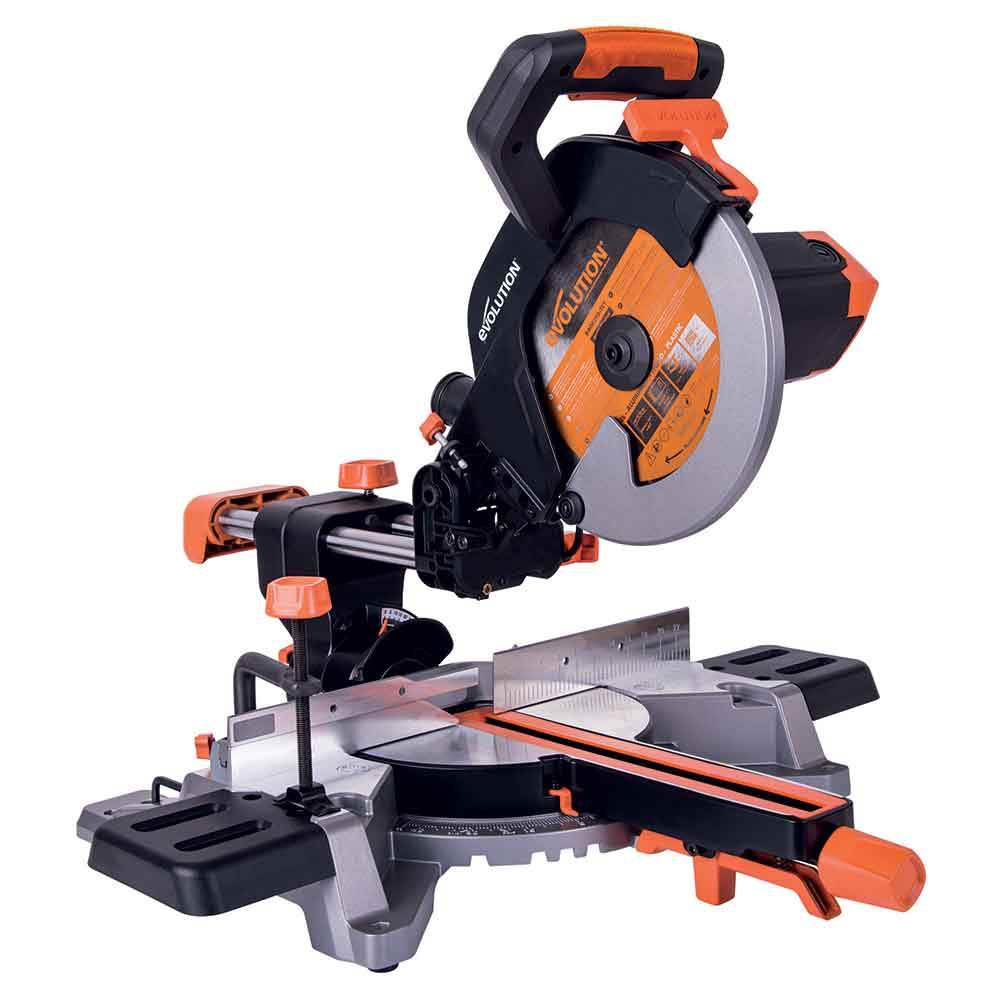

Evolution R255SMS 255mm Sliding Mitre Saw With TCT Multi-Material Cutting Blade
SKU: 052-0001
Power Supply: | Corded |
Blade Size: | 255mm |
Recommended Accessories
Description
This product is only for display purposes, it is not available for sale

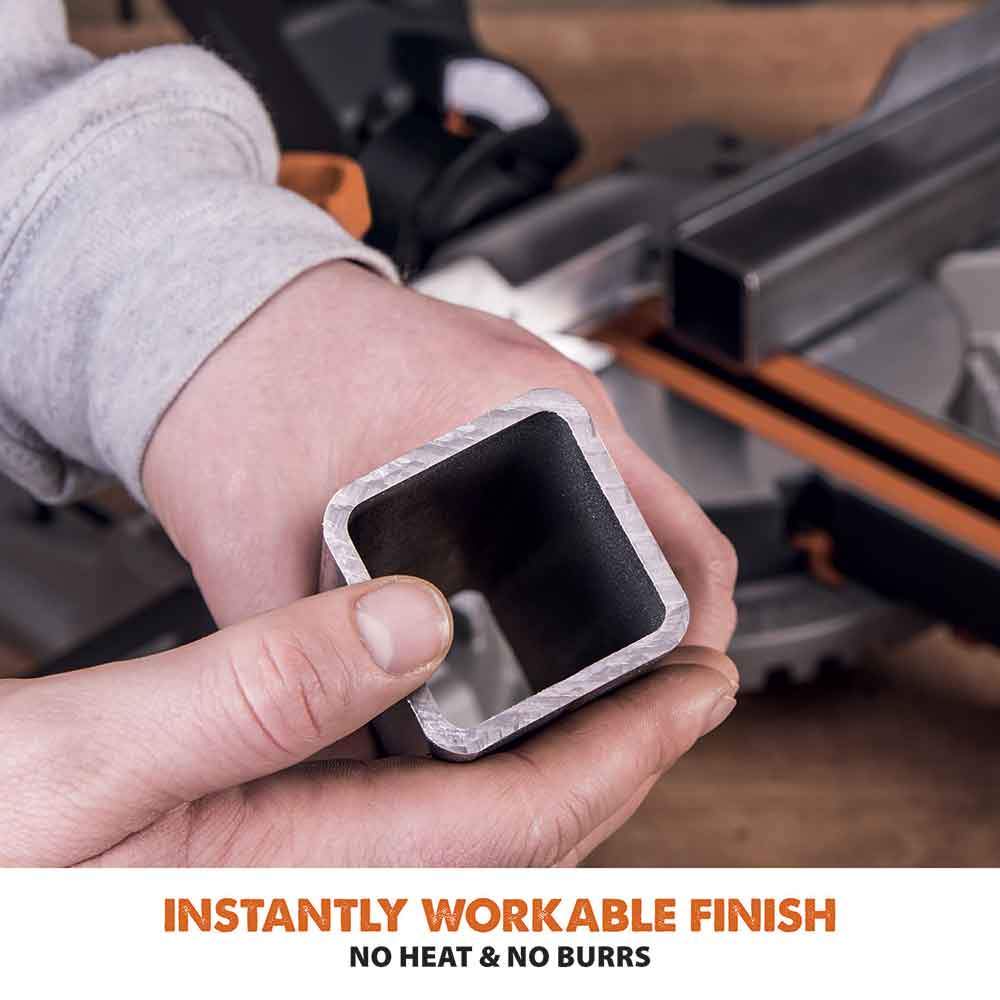

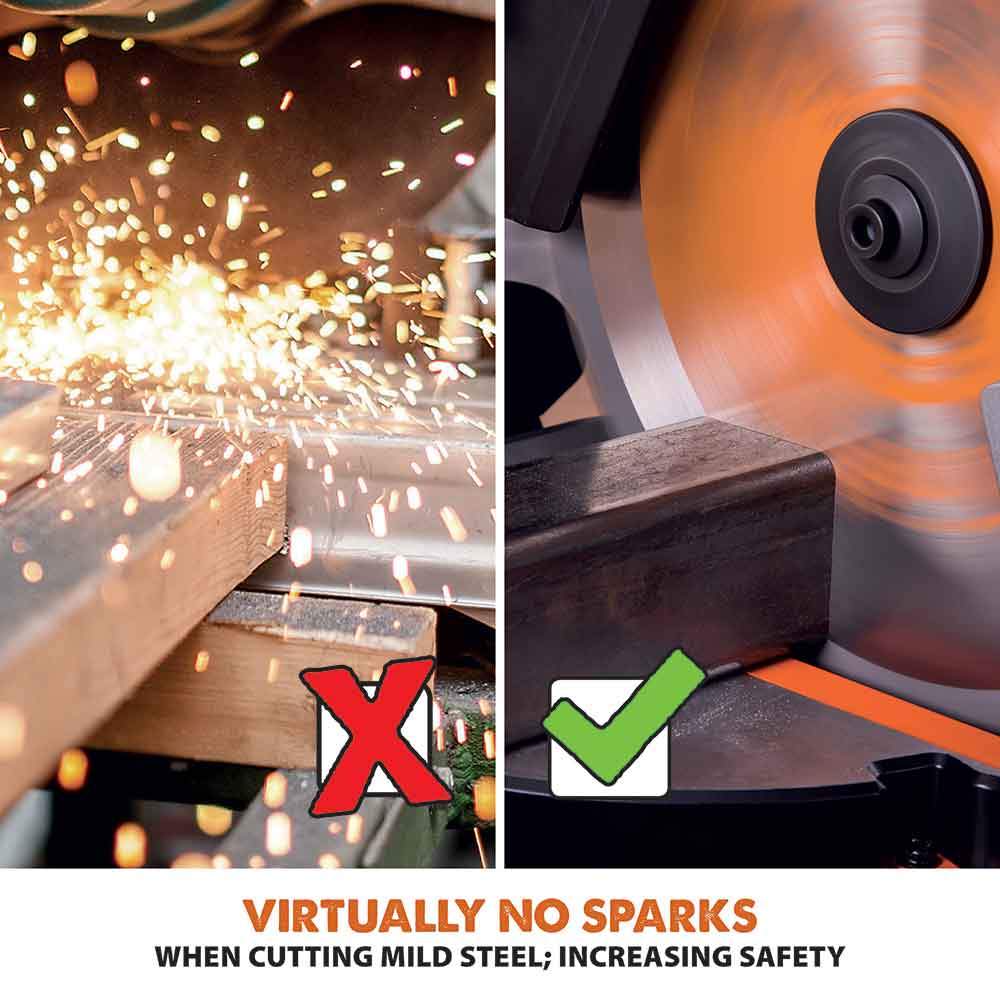

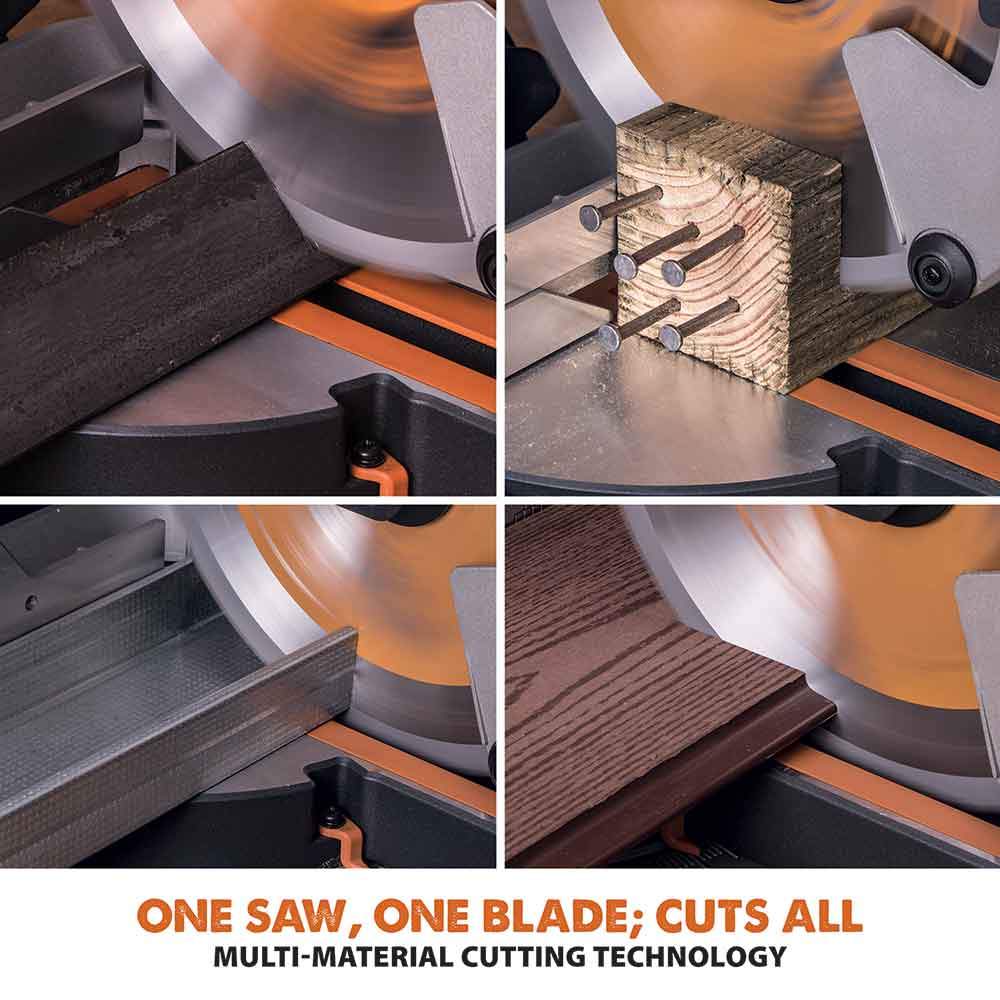

Utilising Evolution's patented multi-material cutting technology. New & improved from its 'RAGE3' predecessor, the R255SMS sliding mitre saw is optimised to cut mild steel, non-ferrous metals, wood, even wood with embedded nails and plastic with one blade. No blade changes = Faster work! Perfect for any trade & DIY enthusiast.
- Multi-Material cutting technology. One saw, one blade, cuts all.*

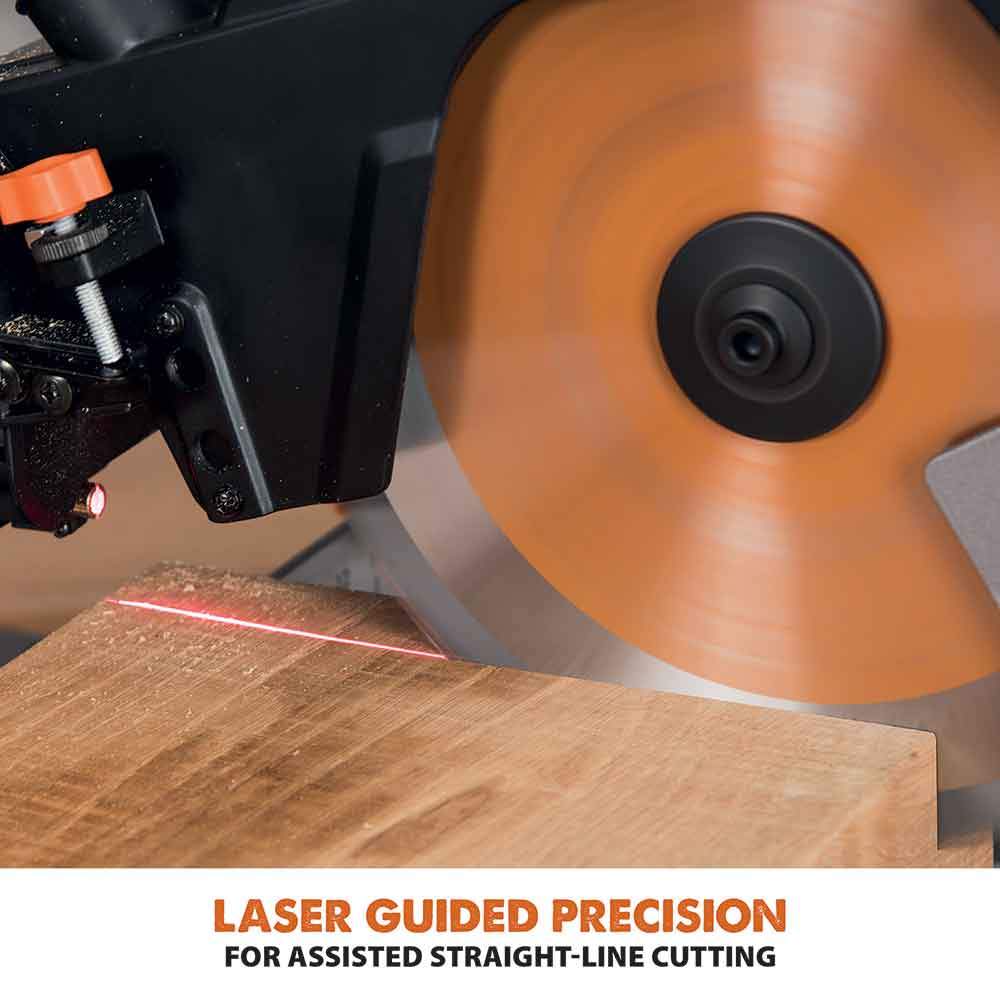

- Accurate cutting with 300mm sliding functionality, adjustable depth of cut and laser precision guidance.

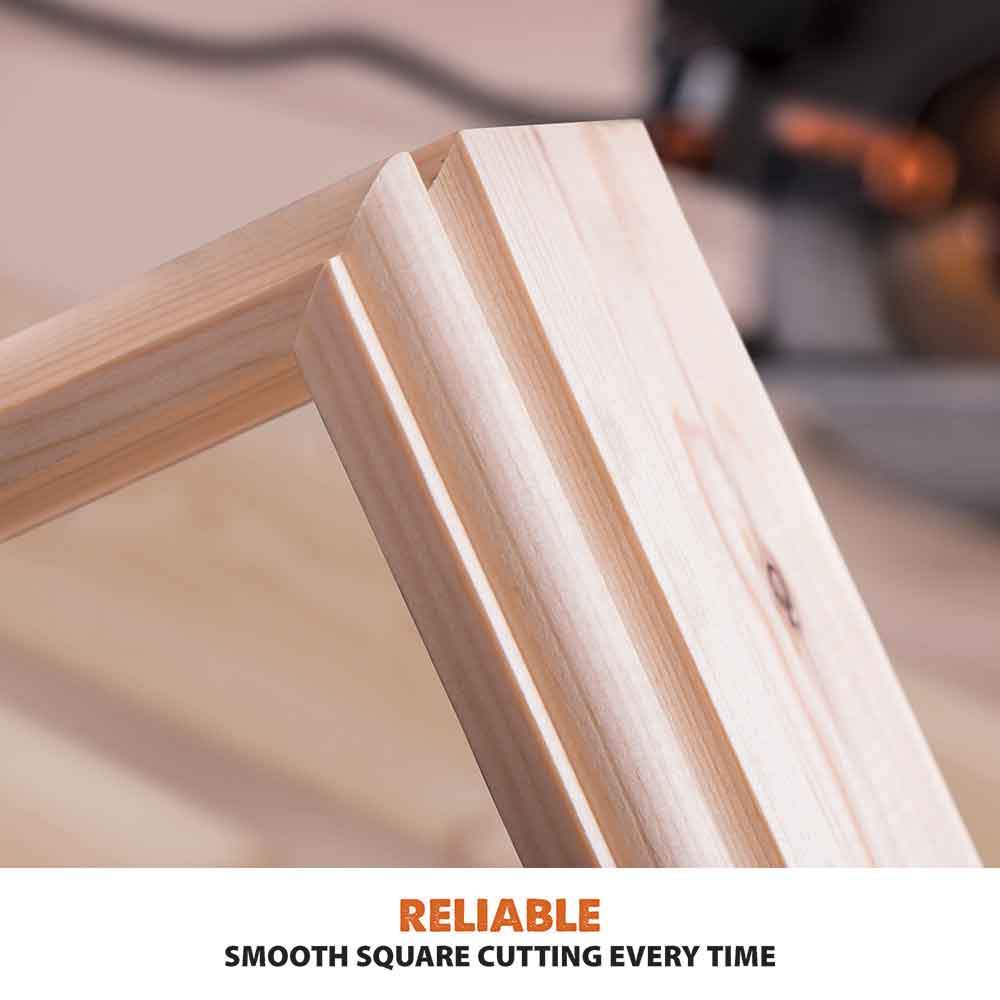

- Smooth, square, reliable cutting every time in a variety of materials.

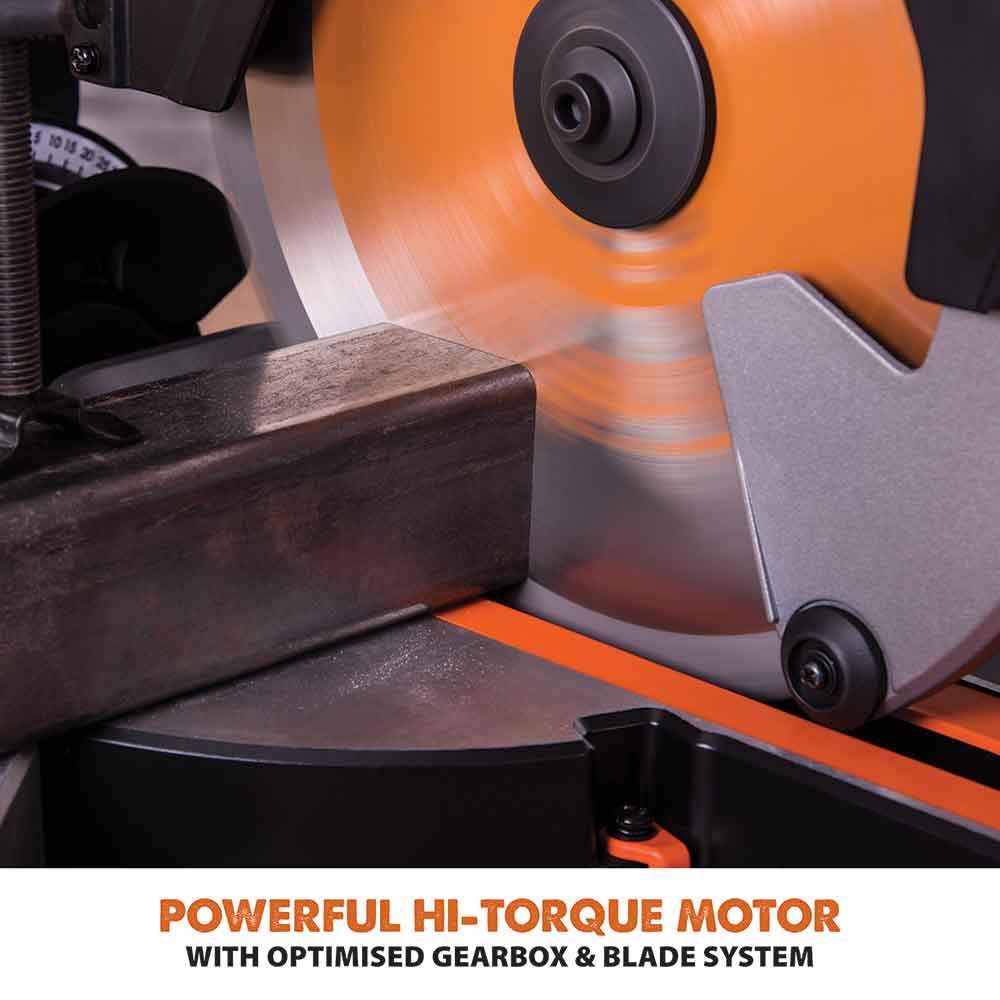

- Powerful 2000W hi-torque optimised gearbox and blade system increases motor and blade life to cut through a variety of materials with ease.

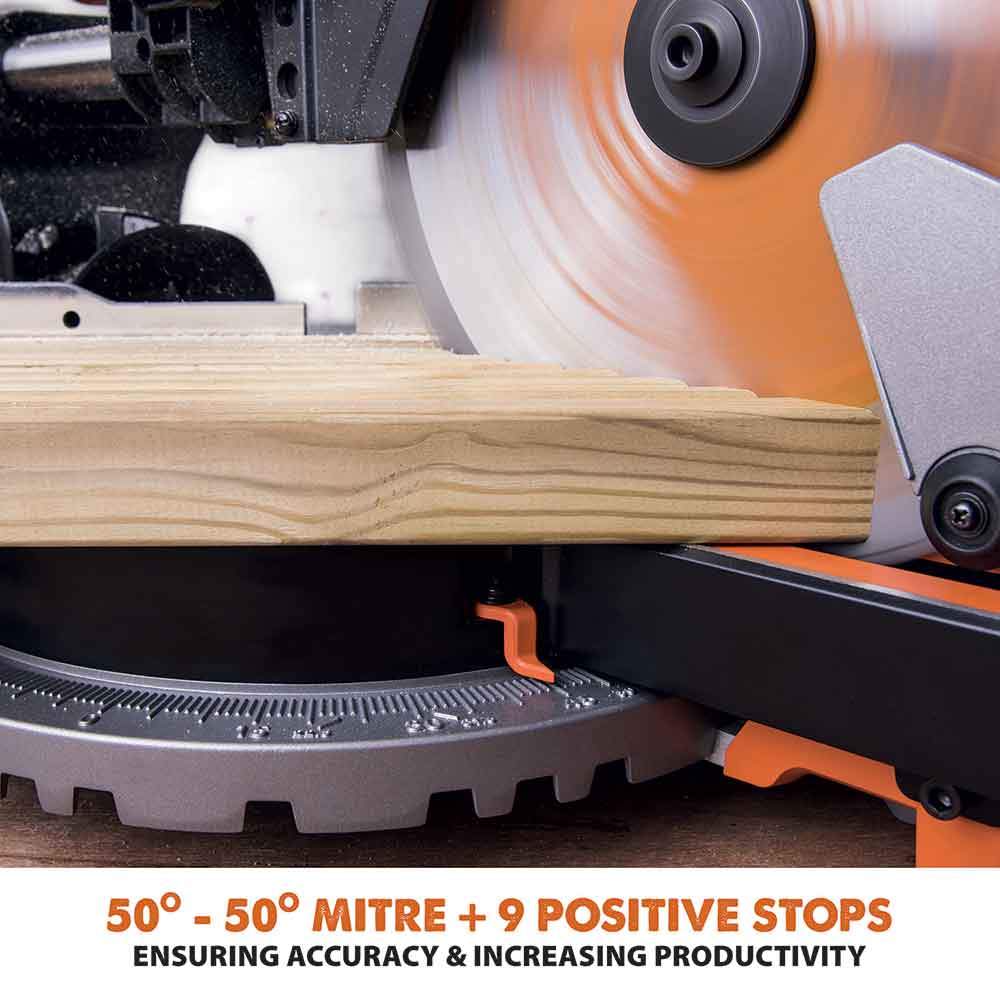

- Cuts to within +/- 0.5˚ with 0° - 45° bevel tilt and 50˚ mitre both left and right to perform precise bevel, mitre and compound cutting.

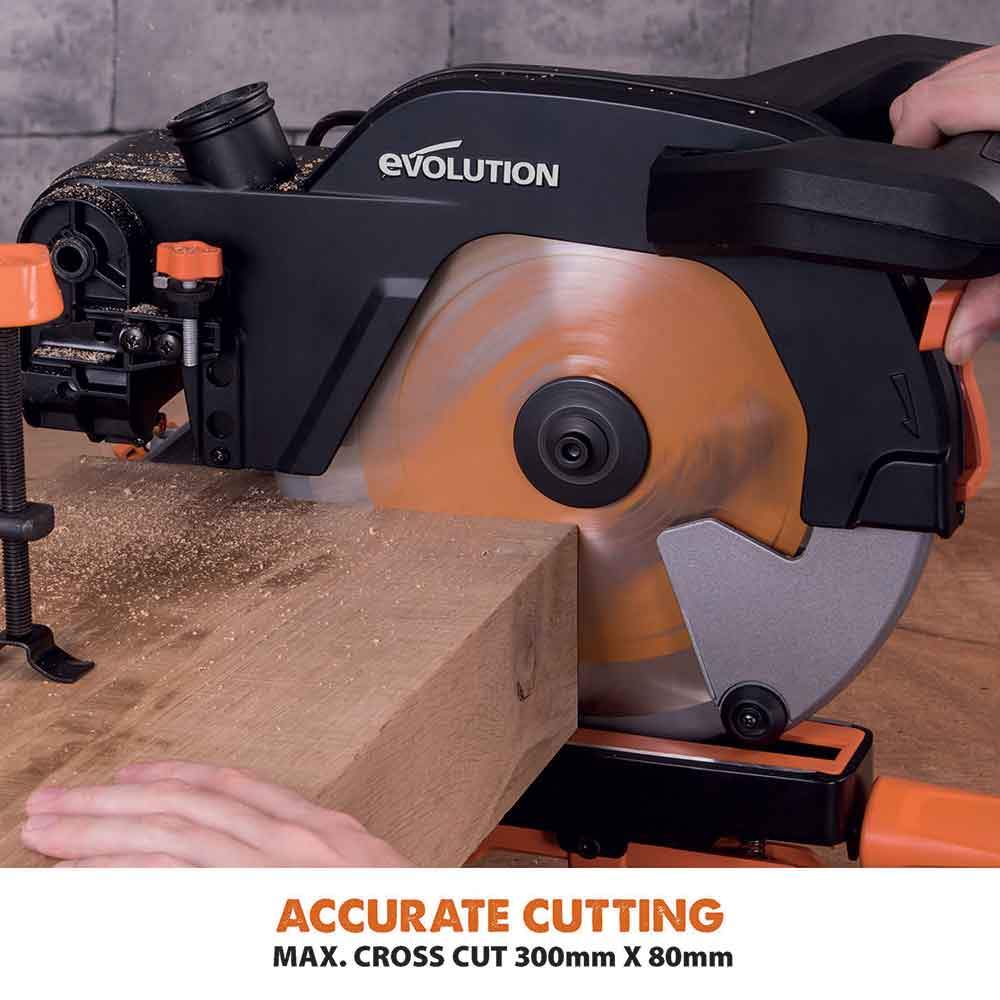

- A huge crosscut capacity enables you to trim skirting boards, cornices, boards, decking and more up to 300mm x 80mm.

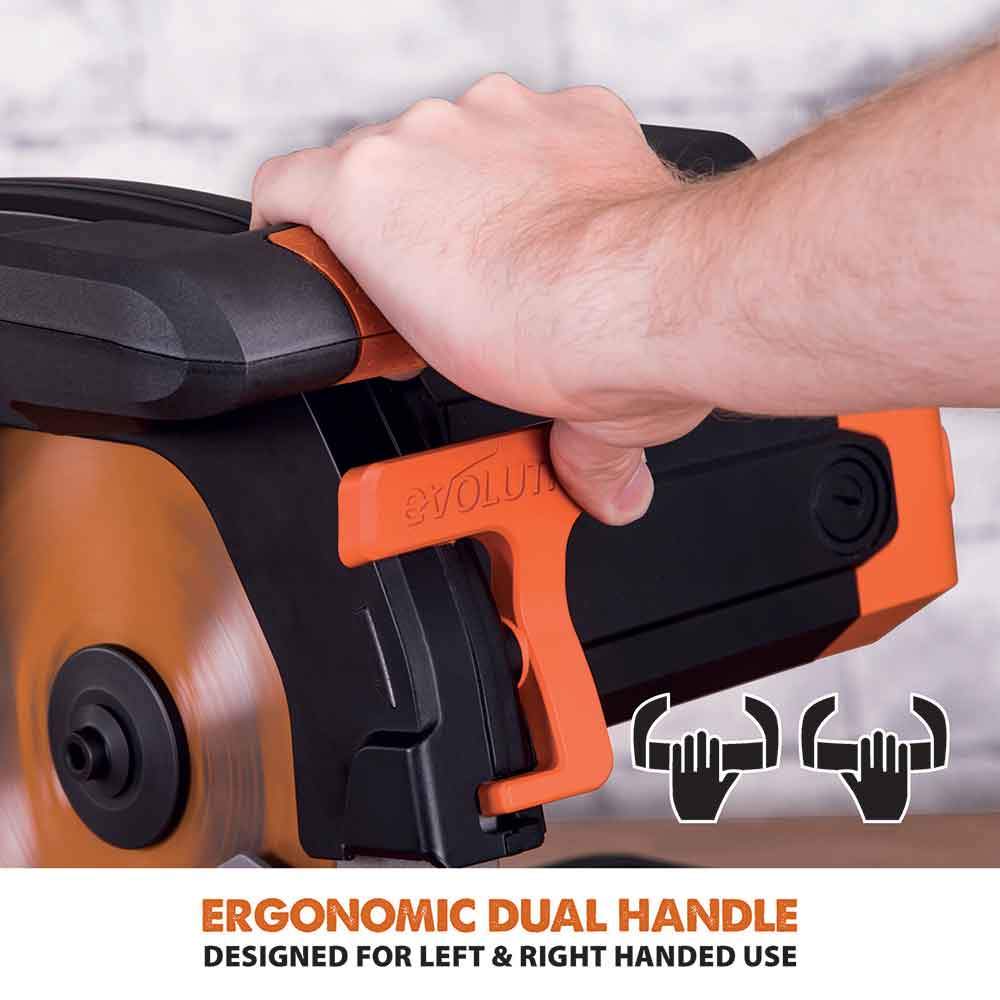

- Ambidextrous, ergonomic, horizontal trigger with comfortable grip = combats repetitive strain.

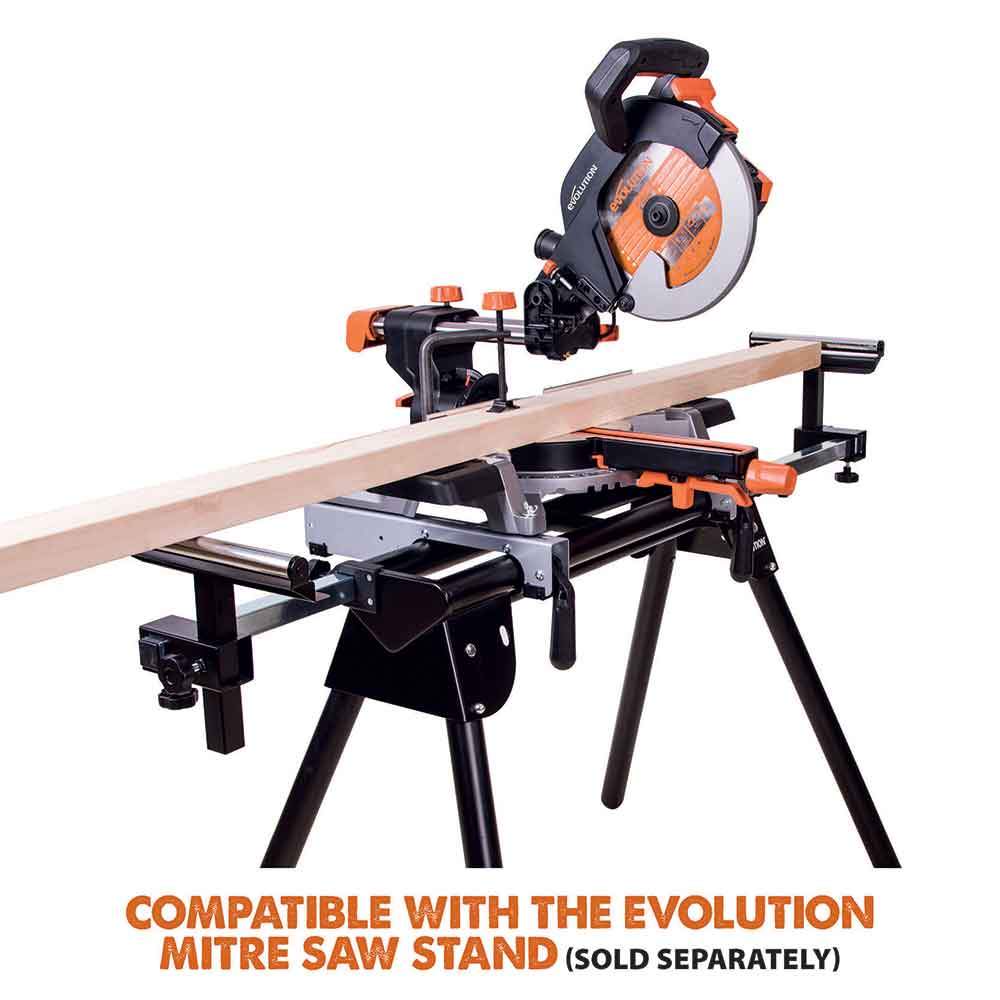

- Compatible with Evolution's Mitre Saw Stand allows you full control to cut accurate repeated lengths on wide and long materials with ease.

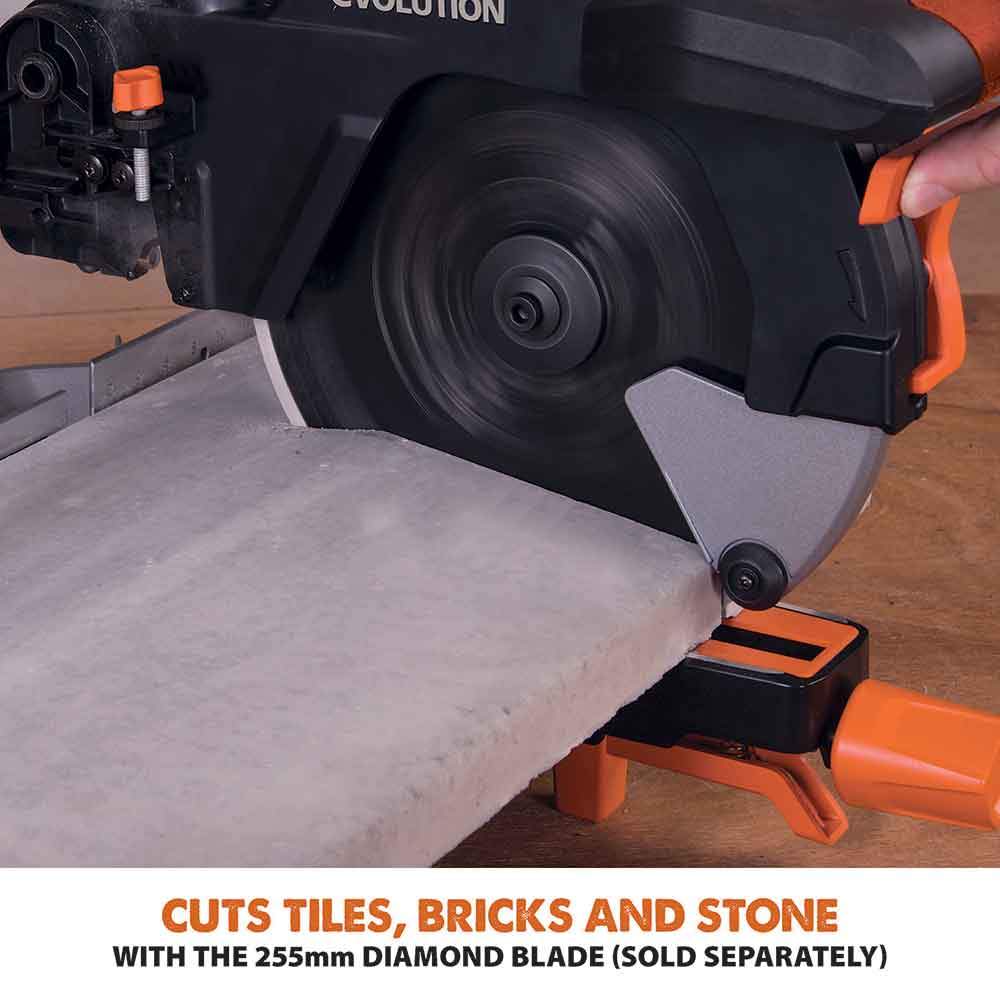

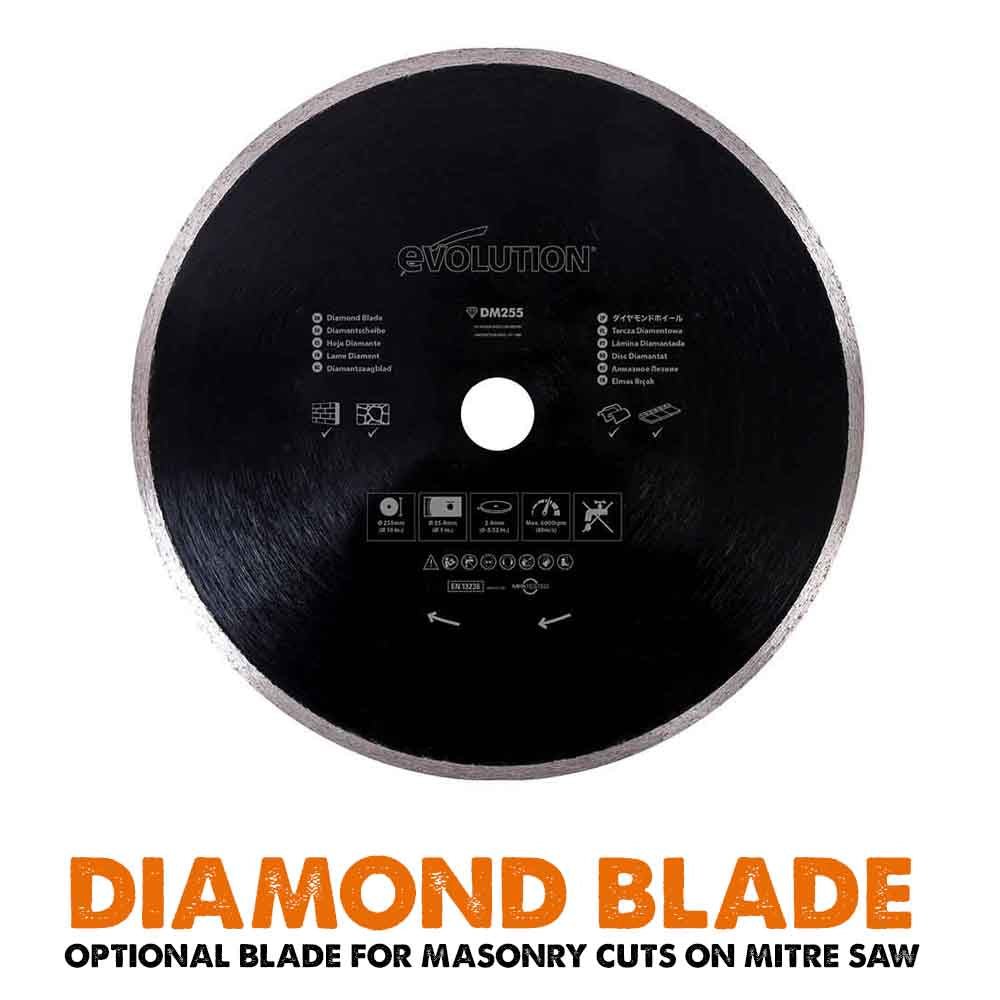

- The Evolution 255mm Diamond blade can also be fitted for cutting ceramic tiles and ornamental stone, (sold separately).

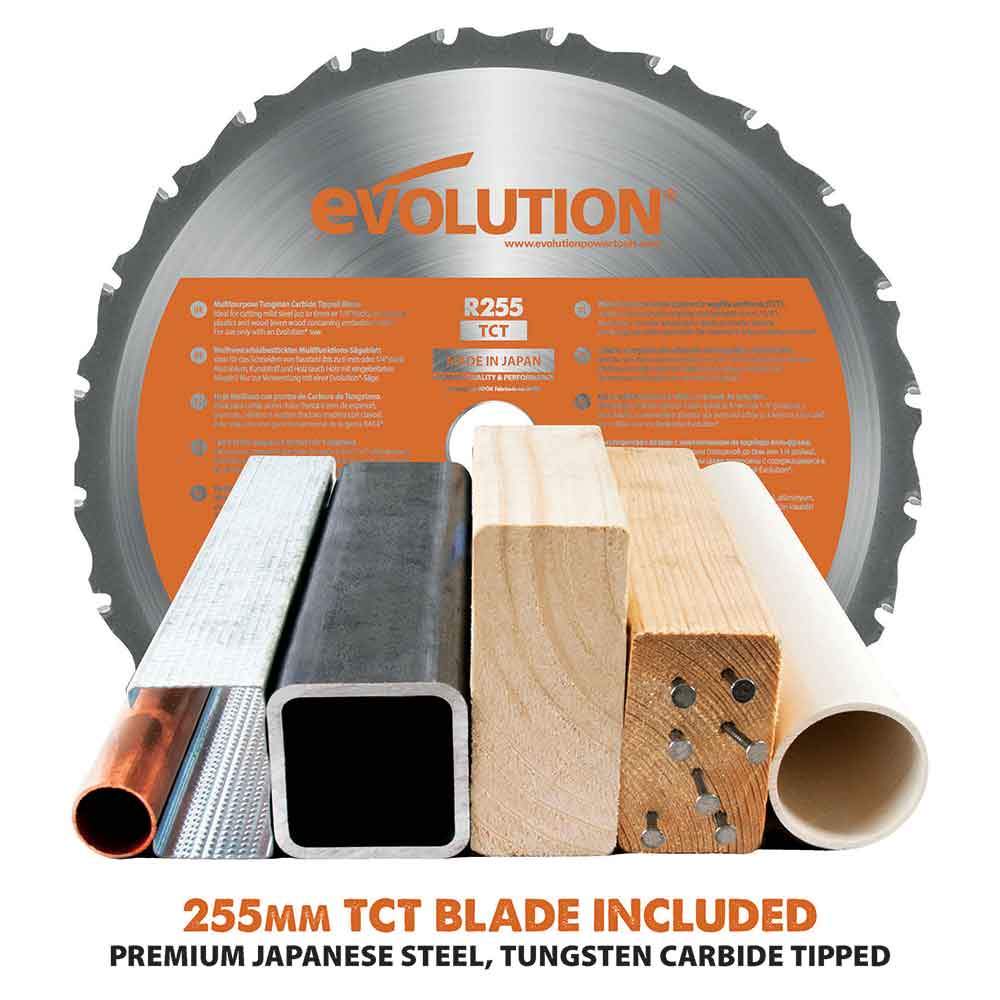

- Japanese Tungsten-Carbide-Tipped (TCT) 255mm blade included.
Specifications
Motor (110V 50Hz): | 1600W |
Motor (240V 50Hz): | 2000W |
Speed No Load: | 2500 rpm |
Max. Mitre: | 50° - 50° |
Max. Bevel (Left): | 45° |
Blade Guard: | Cast Aluminium |

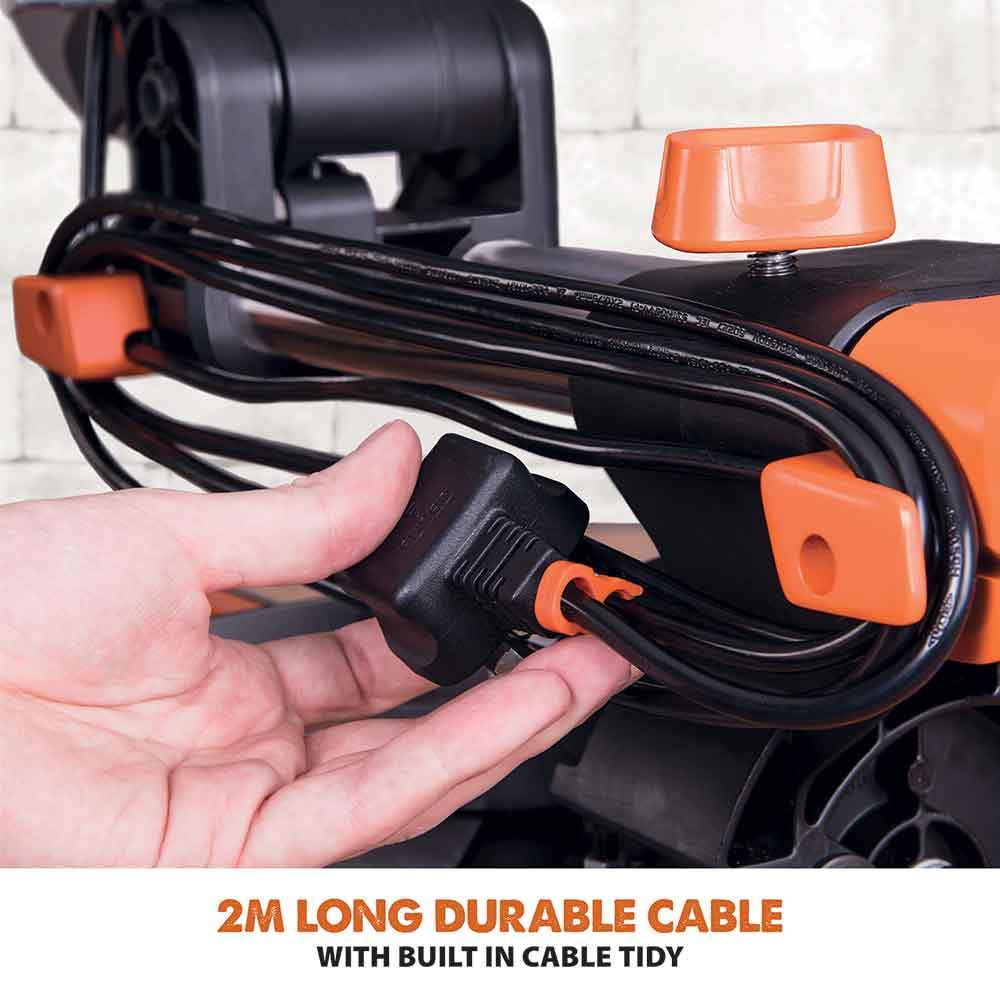

Cable Length: | 2m |

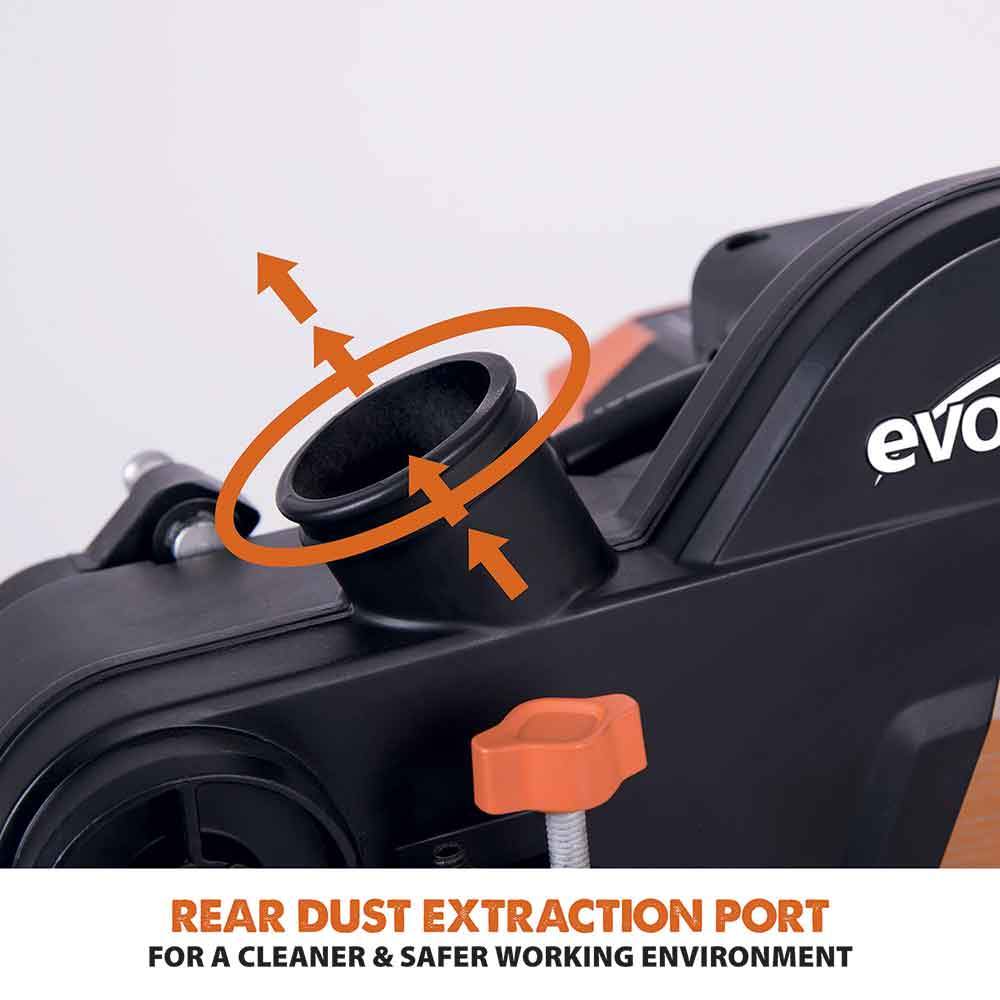

Dust Port Diameter: | 36mm |
Blade Dia.: | 255mm |
No. of Teeth: | 24 |
Bore: | 25.4mm |
Kerf: | 2mm |

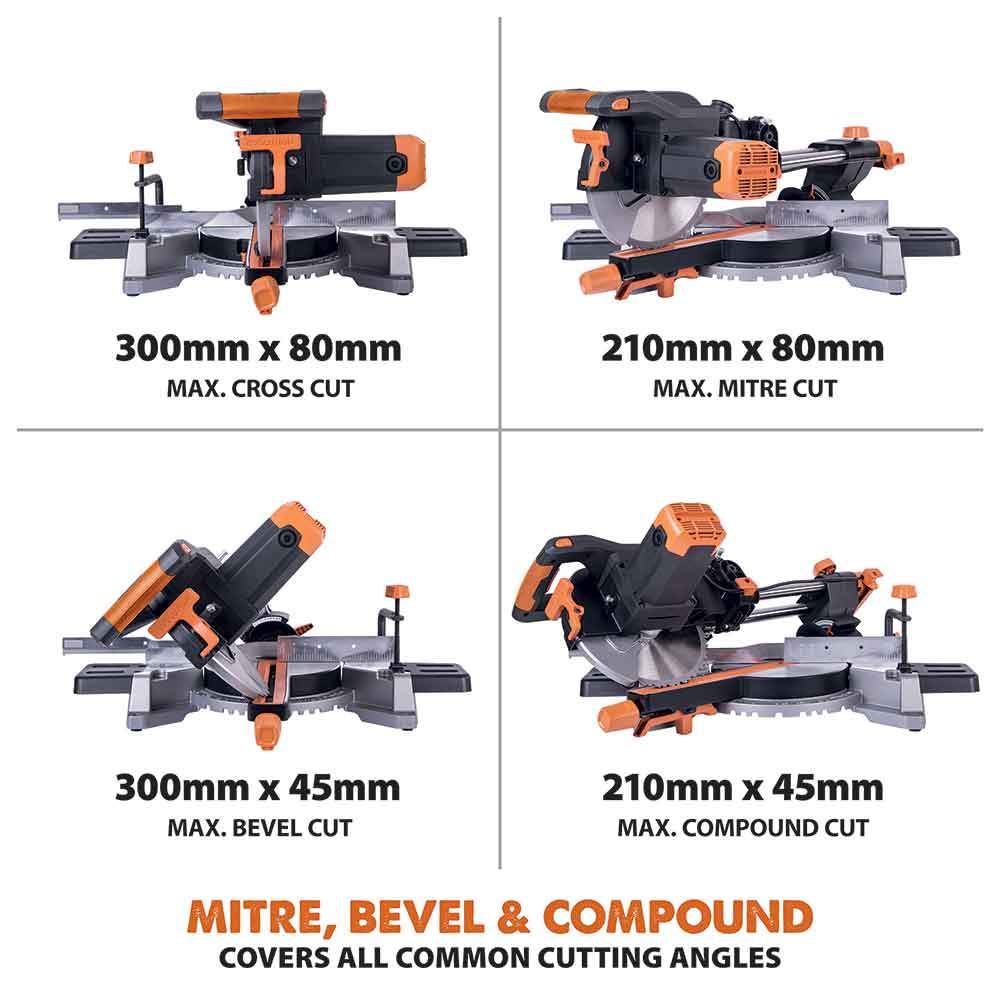

Max. Cross Cut (0° x 0°): | 300mm x 80mm |
Max. Bevel Cut (0° x 45°): | 300mm x 45mm |
Max. Mitre Cut (45° x 0°): | 210mm x 80mm |
Max. Compound Cut (45° x 45°): | 210mm x 45mm |
Mild Steel Plate (Max. Thickness): |
6mm |
Mild Steel Box Section (Max. Wall Thickness): |
3mm |
Product Dimensions: | 360mm x 705mm x 730mm |
Packaging Dimensions: | 565mm x 365mm x 520mm |
Product Weight: | 15.3 kg |
Packaged Weight: | 17.6 kg |
Sound Pressure Level LPA: | 95,8dB(A) K:3dB(A) |
Sound Power Level LWA: | 108,8dB(A) K=3 dB(A) |

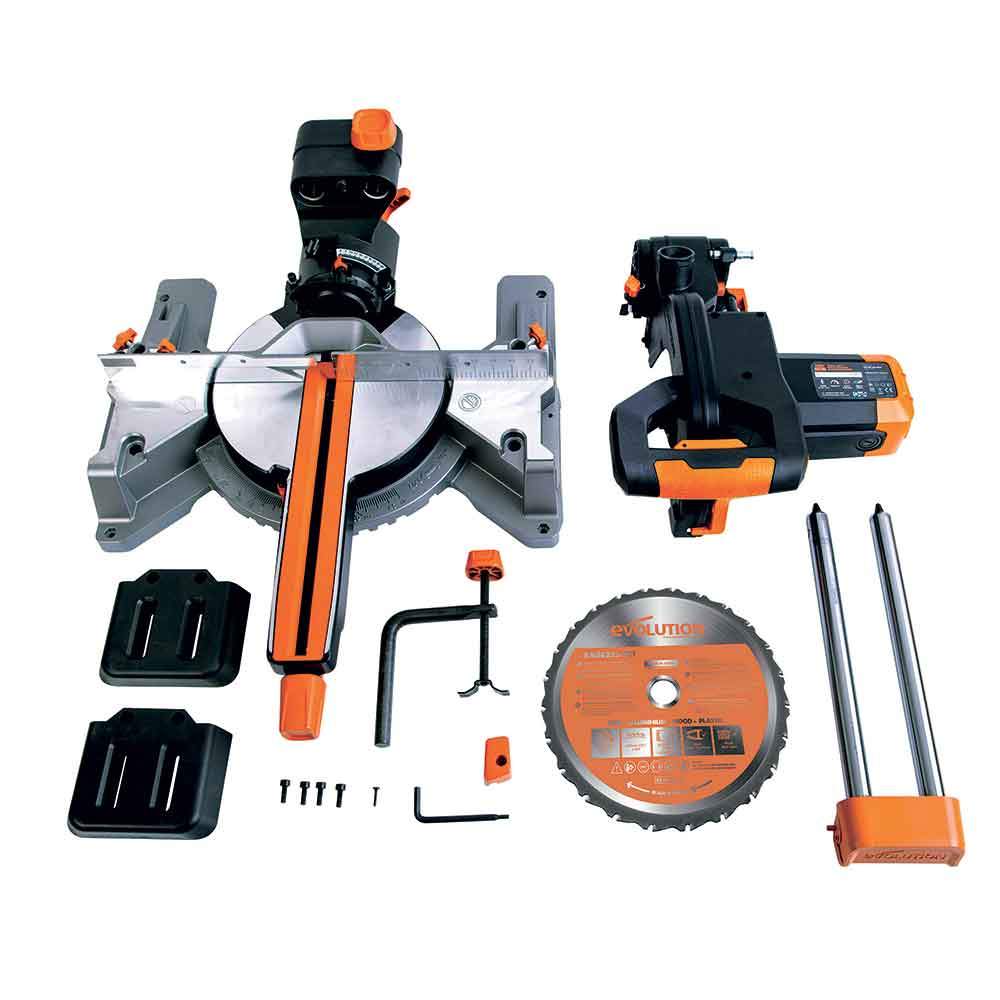

Items Included
24T Multi-Material TCT Blade |

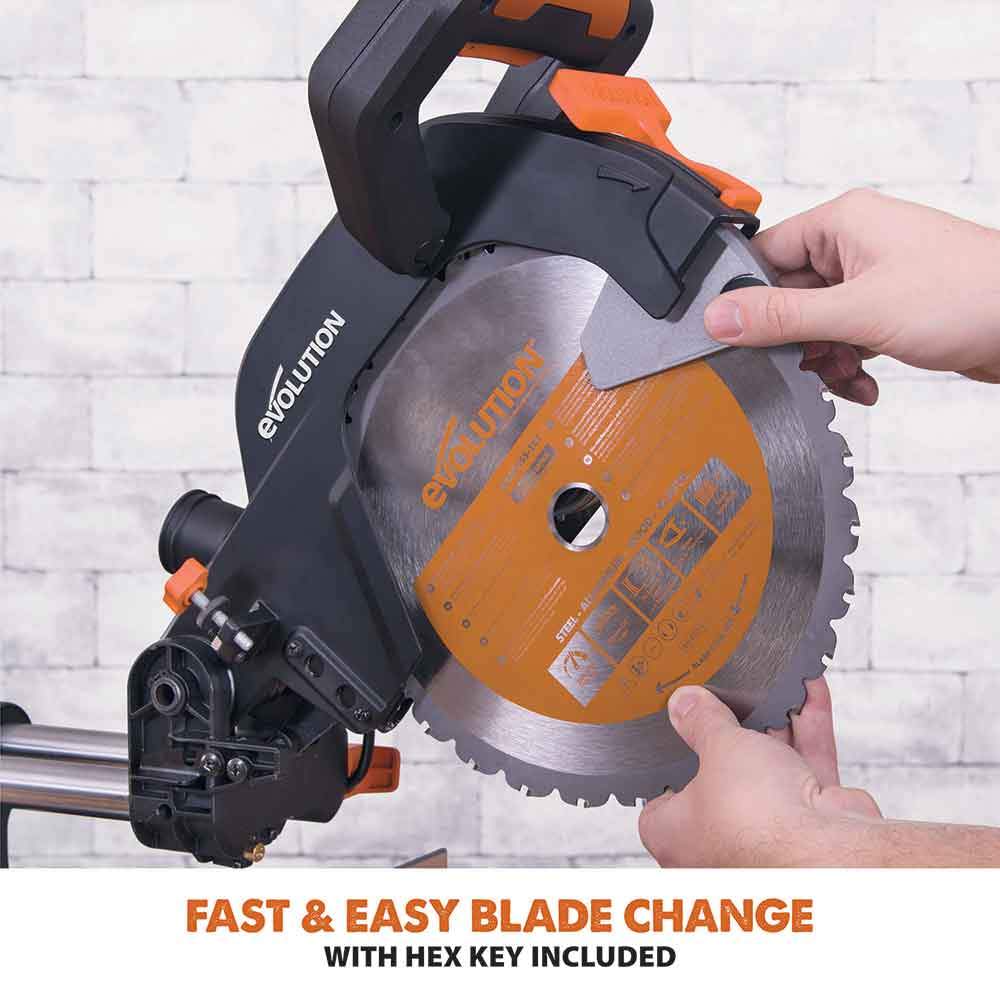

Hex Key (Blade Change) |
Machine Table Extensions |
Rotary Table And Neck |
Cutting Head |
Carriage Slides |
Mitre Locking Knob |
Mains Cable Guide/Clamp |
Self Tapping Cap Screw |
Socket Headed Screws |
Cable Clamp Component |
Laser Lens Cap |
Double Ended Cable Clip |
2pc Hold Down Clamp |
Compatible With
255mm Multi-Material Cutting TCT Blade255mm Diamond Masonry Cutting Blade
255mm Wood Cutting Blade
Mitre Saw Stand
