R255SMS-DB-Li Spare Parts (Head)

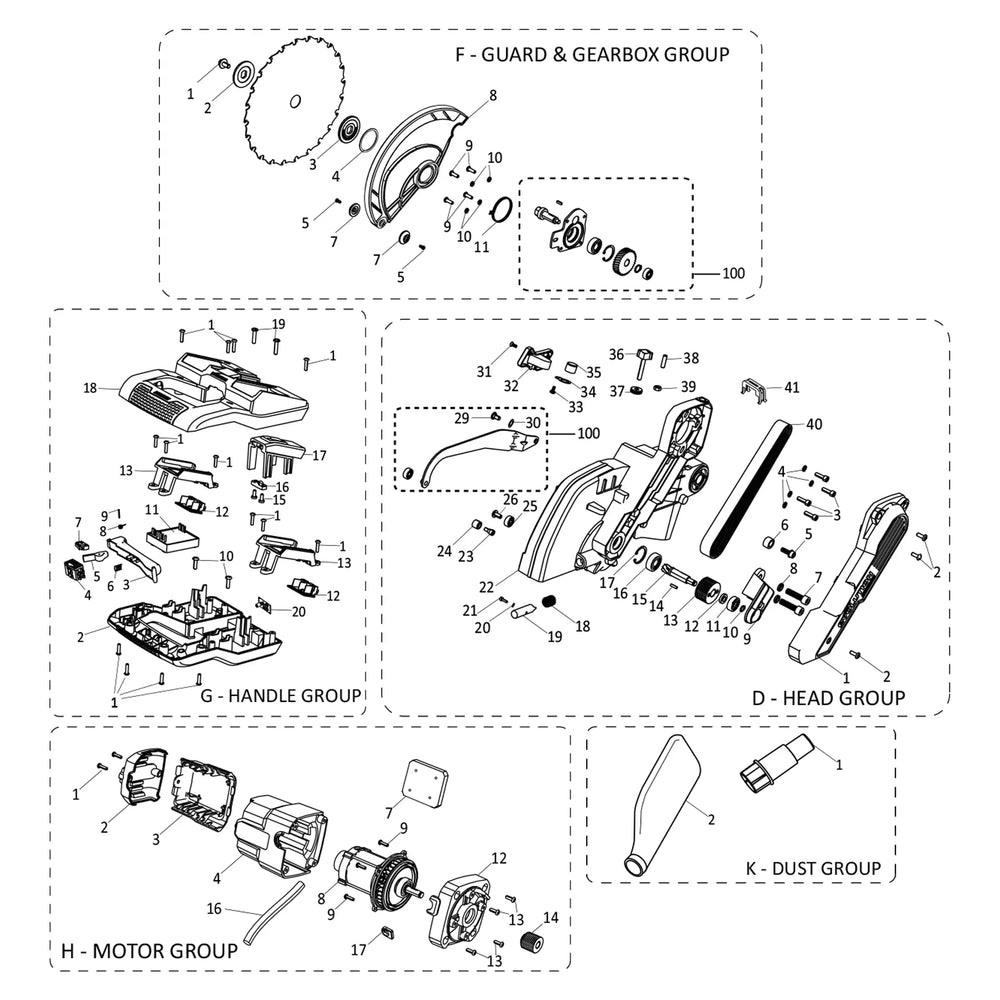

Find the part number on the diagram, and search the number from the list below.
Please enter a search term before proceeding.
D01 - BELT COVER (# 100-0161)
£7.98

Out of Stock

D02 - BUTTON HEAD SCREW M5x12 (# F-SBHS-M5-12-ST-BO)
£0.48

Out of Stock

D03 - CAP SCREW M5x16 (# F-SHCS-M5-16-ST-BO)
£1.48

In Stock

Estimated Delivery 1-2 Business Days
D04 - WASHER SPRING M5 STEEL BO (# F-SWA-M5-ST-BO)
£0.48

In Stock

Estimated Delivery 1-2 Business Days
D05 - CAP SCREW M6x16 (# F-SHCS-M6-16-ST-BO)
£0.98

8 Left In Stock

Estimated Delivery 1-2 Business Days
D06 - HEAD STOP (# 052-0251)
£0.98

10 Left In Stock

Estimated Delivery 1-2 Business Days
D07 - CAP SCREW M8x30 (# F-SHCS-M8-30-ST-BO)
£0.98

Out of Stock

D08 - WASHER SPRING M8 (# F-SWA-8-ST-BO)
£0.98

Out of Stock

D09 - INTERMEDIATE SHAFT BEARING SUPPORT (# 100-0103-2)
£4.98

Out of Stock

D10 - CIRCLIP EXTERNAL 8MM (# F-CCEXT-8-100-ST-BO)
£0.98

Out of Stock

D11 - 608 BEARING (# F-B-608-2Z)
£7.48

In Stock

Estimated Delivery 1-2 Business Days
D12 - PULLEY SPACER (# 100-0109)
£0.98

Out of Stock

D13 - PULLEY-POLY-V-J 8-GROOVE DRIVEN (# 100-0115)
£7.48

Out of Stock

D14 - WOODRUF KEY (# KEY WOODRUFF 3X3X12)
£0.98

Out of Stock

D15 - HELICAL PINION SHAFT (# 100-0112)
£4.98

Out of Stock

D16 - 6001 BEARING (# F-B-6001-2RSR)
£7.98

Out of Stock

D17 - CIRCLIP INTERNAL 28MM (# F-CCINT-28-0120-ST-BO)
£1.98

Out of Stock

D18 - BLADE LOCK PIN SPRING (# 100-0182)
£2.98

Out of Stock

D19 - BLADE LOCK PIN (# 100-0151)
£6.98

Out of Stock

D20 - WASHER SPRING M3 (# F-SWA-M3-ST-BO)
£0.48

Out of Stock

D21 - CAP SCREW M3x10 (# F-SHCS-M3-10-ST-BO)
£0.48

Out of Stock

D22 - HEAD DIE-CASTING (# 100-0103-1)
£59.98

Out of Stock

D23 - CAP SCREW M5x12 (# F-SHCS-M5-12-ST-BO)
£0.98

6 Left In Stock

Estimated Delivery 1-2 Business Days
D24 - GUARD STOP (# 100-0228)
£1.48

Out of Stock

D25 - 606 BEARING (# F-B-606-2Z)
£6.98

12 Left In Stock

Estimated Delivery 1-2 Business Days
D26 - PAN HEAD SCREW M6x12 (# F-SPHPZ-M6-12-ST-BO)
£0.98

In Stock

Estimated Delivery 1-2 Business Days
D29 - SHOULDER BOLT M6 X 8.5 - 8.0 X 3.0 (# 100-0179)
£0.98

Out of Stock

D30 - WAVE WASHER 8MM (# F-WW-8-100-ST-BO)
£0.98

Out of Stock

D31 - COUNTER SUNK SCREW M4x10 (# F-SCHPZ-M4-10-ST-BO)
£0.48

Out of Stock

D32 - LED HOLDER (# 100-0152)
£2.98

Out of Stock

D33 - SELF TAPPING SCREW 4x8 (# F-TFPX-4-8-ST-BO)
£0.48

In Stock

Estimated Delivery 1-2 Business Days
D34 - LED RETAINER (# 100-0153)
£1.98

Out of Stock

D35 - LED MODULE (# 100-0181)
£6.48

Out of Stock

D36 - TRENCH SCREW (# 052-0257)
£0.98

11 Left In Stock

Estimated Delivery 1-2 Business Days
D37 - NUT TRENCH CUT (# 052-0256)
£1.98

In Stock

Estimated Delivery 1-2 Business Days
D38 - SET SCREW FLAT POINT M6x20 (# F-SSCFP-M6-20-ST-BO)
£0.98

8 Left In Stock

Estimated Delivery 1-2 Business Days
D39 - NUT M6 (# F-NSF-M6-ST-BO)
£0.48

In Stock

Estimated Delivery 1-2 Business Days
D40 - DRIVE BELT (# 100-0110)
£19.98

Out of Stock

D41 - WIRE GUIDE (# 100-0235)
£1.98

Out of Stock

D100 - BLADE GUARD LINKAGE ASSEMBLY (# 100-0097)
£11.98

Out of Stock

F01 - ARBOR BOLT (# 052-0220)
£6.98

In Stock

Estimated Delivery 1-2 Business Days
F02 - FLANGE OUTER 45.0 (# 100-0238)
£4.98

Out of Stock

F03 - FLANGE INNER 52.0 15.875>25.4 (# 100-0241)
£6.48

Out of Stock

F04 - GUARD COIL SPRING RETAINER (# 052-0216)
£4.98

7 Left In Stock

Estimated Delivery 1-2 Business Days
F05 - SELF TAPPING SCREW 4x8 (# F-TFPX-4-8-ST-BO)
£0.48

In Stock

Estimated Delivery 1-2 Business Days
F07 - WORKPIECE ROLLER (# 052-0213)
£0.98

16 Left In Stock

Estimated Delivery 1-2 Business Days
F08 - BLADE GUARD (# 100-0104)
£18.98

Out of Stock

F09 - PAN HEAD SCREW M5x16 (# F-SPHPZ-M5-16-ST-BO)
£0.98

In Stock

Estimated Delivery 1-2 Business Days
F10 - WASHER SPRING M5 (# F-SWA-M5-ST-BO)
£0.48

In Stock

Estimated Delivery 1-2 Business Days
F11 - BLADE GUARD TORSION SPRING (# 100-0239)
£6.98

Out of Stock

F100 - GEARBOX ASSEMBLY (# 100-0099)
£36.98

Out of Stock

G01 - SELF TAPPING SCREW 4x16 (# F-TFPX-4-16-ST-BO)
£0.48

In Stock

Estimated Delivery 1-2 Business Days
G02 - HANDLE LOWER BODY (# 100-0117)
£8.98

Out of Stock

G03 - TRIGGER (# 100-0120)
£1.48

Out of Stock

G04 - POWER SWITCH (# 068-0157)
£3.98

Out of Stock

G05 - TRIGGER LOCK OFF SWITCH (# 100-0121)
£1.48

Out of Stock

G06 - SWITCH SPRING (# 100-0200)
£0.98

Out of Stock

G07 - LED MICROSWITCH (# 068-0158)
£6.48

Out of Stock

G08 - LOCK OFF TAB SPRING (# 100-0180)
£0.98

Out of Stock

G09 - TRIGGER LOCK PIN (# F-DP-3-16-22-SC)
£0.98

Out of Stock

G10 - PANHEAD SCREW M5x16 (# F-SPHPZ-M5-16-ST-BO)
£0.98

In Stock

Estimated Delivery 1-2 Business Days
G11 - BATTERY CONTROLLER PCB (# 068-0158)
£6.48

Out of Stock

G12 - BATTERY CONNECTOR (# 068-0159)
£6.98

Out of Stock

G13 - BATTERY SOCKET (# 100-0122)
£2.48

Out of Stock

G15 - SELFTPPING SCREW 4x10 (# F-TFPX-4-10-ST-BO)
£0.48

In Stock

Estimated Delivery 1-2 Business Days
G16 - CABLE GRIP BRIDGE (# 100-0197)
£1.15

Out of Stock

G17 - HANDLE BRIDGE (# 100-0195)
£1.98

Out of Stock

G18 - HANDLE UPPER BODY (# 100-0116)
£8.98

Out of Stock

G19 - PANHEAD SCREW M5x20 (# F-SPHPZ-M5-20-ST-BO)
£0.98

In Stock

Estimated Delivery 1-2 Business Days
G20 - LED TRANSFORMER (# 100-0166)
£9.98

Out of Stock

H01 - SELF TAPPING SCREW 4x16 (# F-TFPX-4-16-ST-BO)
£0.48

In Stock

Estimated Delivery 1-2 Business Days
H02 - MOTOR END CAP (# 100-0222)
£5.98

Out of Stock

H03 - MOTOR PCB BOX (# 100-0226)
£2.98

Out of Stock

H04 - MOTOR HOUSING (# 100-0162)
£17.98

Out of Stock

H07 - MOTOR CONTROLLER BLDC 36V (# 100-0170)
£89.98

Out of Stock

H08 - MOTOR 36V BLDC (# 100-0174)
£88.98

Out of Stock

H09 - PAN HEAD SCREW M4x16 (# F-SPHPZ-M4-16-ST-BO)
£0.98

In Stock

Estimated Delivery 1-2 Business Days
H12 - MOTOR END PLATE (# 100-0165)
£9.98

Out of Stock

H13 - SELF TAPPING SCREW 4x12 (# F-TFPX-4-12-ST-BO)
£0.48

Out of Stock

H14 - PULLEY-POLY-V-J 8-GROOVE DRIVING (# 100-0114)
£6.98

Out of Stock

H16 - MOTOR CABLE (# 100-0237)
£2.48

Out of Stock

H17 - CABLE GLAND (# 100-0236)
£0.98

Out of Stock

K01 - DUST HOSE CONNECTOR UK/EU (# 027-0220)
£6.98

In Stock

Estimated Delivery 1-2 Business Days
K02 - DUST BAG (# 048-0259)
£5.98

In Stock

Estimated Delivery 1-2 Business Days
