Evolution R255SMS+ 255mm Sliding Compound Mitre Saw With TCT Multi-Material Cutting Blade

230V:

£229.98

£249.98

Save £20.00

Buy Now

Evolution R255SMS+ 255mm Sliding Compound Mitre Saw With TCT Multi-Material Cutting Blade

SKU: 052-0001A

EAN/UPC: 00849713073723

Evolution R255SMS+ 255mm Sliding Compound Mitre Saw With TCT Multi-Material Cutting Blade + Evolution R255SMS+ 255mm Sliding Compound Mitre Saw With TCT Multi-Material Cutting Blade
Available Bundles
Evolution R255SMS+ 255mm Sliding Compound Mitre Saw With TCT Multi-Material Cutting Blade Compatible Blades
Evolution R255SMS+ 255mm Sliding Compound Mitre Saw With TCT Multi-Material Cutting Blade Related Accessories
  • Multi-Material cutting technology.
  • 300mm sliding functionality, adjustable depth of cut and laser precision guidance.
  • Crosscuts, Mitre cuts, Bevel cuts and Compound cuts with adjustable precision settings.
    • Read more

Specifications

Blade Size 255mm
Warranty 3 Years
Power Corded
Max. Cross Cut 300 x 80mm
Max. Mitre
  • 50° - 50°
Learn More
Watch Video
Evolution R255SMS+ 255mm Sliding Compound Mitre Saw With TCT Multi-Material Cutting Blade Similar Products
Reviews

3 Years Year Warranty Register Your Warranty

45 Day Returns

Earn 230 EVO Points + 5% off your first order

Download Instruction Manual
Download Assembly Guide
Download Parts Diagram
£249.98 £229.98
(£191.65 EX VAT)
Save £20.00
Pay-In-3 : £76.66 per month
iwoca-pay-logo Pay-In-12 : £19.16 per month with Iwoca Pay

Free delivery, geographic exclusions apply please see shipping page for details. Please note: Discount codes may not be valid on some bundles, subscriptions, or sale items. Certain combinations of discount codes and promotions and giveaways cannot be used in a single order.

Frequently Bought Together

Available Bundles

Compatible Blades

Recommended Accessories

Description

This R255SMS+ Evolution Mitre Saw is built for accurate crosscut, bevel, mitre and trench cuts in wood, wood composite, plastics, and metal. Powered by a 2000W motor (240V), it comes with a 255mm tungsten carbide tipped (TCT) Multi-Material blade and has a 300mm x 80mm crosscut capacity and the ability to deliver cut accuracy within +/- 0.5˚, 0° - 45° bevel tilt and 50˚ - 50˚ mitre angles.

Trade rated and approved the R255SMS+ compound mitre saw is the ultimate tool on the job site. Accuracy, power and reliability are at the forefront of its design, this 255mm compound sliding mitre saw is equipped to power through 6mm thick mild steel, and cut hardwood, laminate and even nail-embedded wood with precision. Pair it with the Evolution Mitre Saw Stand and you have a cutting station ready to tackle the biggest jobs on site or at home.

The R255SMS+ compound mitre saw is a true workhorse with a max cross cut of 300mm x 80mm. It's ready to cut almost anything with our Multi-Material blade, and the R255SMS+ can be used with any of our 255mm wood blades if you want a finer finish or faster cuts for those perfect crown mouldings and laser precise joints.

Features

  • Multi-Material cutting technology. One saw, one blade, cuts all.*
  • Accurate cutting with 300mm sliding functionality, adjustable depth of cut and laser precision guidance.
  • Smooth, square, reliable bevel and mitre cuts every time in a variety of materials.
  • Powerful 2000W (240v) / 1600W (110v) hi-torque, optimised gearbox and blade system increases motor and blade life to cut through a variety of materials with ease.
  • Clean & consistent smooth cutting to within +/- 0.5˚ with 0° - 45° bevel tilt and 50˚ - 50˚ mitre angles with quick click mitre stops at 0˚, 15, 22.5, 30, and 45˚ both left & right.
  • Slice through skirting boards, cornices, boards, decking and more up to 300mm x 80mm.
  • Ambidextrous, ergonomic, horizontal trigger with comfortable grip combats repetitive strain.
  • Compatible with Evolution's Mitre Saw Stand allows you full control to cut accurate repeated lengths on wide and long materials with ease.
  • The Evolution 255mm Diamond blade can also be fitted for cutting ceramic tiles and ornamental stone, (sold separately).
  • 3 Year limited warranty.

PLUS+ Features

  • Premium Japanese Tungsten-Carbide-Tipped (TCT) 255mm blade included for long-life, multi-material cutting.
  • Dual Quick-Release clamps included for additional accuracy & faster adjustments.
  • Slide rail protector included protects against damage & prevents dust ingress.
  • Cleaner & safer working environment with dust collection bag & dust port adaptor for use with vacuum extraction.
  • Integrated carry handles - easy to carry & transport around the workplace.
  • 3m power cable reduces the need for extension leads.
Specifications
Motor (110V 50Hz): 1600W
Motor (240V 50Hz): 2000W
Speed No Load: 2500 min-1
Max. Mitre: 50° - 50°
Max. Bevel (Left): 45°
Blade Guard: Cast Aluminium
Cable Length: 3m
Blade Dia.: 255mm
No. of Teeth: 28
Bore: 25.4mm
Kerf: 2mm
Max. Cross Cut (0° x 0°): 300mm x 80mm
Max. Bevel Cut (0° x 45°): 300mm x 45mm
Max. Mitre Cut (45° x 0°): 210mm x 80mm
Max. Compound Cut (45° x 45°): 210mm x 45mm
Mild Steel Plate (Max. Thickness): 6mm
Mild Steel Box Section (Max. Wall Thickness): 3mm
Product Dimensions: 360mm x 705mm x 730mm (with saw head down)
Packaging Dimensions: 365mm x 565mm x 520mm
Product Weight: 15.3 kg
Packaged Weight: 18.5 kg
Sound Pressure Level LPA: 110V: 95.8 dB(A) / 220-240V: 95.8dB(A)
Sound Power Level LWA: 110V: 108.8 dB(A) / 220-240V: 108.8dB(A)
Uncertainty K: KpA & KWA: K=3 dB(A)
Laser Class: Class 2
Laser Source: Laser Diode
Laser Output Power (Max): <1mW
Wave Length (Nm): 650
Items Supplied
Machine Table Extensions
Double Ended Hex Key (M6 & M5)
Rotary Table And Neck
Cutting Head
Carriage Slides
Mitre Locking Knob
Mains Cable Guide/Clamp
Self Tapping Cap Screw
Socket Headed Screws
Cable Clamp Component
Laser Lens Cap
Double Ended Cable Clip
Carry Handle
Tall Fence
Dust Port Adaptor
Dust Collection Bag
Slide Rail Protector
3pc Hold Down Clamp
Front Clamp
255mm 28 Tooth Blade
Compatible With

255mm Multi-Material Cutting TCT Blade
255mm Diamond Masonry Cutting Blade
255mm Wood Cutting Blade
Mitre Saw Stand

Buy Now, Pay Later

Buy Now, Pay Later

Split your order total into 3 interest-free instalments with Klarna.

Shop

  • Add items to your cart, and go to the checkout.
  • Minimum order total: £35.00
  • Select Klarna as your payment method.
  • Please keep your proof of purchase / delivery.
  • You don’t have to create a Klarna account, if you don’t want to. TIP: Just tap ‘Change’ under payment type and then ‘Add New Payment Method'.

Pay-In-3

  • The first instalment will be taken from your card when you place your order.
  • The next two remaining payments will be automatically charged 30 and 60 days later.
  • For example: £150 mitre saw.
    Day 1: £50. Day 30: £50. Day 60: £50.
  • With 0% Interest
  • Note: You’ll get notifications when your payment is due and when it’s collected. There is zero interest and never any fees when you pay on time. If you return any items on your order, your Klarna statement and schedule will be updated.

To get started all you need is:

  • A UK bank account with a good credit history.
  • A credit/debit card to be valid for 60 days from the purchase date.
  • To be 18 years of age or over.
  • A UK residential address.
  • A valid mobile number and email address.

How do I pay using Pay Later in 3 with Klarna?

  • To pay using Klarna, your order total must be equal to or more than £35.00. When you get to checkout, click ‘change’ under payment type and then ‘Add New Payment Method’.
  • You'll need to provide your mobile number as Klarna may need to contact you. You'll also need to include your email address so that Klarna can send your payment schedule. Klarna use this information to keep you up to date on any payments or refunds that are due, so it’s important the details you provide us with are correct.

When will I receive my payment schedule?

  • You’ll be asked to pay the first of the 3 equal instalments once your order has been confirmed at checkout.
  • Instalments 2 and 3 will automatically be collected from the debit or credit card you entered at checkout 30 and 60 days later, respectively.
  • You'll receive a reminder from Klarna 2 days before each instalment is collected.
  • If you miss one of your scheduled instalments and Klarna are unable to automatically withdraw the money from your account 2 days later, you'll be issued with a statement for the full amount due.

I'm having trouble paying with Klarna. If you have any trouble placing an order with Klarna, it could be due to one of the following reasons:

  • Klarna payments are subject to your financial circumstances. Klarna may have rejected your application to Pay later in 3. We’d recommend choosing another type of payment or placing an order for a smaller amount.
  • You may have outstanding payments on previous Klarna purchases with other retailers.
  • You may have missed a required field at the checkout, such as filling in your date of birth.

Please note: That Klarna is an independent payment company and Evolution Power Tools Limited has no influence over whether your payment with Klarna is accepted or not. If you have any trouble with your order, please contact Klarna Customer Service.

  • For terms on Pay Later in 3 with Klarna click here.
  • For more information about Pay Later in 3 with Klarna, click here.
  • To find out more about returns paid with Klarna, click here.

Terms & Conditions

Our website contains links to websites owned and operated by third parties; these are provided solely for your convenience. Evolution has no control over these sites and are not responsible for their content or availability.

  • In cooperation with Klarna Bank AB (publ), Sveavägen 46, 111 34 Stockholm, Sweden, we offer you the following payment methods. Payment is to be made to Klarna.
  • Financing: With the financing service from Klarna you can pay your purchase in flexible or fixed monthly instalments according to the conditions stated in the checkout. The instalment payment is due at the end of each month after submission of a separate monthly invoice by Klarna. Further information regarding Slice It including terms and conditions and Standard European Consumer Credit Information you can find here for the United Kingdom.
  • Direct Debit: Your account will be debited after shipment of the goods or tickets/ availability date of the service ​or in case of a subscription in accordance with the timelines communicate​d. You will be notified about the date(s) by email.
  • The payment method; Slice It and direct debit are only available in case of a positive credit assessment. For this purpose, during the order process and handling of your purchase, we forward your data for an address and credit check to Klarna. We can only offer you the payment methods available based on the result of the credit check. General information about Klarna and the user terms per country can be found on klarna.com.
  • Your personal data is handled in accordance with applicable data protection law and in accordance with the information in Klarnas privacy statement. n cooperation with Klarna Bank AB (publ), Sveavägen 46, 111 34 Stockholm, Sweden, we offer you the following payment options. Payment is to be made to Klarna:

Financing - Pay in 3

  • Further information and Klarnas user terms you can find here.
  • General information on Klarna you can find here.
  • Your personal data is handled in accordance with applicable data protection law and in accordance with the information in Klarnas privacy statement.

Privacy Policy

  • In order to be able to offer you Klarna’s payment options, we will pass to Klarna certain aspects of your personal information, such as contact and order details, in order for Klarna to assess whether you qualify for their payment options and to tailor the payment options for you. General information on Klarna you can find here.
  • Your personal data is handled in accordance with applicable data protection law and in accordance with the information in Klarna’s privacy policy.
3-Year Guarantee

3-Year Guarantee

Evolution Power Tools 3 Year Warranty
Please keep your proof of purchase / delivery.
  • The guarantee becomes effective at the date of purchase (or the date of delivery if this is later).
  • You must provide proof of delivery/ purchase before any work can be carried out on your machine. Without this proof, any work carried out will be chargeable. Please keep your receipt or delivery note.
  • All work will be carried out by Evolution.
  • Any parts which are replaced will become the property of Evolution.
  • The repair or replacement of your machine under guarantee will not extend the period of guarantee.
  • The guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.
  • The repair or replacement of your machine (at Evolution’s discretion), if your machine is found to be defective due to faulty materials, workmanship or function within the guarantee period (if any part is no longer available or out of manufacture, Evolution will replace it with a functional replacement part).
  • Overseas users should contact the official importer for that country.
Evolution does not warrant the repair or replacement of a product when the following has occurred;
  • Normal wear and tear (eg. Fuse, Fluids/Lubricants, Blades, etc.)
  • Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the machine which is not in use with Evolution’s user guide.
  • Lack of servicing.
  • Use of parts not assembled or installed in accordance with the instructions of Evolution.
  • Use of parts and accessories which are not Evolution Genuine Components.
  • Faulty installation (except installation by Evolution).
  • Repairs or alterations carried out by parties other than Evolution.

Multi-Material Cutting Technology

Wood
Hardwood & tanalised decking, MDF laminates, mouldings, reclaimed wood with nails, scaffold boards & poles, stud-work.

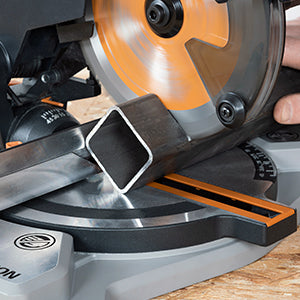

Ferrous Metal
Mild Steel, angled, box section, square tube, metal stud dry walling, rebar, plate (1/4 inch), unistrut.

Non-Ferrous Metal
Aluminium, armoured cables, cable tray, copper, floor edgings, roof flashings, stair nosings.

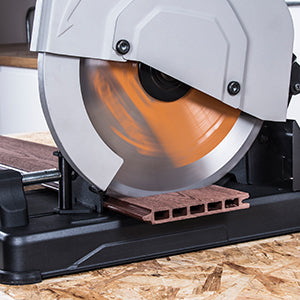

Plastic
Electrical conduit, plastic pipes, plexiglas, rubber & reinforced hoses, (WPC) Wood Plastic Composites.

Not Recommended
Hardened high carbon, coated and stainless steel. Note: Cutting galvanised steel may reduce blade life. See our stainless steel cutting blades.

Your Reviews

FAQs

What is a Mitre Saw and what can it cut?

A mitre saw is a power tool designed for making accurate straight, angled, and bevel cuts. It features a circular blade mounted on a pivoting arm, allowing you to set precise, repeatable angles for different types of cuts.

Traditionally used for woodworking, Evolution mitre saws go further. Every model comes with a multi-material blade, so you can cut new and reclaimed timber, mild steel, non-ferrous metals, plastics, and composites. This makes them ideal for DIY projects and professional 1st and 2nd fix work.

What is a Compound Mitre Saw?

A compound mitre saw lets you make two angled cuts at the same time: a mitre cut (horizontal angle) and a bevel cut (vertical angle). This is ideal for jobs like dado rails, cornices, and skirting boards where two pieces of wood need to meet perfectly without gaps.

What is a Sliding Compound Mitre Saw?

A sliding compound mitre saw combines the dual-angle cutting ability of a compound mitre saw with a sliding carriage. This allows the saw head to move forward as well as up and down, giving you a much greater cross-cut capacity than a non-sliding saw of the same blade size.

Sliding compound mitre saws are perfect for cutting wide boards and are widely used in woodworking, DIY, and construction projects where precision and repeatability matter.

What's the difference between a Single and Double Bevel Mitre Saw?

A single bevel mitre saw has a head that tilts in one direction only, so bevel cuts can be made on one side of the material.

A double bevel mitre saw tilts both left and right, allowing bevel cuts on both sides without flipping the workpiece. This saves time and improves accuracy, making it ideal for complex, decorative work such as crown moulding where precise angles are essential."

Do I push or pull the blade when cutting with a Mitre Saw?

When using a sliding mitre saw, start with the blade closest to you. Then start the blade, lower it into the material, and then push it away smoothly to complete the cut.

Push down and forward through the material in a controlled motion. This helps prevent the blade from climbing or grabbing the workpiece, ensuring a cleaner, safer cut.

What can I cut on an Evolution Mitre Saw?

All Evolution Mitre Saws come with a Multi-material blade fitted. This Tungsten Carbide Tipped blade can cut new and reclaimed wood, laminate, mild steel, non-ferrous metal, plastics and composites This blade is ideal for any user who is likely to cut various materials and doesn’t want to have to swap blades.

We also manufacture a range of material specific blades for cutting wood, mild steel, 304 stainless steel and aluminium. These blades will give you a sharper, cleaner cut, last longer and have a tooth count, gullet shape and unique tooth profile optimised for each cutting task. Our wood specific blades come in two types, General for ripping cuts and Fine for cross cuts.

Can I cut Steel with an Evolution mitre Saw?

All Evolution mitre Saws can cut Mild-Steel using the Multi-material blades included with all of our Mitre Saws. If you intend on cutting large amounts of metal you might find one of our Chop Saws is better suited to your needs. Our S355CPS is the industry standard metal cutting Chop Saw and used by welders, machinists and fabricators all over the world.

Which brand has the longest Mitre Saw warranty?

All Evolution Mitre Saws come with a long 3-year, parts and manufacturing warranty. Evolution has a service centre at our UK Head office and we can help keep your power tools running faultlessly for years and years.

Do I need a Mitre Saw Stand?

If you are going to be moving your Mitre Saw around, using it on-site, and taking it with you to various job locations then a Mitre Saw Stand will be incredibly helpful. Our Mitre Saw Stand will help safely support long and heavy workpieces while allowing you to make more accurate, repeatable cuts.



If you are going to be locating your Mitre Saw in a dedicated workshop then it’s usual to build it into a bench so that the top surface of the bench is level with the cutting surface of the Mitre Saw.

Can a Mitre Saw cut metal?

All Evolution corded and cordless Mitre Saws can cut metal as well as wood, plastic and composites straight out of the box with our Multi-material blade. All of our Mitre Saws will cut mild steel stock, aluminium and other non-ferrous metals.

Evolution also manufacturer a range of aluminium, stainless steel, mild steel and non-ferrous metal cutting blades for all of our mitre saws, table saws, chop saws and circular saws.

Can a Mitre Saw cut tile and other ceramics?

All Evolution Mitre Saws can cut tiles with a diamond tipped blade. We sell diamond tipped blades in sizes to suit all our Mitre Saws. If you need a quick cut in a tile or other piece of masonry an Evolution Mitre Saw and diamond tipped blade will get the job done.

If you need to make repeated cuts in masonry, we recommend that you take a look at our range of Electric Disc Cutters/Concrete Saws.

Are Mitre Saws Safe?

Like all power tools, mitre saws can be dangerous if used incorrectly. Evolution mitre saws include multiple safety features to make cutting as safe as possible - even for beginners:

  • Workpiece clamps to secure materials during cutting.
  • Ambidextrous handles for better control and comfort.
  • Full blade guards that cover the blade when not in use.

Always wear suitable eye and hearing protection, read the manufacturer’s instructions, and contact our customer service team if you need help."

How does the rear fence work on a Mitre Saw?

The rear fence provides a backstop to hold the workpiece securely during cutting when used with a front clamp or top clamp. These are adjustable and can be moved inwards and outwards to accommodate various blade cutting angles.

Do all Mitre Saws have dust extraction?

All Evolution Mitre Saws have can be connected to powered dust extraction systems to help keep your workspace clean. The Evolution R15VAC Wet and Dry Workshop Vacuum can be used with all of our Mitre Saws and offer remote start-up when used with the 185mm, 210mm and Single Bevel 255mm Mitre Saws.

What are the different types of Mitre Saw?

There are four main types of mitre saw, each designed for specific cutting tasks

  • Compound Mitre Saws – Makes mitre and bevel cuts at the same time, perfect for complex angles.
  • Sliding Mitre Saws – Also move forward as well as up and down, allowing deeper cuts on wider boards.
  • Single Bevel Mitre Saws – Tilts in one direction for bevel cuts. Perfect for simpler projects needing fewer angled cuts.
  • Double Bevel Mitre Saws – Tilts both left and right, saves time by making multiple angled cuts without repositioning your material.

How accurate are Mitre Saws?

Evolution Mitre Saws offer repeatable cut accuracy to within half a degree for Bevel and Mitre cuts. Our adjustable depth stops mean you can make perfectly accurate trench cuts with almost zero variance across the entire trench.

The accuracy that you can achieve from your saw will depend on how carefully you calibrate the saw. A few minutes spent with a square or digital angle finder during initial assembly will repay you with greater cut accuracy.

Do you need a Mitre Saw Stand?

It’s highly recommended. A mitre saw stand provides extra stability, safety, and convenience while you work. It helps keep your saw secure and at the right height for accurate cuts.
At Evolution, we offer a range of mitre saw stands and special bundles that include both the saw and stand for added value.

What types of Mitre Saws are there?

There are four main types of Mitre Saw, with features that make them specific to different jobs:

  • Single bevel - designed to move in a single direction.
  • Double bevel - for making multiple angled cuts, without moving your material.
  • Compound - for making mitre cuts and bevelled cuts at the same time.
  • Sliding - these saws can move forward as well as up and down, for deeper cuts.

Select a question...

You may also like:

Give our Sheffield, UK based team of experts a call:

0114 251 1022
